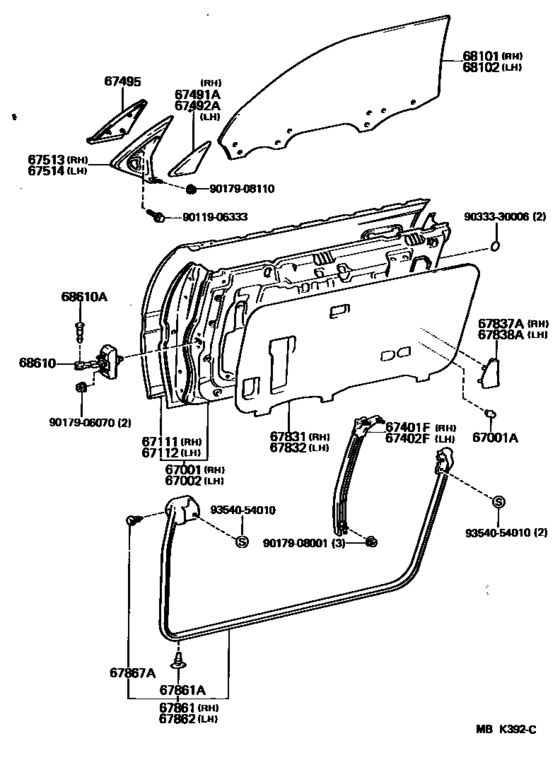

Front Door Panel & Glass ([02.1986 - ] (8602- )) Diagram Toyota SUPRA
- Year
- 1986 - 1988
- Sales region
- Japan
- Frame
- GA70
- grade
- S
- body
- LB
- ENGINE
- 1GEU
- TRANSMISSION
- ATM
- Model
- SUPRA 70
- From
- 02.1986
- To
- 08.1988
- Gear Shift Type
- 4FC
- Vehicle Model
- SUPRA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67001
|
67001
67001-14330 Panel Sub-Assy, Front Door, Rh[02.1986 - 08.1988] GA70,MA70..LB |
67001-14330 |
US $1,042.50 |
||
|
67001A
|
67001A
90541-09051
Cushion, Front Door Panel
[02.1986 - 08.1988] GA70,MA70 |
90541-09051 |
— | ||
|
67002
|
67002
67002-14360 Panel Sub-Assy, Front Door, Lh[02.1986 - 08.1988] GA70,MA70..LB |
67002-14360 |
US $1,042.50 |
||
|
67111
|
67111
67111-14220
Panel, Front Door, Outer Rh
[02.1986 - 08.1988] GA70,MA70 |
67111-14220 |
— | ||
|
67112
|
67112
67112-14230
Panel, Front Door, Outer Lh
[02.1986 - 08.1988] GA70,MA70 |
67112-14230 |
— | ||
|
67401F
|
67401F
67401-14230 Frame Sub-Assy, Front Door, Front Lower Rh[02.1986 - 08.1988] GA70,MA70 |
67401-14230 |
US $59.55 |
||
|
67402F
|
67402F
67402-14220 Frame Sub-Assy, Front Door, Front Lower Lh[02.1986 - 08.1988] GA70,MA70 |
67402-14220 |
US $59.55 |
||
|
67491A
|
67491A
67491-14110
Garnish, Front Door Lower Frame Bracket, Rh
[02.1986 - 02.1986] GA70,MA70 |
67491-14110 |
— | ||
|
67491A
|
67491A
67491-14111
Garnish, Front Door Lower Frame Bracket, Rh
[02.1986 - 08.1988] GA70,MA70 |
67491-14111 |
— | ||
|
67492A
|
67492A
67492-14110
Garnish, Front Door Lower Frame Bracket, Lh
[02.1986 - 02.1986] GA70,MA70 |
67492-14110 |
— | ||
|
67492A
|
67492A
67492-14111
Garnish, Front Door Lower Frame Bracket, Lh
[02.1986 - 08.1988] GA70,MA70 |
67492-14111 |
— | ||
|
67495
|
67495
67495-14080
Cover, Front Door Front Lower Frame, Upper
[02.1986 - 08.1988] GA70,MA70 RH |
67495-14080 |
— | ||
|
67495
|
67495
67496-14080
Cover, Front Door Front Lower Frame, Upper
[02.1986 - 08.1988] GA70,MA70 LH |
67496-14080 |
— | ||
|
67513
|
67513
67513-14010
Bracket, Front Door Mirror, Rh
[02.1986 - 02.1986] GA70,MA70 |
67513-14010 |
— | ||
|
67513
|
67513
67513-14011
Bracket, Front Door Mirror, Rh
[02.1986 - 05.1988] GA70,MA70 |
67513-14011 |
— | ||
| replacement | |||||
|
67513
|
67513
67513-14012
Bracket, Front Door Mirror, Rh
[02.1986 - 05.1988] GA70,MA70 |
67513-14012 |
— | ||
|
67513
|
67513
67513-14012
Bracket, Front Door Mirror, Rh
[05.1988 - 08.1988] GA70,MA70 |
67513-14012 |
— | ||
|
67514
|
67514
67514-14010
Bracket, Front Door Mirror, Lh
[02.1986 - 02.1986] GA70,MA70 |
67514-14010 |
— | ||
| replacement | |||||
|
67514
|
67514
67514-14012
Bracket, Front Door Mirror, Lh
[02.1986 - 02.1986] GA70,MA70 |
67514-14012 |
— | ||
|
67514
|
67514
67514-14011
Bracket, Front Door Mirror, Lh
[02.1986 - 05.1988] GA70,MA70 |
67514-14011 |
— | ||
| replacement | |||||
|
67514
|
67514
67514-14012
Bracket, Front Door Mirror, Lh
[02.1986 - 05.1988] GA70,MA70 |
67514-14012 |
— | ||
|
67514
|
67514
67514-14012
Bracket, Front Door Mirror, Lh
[05.1988 - 08.1988] GA70,MA70 |
67514-14012 |
— | ||
|
67831
|
67831
67831-14180
Cover, Front Door Service Hole, Rh
[02.1986 - 08.1988] GA70,MA70 |
67831-14180 |
— | ||
|
67832
|
67832
67832-14090
Cover, Front Door Service Hole, Lh
[02.1986 - 08.1988] GA70,MA70 |
67832-14090 |
— | ||
|
67837A
|
67837A
67847-14020 Seal, Front Door Vent, Rh[02.1986 - 08.1988] GA70,MA70 |
67847-14020 |
US $9.90 |
||
|
67838A
|
67838A
67848-14010 Seal, Front Door Vent, Lh[02.1986 - 08.1988] GA70,MA70 |
67848-14010 |
US $9.90 |
||
|
67861
|
67861
67861-14300
Weatherstrip, Front Door, Rh
[02.1986 - 08.1988] GA70,MA70 |
67861-14300 |
— | ||
|
67861A
|
67861A
67868-30040 Retainer, Roof Side Rail, Rh[02.1986 - 08.1988] GA70,MA70 |
67868-30040 |
US $1.76 |
||
|
67862
|
67862
67862-14300
Weatherstrip, Front Door, Lh
[02.1986 - 08.1988] GA70,MA70 |
67862-14300 |
— | ||
|
67867A
|
67867A
67869-30020 Clip, Headlamp Door Filler[02.1986 - 08.1988] GA70,MA70 |
67869-30020 |
US $3.52 |
||
|
68101
|
68101
68111-14330
Glass Sub-Assy, Front Door, Rh
[02.1986 - 08.1988] GA70,MA70 ＊ＴＴ，厚さ＝５．０,*TT,T=5.0 |
68111-14330 |
— | ||
|
68102
|
68102
68112-14340
Glass Sub-Assy, Front Door, Lh
[02.1986 - 08.1988] GA70,MA70 ＊ＴＴ，厚さ＝５．０,*TT,T=5.0 |
68112-14340 |
— | ||
|
68610
|
68610
68610-14060
Check Assy, Front Door
[04.1986 - 08.1988] GA70,MA70 |
68610-14060 |
— | ||
|
68610
|
68610
68610-14070
Check Assy, Front Door
[02.1986 - 04.1986] GA70,MA70 |
68610-14070 |
— | ||
|
68610A
|
68610A
68617-90K00 Pin(For Front Door Check)[02.1986 - 08.1988] GA70,MA70 |
68617-90K00 |
US $3.20 |
||
|
9011906333
|
9011906333
90119-06333
New Genuine Part
|
90119-06333 |
— | ||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9017908001
|
9017908001
90179-08001
New Genuine Part
|
90179-08001 |
— | ||
| replacement | |||||
|
9017908001
|
9017908001
90179-08233 NUT |
90179-08233 |
from US $1.33 |
||
|
9017908110
|
9017908110
90179-08110
New Genuine Part
|
90179-08110 |
— | ||
| replacement | |||||
|
9017908110
|
9017908110
90179-08233 NUT |
90179-08233 |
from US $1.33 |
||
|
9033330006
|
9033330006
90333-30006 New Genuine Part |
90333-30006 |
US $1.75 |
||
|
9354054010
|
9354054010
93540-54010 Screw, Roof Headlining Trim |
93540-54010 |
from US $1.92 |
||
