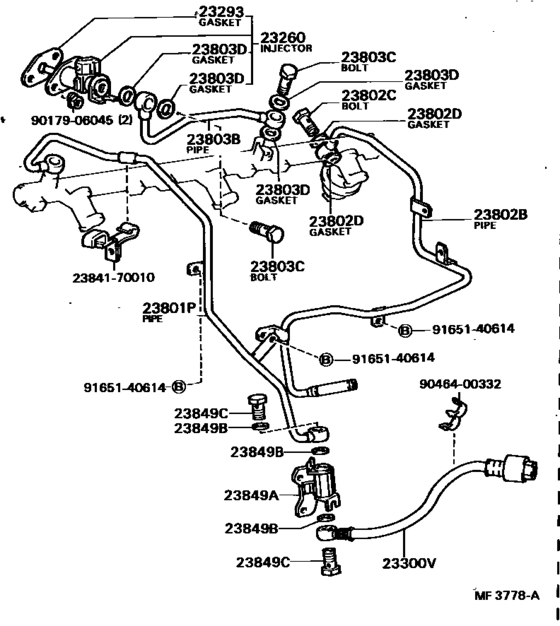

Fuel Injection System ([02.1986 - ] (8602- )1GEU) Diagram Toyota SUPRA
- Year
- 1986 - 1988
- Sales region
- Japan
- Frame
- GA70
- grade
- S
- body
- LB
- ENGINE
- 1GEU
- TRANSMISSION
- ATM
- Model
- SUPRA 70
- From
- 02.1986
- To
- 08.1988
- Gear Shift Type
- 4FC
- Vehicle Model
- SUPRA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23260
|
23260
23260-79075
Injector Assy, Cold Start Fuel
[02.1986 - 08.1988] 1GEU..GA70 |
23260-79075 |
— | ||
| replacement | |||||
|
23260
|
23260
23260-79076
Injector Assy, Cold Start Fuel
[02.1986 - 08.1988] 1GEU..GA70 |
23260-79076 |
— | ||
|
23293
|
23293
23293-70020 Gasket, Cold Start Injector[02.1986 - 08.1988] 1GEU..GA70 |
23293-70020 |
US $5.39 |
||
| replacement | |||||
|
23293
|
23293
23293-70021 Gasket, Cold Start Injector[02.1986 - 08.1988] 1GEU..GA70 |
23293-70021 |
US $4.66 |
||
|
23300V
|
23300V
90923-01341 Hose, Fuel(For Fuel Inlet)[02.1986 - 08.1988] 1GEU..GA70; 1GG#..GA70 |
90923-01341 |
US $132.50 |
||
|
23801P
|
23801P
23801-70050 Pipe Sub-Assy, Fuel, No.1[02.1986 - 10.1986] 1GEU..GA70 |
23801-70050 |
US $82.99 |
||
| replacement | |||||
|
23801P
|
23801P
23801-70051 Pipe Sub-Assy, Fuel, No.1[02.1986 - 10.1986] 1GEU..GA70 |
23801-70051 |
US $82.99 |
||
|
23801P
|
23801P
23801-70051 Pipe Sub-Assy, Fuel, No.1[10.1986 - 08.1988] 1GEU..GA70 |
23801-70051 |
US $82.99 |
||
|
23802B
|
23802B
23802-70040 Pipe Sub-Assy, Fuel, No.2[02.1986 - 08.1988] 1GEU..GA70 |
23802-70040 |
US $63.34 |
||
|
23802C
|
23802C
90401-08003 Bolt, Union[02.1986 - 08.1988] 1GEU..GA70 |
90401-08003 |
US $2.24 |
||
|
23802D
|
23802D
90430-08005 Gasket[02.1986 - 08.1988] 1GEU..GA70 |
90430-08005 |
US $2.24 |
||
|
23803B
|
23803B
23803-70030 Pipe Sub-Assy, Fuel, No.3[02.1986 - 08.1988] 1GEU..GA70 |
23803-70030 |
US $28.54 |
||
|
23803C
|
23803C
90401-08003 Bolt, Union[02.1986 - 08.1988] 1GEU,1GG#..GA70 |
90401-08003 |
US $2.24 |
||
|
23803D
|
23803D
90430-08005 Gasket[02.1986 - 08.1988] 1GEU,1GG#..GA70 |
90430-08005 |
US $2.24 |
||
|
23849A
|
23849A
23849-88340 Support, Fuel Pipe[02.1986 - 08.1988] 1GEU,1GG#..GA70 |
23849-88340 |
US $34.94 |
||
|
23849B
|
23849B
90430-12005 Gasket(For Water Hole)[02.1986 - 08.1988] 1GEU,1GG#..GA70; 7MGTEU..MA70 |
90430-12005 |
from US $0.90 |
||
|
23849C
|
23849C
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[02.1986 - 08.1988] 1GEU,1GG#..GA70; 7MGTEU..MA70 |
90401-12097 |
from US $2.98 |
||
|
2384170010
|
2384170010
23841-70010 Clamp, Fuel Pipe(hose), No.1 |
23841-70010 |
US $10.92 |
||
|
9017906045
|
9017906045
90179-06045 New Genuine Part |
90179-06045 |
from US $1.92 |
||
|
9046400332
|
9046400332
90464-00332 New Genuine Part |
90464-00332 |
US $3.35 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
