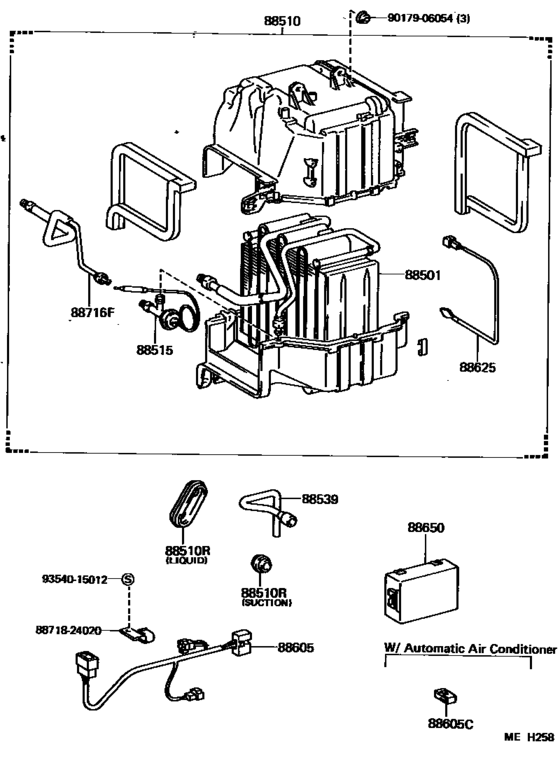

Heating & Air Conditioning - Cooler Unit ([02.1986 - ] (8602- )) Diagram Toyota SUPRA
- Year
- 1986 - 1988
- Sales region
- Japan
- Frame
- GA70
- grade
- S
- body
- LB
- ENGINE
- 1GEU
- TRANSMISSION
- ATM
- Model
- SUPRA 70
- From
- 02.1986
- To
- 08.1988
- Gear Shift Type
- 4FC
- Vehicle Model
- SUPRA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88501
|
88501
88501-24031
Evaporator Sub-Assy, Cooler, No.1
[02.1986 - 08.1988] GA70,MA70 |
88501-24031 |
— | ||
|
88510
|
88510
88510-24090
Unit Assy, Cooler
[02.1986 - 08.1988] GA70,MA70 |
88510-24090 |
— | ||
|
88510R
|
88510R
90480-24008
Grommet (For Cooler Unit)
[02.1986 - 08.1988] GA70,MA70 LIQUID PIPE |
90480-24008 |
— | ||
| replacement | |||||
|
88510R
|
88510R
90099-32137 Grommet (For Cooler Unit)[02.1986 - 08.1988] GA70,MA70 LIQUID PIPE |
90099-32137 |
US $5.39 |
||
|
88510R
|
88510R
90480-26004 Grommet, Heater Hose[02.1986 - 08.1988] GA70,MA70 SUCTION PIPE |
90480-26004 |
US $1.40 |
||
|
88515
|
88515
88515-20050
Valve, Cooler Expansion
[02.1986 - 08.1988] GA70,MA70 |
88515-20050 |
— | ||
| replacement | |||||
|
88515
|
88515
88515-22170
Valve, Cooler Expansion
[02.1986 - 08.1988] GA70,MA70 |
88515-22170 |
— | ||
|
88539
|
88539
88539-24050
Hose, Cooler Unit Drain, No.1
[02.1986 - 08.1988] GA70,MA70 |
88539-24050 |
— | ||
|
88605
|
88605
88605-14780
Harness Sub-Assy, Cooler Wiring, No.1
[02.1986 - 08.1988] GA70,MA70..G,GTL,GTT,S |
88605-14780 |
— | ||
|
88605C
|
88605C
88605-14850
Harness Sub-Assy, Cooler Wiring, No.2
[02.1986 - 08.1988] GA70,MA70 W/*AAC |
88605-14850 |
— | ||
|
88625
|
88625
88625-24050
Thermistor, Cooler, No.1
[02.1986 - 08.1988] GA70,MA70 |
88625-24050 |
— | ||
|
88650
|
88650
88650-14240
Amplifier Assy, Cooler Stabilizer
[02.1986 - 08.1988] GA70,MA70 |
88650-14240 |
— | ||
|
88716F
|
88716F
88716-24070 Pipe, Cooler Refrigerant Liquid, F[02.1986 - 08.1988] GA70,MA70 |
88716-24070 |
US $41.64 |
||
|
8871824020
|
8871824020
88718-24020
Clamp (For Cooler Wiring Harness), No.1
|
88718-24020 |
— | ||
|
9017906054
|
9017906054
90179-06054 NUT |
90179-06054 |
US $1.89 |
||
| replacement | |||||
|
9017906054
|
9017906054
90179-06314 NUT |
90179-06314 |
from US $0.84 |
||
|
9354015012
|
9354015012
93540-15012
New Genuine Part
|
93540-15012 |
— | ||
