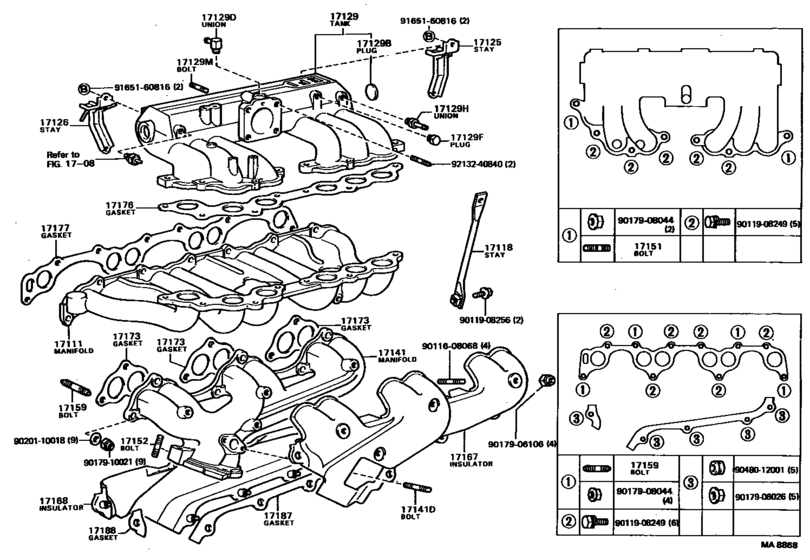

Manifold ([02.1986 - ] (8602- )1GEU) Diagram Toyota SUPRA
- Year
- 1986 - 1988
- Sales region
- Japan
- Frame
- GA70
- grade
- S
- body
- LB
- ENGINE
- 1GEU
- TRANSMISSION
- ATM
- Model
- SUPRA 70
- From
- 02.1986
- To
- 08.1988
- Gear Shift Type
- 4FC
- Vehicle Model
- SUPRA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17111-70030 Manifold, Intake[02.1986 - 08.1988] 1GEU..GA70 |
17111-70030 |
US $444.08 |
||
|
17118
|
17118
17118-70050 Stay, Manifold[02.1986 - 01.1987] 1GEU..GA70 |
17118-70050 |
US $31.16 |
||
|
17118
|
17118
17118-88304 Stay, Manifold[01.1987 - 08.1988] 1GEU..GA70 |
17118-88304 |
US $32.61 |
||
|
17125
|
17125
17125-70010 Stay, Surge Tank, No.1[02.1986 - 08.1988] 1GEU..GA70 |
17125-70010 |
US $25.19 |
||
|
17126
|
17126
17126-70020 Stay, Surge Tank, No.2[02.1986 - 08.1988] 1GEU..GA70 |
17126-70020 |
US $27.96 |
||
|
17129
|
17129
17109-70030
Tank, Intake Air Surge
[02.1986 - 08.1988] 1GEU..GA70 |
17109-70030 |
— | ||
|
17129B
|
17129B
96411-43000 Plug, Tight, No.1[02.1986 - 08.1988] 1GEU..GA70 OD=30 |
96411-43000 |
from US $3.84 |
||
|
17129D
|
17129D
90407-52007 Union, No.2[02.1986 - 08.1988] 1GEU..GA70 |
90407-52007 |
US $7.28 |
||
|
17129F
|
17129F
90345-51003
Plug, W/head Taper Screw, No.1
[02.1986 - 08.1988] 1GEU..GA70 |
90345-51003 |
— | ||
| replacement | |||||
|
17129F
|
17129F
90345-51025 Plug, W/head Taper Screw, No.2[02.1986 - 08.1988] 1GEU..GA70 |
90345-51025 |
US $3.36 |
||
|
17129H
|
17129H
90404-51026 Union(For Vacuum Hose To Carburetor)[02.1986 - 08.1988] 1GEU..GA70 |
90404-51026 |
US $4.80 |
||
|
17129M
|
17129M
92112-40616
Bolt, Stud(For Cold Start Injector)
[02.1986 - 08.1988] 1GEU..GA70 |
92112-40616 |
— | ||
|
17141
|
17141
17141-70013 Manifold, Exhaust[02.1986 - 08.1988] 1GEU..GA70 |
17141-70013 |
US $396.03 |
||
|
17141D
|
17141D
90116-08128 Bolt, Stud(For Manifold Stay)[02.1986 - 08.1988] 1GEU..GA70; 7MGTEU..MA70 |
90116-08128 |
US $4.16 |
||
|
17151
|
17151
90116-08115 Bolt, Stud(For Distributor)[02.1986 - 08.1988] 1GEU..GA70 |
90116-08115 |
US $1.31 |
||
|
17152
|
17152
90116-10058 Bolt, Stud(For Manifold Extension)[02.1986 - 08.1988] 1GEU,1GG#..GA70 L=46.5,S=14&20; 7MGTEU..MA70 L=46.5,S=14&20 |
90116-10058 |
from US $2.44 |
||
|
17159
|
17159
90116-08115 Bolt, Stud(For Distributor)[02.1986 - 08.1988] 1GEU..GA70 INTAKE MANIFOLD |
90116-08115 |
US $1.31 |
||
|
17159
|
17159
90116-10047 Bolt, Stud(For Alternator Bracket)[02.1986 - 08.1988] 1GEU..GA70 EXHAUST MANIFOLD |
90116-10047 |
US $3.35 |
||
|
17167
|
17167
17167-70012 Insulator, Exhaust Manifold Heat, No.1[02.1986 - 08.1988] 1GEU..GA70 |
17167-70012 |
US $136.86 |
||
|
17168
|
17168
17168-70010 Insulator, Exhaust Manifold Heat, No.2[02.1986 - 08.1988] 1GEU..GA70 |
17168-70010 |
US $96.10 |
||
|
17173
|
17173
17173-70010 Gasket, Exhaust Manifold To Head[02.1986 - 08.1988] 1GEU..GA70 |
17173-70010 |
US $12.48 |
||
|
17176
|
17176
17176-70011 Gasket, Air Surge Tank To Intake Manifold[02.1986 - 08.1988] 1GEU..GA70 |
17176-70011 |
US $13.76 |
||
|
17177
|
17177
17177-70020 Gasket, Intake Manifold To Head, No.1[02.1986 - 08.1988] 1GEU..GA70 |
17177-70020 |
US $13.54 |
||
|
17187
|
17187
17187-70010 Gasket, Heat Insulator, No.1[02.1986 - 08.1988] 1GEU..GA70 |
17187-70010 |
US $12.52 |
||
|
17188
|
17188
17188-70010 Gasket, Heat Insulator, No.2[02.1986 - 08.1988] 1GEU..GA70 |
17188-70010 |
US $5.53 |
||
|
9011608068
|
9011608068
90116-08068 New Genuine Part |
90116-08068 |
US $4.48 |
||
|
9011908249
|
9011908249
90119-08249 Bolt(For Clutch Release Cylinder Setting) |
90119-08249 |
US $1.75 |
||
| replacement | |||||
|
9011908249
|
9011908249
91611-60828 Bolt(For Clutch Release Cylinder Setting) |
91611-60828 |
US $1.76 |
||
|
9011908256
|
9011908256
90119-08256 New Genuine Part |
90119-08256 |
US $2.48 |
||
|
9017906026
|
9017906026
90179-06026
Nut, Cap(For Cylinder Head Cover)
|
90179-06026 |
— | ||
| replacement | |||||
|
9017906026
|
9017906026
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9017906106
|
9017906106
90179-06106 NUT |
90179-06106 |
US $1.92 |
||
|
9017908044
|
9017908044
90179-08044 NUT |
90179-08044 |
from US $2.33 |
||
|
9017910021
|
9017910021
90179-10021 Nut |
90179-10021 |
US $4 |
||
|
9020110018
|
9020110018
90201-10018 New Genuine Part |
90201-10018 |
US $2.24 |
||
|
9048012001
|
9048012001
90480-12001
Grommet(For Exhaust Manifold Heat Insulator)
|
90480-12001 |
— | ||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.07 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 Bolt |
90080-11396 |
US $3.72 |
||
|
9213240840
|
9213240840
92132-40840
New Genuine Part
|
92132-40840 |
— | ||
