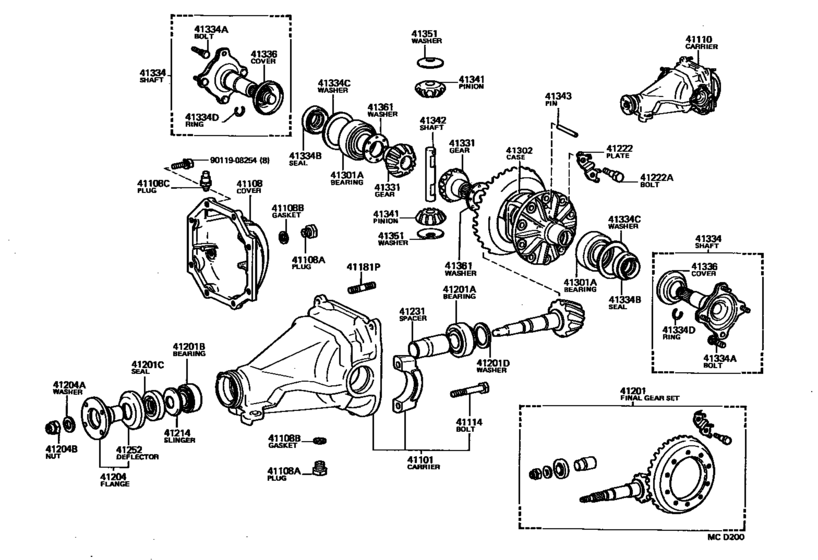

Rear Axle Housing & Differential ([02.1986 - ] (8602- )G,GT,S) Diagram Toyota SUPRA
- Year
- 1986 - 1988
- Sales region
- Japan
- Frame
- GA70
- grade
- S
- body
- LB
- ENGINE
- 1GEU
- TRANSMISSION
- ATM
- Model
- SUPRA 70
- From
- 02.1986
- To
- 08.1988
- Gear Shift Type
- 4FC
- Vehicle Model
- SUPRA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41101
|
41101
41101-14050 Carrier Sub-Assy, Differential, Rear[02.1986 - 08.1988] GA70..G,GT,S |
41101-14050 |
US $579.49 |
||
|
41108
|
41108
41181-14040 Cover Sub-Assy, Rear Differential Carrier[02.1986 - 08.1988] GA70..G,GT,S |
41181-14040 |
US $171.81 |
||
|
41108A
|
41108A
90341-18006 Plug (No magnet)[02.1986 - 08.1988] GA70,MA70 FILLER |
90341-18006 |
from US $2.76 |
||
|
41108A
|
41108A
90341-18030 Plug (For Rear Differential Carrier Cover)[07.1988 - 08.1988] GA70,MA70 DRAIN |
90341-18030 |
US $3.04 |
||
|
41108A
|
41108A
90341-18057 Drain Plug (with Magnet)[02.1986 - 07.1988] GA70,MA70 DRAIN |
90341-18057 |
from US $5.60 |
||
|
41108B
|
41108B
12157-10010 Gasket (For Drain Plug)[02.1986 - 08.1988] GA70,MA70 |
12157-10010 |
from US $0.90 |
||
|
41108C
|
41108C
90930-03031 Plug, Breather(For Parking Cover)[02.1986 - 08.1988] GA70,MA70 |
90930-03031 |
from US $5.92 |
||
|
41110
|
41110
41110-24090 Carrier Assy, Differential, Rear[02.1986 - 08.1988] GA70..4FC..(G,S) ＊ＦＧＲ＝４３：１０＝４．３００ |
41110-24090 |
US $2,810.08 |
||
|
41114
|
41114
90105-12053 Bolt (For Rear Differential Carrier)[02.1986 - 08.1988] GA70,MA70 |
90105-12053 |
from US $1.54 |
||
|
41181P
|
41181P
90116-12013 Bolt (For Rear Differential Carrier Cover Setting)[02.1986 - 08.1988] GA70,MA70 |
90116-12013 |
US $5.39 |
||
|
41181P
|
41181P
90116-12014 Bolt (For Rear Differential Carrier Cover Setting)[02.1986 - 08.1988] GA70,MA70 |
90116-12014 |
US $5.39 |
||
|
41201
|
41201
41201-39565 Final Gear Kit, Differential, Rear[02.1986 - 08.1988] GA70..4FC..(G,S) ＊ＦＧＲ＝４３：１０＝４．３００ |
41201-39565 |
US $848.85 |
||
| replacement | |||||
|
41201
|
41201
41201-80004 Final Gear Kit, Differential, Rear[02.1986 - 08.1988] GA70..4FC..(G,S) ＊ＦＧＲ＝４３：１０＝４．３００ |
41201-80004 |
US $822.93 |
||
|
41201A
|
41201A
90366-35023 Bearing (For Rear Drive Pinion Rear)[02.1986 - 08.1988] GA70..G,GT,S |
90366-35023 |
from US $38.76 |
||
|
41201B
|
41201B
90366-30022
Bearing (For Rear Drive Pinion Front)
[02.1986 - 08.1988] GA70..G,GT,S |
90366-30022 |
— | ||
| replacement | |||||
|
41201B
|
41201B
90366-30078 Bearing (For Rear Drive Pinion Front)[02.1986 - 08.1988] GA70..G,GT,S |
90366-30078 |
from US $33.44 |
||
|
41201C
|
41201C
90311-38010 Seal, Oil (For Rear Differential Carrier)[02.1986 - 08.1988] GA70,MA70 |
90311-38010 |
from US $9.92 |
||
|
41201D
|
41201D
90201-35396 Washer, Plate (For Rear Differential Drive Pinion)[02.1986 - 08.1988] GA70..G,GT,S 厚さ＝２．３６，マーク ０５,T=2.36 |
90201-35396 |
US $4.80 |
||
|
41201D
|
41201D
90201-35397 Washer, Plate (For Rear Differential Drive Pinion)[02.1986 - 08.1988] GA70..G,GT,S 厚さ＝２．３９，マーク ０６,T=2.39 |
90201-35397 |
US $4.80 |
||
|
41201D
|
41201D
90201-35398 Washer, Plate (For Rear Differential Drive Pinion)[02.1986 - 08.1988] GA70..G,GT,S 厚さ＝２．４２，マーク ０７,T=2.42 |
90201-35398 |
US $4.80 |
||
|
41201D
|
41201D
90201-35399 Washer, Plate (For Rear Differential Drive Pinion)[02.1986 - 08.1988] GA70..G,GT,S 厚さ＝２．４３，マーク ０８,T=2.45 |
90201-35399 |
US $4.80 |
||
|
41201D
|
41201D
90201-35400 Washer, Plate (For Rear Differential Drive Pinion)[02.1986 - 08.1988] GA70..G,GT,S 厚さ＝２．４８，マーク ０９,T=2.48 |
90201-35400 |
US $4.80 |
||
|
41201D
|
41201D
90201-35401 Washer, Plate (For Rear Differential Drive Pinion)[02.1986 - 08.1988] GA70..G,GT,S 厚さ＝２．５１，マーク １０,T=2.51 |
90201-35401 |
US $4.80 |
||
|
41201D
|
41201D
90201-35402 Washer, Plate (For Rear Differential Drive Pinion)[02.1986 - 08.1988] GA70..G,GT,S 厚さ＝２．５４，マーク １１,T=2.54 |
90201-35402 |
US $3.84 |
||
|
41201D
|
41201D
90201-35403 Washer, Plate (For Rear Differential Drive Pinion)[02.1986 - 08.1988] GA70..G,GT,S 厚さ＝２．５７，マーク １２,T=2.57 |
90201-35403 |
US $4.80 |
||
|
41201D
|
41201D
90201-35404 Washer, Plate (For Rear Differential Drive Pinion)[02.1986 - 08.1988] GA70..G,GT,S 厚さ＝２．６０，マーク １３,T=2.60 |
90201-35404 |
US $4.80 |
||
|
41201D
|
41201D
90201-35434
Washer, Plate (For Rear Differential Drive Pinion)
[02.1986 - 08.1988] GA70..G,GT,S 厚さ＝２．２４，マーク ０１,T=2.24 |
90201-35434 |
— | ||
| replacement | |||||
|
41201D
|
41201D
90201-35515 Washer, Plate (For Rear Differential Drive Pinion)[02.1986 - 08.1988] GA70..G,GT,S 厚さ＝２．２４，マーク ０１,T=2.24 |
90201-35515 |
US $1.92 |
||
|
41201D
|
41201D
90201-35435
Washer, Plate (For Rear Differential Drive Pinion)
[02.1986 - 08.1988] GA70..G,GT,S 厚さ＝２．２７，マーク ０２,T=2.27 |
90201-35435 |
— | ||
| replacements | |||||
|
41201D
|
41201D
90201-35516 Washer, Plate (For Rear Differential Drive Pinion)[02.1986 - 08.1988] GA70..G,GT,S 厚さ＝２．２７，マーク ０２,T=2.27 |
90201-35516 |
from US $1.92 |
||
|
41201D
|
41201D
90201-35517 Washer, Plate (For Rear Differential Drive Pinion)[02.1986 - 08.1988] GA70..G,GT,S 厚さ＝２．２７，マーク ０２,T=2.27 |
90201-35517 |
from US $1.92 |
||
|
41201D
|
41201D
90201-35436
Washer, Plate (For Rear Differential Drive Pinion)
[02.1986 - 08.1988] GA70..G,GT,S 厚さ＝２．３０，マーク ０３,T=2.30 |
90201-35436 |
— | ||
| replacement | |||||
|
41201D
|
41201D
90201-35517 Washer, Plate (For Rear Differential Drive Pinion)[02.1986 - 08.1988] GA70..G,GT,S 厚さ＝２．３０，マーク ０３,T=2.30 |
90201-35517 |
from US $1.92 |
||
|
41201D
|
41201D
90201-35437
Washer, Plate (For Rear Differential Drive Pinion)
[02.1986 - 08.1988] GA70..G,GT,S 厚さ＝２．３３，マーク ０４,T=2.33 |
90201-35437 |
— | ||
| replacement | |||||
|
41201D
|
41201D
90201-35518 Washer, Plate (For Rear Differential Drive Pinion)[02.1986 - 08.1988] GA70..G,GT,S 厚さ＝２．３３，マーク ０４,T=2.33 |
90201-35518 |
from US $1.92 |
||
|
41201D
|
41201D
90201-35438 Washer, Plate (For Rear Differential Drive Pinion)[02.1986 - 08.1988] GA70..G,GT,S 厚さ＝２．６３，マーク １４,T=2.63 |
90201-35438 |
US $4.80 |
||
|
41201D
|
41201D
90201-35439 Washer, Plate (For Rear Differential Drive Pinion)[02.1986 - 08.1988] GA70..G,GT,S 厚さ＝２．６６，マーク １５,T=2.66 |
90201-35439 |
US $4.80 |
||
|
41201D
|
41201D
90201-35440 Washer, Plate (For Rear Differential Drive Pinion)[02.1986 - 08.1988] GA70..G,GT,S 厚さ＝２．６９，マーク １６,T=2.69 |
90201-35440 |
US $4.80 |
||
|
41201D
|
41201D
90201-35441 Washer, Plate (For Rear Differential Drive Pinion)[02.1986 - 08.1988] GA70..G,GT,S 厚さ＝２．７２，マーク １７,T=2.72 |
90201-35441 |
US $3.84 |
||
|
41204
|
41204
41204-20030 Flange Sub-Assy, Rear Drive Pinion Companion, Rear[02.1986 - 08.1988] GA70..G,GT,S |
41204-20030 |
US $70.06 |
||
|
41204A
|
41204A
90201-18485 Washer, Plate (For Transfer Gear)[02.1986 - 08.1988] GA70..G,GT,S |
90201-18485 |
US $5.28 |
||
|
41204B
|
41204B
90179-18001 Nut (For Transfer Gear)[02.1986 - 08.1988] GA70..G,GT,S ＃ |
90179-18001 |
from US $4 |
||
|
41214
|
41214
41214-30021 Slinger, Rear Differential Drive Pinion Oil[02.1986 - 08.1988] GA70..G,GT,S |
41214-30021 |
US $14.40 |
||
|
41222
|
41222
41222-30040
Plate, Rear Differential Ring Gear Set Bolt Lock
[02.1986 - 09.1986] GA70..G,GT,S |
41222-30040 |
— | ||
| replacement | |||||
|
41222
|
41222
41222-35030 Plate, Rear Differential Ring Gear Set Bolt Lock[02.1986 - 09.1986] GA70..G,GT,S |
41222-35030 |
US $1.92 |
||
|
41222
|
41222
41222-35030 Plate, Rear Differential Ring Gear Set Bolt Lock[09.1986 - 08.1988] GA70..G,GT,S |
41222-35030 |
US $1.92 |
||
|
41222A
|
41222A
90101-11353 Bolt (For Rear Differential Ring Gear Set)[02.1986 - 08.1988] GA70,MA70 |
90101-11353 |
from US $0.90 |
||
|
41231
|
41231
41231-22010 Spacer, Rear Differential Drive Pinion Bearing[02.1986 - 08.1988] GA70..G,GT,S |
41231-22010 |
from US $9.28 |
||
|
41252
|
41252
41252-30010 Deflector, Dust (For Rear Differential)[02.1986 - 08.1988] GA70..G,GT,S |
41252-30010 |
from US $6.18 |
||
|
41301A
|
41301A
90368-45002 Bearing(For Rear Differential Case)[02.1986 - 08.1988] GA70..G,GT,S |
90368-45002 |
US $39.67 |
||
|
41302
|
41302
41311-22050 Case Sub-Assy, Rear Differential[02.1986 - 03.1988] GA70..G,GT,S |
41311-22050 |
US $352.35 |
||
| replacements | |||||
|
41302
|
41302
41311-22060 Case Sub-Assy, Rear Differential[02.1986 - 03.1988] GA70..G,GT,S |
41311-22060 |
US $220.15 |
||
|
41302
|
41302
90368-50006 Bearing(For Rear Differential Case)[02.1986 - 03.1988] GA70..G,GT,S |
90368-50006 |
from US $43.37 |
||
|
41302
|
41302
41311-22060 Case Sub-Assy, Rear Differential[03.1988 - 08.1988] GA70..G,GT,S |
41311-22060 |
US $220.15 |
||
|
41331
|
41331
41331-22041
Gear, Rear Differential Side
[02.1986 - 08.1988] GA70..G,GT,S |
41331-22041 |
— | ||
| replacement | |||||
|
41331
|
41331
41331-14041 Gear, Rear Differential Side[02.1986 - 08.1988] GA70..G,GT,S |
41331-14041 |
US $73.72 |
||
|
41334
|
41334
41309-14040 Shaft Sub-Assy, Rear Differential Side Gear[02.1986 - 08.1988] GA70..G,GT,S |
41309-14040 |
US $145.60 |
||
|
41334A
|
41334A
90114-10003
Bolt, Serration (For Rear Differential Side Gear Shaft)
[02.1986 - 05.1986] GA70,MA70 |
90114-10003 |
— | ||
|
41334A
|
41334A
90114-10028 Bolt (For Rear Differential Side Gear Shaft)[05.1986 - 08.1988] GA70,MA70 |
90114-10028 |
US $1.92 |
||
|
41334B
|
41334B
90311-38011 Seal, Oil (For Rear Differential Side Gear Shaft)[02.1986 - 08.1988] GA70..G,GT,S |
90311-38011 |
from US $7.52 |
||
|
41334C
|
41334C
90201-65007 Washer, Plate (For Front Differential Case)[02.1986 - 08.1988] GA70..G,GT,S 厚さ＝２．５８,T=2.58 |
90201-65007 |
US $5.60 |
||
|
41334C
|
41334C
90201-65008 Washer, Plate (For Front Differential Case)[02.1986 - 08.1988] GA70..G,GT,S 厚さ＝２．６１,T=2.61 |
90201-65008 |
US $4.54 |
||
|
41334C
|
41334C
90201-65009 Washer, Plate (For Front Differential Case)[02.1986 - 08.1988] GA70..G,GT,S 厚さ＝２．６４,T=2.64 |
90201-65009 |
US $4.89 |
||
|
41334C
|
41334C
90201-65010 Washer, Plate (For Front Differential Case)[02.1986 - 08.1988] GA70..G,GT,S 厚さ＝２．６７,T=2.67 |
90201-65010 |
US $4.54 |
||
|
41334C
|
41334C
90201-65011 Washer, Plate (For Front Differential Case)[02.1986 - 08.1988] GA70..G,GT,S 厚さ＝２．７０,T=2.70 |
90201-65011 |
US $4.54 |
||
|
41334C
|
41334C
90201-65012 Washer, Plate (For Front Differential Case)[02.1986 - 08.1988] GA70..G,GT,S 厚さ＝２．７３,T=2.73 |
90201-65012 |
US $4.54 |
||
|
41334C
|
41334C
90201-65013 Washer, Plate (For Front Differential Case)[02.1986 - 08.1988] GA70..G,GT,S 厚さ＝２．７６,T=2.76 |
90201-65013 |
US $4.89 |
||
|
41334C
|
41334C
90201-65014 Washer, Plate (For Front Differential Case)[02.1986 - 08.1988] GA70..G,GT,S 厚さ＝２．７９,T=2.79 |
90201-65014 |
US $4.54 |
||
|
41334C
|
41334C
90201-65015 Washer, Plate (For Front Differential Case)[02.1986 - 08.1988] GA70..G,GT,S 厚さ＝２．８２,T=2.82 |
90201-65015 |
US $4.89 |
||
|
41334C
|
41334C
90201-65016 Washer, Plate (For Front Differential Case)[02.1986 - 08.1988] GA70..G,GT,S 厚さ＝２．８５,T=2.85 |
90201-65016 |
US $4.54 |
||
|
41334C
|
41334C
90201-65017 Washer, Plate (For Front Differential Case)[02.1986 - 08.1988] GA70..G,GT,S 厚さ＝２．８８,T=2.88 |
90201-65017 |
US $4.89 |
||
|
41334C
|
41334C
90201-65018 Washer, Plate (For Front Differential Case)[02.1986 - 08.1988] GA70..G,GT,S 厚さ＝２．９１,T=2.91 |
90201-65018 |
US $4.54 |
||
|
41334C
|
41334C
90201-65019 Washer, Plate (For Front Differential Case)[02.1986 - 08.1988] GA70..G,GT,S 厚さ＝２．９４,T=2.94 |
90201-65019 |
US $4.54 |
||
|
41334C
|
41334C
90201-65020 Washer, Plate (For Front Differential Case)[02.1986 - 08.1988] GA70..G,GT,S 厚さ＝２．９７,T=2.97 |
90201-65020 |
US $4.54 |
||
|
41334C
|
41334C
90201-65021 Washer, Plate (For Front Differential Case)[02.1986 - 08.1988] GA70..G,GT,S 厚さ＝３．００,T=3.00 |
90201-65021 |
US $4.54 |
||
|
41334C
|
41334C
90201-65022 Washer, Plate (For Front Differential Case)[02.1986 - 08.1988] GA70..G,GT,S 厚さ＝３．０３,T=3.03 |
90201-65022 |
US $4.54 |
||
|
41334C
|
41334C
90201-65023 Washer, Plate (For Front Differential Case)[02.1986 - 08.1988] GA70..G,GT,S 厚さ＝３．０６,T=3.06 |
90201-65023 |
US $4.54 |
||
|
41334C
|
41334C
90201-65024 Washer, Plate (For Front Differential Case)[02.1986 - 08.1988] GA70..G,GT,S 厚さ＝３．０９,T=3.09 |
90201-65024 |
US $4.54 |
||
|
41334C
|
41334C
90201-65025 Washer, Plate (For Front Differential Case)[02.1986 - 08.1988] GA70..G,GT,S 厚さ＝３．１２,T=3.12 |
90201-65025 |
US $4.89 |
||
|
41334C
|
41334C
90201-65026 Washer, Plate (For Front Differential Case)[02.1986 - 08.1988] GA70..G,GT,S 厚さ＝３．１５,T=3.15 |
90201-65026 |
US $4.54 |
||
|
41334C
|
41334C
90201-65027 Washer, Plate (For Front Differential Case)[02.1986 - 08.1988] GA70..G,GT,S 厚さ＝３．１８,T=3.18 |
90201-65027 |
US $4.54 |
||
|
41334C
|
41334C
90201-65028 Washer, Plate (For Front Differential Case)[02.1986 - 08.1988] GA70..G,GT,S 厚さ＝３．２１,T=3.21 |
90201-65028 |
US $4.54 |
||
|
41334C
|
41334C
90201-65029 Washer, Plate (For Front Differential Case)[02.1986 - 08.1988] GA70..G,GT,S 厚さ＝３．２４,T=3.24 |
90201-65029 |
US $4.89 |
||
|
41334D
|
41334D
90521-29002 Ring, Hole Snap (For Differential Side Gear Shaft)[02.1986 - 08.1988] GA70..G,GT,S 厚さ＝２．５ |
90521-29002 |
US $1.28 |
||
|
41336
|
41336
41336-22010 Cover, Dust(For Rear Differential Side Gear Shaft)[02.1986 - 08.1988] GA70..G,GT,S |
41336-22010 |
from US $6.72 |
||
|
41341
|
41341
41341-30020
Pinion, Rear Differential
[02.1986 - 08.1988] GA70..G,GT,S |
41341-30020 |
— | ||
| replacement | |||||
|
41341
|
41341
41341-30050 Pinion, Rear Differential[02.1986 - 08.1988] GA70..G,GT,S |
41341-30050 |
US $43.02 |
||
|
41342
|
41342
41342-22020
Shaft, Rear Differential Pinion
[02.1986 - 08.1988] GA70..G,GT,S |
41342-22020 |
— | ||
| replacement | |||||
|
41342
|
41342
41342-22021 Shaft, Rear Differential Pinion[02.1986 - 08.1988] GA70..G,GT,S |
41342-22021 |
from US $12.96 |
||
|
41343
|
41343
90250-06058 Pin, Straight(For Timing Gear Case)[02.1986 - 08.1988] GA70..G,GT,S |
90250-06058 |
from US $1.99 |
||
|
41351
|
41351
41351-30060 Washer, Rear Differential Pinion Thrust[02.1986 - 08.1988] GA70,MA70 |
41351-30060 |
from US $2.16 |
||
|
41361
|
41361
41361-30040 Washer, Rear Differential Side Gear Thrust, No.1[02.1986 - 04.1987] GA70..G,GT,S 厚さ＝１．０,T=1.0 |
41361-30040 |
US $3.84 |
||
|
41361
|
41361
41361-30050 Washer, Rear Differential Side Gear Thrust, No.1[02.1986 - 04.1987] GA70..G,GT,S 厚さ＝１．１,T=1.1 |
41361-30050 |
US $3.84 |
||
|
41361
|
41361
41361-30060 Washer, Rear Differential Side Gear Thrust, No.1[02.1986 - 04.1987] GA70..G,GT,S 厚さ＝１．２,T=1.2 |
41361-30060 |
US $3.84 |
||
|
41361
|
41361
41361-30070 Washer, Rear Differential Side Gear Thrust, No.1[02.1986 - 08.1988] GA70..G,GT,S 厚さ＝１．３,T=1.3 |
41361-30070 |
US $3.84 |
||
|
41361
|
41361
41361-30080 Washer, Rear Differential Side Gear Thrust, No.1[04.1987 - 08.1988] GA70..G,GT,S 厚さ＝１．４,T=1.4 |
41361-30080 |
US $2.97 |
||
|
41361
|
41361
41361-30090 Washer, Rear Differential Side Gear Thrust, No.1[04.1987 - 08.1988] GA70..G,GT,S 厚さ＝１．５,T=1.5 |
41361-30090 |
US $2.97 |
||
|
41361
|
41361
41361-30100 Washer, Rear Differential Side Gear Thrust, No.1[04.1987 - 08.1988] GA70..G,GT,S 厚さ＝１．６,T=1.6 |
41361-30100 |
US $2.97 |
||
|
9011908254
|
9011908254
90119-08254 New Genuine Part |
90119-08254 |
US $1.89 |
||
| replacement | |||||
|
9011908254
|
9011908254
90119-08A43 New Genuine Part |
90119-08A43 |
US $1.28 |
||
