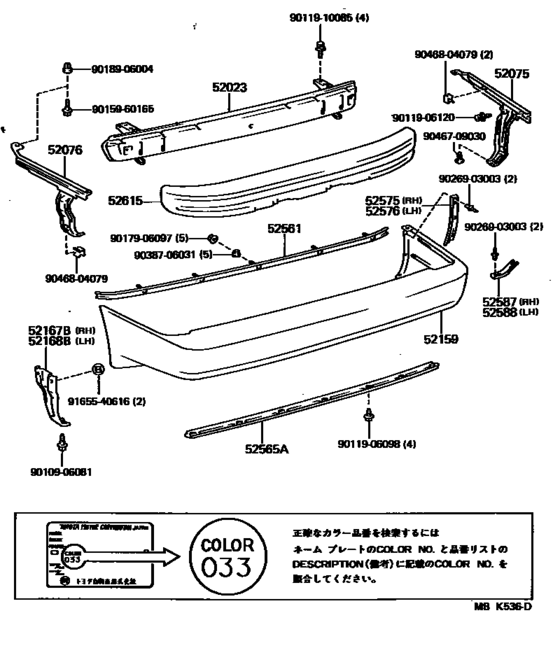

Rear Bumper & Bumper Stay ([02.1986 - ] (8602- )) Diagram Toyota SUPRA
- Year
- 1986 - 1988
- Sales region
- Japan
- Frame
- GA70
- grade
- S
- body
- LB
- ENGINE
- 1GEU
- TRANSMISSION
- ATM
- Model
- SUPRA 70
- From
- 02.1986
- To
- 08.1988
- Gear Shift Type
- 4FC
- Vehicle Model
- SUPRA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52023
|
52023
52023-14140
Reinforcement Sub-Assy, Rear Bumper
[02.1986 - 08.1988] GA70,MA70 |
52023-14140 |
— | ||
|
52075
|
52075
52075-14010 Retainer Sub-Assy, Rear Bumper Side, Rh[02.1986 - 08.1988] GA70,MA70..G,GT,GTT,S |
52075-14010 |
US $40.77 |
||
|
52076
|
52076
52076-14010 Retainer Sub-Assy, Rear Bumper Side, Lh[02.1986 - 08.1988] GA70,MA70..G,GT,GTT,S |
52076-14010 |
US $40.77 |
||
|
52159
|
52159
52159-14310-02 Cover, Rear Bumper[02.1986 - 08.1988] GA70,MA70..G,GT,GTT,S RED MICA,RED MICA,3H1 |
52159-14310-02 |
US $1,343.89 |
||
| replacement | |||||
|
52159
|
52159
52159-14911 Cover, Rear Bumper[02.1986 - 08.1988] GA70,MA70..G,GT,GTT,S RED MICA,RED MICA,3H1 |
52159-14911 |
US $812.45 |
||
|
52159
|
52159
52159-14310-03 Cover, Rear Bumper[02.1986 - 08.1988] GA70,MA70..G,GT,GTT,S SILVER-M,AMETHYST SILVER M,920 |
52159-14310-03 |
US $1,343.89 |
||
| replacement | |||||
|
52159
|
52159
52159-14911 Cover, Rear Bumper[02.1986 - 08.1988] GA70,MA70..G,GT,GTT,S SILVER-M,AMETHYST SILVER M,920 |
52159-14911 |
US $812.45 |
||
|
52159
|
52159
52159-14310-06 Cover, Rear Bumper[02.1986 - 01.1987] GA70,MA70 BROWN-M,MEDIUM BROWN M,27A |
52159-14310-06 |
US $1,343.89 |
||
| replacement | |||||
|
52159
|
52159
52159-14911 Cover, Rear Bumper[02.1986 - 01.1987] GA70,MA70 BROWN-M,MEDIUM BROWN M,27A |
52159-14911 |
US $812.45 |
||
|
52159
|
52159
52159-14310-08 Cover, Rear Bumper[02.1986 - 08.1988] GA70,MA70..G,GT,GTT,S WHITE,SUPER WHITE 2,040 |
52159-14310-08 |
US $1,343.89 |
||
|
52159
|
52159
52159-14310-24 Cover, Rear Bumper[01.1987 - 08.1988] GA70,MA70..G,GT,GTT,S BLUE MICA,BLUE MICA,8E3 |
52159-14310-24 |
US $1,343.89 |
||
| replacement | |||||
|
52159
|
52159
52159-14911 Cover, Rear Bumper[01.1987 - 08.1988] GA70,MA70..G,GT,GTT,S BLUE MICA,BLUE MICA,8E3 |
52159-14911 |
US $812.45 |
||
|
52167B
|
52167B
52167-14100
Bracket, Rear Bumper Extension Mounting, Rh
[02.1986 - 08.1988] GA70,MA70 |
52167-14100 |
— | ||
|
52168B
|
52168B
52168-14040
Bracket, Rear Bumper Extension Mounting, Lh
[02.1986 - 08.1988] GA70,MA70 |
52168-14040 |
— | ||
|
52561
|
52561
52561-14140
Retainer, Rear Bumper, Upper Center
[02.1986 - 08.1988] GA70,MA70 |
52561-14140 |
— | ||
|
52565A
|
52565A
52565-14051
Retainer, Rear Bumper, Lower
[02.1986 - 08.1988] GA70,MA70 |
52565-14051 |
— | ||
|
52575
|
52575
52575-14030
Retainer, Rear Bumper Side, Rh
[02.1986 - 08.1988] GA70,MA70 |
52575-14030 |
— | ||
|
52576
|
52576
52576-14030
Retainer, Rear Bumper Side, Lh
[02.1986 - 08.1988] GA70,MA70 |
52576-14030 |
— | ||
|
52587
|
52587
52587-14010 Retainer, Rear Bumper End, Rh[02.1986 - 08.1988] GA70,MA70..G,GT,GTT,S |
52587-14010 |
US $9.03 |
||
|
52588
|
52588
52588-14010 Retainer, Rear Bumper End, Lh[02.1986 - 08.1988] GA70,MA70..G,GT,GTT,S |
52588-14010 |
US $9.03 |
||
|
52615
|
52615
52615-14150 Absorber, Rear Bumper Energy[02.1986 - 08.1988] GA70,MA70 |
52615-14150 |
US $196.56 |
||
|
9010906081
|
9010906081
90109-06081 New Genuine Part |
90109-06081 |
US $3.64 |
||
|
9011906098
|
9011906098
90119-06098 BOLT |
90119-06098 |
US $1.28 |
||
|
9011906120
|
9011906120
90119-06120 BOLT |
90119-06120 |
US $1.12 |
||
|
9011910085
|
9011910085
90119-10085
Bolt, No.1 (For Center Support Bearing)
|
90119-10085 |
— | ||
| replacement | |||||
|
9011910085
|
9011910085
90119-10204 Bolt, No.1 (For Center Support Bearing) |
90119-10204 |
US $3.04 |
||
|
9015960165
|
9015960165
90159-60165
New Genuine Part
|
90159-60165 |
— | ||
|
9017906097
|
9017906097
90179-06097 Clip(For Front Bumper), No.1 |
90179-06097 |
US $0.86 |
||
| replacement | |||||
|
9017906097
|
9017906097
90179-06206 Nut |
90179-06206 |
from US $0.78 |
||
|
9018906004
|
9018906004
90189-06004 Grommet, Screw(For Glow Plug) |
90189-06004 |
from US $3.20 |
||
|
9026903003
|
9026903003
90269-03003 New Genuine Part |
90269-03003 |
from US $1.12 |
||
|
9038706031
|
9038706031
90387-06031
New Genuine Part
|
90387-06031 |
— | ||
|
9046709030
|
9046709030
90467-09030 Clip, Radiator Support To Frame |
90467-09030 |
US $1.44 |
||
|
9046804079
|
9046804079
90468-04079 Clip(For Front Bumper), No.2 |
90468-04079 |
from US $2.56 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
from US $1.12 |
||
