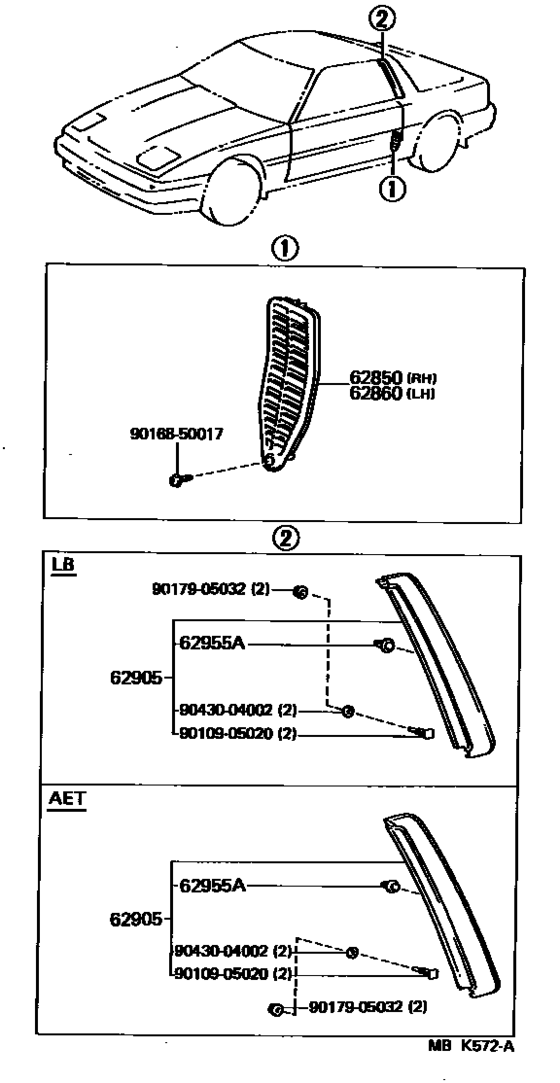

Roof Side Ventilator ([02.1986 - ] (8602- )) Diagram Toyota SUPRA
- Year
- 1986 - 1988
- Sales region
- Japan
- Frame
- GA70
- grade
- S
- body
- LB
- ENGINE
- 1GEU
- TRANSMISSION
- ATM
- Model
- SUPRA 70
- From
- 02.1986
- To
- 08.1988
- Gear Shift Type
- 4FC
- Vehicle Model
- SUPRA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62850
|
62850
62850-14060
Valve Assy, Room Pressure Relief, Rh
[02.1986 - 08.1988] GA70,MA70 |
62850-14060 |
— | ||
|
62860
|
62860
62850-14060
Valve Assy, Room Pressure Relief, Rh
[02.1986 - 08.1988] GA70,MA70 |
62850-14060 |
— | ||
|
62905
|
62905
62905-14070
Louver, Quarter Ventilation
[02.1986 - 08.1988] GA70,MA70..LB RH |
62905-14070 |
— | ||
|
62905
|
62905
62906-14070
Louver, Quarter Ventilation
[02.1986 - 08.1988] GA70,MA70..LB LH |
62906-14070 |
— | ||
|
62955A
|
62955A
62955-20020
Retainer Sub-Assy, Quarter Ventilation Louver
[02.1986 - 08.1988] GA70,MA70 |
62955-20020 |
— | ||
| replacement | |||||
|
62955A
|
62955A
62955-12010 Retainer, Radiator Grille, No.1[02.1986 - 08.1988] GA70,MA70 |
62955-12010 |
from US $1.46 |
||
|
9010905020
|
9010905020
90109-05020
New Genuine Part
|
90109-05020 |
— | ||
|
9016850017
|
9016850017
90168-50017
New Genuine Part
|
90168-50017 |
— | ||
|
9017905032
|
9017905032
90179-05032
NUT
|
90179-05032 |
— | ||
| replacement | |||||
|
9017905032
|
9017905032
90179-05011 NUT |
90179-05011 |
from US $0.80 |
||
|
9043004002
|
9043004002
90430-04002 Gasket(For Roof Side Vent Louver) |
90430-04002 |
US $3.20 |
||
| replacement | |||||
|
9043004002
|
9043004002
90202-05017 New Genuine Part |
90202-05017 |
from US $1.60 |
||
