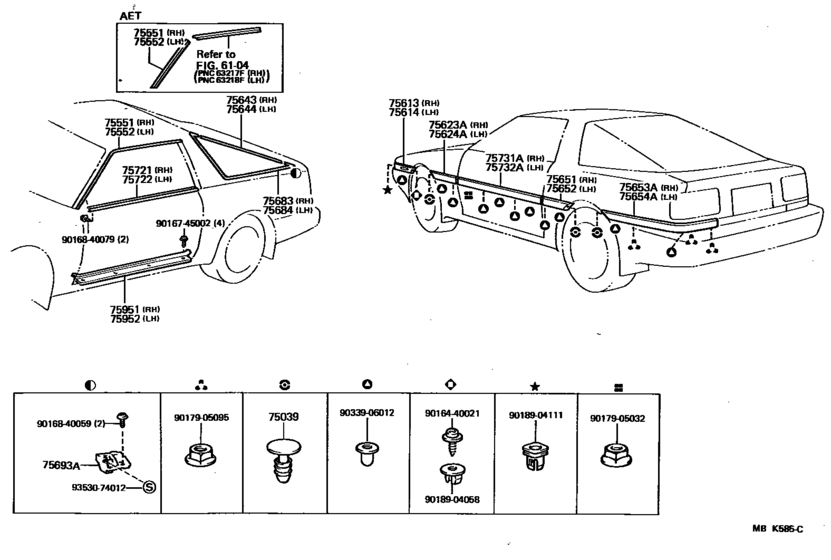

Side Moulding ([02.1986 - ] (8602- )G,GT,GTT,S) Diagram Toyota SUPRA
- Year
- 1986 - 1988
- Sales region
- Japan
- Frame
- GA70
- grade
- S
- body
- LB
- ENGINE
- 1GEU
- TRANSMISSION
- ATM
- Model
- SUPRA 70
- From
- 02.1986
- To
- 08.1988
- Gear Shift Type
- 4FC
- Vehicle Model
- SUPRA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75039
|
75039
67869-12010
Clip, Roof Side Rail Weatherstrip
[02.1986 - 08.1988] GA70,MA70 |
67869-12010 |
— | ||
| replacement | |||||
|
75039
|
75039
90467-05045-22 Clip(For Front Fender Seal)[02.1986 - 08.1988] GA70,MA70 |
90467-05045-22 |
US $1.44 |
||
|
75551
|
75551
75551-14140
Moulding, Roof Drip Side Finish, Rh
[02.1986 - 08.1988] GA70,MA70..LB |
75551-14140 |
— | ||
|
75552
|
75552
75552-14140
Moulding, Roof Drip Side Finish, Lh
[02.1986 - 08.1988] GA70,MA70..LB |
75552-14140 |
— | ||
|
75613
|
75613
75611-14100 Moulding, Front Fender, Outside Rh[02.1986 - 08.1988] GA70 |
75611-14100 |
US $51.40 |
||
|
75614
|
75614
75612-14070 Moulding, Front Fender, Outside Lh[02.1986 - 08.1988] GA70 |
75612-14070 |
US $51.40 |
||
|
75623A
|
75623A
75623-14060 Moulding, Front Fender, Outside Rear Rh[02.1986 - 08.1988] GA70 |
75623-14060 |
US $46.45 |
||
|
75624A
|
75624A
75624-14060 Moulding, Front Fender, Outside Rear Lh[02.1986 - 08.1988] GA70 |
75624-14060 |
US $46.45 |
||
|
75643
|
75643
75643-14040
Moulding, Quarter Window, Outside Upper Rh
[02.1986 - 03.1988] GA70,MA70 |
75643-14040 |
— | ||
|
75643
|
75643
75643-14041
Moulding, Quarter Window, Outside Upper Rh
[03.1988 - 08.1988] GA70,MA70 |
75643-14041 |
— | ||
|
75644
|
75644
75644-14040
Moulding, Quarter Window, Outside Upper Lh
[02.1986 - 03.1988] GA70,MA70 |
75644-14040 |
— | ||
|
75644
|
75644
75644-14041
Moulding, Quarter Window, Outside Upper Lh
[03.1988 - 08.1988] GA70,MA70 |
75644-14041 |
— | ||
|
75651
|
75651
75651-14170 Moulding, Quarter, Outside Rh[02.1986 - 08.1988] GA70 |
75651-14170 |
US $38.15 |
||
|
75652
|
75652
75652-14140 Moulding, Quarter, Outside Lh[02.1986 - 08.1988] GA70 |
75652-14140 |
US $38.15 |
||
|
75653A
|
75653A
75653-14150
Moulding, Quarter, Outside Rear Rh
[02.1986 - 08.1988] GA70 |
75653-14150 |
— | ||
|
75654A
|
75654A
75654-14140
Moulding, Quarter, Outside Rear Lh
[02.1986 - 08.1988] GA70 |
75654-14140 |
— | ||
|
75683
|
75683
75608-14010
Moulding, Quarter Belt, Rear Rh
[02.1986 - 08.1988] GA70,MA70 |
75608-14010 |
— | ||
|
75684
|
75684
75609-14010
Moulding, Quarter Belt, Rear Lh
[02.1986 - 08.1988] GA70,MA70 |
75609-14010 |
— | ||
|
75721
|
75721
75710-14240
Moulding Assy, Front Door Belt, Rh
[02.1986 - 08.1988] GA70,MA70 |
75710-14240 |
— | ||
|
75722
|
75722
75720-14240
Moulding Assy, Front Door Belt, Lh
[02.1986 - 08.1988] GA70,MA70 |
75720-14240 |
— | ||
|
75731A
|
75731A
75731-14200 Moulding, Front Door, Outside Rh[02.1986 - 01.1987] GA70 |
75731-14200 |
US $104.83 |
||
| replacement | |||||
|
75731A
|
75731A
75731-14201
Moulding, Front Door, Outside Rh
[02.1986 - 01.1987] GA70 |
75731-14201 |
— | ||
|
75731A
|
75731A
75731-14201
Moulding, Front Door, Outside Rh
[01.1987 - 08.1988] GA70 |
75731-14201 |
— | ||
|
75732A
|
75732A
75732-14180
Moulding, Front Door, Outside Lh
[02.1986 - 01.1987] GA70 |
75732-14180 |
— | ||
| replacement | |||||
|
75732A
|
75732A
75732-14181 Moulding, Front Door, Outside Lh[02.1986 - 01.1987] GA70 |
75732-14181 |
US $104.83 |
||
|
75732A
|
75732A
75732-14181 Moulding, Front Door, Outside Lh[01.1987 - 08.1988] GA70 |
75732-14181 |
US $104.83 |
||
|
75951
|
75951
67913-14120-02
Plate, Front Door Scuff, Outside Rh
[02.1986 - 03.1988] GA70,MA70 MAROON,MAROON,TRIM3# |
67913-14120-02 |
— | ||
| replacement | |||||
|
75951
|
75951
67913-14121-13
Plate, Front Door Scuff, Rh
[02.1986 - 03.1988] GA70,MA70 MAROON,MAROON,TRIM3# |
67913-14121-13 |
— | ||
|
75951
|
75951
67913-14120-03
Plate, Front Door Scuff, Outside Rh
[01.1987 - 03.1988] GA70,MA70 GRAY,MEDIUM GRAY,TRIM1# |
67913-14120-03 |
— | ||
| replacement | |||||
|
75951
|
75951
67913-14121-13
Plate, Front Door Scuff, Rh
[01.1987 - 03.1988] GA70,MA70 GRAY,MEDIUM GRAY,TRIM1# |
67913-14121-13 |
— | ||
|
75951
|
75951
67913-14120-04
Plate, Front Door Scuff, Outside Rh
[02.1986 - 03.1988] GA70,MA70 BLUE,DEEP BLUE,TRIM8# |
67913-14120-04 |
— | ||
| replacement | |||||
|
75951
|
75951
67913-14121-13
Plate, Front Door Scuff, Rh
[02.1986 - 03.1988] GA70,MA70 BLUE,DEEP BLUE,TRIM8# |
67913-14121-13 |
— | ||
|
75951
|
75951
67913-14120-05 Plate, Front Door Scuff, Outside Rh[02.1986 - 01.1987] GA70,MA70 BEIGE,DARK BEIGE,TRIM4# |
67913-14120-05 |
US $52.42 |
||
| replacement | |||||
|
75951
|
75951
67913-14121-05 Plate, Front Door Scuff, Outside RhFRONT DOOR SCUFF, OUTSIDE RH [02.1986 - 01.1987] GA70,MA70 BEIGE,DARK BEIGE,TRIM4# |
67913-14121-05 |
US $52.27 |
||
|
75951
|
75951
67913-14121-02
Plate, Front Door Scuff, Rh
[03.1988 - 08.1988] GA70,MA70 MAROON,MAROON,TRIM3# |
67913-14121-02 |
— | ||
| replacement | |||||
|
75951
|
75951
67913-14121-13
Plate, Front Door Scuff, Rh
[03.1988 - 08.1988] GA70,MA70 MAROON,MAROON,TRIM3# |
67913-14121-13 |
— | ||
|
75951
|
75951
67913-14121-03
Plate, Front Door Scuff, Rh
[03.1988 - 08.1988] GA70,MA70 GRAY,MEDIUM GRAY,TRIM1# |
67913-14121-03 |
— | ||
| replacement | |||||
|
75951
|
75951
67913-14121-13
Plate, Front Door Scuff, Rh
[03.1988 - 08.1988] GA70,MA70 GRAY,MEDIUM GRAY,TRIM1# |
67913-14121-13 |
— | ||
|
75951
|
75951
67913-14121-04
Plate, Front Door Scuff, Rh
[03.1988 - 08.1988] GA70,MA70 BLUE,DEEP BLUE,TRIM8# |
67913-14121-04 |
— | ||
| replacement | |||||
|
75951
|
75951
67913-14121-13
Plate, Front Door Scuff, Rh
[03.1988 - 08.1988] GA70,MA70 BLUE,DEEP BLUE,TRIM8# |
67913-14121-13 |
— | ||
|
75952
|
75952
67913-14120-02
Plate, Front Door Scuff, Outside Rh
[02.1986 - 03.1988] GA70,MA70 MAROON,MAROON,TRIM3# |
67913-14120-02 |
— | ||
| replacement | |||||
|
75952
|
75952
67913-14121-13
Plate, Front Door Scuff, Rh
[02.1986 - 03.1988] GA70,MA70 MAROON,MAROON,TRIM3# |
67913-14121-13 |
— | ||
|
75952
|
75952
67913-14120-03
Plate, Front Door Scuff, Outside Rh
[01.1987 - 03.1988] GA70,MA70 GRAY,MEDIUM GRAY,TRIM1# |
67913-14120-03 |
— | ||
| replacement | |||||
|
75952
|
75952
67913-14121-13
Plate, Front Door Scuff, Rh
[01.1987 - 03.1988] GA70,MA70 GRAY,MEDIUM GRAY,TRIM1# |
67913-14121-13 |
— | ||
|
75952
|
75952
67913-14120-04
Plate, Front Door Scuff, Outside Rh
[02.1986 - 03.1988] GA70,MA70 BLUE,DEEP BLUE,TRIM8# |
67913-14120-04 |
— | ||
| replacement | |||||
|
75952
|
75952
67913-14121-13
Plate, Front Door Scuff, Rh
[02.1986 - 03.1988] GA70,MA70 BLUE,DEEP BLUE,TRIM8# |
67913-14121-13 |
— | ||
|
75952
|
75952
67913-14120-05 Plate, Front Door Scuff, Outside Rh[02.1986 - 01.1987] GA70,MA70 BEIGE,DARK BEIGE,TRIM4# |
67913-14120-05 |
US $52.42 |
||
| replacement | |||||
|
75952
|
75952
67913-14121-05 Plate, Front Door Scuff, Outside RhFRONT DOOR SCUFF, OUTSIDE RH [02.1986 - 01.1987] GA70,MA70 BEIGE,DARK BEIGE,TRIM4# |
67913-14121-05 |
US $52.27 |
||
|
75952
|
75952
67913-14121-02
Plate, Front Door Scuff, Rh
[03.1988 - 08.1988] GA70,MA70 MAROON,MAROON,TRIM3# |
67913-14121-02 |
— | ||
| replacement | |||||
|
75952
|
75952
67913-14121-13
Plate, Front Door Scuff, Rh
[03.1988 - 08.1988] GA70,MA70 MAROON,MAROON,TRIM3# |
67913-14121-13 |
— | ||
|
75952
|
75952
67913-14121-03
Plate, Front Door Scuff, Rh
[03.1988 - 08.1988] GA70,MA70 GRAY,MEDIUM GRAY,TRIM1# |
67913-14121-03 |
— | ||
| replacement | |||||
|
75952
|
75952
67913-14121-13
Plate, Front Door Scuff, Rh
[03.1988 - 08.1988] GA70,MA70 GRAY,MEDIUM GRAY,TRIM1# |
67913-14121-13 |
— | ||
|
75952
|
75952
67913-14121-04
Plate, Front Door Scuff, Rh
[03.1988 - 08.1988] GA70,MA70 BLUE,DEEP BLUE,TRIM8# |
67913-14121-04 |
— | ||
| replacement | |||||
|
75952
|
75952
67913-14121-13
Plate, Front Door Scuff, Rh
[03.1988 - 08.1988] GA70,MA70 BLUE,DEEP BLUE,TRIM8# |
67913-14121-13 |
— | ||
|
9016440021
|
9016440021
90164-40021 Screw |
90164-40021 |
US $1.92 |
||
|
9016745002
|
9016745002
90167-45002
SCREW
|
90167-45002 |
— | ||
| replacement | |||||
|
9016745002
|
9016745002
93568-54512 SCREW |
93568-54512 |
US $1.12 |
||
|
9016840059
|
9016840059
90168-40059 Screw, Headlamp |
90168-40059 |
US $1.12 |
||
|
9016840079
|
9016840079
90168-40079 New Genuine Part |
90168-40079 |
US $1.75 |
||
|
9017905032
|
9017905032
90179-05032
NUT
|
90179-05032 |
— | ||
| replacement | |||||
|
9017905032
|
9017905032
90179-05011 NUT |
90179-05011 |
from US $0.78 |
||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $1.93 |
||
|
9018904058
|
9018904058
90189-04058 Grommet |
90189-04058 |
US $1.92 |
||
|
9018904111
|
9018904111
90189-04111
New Genuine Part
|
90189-04111 |
— | ||
|
9033906012
|
9033906012
90339-06012 CAP |
90339-06012 |
US $2.88 |
||
|
9353074012
|
9353074012
93530-74012
New Genuine Part
|
93530-74012 |
— | ||
| replacement | |||||
|
9353074012
|
9353074012
93530-84012 Screw |
93530-84012 |
US $0.52 |
||
