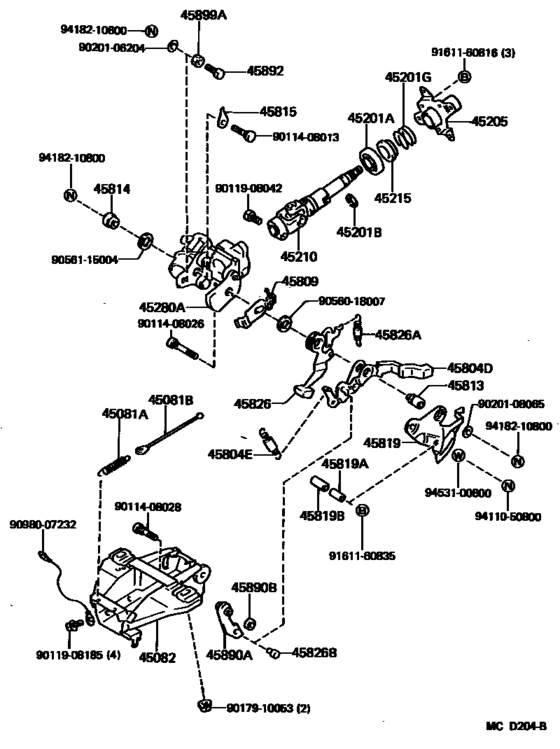

Steering Column & Shaft ([02.1986 - ] (8602- )G,S) Diagram Toyota SUPRA
- Year
- 1986 - 1988
- Sales region
- Japan
- Frame
- GA70
- grade
- S
- body
- LB
- ENGINE
- 1GEU
- TRANSMISSION
- ATM
- Model
- SUPRA 70
- From
- 02.1986
- To
- 08.1988
- Gear Shift Type
- 4FC
- Vehicle Model
- SUPRA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45081A
|
45081A
90506-29010 Spring, Tension(For Tilt Steering)[02.1986 - 08.1988] GA70..G,S |
90506-29010 |
US $5.39 |
||
|
45081B
|
45081B
90945-02087 Cord(For Tilt Steering)[02.1986 - 08.1988] GA70..G,S 長さ＝１３９,L=139 |
90945-02087 |
US $8.01 |
||
|
45081B
|
45081B
90945-02090 Cord(For Tilt Steering)[02.1986 - 08.1988] GA70..G,S 長さ＝１４１,L=141 |
90945-02090 |
US $8.01 |
||
|
45082
|
45082
45082-20050 Bracket Sub-Assy, Break Away W/capsule[02.1986 - 08.1988] GA70..G,S |
45082-20050 |
US $97.55 |
||
|
45201A
|
45201A
90363-28001 Bearing(For Steering Main Shaft)[02.1986 - 08.1988] GA70..G,S |
90363-28001 |
US $24.11 |
||
|
45201B
|
45201B
90520-17042 Ring, Shaft Snap(For Steering Main Shaft)[02.1986 - 08.1988] GA70..G,S 厚さ＝１．２０ |
90520-17042 |
from US $0.86 |
||
|
45201G
|
45201G
90501-45011 Spring, Compression(For Steering Main Shaft)[02.1986 - 08.1988] GA70..G,S |
90501-45011 |
US $8.39 |
||
|
45205
|
45205
45205-20200 Tube Sub-Assy, Steering Column[02.1986 - 08.1988] GA70..G,S |
45205-20200 |
US $31.89 |
||
| replacement | |||||
|
45205
|
45205
45205-20201 Tube Sub-Assy, Steering Column[02.1986 - 08.1988] GA70..G,S |
45205-20201 |
US $39.02 |
||
|
45210
|
45210
45210-20200 Shaft Sub-Assy, Steering Main[02.1986 - 08.1988] GA70..G,S |
45210-20200 |
US $99.01 |
||
|
45215
|
45215
45215-22011 Collar, Main Shaft Bearing Thrust[02.1986 - 08.1988] GA70..G,S |
45215-22011 |
US $5.42 |
||
|
45280A
|
45280A
45280-14070 Bracket Assy, Steering Column, Upper[02.1986 - 08.1988] GA70..G,S |
45280-14070 |
US $273.73 |
||
|
45804D
|
45804D
45804-20030 Lever Sub-Assy, Steering Tilt(For Tilt Up Control)[02.1986 - 08.1988] GA70..G,S |
45804-20030 |
US $24.46 |
||
|
45804E
|
45804E
90507-13003 Spring, Tension(For Steering Tilt Lever)[02.1986 - 08.1988] GA70..G,S |
90507-13003 |
US $2.48 |
||
|
45809
|
45809
45809-20050 Cover Sub-Assy, Adjuster Memory[02.1986 - 08.1988] GA70..G,S |
45809-20050 |
US $7.72 |
||
|
45813
|
45813
45813-20020 Collar, Tilt Steering Support, No.1[02.1986 - 08.1988] GA70,MA70 外径＝１７．９９６−１８．００３,OD=17.996-18.003 |
45813-20020 |
US $14.71 |
||
|
45813
|
45813
45813-20030 Collar, Tilt Steering Support, No.1[02.1986 - 08.1988] GA70,MA70 外径＝１８．００３−１８．０１０,OD=18.003-18.010 |
45813-20030 |
US $14.71 |
||
|
45813
|
45813
45813-20040 Collar, Tilt Steering Support, No.1[02.1986 - 08.1988] GA70,MA70 外径＝１８．０１０−１８．０１７,OD=18.010-18.017 |
45813-20040 |
US $14.71 |
||
|
45813
|
45813
45813-20050 Collar, Tilt Steering Support, No.1[02.1986 - 08.1988] GA70,MA70 外径＝１８．０１７−１８．０２４,OD=18.017-18.024 |
45813-20050 |
US $14.71 |
||
|
45813
|
45813
45813-20060 Collar, Tilt Steering Support, No.1[02.1986 - 08.1988] GA70,MA70 外径＝１７．９８９−１７．９９６,OD=17.989-17.996 |
45813-20060 |
US $14.71 |
||
|
45814
|
45814
45814-20010 Collar, Tilt Steering Support, No.2[02.1986 - 08.1988] GA70,MA70 外径＝１７．９９６−１８．００３,OD=17.996-18.003 |
45814-20010 |
US $10.05 |
||
|
45814
|
45814
45814-20020 Collar, Tilt Steering Support, No.2[02.1986 - 08.1988] GA70,MA70 外径＝１８．００３−１８．０１０,OD=18.003-18.010 |
45814-20020 |
US $10.05 |
||
|
45814
|
45814
45814-20030 Collar, Tilt Steering Support, No.2[02.1986 - 08.1988] GA70,MA70 外径＝１８．０１０−１８．０１７,OD=18.010-18.017 |
45814-20030 |
US $10.05 |
||
|
45814
|
45814
45814-20040 Collar, Tilt Steering Support, No.2[02.1986 - 08.1988] GA70,MA70 外径＝１８．０１７−１８．０２４,OD=18.017-18.024 |
45814-20040 |
US $10.05 |
||
|
45814
|
45814
45814-20050 Collar, Tilt Steering Support, No.2[02.1986 - 08.1988] GA70,MA70 外径＝１７．９８９−１７．９９６,OD=17.989-17.996 |
45814-20050 |
US $10.05 |
||
|
45815
|
45815
45815-20010 Shim, Tilt Steering Support[02.1986 - 08.1988] GA70,MA70 厚さ＝０．２,T=0.2 |
45815-20010 |
US $4.66 |
||
|
45815
|
45815
45815-20020 Shim, Tilt Steering Support[02.1986 - 08.1988] GA70,MA70 厚さ＝０．５,T=0.5 |
45815-20020 |
US $4.66 |
||
|
45815
|
45815
45815-20030 Shim, Tilt Steering Support[02.1986 - 08.1988] GA70,MA70 厚さ＝０．８,T=0.8 |
45815-20030 |
US $4.66 |
||
|
45815
|
45815
45815-20040 Shim, Tilt Steering Support[02.1986 - 08.1988] GA70,MA70 厚さ＝１．４,T=1.4 |
45815-20040 |
US $4.66 |
||
|
45815
|
45815
45815-20050 Shim, Tilt Steering Support[02.1986 - 08.1988] GA70,MA70 厚さ＝１．８,T=1.8 |
45815-20050 |
US $4.66 |
||
|
45819
|
45819
45819-20010 Retainer, Tilt Lever[02.1986 - 08.1988] GA70..G,S |
45819-20010 |
US $13.54 |
||
|
45819A
|
45819A
90387-08046 Collar(For Tilt Lever Retainer)[02.1986 - 08.1988] GA70,MA70 |
90387-08046 |
US $2.62 |
||
|
45819B
|
45819B
90540-11007 Cushion(For Tilt Lever Retainer)[02.1986 - 08.1988] GA70,MA70 |
90540-11007 |
US $2.48 |
||
|
45826
|
45826
45826-20050 Lever, Steering Tilt[02.1986 - 08.1988] GA70..G,S |
45826-20050 |
US $22.71 |
||
|
45826A
|
45826A
90507-11006 Spring, Tension(For Steering Tilt Lever)[02.1986 - 08.1988] GA70..G,S |
90507-11006 |
US $2.48 |
||
|
45826B
|
45826B
90241-06039 Pin(For Steering Tilt Lever)[02.1986 - 08.1988] GA70,MA70 |
90241-06039 |
US $1.75 |
||
|
45890B
|
45890B
90560-13008 Spacer(For Tilt Steering Pawl)[02.1986 - 08.1988] GA70,MA70 |
90560-13008 |
US $2.33 |
||
|
45892
|
45892
45898-22010 Bolt, Tilt Steering Support Stopper[02.1986 - 08.1988] GA70,MA70 |
45898-22010 |
US $5.59 |
||
|
45899A
|
45899A
45899-22020 Cover, Tilt Steering Support Stopper[02.1986 - 08.1988] GA70,MA70 |
45899-22020 |
US $5.59 |
||
|
9011408013
|
9011408013
90114-08013 New Genuine Part |
90114-08013 |
US $3.93 |
||
|
9011408026
|
9011408026
90114-08026 New Genuine Part |
90114-08026 |
US $2.62 |
||
|
9011408028
|
9011408028
90114-08028 New Genuine Part |
90114-08028 |
US $1.89 |
||
|
9011908042
|
9011908042
90119-08042 Bolt(For Power Steering Pressure Control Valve) |
90119-08042 |
US $1.40 |
||
|
9011908185
|
9011908185
90119-08185 New Genuine Part |
90119-08185 |
US $1.75 |
||
| replacement | |||||
|
9011908185
|
9011908185
90119-08165 New Genuine Part |
90119-08165 |
US $2.62 |
||
|
9017910053
|
9017910053
90179-10053 New Genuine Part |
90179-10053 |
US $2.04 |
||
|
9020106204
|
9020106204
90201-06204 Washer, Plate(For Steering Tilt Lever) |
90201-06204 |
US $2.08 |
||
|
9020108065
|
9020108065
90201-08065 Washer, Plate(For Control Select Lever) |
90201-08065 |
US $0.96 |
||
|
9056018007
|
9056018007
90560-18007 New Genuine Part |
90560-18007 |
US $2.33 |
||
|
9056115004
|
9056115004
90561-15004 New Genuine Part |
90561-15004 |
US $2.33 |
||
|
9098007232
|
9098007232
90980-07232 New Genuine Part |
90980-07232 |
US $6.84 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9161160835
|
9161160835
91611-60835 Bolt(For Clutch Release Cylinder Setting) |
91611-60835 |
from US $1.44 |
||
|
9411050800
|
9411050800
94110-50800 Nut(For Repair Actuator Set) |
94110-50800 |
US $1.28 |
||
|
9418210600
|
9418210600
94182-10600 Nut, Tilt Steering Adjusting, No.1 |
94182-10600 |
US $1.89 |
||
|
9418210800
|
9418210800
94182-10800 Nut |
94182-10800 |
from US $1.40 |
||
|
9453100800
|
9453100800
94531-00800 Washer (For Transfer Shift Outer Lever) |
94531-00800 |
US $2.56 |
||
