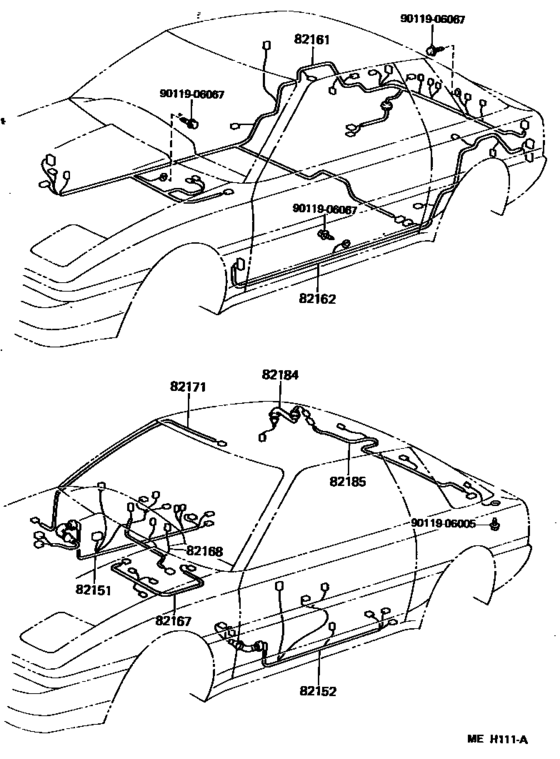

Wiring & Clamp ([02.1986 - ] (8602- )) Diagram Toyota SUPRA
- Year
- 1986 - 1988
- Sales region
- Japan
- Frame
- GA70
- grade
- S
- body
- LB
- ENGINE
- 1GEU
- TRANSMISSION
- ATM
- Model
- SUPRA 70
- From
- 02.1986
- To
- 08.1988
- Gear Shift Type
- 4FC
- Vehicle Model
- SUPRA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82151
|
82151
82151-14300 Wire, Front Door, Rh[02.1986 - 08.1988] GA70..S |
82151-14300 |
US $147.06 |
||
|
82152
|
82152
82152-14280 Wire, Front Door, Lh[02.1986 - 08.1988] GA70..S |
82152-14280 |
US $126.67 |
||
|
82161
|
82161
82161-14690
Wire, Floor
[02.1986 - 03.1986] GA70,MA70 |
82161-14690 |
— | ||
|
82161
|
82161
82161-14691
Wire, Floor
[03.1986 - 01.1987] GA70,MA70 |
82161-14691 |
— | ||
|
82161
|
82161
82161-14692 Wire, Floor[01.1987 - 08.1988] GA70,MA70 |
82161-14692 |
US $709.07 |
||
|
82162
|
82162
82162-14010 Wire, Floor, No.2[02.1986 - 08.1988] GA70 |
82162-14010 |
US $25.19 |
||
|
82171
|
82171
82171-14210 Wire, Roof, No.1[02.1986 - 08.1988] GA70,MA70..LB |
82171-14210 |
US $24.61 |
||
|
82184
|
82184
82184-14080 Wire, Back Door, No.1[02.1986 - 03.1986] GA70,MA70 |
82184-14080 |
US $36.84 |
||
|
82184
|
82184
82184-14090 Wire, Back Door, No.1[03.1986 - 08.1988] GA70,MA70 |
82184-14090 |
US $31.16 |
||
|
82185
|
82185
82185-14100
Wire, Back Door, No.2
[02.1986 - 03.1986] GA70,MA70 |
82185-14100 |
— | ||
|
82185
|
82185
82185-14101 Wire, Back Door, No.2[03.1986 - 08.1988] GA70,MA70 |
82185-14101 |
US $55.18 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
||
|
9011906067
|
9011906067
90119-06067 BOLT |
90119-06067 |
US $1.76 |
