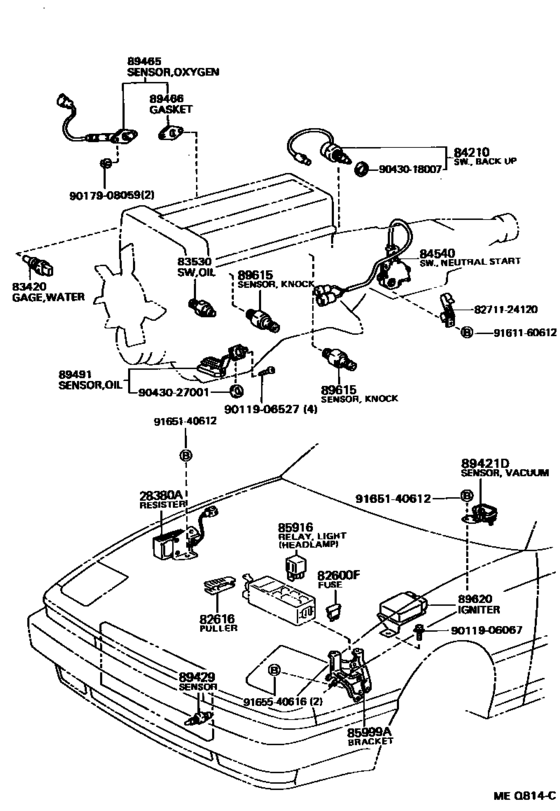

Switch & Relay & Computer ([08.1990 - ] (9008- )JZA70) Diagram Toyota SUPRA
- Year
- 1990 - 1993
- Sales region
- Japan
- Frame
- JZA70
- grade
- GTT
- body
- LB
- ENGINE
- 1JZGTE
- TRANSMISSION
- MTM
- Model
- SUPRA 70
- From
- 08.1990
- To
- 05.1993
- Gear Shift Type
- 5F
- Vehicle Model
- SUPRA
- Body Shape
- WIB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28380A
|
28380A
23080-70010
Resister, Fuel Pump
[08.1988 - 05.1993] 1GGTEU,1JZGTE,7MGTEU..GA70,JZA70,MA70 |
23080-70010 |
— | ||
|
82600F
|
82600F
90982-07011 Fuse, Fuse Block[08.1988 - 05.1993] GA70,JZA70,MA70 ３０Ａ |
90982-07011 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09002 Fusible Link[08.1988 - 05.1993] GA70,JZA70,MA70 １０Ａ |
90982-09002 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[08.1988 - 05.1993] GA70,JZA70,MA70 １５Ａ |
90982-09003 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[08.1988 - 05.1993] GA70,JZA70,MA70 ２０Ａ |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[08.1988 - 05.1993] GA70,JZA70,MA70 ７．５Ａ |
90982-09005 |
from US $1.03 |
||
|
82616
|
82616
82616-12020 Puller, Fuse[08.1988 - 05.1993] GA70,JZA70,MA70 |
82616-12020 |
US $4.19 |
||
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[08.1988 - 05.1993] GA70,JZA70,MA70 |
83420-20020 |
from US $30.54 |
||
|
83530
|
83530
83530-30080
Switch Assy, Oil Pressure (For Engine)
[08.1990 - 05.1993] JZA70 |
83530-30080 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60040 Switch Assy, Oil Pressure (For Engine)[08.1990 - 05.1993] JZA70 |
83530-60040 |
from US $34.52 |
||
|
84210
|
84210
84210-35030 Switch Assy, Back-Up Lamp[10.1988 - 05.1993] JZA70,MA70..5F |
84210-35030 |
US $41.65 |
||
|
85916
|
85916
90987-02002
Relay, Ignition, No.1
[08.1988 - 05.1993] GA70,JZA70,MA70 MARUKO,TAIL LAMP |
90987-02002 |
— | ||
| replacement | |||||
|
85916
|
85916
90987-02004 Relay Assy, Starter[08.1988 - 05.1993] GA70,JZA70,MA70 MARUKO,TAIL LAMP |
90987-02004 |
from US $28.70 |
||
|
85916
|
85916
90987-02004 Relay Assy, Starter[08.1988 - 05.1993] GA70,JZA70,MA70 *ND,TAIL LAMP |
90987-02004 |
from US $28.70 |
||
|
85916
|
85916
90987-02006 Relay[08.1988 - 05.1993] GA70,JZA70,MA70 HEADLAMP |
90987-02006 |
from US $27.28 |
||
|
85999A
|
85999A
85999-24020
Bracket, Relay, No.2
[08.1988 - 05.1993] GA70,JZA70,MA70 |
85999-24020 |
— | ||
|
89421D
|
89421D
89420-14040
Sensor, Turbo Pressure
[08.1989 - 05.1993] GA70,JZA70..WIB |
89420-14040 |
— | ||
|
89429
|
89429
89429-32010
Switch, Temperature Detect, No.2
[08.1990 - 05.1993] JZA70 |
89429-32010 |
— | ||
|
89465
|
89465
89465-29435
Sensor, Oxygen
[08.1990 - 05.1993] JZA70 |
89465-29435 |
— | ||
|
89466
|
89466
89466-20020 Gasket(For Exhaust Manifold Plate)[10.1988 - 05.1993] GA70,JZA70,MA70..GTL,GTT,GTTR |
89466-20020 |
from US $13.88 |
||
|
89491
|
89491
89491-14050
Sensor, Engine Oil Level
[08.1990 - 05.1993] JZA70 |
89491-14050 |
— | ||
|
89615
|
89615
89615-22040 Sensor, Knock Control[08.1990 - 05.1993] JZA70 |
89615-22040 |
from US $129.25 |
||
|
89620
|
89620
89620-14460 Igniter Assy[08.1990 - 05.1993] JZA70 |
89620-14460 |
US $438.26 |
||
| replacements | |||||
|
89620
|
89620
89621-22030 Igniter Assy[08.1990 - 05.1993] JZA70 |
89621-22030 |
US $455 |
||
|
89620
|
89620
89629-14060 Bracket, Igniter Assy[08.1990 - 05.1993] JZA70 |
89629-14060 |
US $25.63 |
||
|
89620
|
89620
90159-50163 New Genuine Part[08.1990 - 05.1993] JZA70 |
90159-50163 |
US $1.60 |
||
|
8271124120
|
8271124120
82711-24120 Wire, Fuse To Fuse(for Combustion Heater) |
82711-24120 |
US $13.10 |
||
|
9011906067
|
9011906067
90119-06067 BOLT |
90119-06067 |
US $1.76 |
||
|
9011906527
|
9011906527
90119-06527 BOLT WWASHER |
90119-06527 |
from US $0.80 |
||
|
9017908059
|
9017908059
90179-08059
Nut
|
90179-08059 |
— | ||
| replacement | |||||
|
9017908059
|
9017908059
90179-08101 NUT |
90179-08101 |
from US $0.80 |
||
|
9043018007
|
9043018007
90430-18007
Gasket(For Water Hole)
|
90430-18007 |
— | ||
| replacement | |||||
|
9043018007
|
9043018007
90430-18008 Gasket |
90430-18008 |
from US $0.99 |
||
|
9043027001
|
9043027001
90430-27001 Gasket, Engine Oil Level Sensor |
90430-27001 |
from US $1.07 |
||
|
9161160612
|
9161160612
91611-60612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-60612 |
— | ||
| replacement | |||||
|
9161160612
|
9161160612
91611-G0612 Bolt |
91611-G0612 |
from US $0.78 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.94 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
