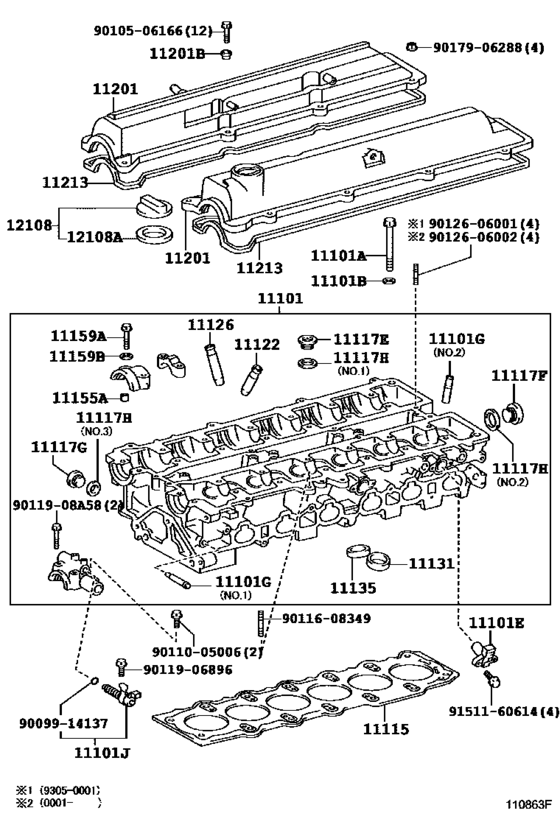

Cylinder Head ([05.1993 - ] (9305- )2JZGTE) Diagram Toyota SUPRA
- Year
- 1995 - 2002
- Sales region
- Japan
- Frame
- JZA80
- grade
- RZS
- body
- LB
- ENGINE
- 2JZGTE
- TRANSMISSION
- MTM
- Model
- SUPRA 80
- From
- 05.1995
- To
- 08.2002
- Gear Shift Type
- 6F
- Vehicle Model
- SUPRA
- Fuel Induction
- TWT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-49347
Head Sub-Assy, Cylinder
[05.1993 - 08.1997] 2JZGTE..JZA80 |
11101-49347 |
— | ||
| replacements | |||||
|
11101
|
11101
11101-49348 Head Sub-Assy, Cylinder[05.1993 - 08.1997] 2JZGTE..JZA80 |
11101-49348 |
US $2,897.44 |
||
|
11101
|
11101
16261-46050 Hose, Water By-Pass[05.1993 - 08.1997] 2JZGTE..JZA80 |
16261-46050 |
US $10.57 |
||
|
11101
|
11101
11101-49348 Head Sub-Assy, Cylinder[08.1997 - 09.1997] 2JZGTE..JZA80 |
11101-49348 |
US $2,897.44 |
||
|
11101
|
11101
11101-49415 Head Sub-Assy, Cylinder[09.1997 -] 2JZGTE..JZA80 |
11101-49415 |
US $3,196.80 |
||
|
11101A
|
11101A
90910-02102 Bolt(For Cylinder Head Set)[05.1993 -] 2JZ#..JZA80 |
90910-02102 |
from US $16.17 |
||
|
11101B
|
11101B
90201-11018
Washer, Plate(For Cylinder Head Set)
[05.1993 - 10.2001] 2JZ#..JZA80 |
90201-11018 |
— | ||
| replacement | |||||
|
11101B
|
11101B
90201-11034 Washer, Plate(For Cylinder Head Set)[05.1993 - 10.2001] 2JZ#..JZA80 |
90201-11034 |
from US $0.87 |
||
|
11101B
|
11101B
90201-11034 Washer, Plate(For Cylinder Head Set)[10.2001 -] 2JZ#..JZA80 |
90201-11034 |
from US $0.87 |
||
|
11101E
|
11101E
90919-05007 Sensor, Cam Position[09.1997 -] 2JZGTE..JZA80 |
90919-05007 |
from US $99.05 |
||
|
11101G
|
11101G
90406-08011 Union(For Cylinder Head)[05.1993 - 08.1997] 2JZGTE..JZA80 ＮＯ．１ |
90406-08011 |
from US $1.05 |
||
|
11101G
|
11101G
90406-08021 Union(For Cylinder Head)[08.1997 -] 2JZGTE..JZA80 ＮＯ．１ |
90406-08021 |
US $3.49 |
||
|
11101G
|
11101G
90406-17017 Union(For Cylinder Head)[05.1993 -] 2JZGE..JZA80; 2JZGTE..JZA80 ＮＯ．２ |
90406-17017 |
US $5.07 |
||
|
11101J
|
11101J
15330-46010
Valve Assy, Camshaft Timing Oil Control
[09.1997 -] 2JZGTE..JZA80 |
15330-46010 |
— | ||
| replacement | |||||
|
11101J
|
11101J
15330-46011 Valve Assy, Camshaft Timing Oil Control[09.1997 -] 2JZGTE..JZA80 |
15330-46011 |
from US $103.04 |
||
|
11115
|
11115
11115-46051
Gasket, Cylinder Head
[05.1993 - 07.1997] 2JZGTE..JZA80 |
11115-46051 |
— | ||
| replacement | |||||
|
11115
|
11115
11115-46052 Cylinder Head Gasket (2JZ-GTE)[05.1993 - 07.1997] 2JZGTE..JZA80 |
11115-46052 |
from US $174.17 |
||
|
11115
|
11115
11115-46052 Cylinder Head Gasket (2JZ-GTE)[07.1997 -] 2JZGTE..JZA80 |
11115-46052 |
from US $174.17 |
||
|
11117E
|
11117E
90341-24010 Plug, W/head Taper Screw, No.1[05.1993 -] 2JZ#..JZA80 |
90341-24010 |
US $4.72 |
||
|
11117F
|
11117F
90341-36001 Plug, W/head Taper Screw, No.1[05.1993 -] 2JZ#..JZA80 |
90341-36001 |
US $6.27 |
||
|
11117G
|
11117G
90341-20002 Plug, W/head Taper Screw, No.1[05.1993 -] 2JZGTE..JZA80 |
90341-20002 |
from US $2.95 |
||
|
11117H
|
11117H
90430-20019 Gasket(For Water Hole)[05.1993 -] 2JZGTE..JZA80 ＮＯ．３ |
90430-20019 |
US $2.80 |
||
|
11117H
|
11117H
90430-24010 Gasket(For Cylinder Head Screw Plug)[05.1993 -] 2JZ#..JZA80 ＮＯ．１ |
90430-24010 |
US $3.58 |
||
|
11117H
|
11117H
90430-36003 Gasket(For Water Hole)[05.1993 -] 2JZ#..JZA80 ＮＯ．２ |
90430-36003 |
US $2.33 |
||
|
11122
|
11122
11122-74030 Bush, Intake Valve Guide[05.1993 -] 2JZ#..JZA80 ＳＴＤ |
11122-74030 |
US $9.86 |
||
|
11122
|
11122
11123-74030 Bush, Intake Valve Guide[05.1993 -] 2JZ#..JZA80 Ｏ／Ｓ ０．０５ |
11123-74030 |
US $7.86 |
||
|
11126
|
11126
11122-16010 Bush, Intake Valve Guide[05.1993 -] 2JZ#..JZA80 ＳＴＤ |
11122-16010 |
US $10.73 |
||
|
11126
|
11126
11123-16010 Bush, Intake Valve Guide[05.1993 -] 2JZ#..JZA80 Ｏ／Ｓ ０．０５ |
11123-16010 |
US $11.36 |
||
|
11131
|
11131
11131-46020
Seat, Intake Valve
[05.1993 - 09.1997] 2JZ#..JZA80 ＳＴＤ |
11131-46020 |
— | ||
| replacement | |||||
|
11131
|
11131
11131-46060 Seat, Intake Valve[05.1993 - 09.1997] 2JZ#..JZA80 ＳＴＤ |
11131-46060 |
US $36.34 |
||
|
11131
|
11131
11131-46060 Seat, Intake Valve[07.2001 -] 2JZGTE..JZA80 ＳＴＤ |
11131-46060 |
US $36.34 |
||
|
11131
|
11131
11132-46020
Seat, Intake Valve
[05.1993 - 09.1997] 2JZ#..JZA80 Ｏ／Ｓ ０．０３ |
11132-46020 |
— | ||
| replacement | |||||
|
11131
|
11131
11132-46060 Seat, Intake Valve[05.1993 - 09.1997] 2JZ#..JZA80 Ｏ／Ｓ ０．０３ |
11132-46060 |
US $34.65 |
||
|
11131
|
11131
11132-46060 Seat, Intake Valve[07.2001 -] 2JZGTE..JZA80 Ｏ／Ｓ ０．０３ |
11132-46060 |
US $34.65 |
||
|
11135
|
11135
11135-46050 Seat, Exhaust Valve[05.1993 -] 2JZGTE..JZA80 ＳＴＤ |
11135-46050 |
US $30.05 |
||
|
11135
|
11135
11136-46050 Seat, Exhaust Valve[05.1993 -] 2JZGTE..JZA80 Ｏ／Ｓ ０．０３ |
11136-46050 |
US $28.54 |
||
|
11155A
|
11155A
90253-11021 Pin, Ring[05.1993 -] 2JZ#..JZA80 |
90253-11021 |
from US $1.41 |
||
|
11159A
|
11159A
90119-08890 Bolt(For Head To Camshaft Bearing Cap)[09.1997 -] 2JZGTE..JZA80 |
90119-08890 |
US $2.87 |
||
|
11159B
|
11159B
90210-08033 Washer, Seal(For Head To Camshaft Bearing Cap)[05.1993 -] 2JZ#..JZA80 |
90210-08033 |
US $5.02 |
||
|
11201
|
11201
11201-46040
Cover Sub-Assy, Cylinder Head
[05.1993 - 09.1997] 2JZGTE..JZA80 インテーク側 |
11201-46040 |
— | ||
|
11201
|
11201
11201-46050 Cover Sub-Assy, Cylinder Head[09.1997 -] 2JZGTE..JZA80 インテーク側 |
11201-46050 |
US $341.64 |
||
|
11201
|
11201
11202-46020 Cover Sub-Assy, Cylinder Head[05.1993 - 08.1996] 2JZGTE..JZA80 エキゾースト側 |
11202-46020 |
US $292.66 |
||
| replacement | |||||
|
11201
|
11201
11202-46021 Cover Sub-Assy, Cylinder Head[05.1993 - 08.1996] 2JZGTE..JZA80 エキゾースト側 |
11202-46021 |
US $341.64 |
||
|
11201
|
11201
11202-46021 Cover Sub-Assy, Cylinder Head[08.1996 -] 2JZGTE..JZA80 エキゾースト側 |
11202-46021 |
US $341.64 |
||
|
11201B
|
11201B
90210-07001 Washer, Seal(For Cylinder Head Cover)[05.1993 - 07.1997] 2JZGTE..JZA80 |
90210-07001 |
from US $1.98 |
||
|
11213
|
11213
11213-46020 Gasket, Cylinder Head Cover (Intake side)[05.1993 - 09.1997] 2JZ#..JZA80 インテーク側 |
11213-46020 |
from US $16.76 |
||
|
11213
|
11213
11213-46030 Gasket, Cylinder Head Cover (Intake side)[09.1997 -] 2JZGTE..JZA80 インテーク側 |
11213-46030 |
from US $14.46 |
||
|
11213
|
11213
11214-46010
Gasket, Cylinder Head Cover (Exhaust side)
[05.1993 - 07.1995] 2JZ#..JZA80 エキゾースト側 |
11214-46010 |
— | ||
| replacement | |||||
|
11213
|
11213
11214-46011 Gasket, Cylinder Head Cover (Exhaust side)[05.1993 - 07.1995] 2JZ#..JZA80 エキゾースト側 |
11214-46011 |
from US $17.01 |
||
|
11213
|
11213
11214-46011 Gasket, Cylinder Head Cover (Exhaust side)[07.1995 -] 2JZ#..JZA80 エキゾースト側 |
11214-46011 |
from US $17.01 |
||
|
12108
|
12108
12180-20030 Cap Sub-Assy, Oil Filler[08.1996 -] 2JZ#..JZA80 |
12180-20030 |
from US $14.10 |
||
|
12108
|
12108
12180-46010 Cap Sub-Assy, Oil Filler[05.1993 - 08.1996] 2JZ#..JZA80 |
12180-46010 |
from US $14.36 |
||
|
12108A
|
12108A
12195-20020 Gasket(For Oil Filler Cap)[08.1996 -] 2JZ#..JZA80 |
12195-20020 |
from US $2.60 |
||
|
12108A
|
12108A
12195-46011 Gasket(For Oil Filler Cap)[05.1993 - 08.1996] 2JZ#..JZA80 |
12195-46011 |
from US $3.99 |
||
|
9011908A58
|
9011908A58
90119-08A58 Bolt(For Camshaft Bearing Cap To Housing Rh, No.2) |
90119-08A58 |
US $1.79 |
||
|
9009914137
|
9009914137
90099-14137 Ring, O(For Cam Timing Oil Control Valve) |
90099-14137 |
from US $2.11 |
||
|
9010506166
|
9010506166
90105-06166 BOLT WASHER BASED |
90105-06166 |
from US $0.99 |
||
|
9011005006
|
9011005006
90110-05006 Bolt |
90110-05006 |
US $1.08 |
||
|
9011608349
|
9011608349
90116-08349 New Genuine Part |
90116-08349 |
US $0.61 |
||
|
9011906896
|
9011906896
90119-06896
New Genuine Part
|
90119-06896 |
— | ||
| replacement | |||||
|
9011906896
|
9011906896
90119-06493 BOLT WITH WASHER |
90119-06493 |
US $2.15 |
||
|
9012606001
|
9012606001
90126-06001 STUD HEX LOBULAR |
90126-06001 |
US $2.87 |
||
|
9012606002
|
9012606002
90126-06002 New Genuine Part |
90126-06002 |
US $2.69 |
||
|
9017906288
|
9017906288
90179-06288 NUT |
90179-06288 |
from US $0.84 |
||
|
9151160614
|
9151160614
91511-60614
LEXBOLT
|
91511-60614 |
— | ||
| replacement | |||||
|
9151160614
|
9151160614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.67 |
||
