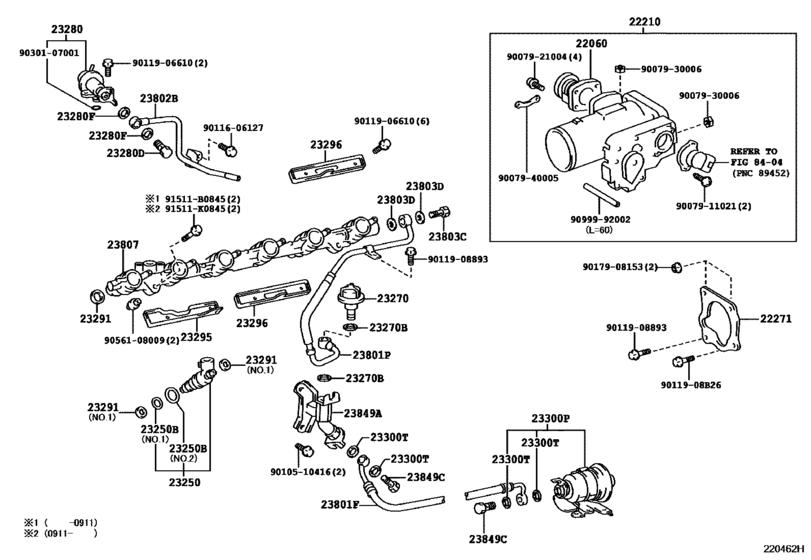

Fuel Injection System ([09.1997 - ] (9709- )2JZGTE) Diagram Toyota SUPRA
- Year
- 1995 - 2002
- Sales region
- Japan
- Frame
- JZA80
- grade
- RZS
- body
- LB
- ENGINE
- 2JZGTE
- TRANSMISSION
- MTM
- Model
- SUPRA 80
- From
- 05.1995
- To
- 08.2002
- Gear Shift Type
- 6F
- Vehicle Model
- SUPRA
- Fuel Induction
- TWT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22060
|
22060
22060-46020 Lever Assy, Throttle W/sensor[09.1997 -] 2JZGTE..JZA80 |
22060-46020 |
US $438.36 |
||
|
22210
|
22210
22030-46050 Body Assy, Throttle[05.1993 - 09.1997] 2JZGTE..JZA80 |
22030-46050 |
US $2,082.08 |
||
|
22210
|
22210
22030-46160 Body Assy, Throttle[09.1997 -] 2JZGTE..JZA80 |
22030-46160 |
US $1,437.92 |
||
|
22271
|
22271
22271-46030 Gasket, Throttle Body[05.1993 - 09.1997] 2JZGTE..JZA80 |
22271-46030 |
US $14.69 |
||
|
22271
|
22271
22271-46080 Gasket, Throttle Body[09.1997 -] 2JZGTE..JZA80 |
22271-46080 |
US $10.21 |
||
|
23250
|
23250
23209-46100 Injector Assy, Fuel[09.1997 -] 2JZGTE..JZA80 |
23209-46100 |
US $313.56 |
||
|
23250
|
23250
23209-49025
Injector Assy, Fuel
[05.1993 - 09.1997] 2JZGTE..JZA80 |
23209-49025 |
— | ||
|
23250B
|
23250B
90301-14006 Ring, O(For Fuel Injector)[05.1993 -] 2JZGTE..JZA80 ＮＯ．１ |
90301-14006 |
from US $2.76 |
||
|
23250B
|
23250B
90301-17007 Ring, O(For Fuel Injector)[05.1993 -] 2JZGTE..JZA80 ＮＯ．２ |
90301-17007 |
from US $2.76 |
||
|
23270
|
23270
23207-46021 Damper Assy, Fuel Pressure Pulsation[05.1993 -] 2JZ#..JZA80 |
23207-46021 |
US $89.76 |
||
|
23270B
|
23270B
90430-12026 Gasket[05.1993 -] 2JZ#..JZA80 DERIVERY PIPE SIDE |
90430-12026 |
from US $0.80 |
||
|
23270B
|
23270B
90430-14008 Gasket(For Water Hole)[05.1993 -] 2JZ#..JZA80 DAMPER SIDE |
90430-14008 |
from US $0.95 |
||
|
23280
|
23280
23280-46030 Regulator Assy, Fuel Pressure[05.1993 -] 2JZGTE..JZA80 |
23280-46030 |
US $131.04 |
||
|
23280D
|
23280D
90401-10038 Bolt, Union(For Fuel Pipe Or Hose Set)[05.1993 -] 2JZ#..JZA80 |
90401-10038 |
US $3.06 |
||
|
23280F
|
23280F
90430-10012 Gasket(For Turbo Oil Inlet Pipe)[05.1993 -] 2JZ#..JZA80 |
90430-10012 |
US $2.69 |
||
|
23291
|
23291
23291-75010 Insulator, Injector Vibration[05.1993 -] 2JZGTE..JZA80 INJECTOR SIDE |
23291-75010 |
from US $2.87 |
||
|
23291
|
23291
23291-76010 Insulator, Injector Vibration[05.1993 -] 2JZGTE..JZA80 DELIVERY PIPE SIDE |
23291-76010 |
from US $6.31 |
||
|
23295
|
23295
23295-46010 Holder, Injector, No.1[05.1993 -] 2JZGTE..JZA80 |
23295-46010 |
US $8.74 |
||
|
23296
|
23296
23296-46010 Holder, Injector, No.2[05.1993 -] 2JZGTE..JZA80 |
23296-46010 |
US $8.21 |
||
|
23300P
|
23300P
23300-49195 Filter, Fuel(For Efi)[03.1994 -] 2JZ#..JZA80 MARK 23300-46080 |
23300-49195 |
US $95.12 |
||
|
23300T
|
23300T
90430-12026 Gasket[05.1993 -] 2JZ#..JZA80 |
90430-12026 |
from US $0.80 |
||
|
23801F
|
23801F
90923-01403 Hose, Fuel, No.1[05.1993 -] 2JZ#..JZA80 |
90923-01403 |
US $48.89 |
||
|
23801P
|
23801P
23801-46040 Pipe Sub-Assy, Fuel, No.1[05.1993 -] 2JZGTE..JZA80 |
23801-46040 |
US $64.47 |
||
|
23802B
|
23802B
23802-46050 Pipe Sub-Assy, Fuel, No.2[05.1993 -] 2JZGTE..JZA80 |
23802-46050 |
US $51.40 |
||
|
23803C
|
23803C
90401-12023 Bolt, Union(For Fuel Pipe)[05.1993 -] 2JZ#..JZA80 |
90401-12023 |
from US $4.67 |
||
|
23803D
|
23803D
90430-12026 Gasket[05.1993 -] 2JZ#..JZA80 |
90430-12026 |
from US $0.80 |
||
|
23807
|
23807
23814-46030 Pipe Sub-Assy, Fuel Delivery[05.1993 - 04.1997] 2JZGTE..JZA80 |
23814-46030 |
US $244.61 |
||
| replacement | |||||
|
23807
|
23807
23814-46033 Pipe Sub-Assy, Fuel Delivery[05.1993 - 04.1997] 2JZGTE..JZA80 |
23814-46033 |
US $244.61 |
||
|
23807
|
23807
23814-46031 Pipe Sub-Assy, Fuel Delivery[04.1997 - 05.2000] 2JZGTE..JZA80 |
23814-46031 |
US $244.61 |
||
| replacement | |||||
|
23807
|
23807
23814-46033 Pipe Sub-Assy, Fuel Delivery[04.1997 - 05.2000] 2JZGTE..JZA80 |
23814-46033 |
US $244.61 |
||
|
23807
|
23807
23814-46032 Pipe Sub-Assy, Fuel Delivery[05.2000 -] 2JZGTE..JZA80 |
23814-46032 |
US $244.61 |
||
| replacement | |||||
|
23807
|
23807
23814-46033 Pipe Sub-Assy, Fuel Delivery[05.2000 -] 2JZGTE..JZA80 |
23814-46033 |
US $244.61 |
||
|
23849A
|
23849A
23849-46010 Support, Fuel Pipe[05.1993 -] 2JZ#..JZA80 |
23849-46010 |
US $62.90 |
||
|
23849C
|
23849C
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[05.1993 -] 2JZ#..JZA80 |
90401-12097 |
from US $2.87 |
||
|
91511B0845
|
91511B0845
91511-B0845 Bolt |
91511-B0845 |
US $3.40 |
||
|
91511K0845
|
91511K0845
91511-K0845 New Genuine Part |
91511-K0845 |
US $3.05 |
||
|
9011908B26
|
9011908B26
90119-08B26
New Genuine Part
|
90119-08B26 |
— | ||
|
9007911021
|
9007911021
90079-11021 New Genuine Part |
90079-11021 |
US $2.15 |
||
|
9007921004
|
9007921004
90079-21004 New Genuine Part |
90079-21004 |
US $1.46 |
||
|
9007930006
|
9007930006
90079-30006 New Genuine Part |
90079-30006 |
US $1.05 |
||
|
9007940005
|
9007940005
90079-40005 New Genuine Part |
90079-40005 |
US $1.75 |
||
|
9010510416
|
9010510416
90105-10416 New Genuine Part |
90105-10416 |
US $2.51 |
||
|
9011606127
|
9011606127
90116-06127 Bolt, Stud(For Oil Pan) |
90116-06127 |
from US $0.91 |
||
|
9011906610
|
9011906610
90119-06610
New Genuine Part
|
90119-06610 |
— | ||
| replacement | |||||
|
9011906610
|
9011906610
90119-06493 BOLT WITH WASHER |
90119-06493 |
US $2.15 |
||
|
9011908893
|
9011908893
90119-08893 New Genuine Part |
90119-08893 |
US $3.32 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.76 |
||
|
9030107001
|
9030107001
90301-07001 Ring, O(For Fuel Injector) |
90301-07001 |
from US $2.77 |
||
|
9056108009
|
9056108009
90561-08009 Spacer, No.1(For Delivery Pipe) |
90561-08009 |
US $3.58 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
