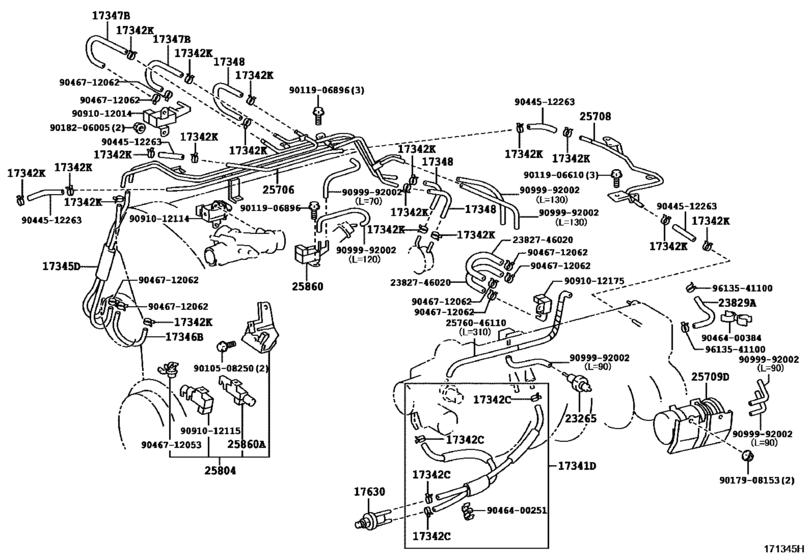

Vacuum Piping ([09.1997 - ] (9709- )2JZGTE) Diagram Toyota SUPRA
- Year
- 1995 - 2002
- Sales region
- Japan
- Frame
- JZA80
- grade
- RZS
- body
- LB
- ENGINE
- 2JZGTE
- TRANSMISSION
- MTM
- Model
- SUPRA 80
- From
- 05.1995
- To
- 08.2002
- Gear Shift Type
- 6F
- Vehicle Model
- SUPRA
- Fuel Induction
- TWT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17341D
|
17341D
90445-10021
Hose, No.1(For Air Pipe)
[05.1993 -] 2JZGTE..JZA80 THROTTLE SIDE |
90445-10021 |
— | ||
|
17341D
|
17341D
90445-10073 Hose, No.1(For Idle-Up)[05.1993 -] 2JZGTE..JZA80 SURGE TANK SIDE |
90445-10073 |
US $7.86 |
||
|
17342C
|
17342C
90467-10106
Clip, No.1(For Idle-Up Hose)
[05.1993 - 04.2002] 2JZ#..JZA80 |
90467-10106 |
— | ||
| replacement | |||||
|
17342C
|
17342C
96132-51000 Clip Or Clamp(For Ventilation Hose)[05.1993 - 04.2002] 2JZ#..JZA80 |
96132-51000 |
from US $1.44 |
||
|
17342C
|
17342C
96132-51000 Clip Or Clamp(For Ventilation Hose)[04.2002 -] 2JZ#..JZA80 |
96132-51000 |
from US $1.44 |
||
|
17342K
|
17342K
96135-41100
Clamp Or Clip, Hose(For Water By-Pass Pipe)
[05.1993 - 08.1997] 2JZGTE..JZA80 |
96135-41100 |
— | ||
| replacement | |||||
|
17342K
|
17342K
96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)[05.1993 - 08.1997] 2JZGTE..JZA80 |
96135-51100 |
from US $1.79 |
||
|
17345D
|
17345D
17345-46020
Hose, Air, No.5
[05.1993 - 08.1997] 2JZGTE..JZA80 |
17345-46020 |
— | ||
|
17345D
|
17345D
17345-46080 Hose, Air, No.5[08.1997 -] 2JZGTE..JZA80 |
17345-46080 |
US $18.53 |
||
|
17346B
|
17346B
17346-46010 Hose, Air, No.6[05.1993 -] 2JZGTE..JZA80 |
17346-46010 |
US $9.49 |
||
|
17347B
|
17347B
17347-46010
Hose, Air, No.7
[05.1993 - 08.1997] 2JZGTE..JZA80 |
17347-46010 |
— | ||
| replacement | |||||
|
17347B
|
17347B
17347-46011 Hose, Air, No.7[05.1993 - 08.1997] 2JZGTE..JZA80 |
17347-46011 |
US $13.44 |
||
|
17347B
|
17347B
17347-46011 Hose, Air, No.7[08.1997 -] 2JZGTE..JZA80 |
17347-46011 |
US $13.44 |
||
|
17348
|
17348
17348-46010 Hose, Air, No.8[05.1993 - 08.1997] 2JZGTE..JZA80 |
17348-46010 |
US $17.56 |
||
|
17630
|
17630
17630-70020
Valve Assy, Air Control
[05.1993 -] 2JZ#..JZA80 |
17630-70020 |
— | ||
| replacement | |||||
|
17630
|
17630
17630-16040 Valve Assy, Air Control[05.1993 -] 2JZ#..JZA80 |
17630-16040 |
from US $76.25 |
||
|
23265
|
23265
90917-11031 Filter, Gas, No.1[05.1993 - 09.1997] 2JZ#..JZA80 |
90917-11031 |
from US $20.33 |
||
|
23829A
|
23829A
23829-46170 Hose, Fuel Vapor Feed[09.1997 -] 2JZGTE..JZA80 |
23829-46170 |
US $23.41 |
||
|
25706
|
25706
25706-46050
Pipe Sub-Assy, Vacuum Transmitting, No.1
[05.1993 - 08.1997] 2JZGTE..JZA80 |
25706-46050 |
— | ||
|
25706
|
25706
25706-46100 Pipe Sub-Assy, Vacuum Transmitting, No.1[09.1997 -] 2JZGTE..JZA80 |
25706-46100 |
US $148.51 |
||
|
25706
|
25706
25706-46110
Pipe Sub-Assy, Vacuum Transmitting, No.1
[08.1997 - 09.1997] 2JZGTE..JZA80 |
25706-46110 |
— | ||
|
25708
|
25708
25708-46050 Pipe Sub-Assy, Vacuum Transmitting, No.3[09.1997 -] 2JZGTE..JZA80 |
25708-46050 |
US $14.71 |
||
|
25709D
|
25709D
25709-46010 Tank Sub-Assy, Pressure Surge[05.1993 -] 2JZGTE..JZA80 |
25709-46010 |
US $115.32 |
||
|
25804
|
25804
25804-46030 Valve Set, Vacuum Control[05.1993 -] 2JZGTE..JZA80 |
25804-46030 |
US $264.99 |
||
|
25860
|
25860
25860-46060 Valve Assy, Vacuum Switching, No.1[05.1993 -] 2JZGTE..JZA80 |
25860-46060 |
US $93.48 |
||
|
25860A
|
25860A
90910-12127 Valve, Vacuum Switching, No.1[05.1993 -] 2JZGTE..JZA80 |
90910-12127 |
US $64.18 |
||
|
2382746020
|
2382746020
23827-46020 Hose, Fuel Vapor Feed, No.2 |
23827-46020 |
US $15.03 |
||
|
2576046110
|
2576046110
25760-46110
Hose Assy, Vacuum Transmitting
|
25760-46110 |
— | ||
|
9010508250
|
9010508250
90105-08250
Bolt, Flange
|
90105-08250 |
— | ||
|
9011906610
|
9011906610
90119-06610
New Genuine Part
|
90119-06610 |
— | ||
| replacement | |||||
|
9011906610
|
9011906610
90119-06493 BOLT WITH WASHER |
90119-06493 |
US $2.15 |
||
|
9011906896
|
9011906896
90119-06896
New Genuine Part
|
90119-06896 |
— | ||
| replacement | |||||
|
9011906896
|
9011906896
90119-06493 BOLT WITH WASHER |
90119-06493 |
US $2.15 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.76 |
||
|
9018206005
|
9018206005
90182-06005 NUT W-WASHER |
90182-06005 |
US $1.61 |
||
|
9044512263
|
9044512263
90445-12263
Rubber Hose
|
90445-12263 |
— | ||
| replacement | |||||
|
9044512263
|
9044512263
90445-12256 Hose |
90445-12256 |
US $6.27 |
||
|
9046400251
|
9046400251
90464-00251 Clamp, Vacuum Tube |
90464-00251 |
US $4.02 |
||
|
9046400384
|
9046400384
90464-00384 New Genuine Part |
90464-00384 |
US $2.77 |
||
|
9046712053
|
9046712053
90467-12053 Clip Or Clamp(For Ventilation Hose) |
90467-12053 |
US $2.18 |
||
|
9046712062
|
9046712062
90467-12062 Clamp Or Clip, Hose(For Water By-Pass Hose, No.1) |
90467-12062 |
US $1.61 |
||
|
9091012014
|
9091012014
90910-12014 Valve Assy, Vacuum Switching |
90910-12014 |
from US $62.47 |
||
|
9091012114
|
9091012114
90910-12114
Valve, Duty Vacuum Switching
|
90910-12114 |
— | ||
|
9091012115
|
9091012115
90910-12115
New Genuine Part
|
90910-12115 |
— | ||
|
9091012175
|
9091012175
90910-12175
Valve, Vacuum Switching, No.1
|
90910-12175 |
— | ||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9613541100
|
9613541100
96135-41100
Clamp Or Clip, Hose(For Water By-Pass Pipe)
|
96135-41100 |
— | ||
| replacement | |||||
|
9613541100
|
9613541100
96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose) |
96135-51100 |
from US $1.79 |
||
