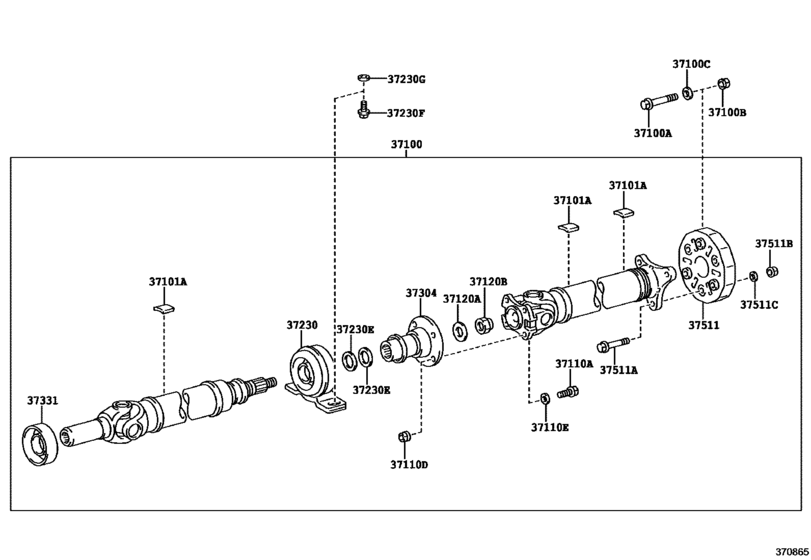

Propeller Shaft & Universal Joint ([05.1993 - 05.1996] (9305-9605)TWC ; (9605- )SZ) Diagram Toyota SUPRA
- Year
- 1993 - 2002
- Sales region
- Japan
- Frame
- JZA80
- grade
- SZ
- body
- LB
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- Model
- SUPRA 80
- From
- 05.1993
- To
- 08.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- SUPRA
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
37100
|
37100
37100-14790 Shaft Assy, Propeller W/center Bearing[05.1993 - 08.1999] JZA80..4FC..TWC |
37100-14790 |
US $1,231.78 |
||
|
37100A
|
37100A
90105-12264 Bolt, No.1 (For Propeller Shaft & Differential Setting)[05.1993 - 08.1999] JZA80..(4FC,5F)..TWC |
90105-12264 |
US $4.08 |
||
|
37100B
|
37100B
90179-12128 Nut, No.1 (For Propeller Shaft & Differential Setting)[05.1993 - 08.1999] JZA80 |
90179-12128 |
US $1.61 |
||
|
37100C
|
37100C
90560-12059 Washer, No.1 (For Propeller Shaft & Differential Setting)[05.1993 - 08.1999] JZA80 |
90560-12059 |
US $3.58 |
||
|
37101A
|
37101A
90937-01343 Piece, Balance, No.1 (For Propeller Shaft)[05.1993 - 08.1999] JZA80 ２Ｇ |
90937-01343 |
US $3.06 |
||
|
37101A
|
37101A
90937-01344 Piece, Balance, No.1 (For Propeller Shaft)[05.1993 - 08.1999] JZA80 ３Ｇ |
90937-01344 |
US $3.06 |
||
|
37101A
|
37101A
90937-01345 Piece, Balance, No.1 (For Propeller Shaft)[05.1993 - 08.1999] JZA80 ４Ｇ |
90937-01345 |
US $1.60 |
||
|
37101A
|
37101A
90937-01346 Piece, Balance, No.1 (For Propeller Shaft)[05.1993 - 08.1999] JZA80 ５Ｇ |
90937-01346 |
US $1.60 |
||
|
37101A
|
37101A
90937-01347 Piece, Balance, No.1 (For Propeller Shaft)[05.1993 - 08.1999] JZA80 ６Ｇ |
90937-01347 |
US $1.46 |
||
|
37101A
|
37101A
90937-01348 Piece, Balance, No.1 (For Propeller Shaft)[05.1993 - 08.1999] JZA80 ８Ｇ |
90937-01348 |
US $1.46 |
||
|
37101A
|
37101A
90937-01349 Piece, Balance, No.1 (For Propeller Shaft)[05.1993 - 08.1999] JZA80 １０Ｇ |
90937-01349 |
US $1.60 |
||
|
37101A
|
37101A
90937-01350 Piece, Balance, No.1 (For Propeller Shaft)[05.1993 - 08.1999] JZA80 １２Ｇ |
90937-01350 |
US $1.46 |
||
|
37101A
|
37101A
90937-01351 Piece, Balance, No.1 (For Propeller Shaft)[05.1993 - 08.1999] JZA80 １４Ｇ |
90937-01351 |
US $1.46 |
||
|
37101A
|
37101A
90937-01352 Piece, Balance, No.1 (For Propeller Shaft)[05.1993 - 08.1999] JZA80 １６Ｇ |
90937-01352 |
US $1.46 |
||
|
37101A
|
37101A
90937-01353 Piece, Balance, No.1 (For Propeller Shaft)[05.1993 - 08.1999] JZA80 １８Ｇ |
90937-01353 |
US $1.46 |
||
|
37101A
|
37101A
90937-01354 Piece, Balance, No.1 (For Propeller Shaft)[05.1993 - 08.1999] JZA80 ２０Ｇ |
90937-01354 |
US $1.46 |
||
|
37101A
|
37101A
90937-01366 Piece, Balance, No.1 (For Propeller Shaft)[05.1993 - 08.1999] JZA80 ７Ｇ |
90937-01366 |
US $1.60 |
||
|
37101A
|
37101A
90937-01452 Piece, Balance, No.1 (For Propeller Shaft)[05.1993 - 08.1999] JZA80 １Ｇ |
90937-01452 |
US $0.87 |
||
|
37110A
|
37110A
90105-10085 Bolt, No.1 (For Propeller Shaft & Differential Setting)[05.1993 - 08.1999] JZA80..(4FC,5F)..TWC ＊１０−１．００ＰＸ２７−１３ |
90105-10085 |
from US $1.14 |
||
|
37110D
|
37110D
90179-10059 Nut, No.1 (For Propeller Shaft & Differential Setting)[05.1993 - 08.1999] JZA80..(4FC,5F)..TWC |
90179-10059 |
from US $2.19 |
||
|
37110E
|
37110E
90204-10002
Washer, No.1 (For Propeller Shaft & Differential Setting)
[05.1993 - 08.1999] JZA80..(4FC,5F)..TWC |
90204-10002 |
— | ||
| replacement | |||||
|
37110E
|
37110E
90560-10H00 Washer, No.1 (For Propeller Shaft & Differential Setting)[05.1993 - 08.1999] JZA80..(4FC,5F)..TWC |
90560-10H00 |
from US $1.63 |
||
|
37120A
|
37120A
90201-18182 Washer, Plate (For Propeller Intermediate Shaft Set)[05.1993 - 08.1999] JZA80..(4FC,5F)..TWC 外径＝３３．５，厚さ＝４．０ |
90201-18182 |
from US $3.23 |
||
|
37120B
|
37120B
90179-18009 Nut (For Propeller Intermediate Shaft Setting)[05.1993 - 08.1999] JZA80..(4FC,5F)..TWC |
90179-18009 |
from US $1.58 |
||
|
37230
|
37230
37230-24100 Bearing Assy, Center Support, No.1[05.1993 - 08.1999] JZA80..(4FC,5F)..TWC |
37230-24100 |
US $188.80 |
||
|
37230E
|
37230E
90201-25006 Washer, Plate (For Propeller Intermediate Shaft Set)[05.1993 - 08.1999] JZA80..(4FC,5F)..TWC |
90201-25006 |
US $1.61 |
||
|
37230F
|
37230F
90119-10217 Bolt, No.1 (For Center Support Bearing)[05.1993 - 08.1999] JZA80 長さ＝４０ |
90119-10217 |
US $4.12 |
||
|
37230G
|
37230G
90201-10123 Washer, No.2 (For Center Support Bearing)[05.1993 - 08.1999] JZA80 厚さ＝２．０ |
90201-10123 |
US $2.15 |
||
|
37230G
|
37230G
90201-10125 Washer, No.2 (For Center Support Bearing)[05.1993 - 08.1999] JZA80 厚さ＝４．０ |
90201-10125 |
US $3.49 |
||
|
37230G
|
37230G
90201-10127 Washer, No.2 (For Center Support Bearing)[05.1993 - 08.1999] JZA80 厚さ＝６．０ |
90201-10127 |
US $5.73 |
||
|
37230G
|
37230G
90201-10128 Washer, No.2 (For Center Support Bearing)[05.1993 - 08.1999] JZA80 厚さ＝８．５ |
90201-10128 |
US $5.53 |
||
|
37304
|
37304
37304-35041 Flange Sub-Assy, Universal Joint[05.1993 - 08.1999] JZA80..(4FC,5F)..TWC |
37304-35041 |
US $58.13 |
||
|
37331
|
37331
37331-24010 Cover, Sliding Shaft Dust[05.1993 - 08.1999] JZA80..4FC..TWC |
37331-24010 |
US $6.81 |
||
|
37511
|
37511
37511-24010 Coupling, Flexible[05.1993 - 08.1999] JZA80..(4FC,5F)..TWC |
37511-24010 |
from US $167.66 |
||
|
37511A
|
37511A
90105-12265 Bolt, No.1 (For Propeller Shaft & Differential Setting)[05.1993 - 08.1999] JZA80 ＊１２Ｘ１．２５ＰＸ５９．５−２０ |
90105-12265 |
US $11.47 |
||
|
37511B
|
37511B
90179-12128 Nut, No.1 (For Propeller Shaft & Differential Setting)[05.1993 - 08.1999] JZA80 |
90179-12128 |
US $1.61 |
||
|
37511C
|
37511C
90560-12059 Washer, No.1 (For Propeller Shaft & Differential Setting)[05.1993 - 08.1999] JZA80 |
90560-12059 |
US $3.58 |
||
