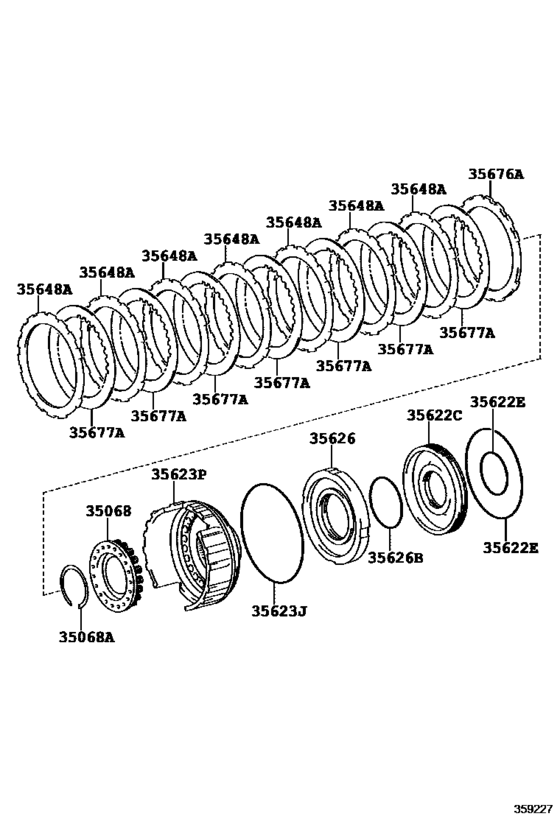

Brake No.3, 1St & Reverse Brake (Atm) ([05.1993 - ] A340E (9305- )4FC) Diagram Toyota SUPRA
- Year
- 1995 - 2002
- Sales region
- Japan
- Frame
- JZA80
- grade
- RZS
- body
- LB
- ENGINE
- 2JZGTE
- TRANSMISSION
- ATM
- Model
- SUPRA 80
- From
- 05.1995
- To
- 08.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- SUPRA
- Fuel Induction
- TWT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35068
|
35068
35068-50010 Spring Sub-Assy, 1St & Reverse Brake Return[05.1993 - 08.2002] JZA80..4FC..TWT |
35068-50010 |
US $15.58 |
||
|
35068A
|
35068A
90520-52262 Ring, Shaft Snap (For Underdrive Return Spring)[05.1993 - 08.2002] JZA80..4FC |
90520-52262 |
US $2.80 |
||
|
35622C
|
35622C
35622-30010
Piston, Brake, No.2
[05.1993 - 08.2002] JZA80..4FC |
35622-30010 |
— | ||
|
35622E
|
35622E
90301-56007 Ring, O (For Underdrive Clutch Piston)[12.2001 - 08.2002] JZA80..4FC 内側 |
90301-56007 |
US $3.05 |
||
|
35622E
|
35622E
90301-57188 Ring, O (For Underdrive Clutch Piston)[05.1993 - 12.2001] JZA80..4FC 内側 |
90301-57188 |
US $11.29 |
||
| replacement | |||||
|
35622E
|
35622E
90301-56007 Ring, O (For Underdrive Clutch Piston)[05.1993 - 12.2001] JZA80..4FC 内側 |
90301-56007 |
US $3.05 |
||
|
35622E
|
35622E
90301-99084 Ring, O (For Underdrive Brake Piston)[12.2001 - 08.2002] JZA80..4FC 外側 |
90301-99084 |
from US $2.62 |
||
|
35622E
|
35622E
90301-99193 Ring, O (For Overdrive Brake Piston)[05.1993 - 12.2001] JZA80..4FC 外側 |
90301-99193 |
US $10.18 |
||
|
35623J
|
35623J
90301-99192 Ring, O (For Overdrive Direct Clutch Piston)[05.1993 - 08.2002] JZA80..4FC |
90301-99192 |
US $14.34 |
||
|
35623P
|
35623P
35623-50010 Piston, 1St & Reverse Brake, No.2[05.1993 - 08.2002] JZA80..4FC..TWT |
35623-50010 |
US $71.34 |
||
|
35626
|
35626
35626-30020 Sleeve, Brake Reaction[05.1993 - 08.2002] JZA80..4FC |
35626-30020 |
from US $38.44 |
||
|
35626B
|
35626B
90301-67005 Ring (For Brake Reaction Sleeve Inner)[12.2001 - 08.2002] JZA80..4FC |
90301-67005 |
US $1.49 |
||
|
35626B
|
35626B
90301-68191
Ring (For Brake Reaction Sleeve Inner)
[05.1993 - 12.2001] JZA80..4FC |
90301-68191 |
— | ||
| replacement | |||||
|
35626B
|
35626B
90301-67005 Ring (For Brake Reaction Sleeve Inner)[05.1993 - 12.2001] JZA80..4FC |
90301-67005 |
US $1.49 |
||
|
35648A
|
35648A
35648-30031 Plate, Clutch (For 1St & Reverse Brake)[05.1993 - 08.2002] JZA80..4FC..TWT |
35648-30031 |
from US $16.95 |
||
|
35676A
|
35676A
35676-30100 Flange, Brake (For 1St & Reverse Brake)[06.1997 - 08.2002] JZA80..4FC 厚さ＝５．２ |
35676-30100 |
US $28.13 |
||
|
35676A
|
35676A
35676-30110 Flange, Brake (For 1St & Reverse Brake)[06.1997 - 08.2002] JZA80..4FC 厚さ＝５．４ |
35676-30110 |
US $28.97 |
||
|
35676A
|
35676A
35676-50010 Flange, Brake (For 1St & Reverse Brake)[05.1993 - 08.2002] JZA80..4FC 厚さ＝５．０ |
35676-50010 |
US $37.27 |
||
|
35676A
|
35676A
35676-50020 Flange, Brake (For 1St & Reverse Brake)[05.1993 - 08.2002] JZA80..4FC 厚さ＝４．８ |
35676-50020 |
US $33.92 |
||
|
35676A
|
35676A
35676-50030 Flange, Brake (For 1St & Reverse Brake)[05.1993 - 08.2002] JZA80..4FC 厚さ＝４．６ |
35676-50030 |
US $33.92 |
||
|
35676A
|
35676A
35676-50040 Flange, Brake (For 1St & Reverse Brake)[05.1993 - 08.2002] JZA80..4FC 厚さ＝４．４ |
35676-50040 |
US $33.92 |
||
|
35676A
|
35676A
35676-50050 Flange, Brake (For 1St & Reverse Brake)[05.1993 - 08.2002] JZA80..4FC 厚さ＝４．２ |
35676-50050 |
US $31.30 |
||
|
35676A
|
35676A
35676-50060 Flange, Brake (For 1St & Reverse Brake)[05.1993 - 08.2002] JZA80..4FC 厚さ＝４．０ |
35676-50060 |
US $31.30 |
||
|
35677A
|
35677A
35677-30130 Disc, Clutch (For 1St & Reverse Brake)[05.1993 - 09.1997] JZA80..4FC..TWT |
35677-30130 |
US $44.69 |
||
|
35677A
|
35677A
35677-30180 Disc, Clutch (For 1St & Reverse Brake)[09.1997 - 08.2002] JZA80..4FC..TWT |
35677-30180 |
US $45.02 |
||
