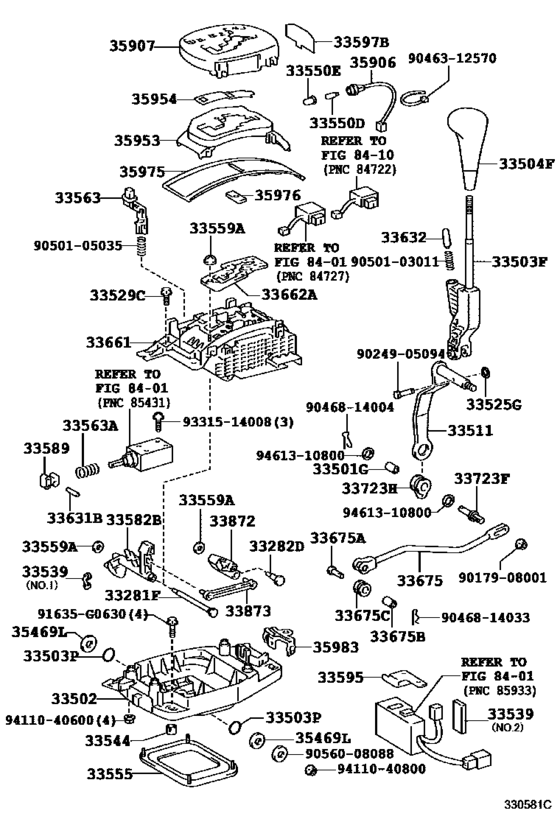

Shift Lever & Retainer ([09.1997 - ] (9709- )4FC..TWT) Diagram Toyota SUPRA
- Year
- 1995 - 2002
- Sales region
- Japan
- Frame
- JZA80
- grade
- RZS
- body
- LB
- ENGINE
- 2JZGTE
- TRANSMISSION
- ATM
- Model
- SUPRA 80
- From
- 05.1995
- To
- 08.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- SUPRA
- Fuel Induction
- TWT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33281F
|
33281F
33281-50010 Pin, Lever Lock (For Floor Shift)[09.1997 -] JZA80..4FC..TWT |
33281-50010 |
US $2.77 |
||
|
33282D
|
33282D
33282-50010 Pin, Lever Lock, No.2[09.1997 -] JZA80..4FC..TWT |
33282-50010 |
US $1.02 |
||
|
33501G
|
33501G
90385-11003 Bush(For Control Shaft)[05.1993 - 09.1997] JZA80..4FC |
90385-11003 |
from US $1.08 |
||
|
33501G
|
33501G
90560-08091 Bush (For Floor Shift Control Shaft)[09.1997 -] JZA80..4FC..TWT |
90560-08091 |
US $1.25 |
||
|
33502
|
33502
33502-14190 Plate Sub-Assy, Shift Lever[05.1993 - 09.1997] JZA80..4FC |
33502-14190 |
US $58.53 |
||
|
33502
|
33502
33521-14130
Plate Sub-Assy, Shift Lever
[09.1997 -] JZA80..4FC..TWT |
33521-14130 |
— | ||
|
33503F
|
33503F
33055-14030 Lever Sub-Assy, Shift(For Floor Shift)[05.1993 - 09.1997] JZA80..4FC |
33055-14030 |
US $68 |
||
|
33503F
|
33503F
33055-14050
Lever Sub-Assy, Shift(For Floor Shift)
[09.1997 -] JZA80..4FC..TWT |
33055-14050 |
— | ||
|
33503P
|
33503P
96711-24014 Ring, O(For Shift Lever)[09.1997 -] JZA80..4FC..TWT |
96711-24014 |
US $2.62 |
||
|
33504F
|
33504F
33504-14171-C0
Knob Sub-Assy, Shift Lever
[09.1997 -] JZA80..4FC..TWT BLACK,TRIM2# |
33504-14171-C0 |
— | ||
| replacement | |||||
|
33504F
|
33504F
33504-46010-C0 Knob Sub-Assy, Shift Lever[09.1997 -] JZA80..4FC..TWT BLACK,TRIM2# |
33504-46010-C0 |
US $24.64 |
||
|
33504F
|
33504F
33542-14040-C0
Knob Sub-Assy, Shift Lever
[05.1993 - 09.1997] JZA80..4FC BLACK,TRIM2# |
33542-14040-C0 |
— | ||
|
33511
|
33511
33501-14050
Shaft, Control (For Floor Shift)
[09.1997 -] JZA80..4FC..TWT |
33501-14050 |
— | ||
|
33511
|
33511
33511-30390 Shaft, Control (For Floor Shift)[05.1993 - 09.1997] JZA80..4FC |
33511-30390 |
US $5.82 |
||
|
33525G
|
33525G
33525-50010 Ring, Shift Lever[09.1997 -] JZA80..4FC..TWT |
33525-50010 |
US $2.62 |
||
|
33529C
|
33529C
33529-50010 Bolt, Shift Lever[09.1997 -] JZA80..4FC..TWT |
33529-50010 |
US $1.02 |
||
|
33539
|
33539
33539-14010 Cushion, Shift Lever Anti-Rattle[09.1997 -] JZA80..4FC..TWT ＮＯ．１ |
33539-14010 |
US $0.86 |
||
|
33539
|
33539
33539-50010 Cushion, Shift Lever Anti-Rattle[09.1997 -] JZA80..4FC..TWT ＮＯ．２ |
33539-50010 |
US $2.62 |
||
|
33544
|
33544
33544-50010 Insert, Shift Lever, No.1[09.1997 -] JZA80..4FC..TWT |
33544-50010 |
US $1.16 |
||
|
33550D
|
33550D
90981-11018 Bulb, Position Indicator Lamp[09.1997 -] JZA80..4FC..TWT １２Ｖ １．２Ｗ ソケット無し |
90981-11018 |
from US $2.01 |
||
|
33550D
|
33550D
90981-11036 Bulb, Position Indicator Lamp[05.1993 - 09.1997] JZA80..4FC １２Ｖ １．７Ｗ |
90981-11036 |
from US $1.82 |
||
|
33550E
|
33550E
90339-04049 Cap, Position Indicator Lamp[09.1997 -] JZA80..4FC..TWT |
90339-04049 |
from US $1.48 |
||
|
33550E
|
33550E
90339-09001 Cap, Position Indicator Lamp[05.1993 - 09.1997] JZA80..4FC |
90339-09001 |
US $2.15 |
||
|
33555
|
33555
33555-14130
Boot, Shift Lever
[09.1997 -] JZA80..4FC..TWT |
33555-14130 |
— | ||
|
33555
|
33555
33555-24060
Boot, Shift Lever
[05.1993 - 09.1997] JZA80..4FC |
33555-24060 |
— | ||
|
33559A
|
33559A
33559-50010 Nut, Shift Lever, No.1[09.1997 -] JZA80..4FC..TWT |
33559-50010 |
US $1.28 |
||
|
33563
|
33563
33563-14040 Button, Shift Lock Release[05.1993 - 09.1997] JZA80..4FC |
33563-14040 |
US $4.22 |
||
|
33563
|
33563
33563-14050
Button, Shift Lock Release
[09.1997 -] JZA80..4FC..TWT |
33563-14050 |
— | ||
|
33563A
|
33563A
90501-05035 Spring, Compression (For Shift Lock Release Button)[05.1993 - 09.1997] JZA80..4FC |
90501-05035 |
US $1.31 |
||
|
33563A
|
33563A
90501-06086 Spring, Compression (For Shift Lock Release Button)[09.1997 -] JZA80..4FC..TWT |
90501-06086 |
US $0.67 |
||
|
33582B
|
33582B
33582-22060 Stopper, Shift Lock Plate (For Floor Shift)[09.1997 -] JZA80..4FC..TWT |
33582-22060 |
US $8.44 |
||
|
33589
|
33589
33589-24010 Link, Shift Lock Solenoid[09.1997 -] JZA80..4FC..TWT |
33589-24010 |
US $3.06 |
||
|
33595
|
33595
33595-22030 Bracket, Shift Lock Computer[09.1997 -] JZA80..4FC..TWT |
33595-22030 |
US $5.24 |
||
|
33597B
|
33597B
33597-50020 Seat, Shift Lever, No.1 (For Floor Shift)[09.1997 -] JZA80..4FC..TWT |
33597-50020 |
US $2.04 |
||
|
33631B
|
33631B
90256-02001 Pin, Slotted Spring (For Detent Rod)[09.1997 -] JZA80..4FC..TWT |
90256-02001 |
US $1.60 |
||
|
33632
|
33632
33632-50010 Rod, Detent, No.2[09.1997 -] JZA80..4FC..TWT |
33632-50010 |
US $2.33 |
||
|
33661
|
33661
33661-14010
Housing, Shift Lever Guide
[09.1997 -] JZA80..4FC..TWT |
33661-14010 |
— | ||
|
33662A
|
33662A
33662-22010 Cushion, Shift Lever Guide[09.1997 -] JZA80..4FC..TWT |
33662-22010 |
US $6.12 |
||
|
33675
|
33675
33675-14180 Rod, Transmission Control (For Floor Shift)[05.1993 - 08.1999] JZA80..4FC |
33675-14180 |
US $21.32 |
||
|
33675A
|
33675A
33726-35010 Pin, W/hole (For Transmission Control Rod)[05.1993 - 08.1999] JZA80..4FC |
33726-35010 |
US $3.40 |
||
|
33675B
|
33675B
90389-08005 Bushing(For Gear Selecting Rod)[05.1993 - 09.1997] JZA80..4FC |
90389-08005 |
from US $1.73 |
||
|
33675B
|
33675B
90560-08091 Bush (For Floor Shift Control Shaft)[09.1997 -] JZA80..4FC..TWT |
90560-08091 |
US $1.25 |
||
|
33675C
|
33675C
90480-17013 Grommet[09.1997 -] JZA80..4FC..TWT |
90480-17013 |
from US $3.21 |
||
|
33675C
|
33675C
90480-17023 Grommet (For Transmission Control Rod)[05.1996 - 09.1997] JZA80..4FC..TWT |
90480-17023 |
US $1.27 |
||
|
33675C
|
33675C
90480-17177 Grommet (For Transmission Control Rod)[05.1993 - 05.1996] JZA80..4FC |
90480-17177 |
from US $2.01 |
||
|
33723F
|
33723F
33723-22010 Swivel, Connecting Rod (For Column Shift)[05.1993 - 09.1997] JZA80..4FC |
33723-22010 |
from US $11.47 |
||
|
33723F
|
33723F
33723-30080 Swivel, Connecting Rod (For Floor Shift)[09.1997 -] JZA80..4FC..TWT |
33723-30080 |
US $10.48 |
||
|
33723H
|
33723H
33572-24010 Grommet (For Floor Shift Control Shaft)[05.1993 - 09.1997] JZA80..4FC |
33572-24010 |
US $12.06 |
||
|
33723H
|
33723H
33572-30050 Bush (For Floor Shift Control Shaft)[09.1997 -] JZA80..4FC..TWT |
33572-30050 |
US $2.97 |
||
|
33872
|
33872
33872-22010
Link, Shift Lock Release, No.2
[09.1997 -] JZA80..4FC..TWT |
33872-22010 |
— | ||
|
33873
|
33873
33873-50011 Link, Shift Lock Release, No.3[09.1997 -] JZA80..4FC..TWT |
33873-50011 |
US $2.18 |
||
|
35469L
|
35469L
35469-50010 Spacer, Shift Lever[09.1997 -] JZA80..4FC..TWT |
35469-50010 |
US $2.62 |
||
|
35906
|
35906
35906-14030 Wire Sub-Assy, Indicator Lamp[05.1993 - 09.1997] JZA80..4FC |
35906-14030 |
US $16.60 |
||
| replacement | |||||
|
35906
|
35906
35906-12140 Wire Sub-Assy, Indicator Lamp[05.1993 - 09.1997] JZA80..4FC |
35906-12140 |
US $15.74 |
||
|
35906
|
35906
35906-22080 Wire Sub-Assy, Indicator Lamp[09.1997 -] JZA80..4FC..TWT |
35906-22080 |
US $6.70 |
||
| replacement | |||||
|
35906
|
35906
35906-50030 Wire Sub-Assy, Indicator Lamp[09.1997 -] JZA80..4FC..TWT |
35906-50030 |
US $5.39 |
||
|
35907
|
35907
35907-14060
Housing Sub-Assy, Position Indicator (For Floor Shift)
[09.1997 -] JZA80..4FC..TWT |
35907-14060 |
— | ||
|
35953
|
35953
35907-14070 Guide, Position Indicator Light[09.1997 -] JZA80..4FC..TWT |
35907-14070 |
US $61.30 |
||
|
35954
|
35954
35954-14010
Sheet, Position Indicator
[09.1997 -] JZA80..4FC..TWT |
35954-14010 |
— | ||
|
35975
|
35975
35975-14100 Cover, Slide (For Position Indicator)[05.1993 - 09.1997] JZA80..4FC |
35975-14100 |
US $27.96 |
||
|
35975
|
35975
35975-22160 Cover, Slide (For Position Indicator)[09.1997 -] JZA80..4FC..TWT |
35975-22160 |
US $12.90 |
||
|
35976
|
35976
35976-22060 Cover, Slide, No.2 (For Position Indicator)[09.1997 -] JZA80..4FC..TWT |
35976-22060 |
from US $4.94 |
||
|
35983
|
35983
35983-14030
Bracket (For Shift Lever Plate)
[09.1997 -] JZA80..4FC..TWT |
35983-14030 |
— | ||
|
91635G0630
|
91635G0630
91635-G0630 New Genuine Part |
91635-G0630 |
US $1.46 |
||
| replacement | |||||
|
91635G0630
|
91635G0630
90119-06775 BOLT WWASHER |
90119-06775 |
from US $1.05 |
||
|
9017908001
|
9017908001
90179-08001
New Genuine Part
|
90179-08001 |
— | ||
| replacement | |||||
|
9017908001
|
9017908001
90179-08233 NUT |
90179-08233 |
from US $1.27 |
||
|
9024905094
|
9024905094
90249-05094 Pin, Shift Lever (For Floor Shift) |
90249-05094 |
US $1.05 |
||
|
9046312570
|
9046312570
90463-12570 CLAMP |
90463-12570 |
US $3.58 |
||
|
9046814004
|
9046814004
90468-14004 Union, Auxiliary Fuel Band |
90468-14004 |
from US $0.65 |
||
|
9046814033
|
9046814033
90468-14033 CLIP |
90468-14033 |
from US $0.87 |
||
|
9050103011
|
9050103011
90501-03011 Spring, Compression (For Detent Rod) |
90501-03011 |
US $1.46 |
||
|
9050105035
|
9050105035
90501-05035 Spring, Compression (For Shift Lock Release Button) |
90501-05035 |
US $1.31 |
||
|
9056008088
|
9056008088
90560-08088 New Genuine Part |
90560-08088 |
US $1.75 |
||
|
9331514008
|
9331514008
93315-14008 New Genuine Part |
93315-14008 |
US $1.10 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.65 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.87 |
||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.67 |
||
