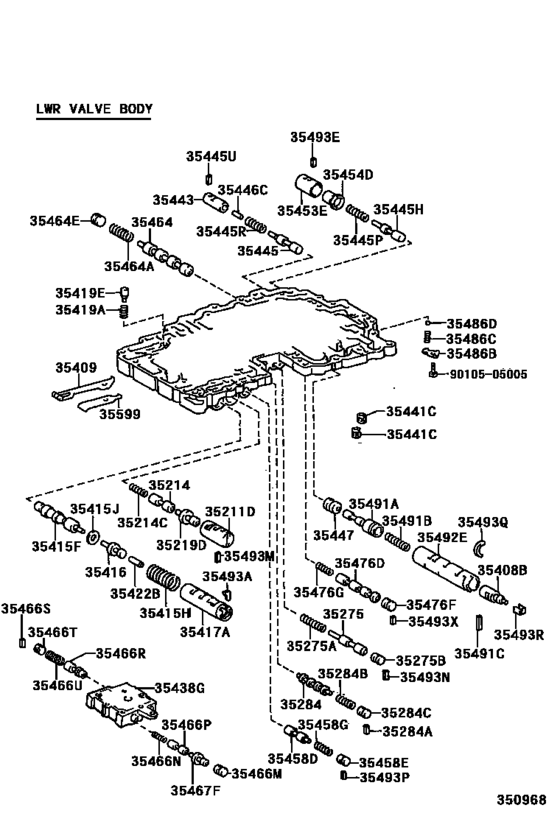

Valve Body & Oil Strainer (Atm) ([09.1997 - ] A340E (9709- )4FC..TWT) Diagram Toyota SUPRA
- Year
- 1995 - 2002
- Sales region
- Japan
- Frame
- JZA80
- grade
- RZS
- body
- LB
- ENGINE
- 2JZGTE
- TRANSMISSION
- ATM
- Model
- SUPRA 80
- From
- 05.1995
- To
- 08.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- SUPRA
- Fuel Induction
- TWT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35211D
|
35211D
35211-30010 Sleeve, Lock Up Control Valve[05.1993 - 09.1997] JZA80..4FC..TWT |
35211-30010 |
US $7.13 |
||
|
35211D
|
35211D
35211-50010 Sleeve, Lock Up Control Valve[09.1997 - 08.2002] JZA80..4FC..TWT |
35211-50010 |
US $6.12 |
||
|
35214
|
35214
35214-50010 Valve, Lock Up Control[05.1993 - 08.2002] JZA80..4FC..TWT |
35214-50010 |
US $11.88 |
||
|
35214C
|
35214C
90501-07078 Spring, Compression (For Lock Up Control Valve)[05.1993 - 09.1997] JZA80..4FC..TWT |
90501-07078 |
US $1.31 |
||
|
35214C
|
35214C
90501-07111 Spring, Compression (For Lock Up Control Valve)[09.1997 - 08.2002] JZA80..4FC..TWT |
90501-07111 |
US $0.61 |
||
|
35219D
|
35219D
35219-30010 Plunger, Lock Up Control Valve[05.1993 - 09.1997] JZA80..4FC..TWT |
35219-30010 |
US $10.19 |
||
|
35219D
|
35219D
35219-50010 Plunger, Lock Up Control Valve[09.1997 - 08.2002] JZA80..4FC..TWT |
35219-50010 |
US $9.17 |
||
|
35275
|
35275
35275-30010 Valve, Solenoid Modulator[05.1993 - 08.2002] JZA80..4FC..TWT |
35275-30010 |
US $6.99 |
||
|
35275A
|
35275A
90501-12143 Spring, Compression(For Low-High Shift Valve)[05.1993 - 08.2002] JZA80..4FC..TWT |
90501-12143 |
US $0.70 |
||
|
35275B
|
35275B
90339-04030 Plug (For Solenoid Modulator Valve)[05.1996 - 08.2002] JZA80..4FC..TWT |
90339-04030 |
US $1.46 |
||
|
35275B
|
35275B
90339-04052 Plug (For Solenoid Modulator Valve)[05.1993 - 05.1996] JZA80..4FC..TWT |
90339-04052 |
US $6.84 |
||
|
35284
|
35284
35284-14010 Valve, Solenoid Relay[05.1993 - 09.1997] JZA80..4FC..TWT |
35284-14010 |
US $14.56 |
||
|
35284
|
35284
35284-50010 Valve, Solenoid Relay[09.1997 - 08.2002] JZA80..4FC..TWT |
35284-50010 |
US $9.96 |
||
|
35284A
|
35284A
90282-03016 Key, Straight (For Lock Up Relay Valve Plug)[05.1993 - 08.2002] JZA80..4FC..TWT |
90282-03016 |
US $2.62 |
||
|
35284B
|
35284B
90501-06055
Spring, Compression (For Solenoid Relay Valve)
[05.1993 - 08.2002] JZA80..4FC..TWT |
90501-06055 |
— | ||
|
35284C
|
35284C
90339-04030 Plug (For Solenoid Modulator Valve)[05.1996 - 08.2002] JZA80..4FC..TWT |
90339-04030 |
US $1.46 |
||
|
35284C
|
35284C
90339-04052 Plug (For Solenoid Modulator Valve)[05.1993 - 05.1996] JZA80..4FC..TWT |
90339-04052 |
US $6.84 |
||
|
35408B
|
35408B
35408-50010 Plug Sub-Assy, Accumulator Control Valve[05.1993 - 08.2002] JZA80..4FC..TWT |
35408-50010 |
US $15.43 |
||
|
35409
|
35409
35409-22020 Spring Sub-Assy, Manual Detent[05.1993 - 08.2002] JZA80..4FC |
35409-22020 |
US $8.01 |
||
|
35415F
|
35415F
35415-30050 Valve, Primary Regulator[05.1993 - 08.2002] JZA80..4FC..TWT |
35415-30050 |
US $18.17 |
||
|
35415H
|
35415H
90501-14139 Spring, Compression (For Primary Regulator Valve)[05.1993 - 09.1997] JZA80..4FC..TWT |
90501-14139 |
US $1.60 |
||
|
35415H
|
35415H
90501-14153 Spring, Compression (For Primary Regulator Valve)[09.1997 - 08.2002] JZA80..4FC..TWT |
90501-14153 |
US $0.79 |
||
|
35415J
|
35415J
90201-08067 Washer (For Primary Regulator Valve)[05.1993 - 08.2002] JZA80..4FC..TWT |
90201-08067 |
US $1.02 |
||
|
35416
|
35416
35416-24020 Plunger, Primary Regulator Valve, No.1[09.1997 - 08.2002] JZA80..4FC..TWT |
35416-24020 |
US $11.21 |
||
|
35416
|
35416
35416-50010 Plunger, Primary Regulator Valve, No.1[05.1993 - 09.1997] JZA80..4FC..TWT |
35416-50010 |
US $7.86 |
||
|
35417A
|
35417A
35417-24020 Sleeve, Primary Regulator Valve[09.1997 - 08.2002] JZA80..4FC..TWT |
35417-24020 |
US $18.64 |
||
|
35417A
|
35417A
35417-50010 Sleeve, Primary Regulator Valve[05.1993 - 09.1997] JZA80..4FC..TWT |
35417-50010 |
US $17.65 |
||
|
35419A
|
35419A
90501-09093 Spring, Compression (For Check Valve)[05.1993 - 05.1996] JZA80..4FC..TWT |
90501-09093 |
US $1.31 |
||
|
35419E
|
35419E
35419-50010 Valve, Check, No.1[05.1993 - 08.2002] JZA80..4FC..TWT |
35419-50010 |
US $7.13 |
||
|
35422B
|
35422B
35422-50010 Plunger, Primary Regulator Valve, No.2[05.1993 - 09.1997] JZA80..4FC..TWT |
35422-50010 |
US $2.62 |
||
|
35422B
|
35422B
35422-50011 Plunger, Primary Regulator Valve, No.2[09.1997 - 08.2002] JZA80..4FC..TWT |
35422-50011 |
US $3.20 |
||
|
35438G
|
35438G
35404-30030 Plate, Valve Body, No.2[09.1997 - 08.2002] JZA80..4FC..TWT |
35404-30030 |
US $29.12 |
||
|
35441C
|
35441C
35441-50030 Strainer, Solenoid Oil[05.1993 - 09.1997] JZA80..4FC..TWT |
35441-50030 |
US $6.46 |
||
|
35443
|
35443
35443-50010 Sleeve, Low Coast Shift Control Valve[05.1993 - 09.1997] JZA80..4FC..TWT |
35443-50010 |
US $8.30 |
||
|
35443
|
35443
35443-50020 Sleeve, Low Coast Shift Control Valve[09.1997 - 08.2002] JZA80..4FC..TWT |
35443-50020 |
US $5.68 |
||
|
35445
|
35445
35445-50010 Valve, Low Modulator[09.1997 - 08.2002] JZA80..4FC..TWT |
35445-50010 |
US $7.86 |
||
|
35445H
|
35445H
35445-50010 Valve, Low Modulator[05.1993 - 08.2002] JZA80..4FC..TWT |
35445-50010 |
US $7.86 |
||
|
35445P
|
35445P
90501-12157
Spring, Compression (For 2Nd Coast Modulator Valve)
[05.1993 - 08.2002] JZA80..4FC..TWT オレンジ |
90501-12157 |
— | ||
|
35445P
|
35445P
90501-12158 Spring, Compression (For Low Modulator Valve)[05.1993 - 08.2002] JZA80..4FC..TWT グリーン |
90501-12158 |
US $1.02 |
||
|
35445P
|
35445P
90501-12161 Spring, Compression (For 2Nd Coast Modulator Valve)[05.1993 - 08.2002] JZA80..4FC..TWT イエロー |
90501-12161 |
US $1.75 |
||
|
35445R
|
35445R
90501-07100
Spring, Compression (For Low Coast Modulator Valve)
[05.1993 - 08.2002] JZA80..4FC..TWT |
90501-07100 |
— | ||
|
35445U
|
35445U
90282-03016 Key, Straight (For Lock Up Relay Valve Plug)[09.1997 - 08.2002] JZA80..4FC..TWT |
90282-03016 |
US $2.62 |
||
|
35446C
|
35446C
35446-50010 Plunger, Low Coast Modulator Valve[05.1993 - 09.1997] JZA80..4FC..TWT |
35446-50010 |
US $2.62 |
||
|
35446C
|
35446C
35446-50020 Plunger, Low Coast Modulator Valve[09.1997 - 08.2002] JZA80..4FC..TWT |
35446-50020 |
US $1.60 |
||
|
35447
|
35447
35447-14010 Plunger, Accumulator Control Valve[05.1993 - 08.2002] JZA80..4FC..TWT |
35447-14010 |
US $6.99 |
||
|
35453E
|
35453E
35453-14010 Sleeve, 2Nd Coast Modulator Valve[05.1993 - 08.2002] JZA80..4FC..TWT |
35453-14010 |
US $5.68 |
||
|
35454D
|
35454D
35454-14010 Plunger, 2Nd Coast Modulator Valve[05.1993 - 08.2002] JZA80..4FC..TWT |
35454-14010 |
US $9.90 |
||
|
35458D
|
35458D
35458-50010
Valve, Cut Back
[05.1993 - 08.2002] JZA80..4FC..TWT |
35458-50010 |
— | ||
|
35458E
|
35458E
90339-04052 Plug (For Solenoid Modulator Valve)[05.1993 - 09.1997] JZA80..4FC..TWT |
90339-04052 |
US $6.84 |
||
|
35458E
|
35458E
90339-04063 Plug(For Accumlator Piston, No.1)[09.1997 - 08.2002] JZA80..4FC..TWT |
90339-04063 |
US $2.04 |
||
|
35458G
|
35458G
90501-06055
Spring, Compression (For Solenoid Relay Valve)
[05.1993 - 08.2002] JZA80..4FC..TWT |
90501-06055 |
— | ||
|
35464
|
35464
35464-12030 Valve, 1-2 Shift[05.1993 - 08.2002] JZA80..4FC |
35464-12030 |
US $19.57 |
||
|
35464A
|
35464A
90501-09053 Spring, Compression (For 2-3 Shift Valve)[05.1993 - 08.2002] JZA80..4FC |
90501-09053 |
US $2.62 |
||
|
35464E
|
35464E
90339-05014 Plug, Low-High Signal Valve[05.1993 - 08.2002] JZA80..4FC |
90339-05014 |
US $1.46 |
||
|
35466M
|
35466M
35493-22010 Seat (For Cut Back Valve)[09.1997 - 08.2002] JZA80..4FC..TWT |
35493-22010 |
US $3.49 |
||
|
35466N
|
35466N
90501-07099 Spring, Compression (For Cut Back Valve)[09.1997 - 08.2002] JZA80..4FC..TWT |
90501-07099 |
US $0.73 |
||
|
35466P
|
35466P
35458-50010
Valve, Cut Back
[09.1997 - 08.2002] JZA80..4FC..TWT |
35458-50010 |
— | ||
|
35466R
|
35466R
35466-30020 Valve, Coast Brake Control, No.2[09.1997 - 08.2002] JZA80..4FC..TWT |
35466-30020 |
US $9.32 |
||
|
35466S
|
35466S
90282-03002 Key, Straight (For Lock Up Signal Valve)[09.1997 - 08.2002] JZA80..4FC..TWT |
90282-03002 |
US $1.02 |
||
|
35466T
|
35466T
90339-04030 Plug (For Solenoid Modulator Valve)[09.1997 - 08.2002] JZA80..4FC..TWT |
90339-04030 |
US $1.46 |
||
|
35466U
|
35466U
90501-06026 Spring, Compression (For Cut Back Valve)[09.1997 - 08.2002] JZA80..4FC..TWT |
90501-06026 |
US $1.75 |
||
|
35467F
|
35467F
35467-30050 Plunger, Coast Brake Relay Valve[09.1997 - 08.2002] JZA80..4FC..TWT |
35467-30050 |
US $9.61 |
||
|
35476D
|
35476D
35476-50010
Valve, Cut Off
[05.1993 - 08.2002] JZA80..4FC..TWT |
35476-50010 |
— | ||
|
35476F
|
35476F
90339-05021 Plug (For Cut Off Valve)[05.1993 - 08.2002] JZA80..4FC..TWT |
90339-05021 |
US $1.46 |
||
|
35476G
|
35476G
90501-06062 Spring, Compression (For Cut Off Valve)[05.1993 - 09.1997] JZA80..4FC..TWT |
90501-06062 |
US $1.31 |
||
|
35476G
|
35476G
90501-07126
Spring, Compression (For Cut Off Valve)
[09.1997 - 08.2002] JZA80..4FC..TWT |
90501-07126 |
— | ||
|
35486B
|
35486B
35486-50010 Seat, Pressure Relief Valve Spring[05.1993 - 08.2002] JZA80..4FC..TWT |
35486-50010 |
US $3.64 |
||
|
35486C
|
35486C
90501-11061 Spring, Compression(For Pressure Relife Valve)[05.1993 - 08.2002] JZA80..4FC..TWT |
90501-11061 |
US $1.31 |
||
|
35486D
|
35486D
90360-08003 Ball (For Lower Valve Body)[09.1997 - 08.2002] JZA80..4FC..TWT |
90360-08003 |
US $2.04 |
||
|
35491A
|
35491A
35491-14010
Valve, Accumulator Control, No.1
[05.1993 - 08.2002] JZA80..4FC..TWT |
35491-14010 |
— | ||
|
35491B
|
35491B
90501-11069
Spring, Compression (For Accumulator Control Valve No.1)
[05.1993 - 08.2002] JZA80..4FC..TWT |
90501-11069 |
— | ||
|
35491C
|
35491C
90282-03015 Key, Straight (For Throttle Valve Plug)[05.1993 - 08.2002] JZA80..4FC..TWT |
90282-03015 |
US $1.02 |
||
|
35492E
|
35492E
35492-14010 Sleeve, Accumulator Control Valve[05.1993 - 08.2002] JZA80..4FC..TWT |
35492-14010 |
US $35.09 |
||
|
35493A
|
35493A
35493-50010 Seat, Primary Regulator Valve Plug[05.1993 - 08.2002] JZA80..4FC..TWT |
35493-50010 |
US $2.18 |
||
|
35493E
|
35493E
35493-22020 Seat, Plug (For Lock Up Relay Valve)[05.1993 - 08.2002] JZA80..4FC..TWT |
35493-22020 |
US $2.48 |
||
|
35493M
|
35493M
35493-30080 Seat, 1-2 Shift Valve Plug[05.1993 - 08.2002] JZA80..4FC..TWT |
35493-30080 |
US $2.04 |
||
|
35493N
|
35493N
35493-30080 Seat, 1-2 Shift Valve Plug[05.1993 - 08.2002] JZA80..4FC..TWT |
35493-30080 |
US $2.04 |
||
|
35493P
|
35493P
35493-30040 Seat(For Low-High Shift Timing Valve Plug)[05.1993 - 09.1997] JZA80..4FC..TWT |
35493-30040 |
US $2.04 |
||
|
35493Q
|
35493Q
35493-50020 Seat, Accumulator Control Valve Plug, No.1[05.1993 - 08.2002] JZA80..4FC..TWT |
35493-50020 |
US $2.18 |
||
|
35493R
|
35493R
35493-50030 Seat, Accumulator Control Valve Plug, No.1[05.1993 - 08.2002] JZA80..4FC..TWT |
35493-50030 |
US $2.18 |
||
|
35493X
|
35493X
35493-50050 Seat, Throttle Valve Spring[05.1993 - 08.2002] JZA80..4FC..TWT |
35493-50050 |
US $1.60 |
||
|
35599
|
35599
35599-22020 Cover, Manual Detent Spring[05.1993 - 08.2002] JZA80..4FC |
35599-22020 |
US $3.64 |
||
|
9010505005
|
9010505005
90105-05005 Bolt (For Transfer Relief Valve Plate) |
90105-05005 |
US $1.25 |
