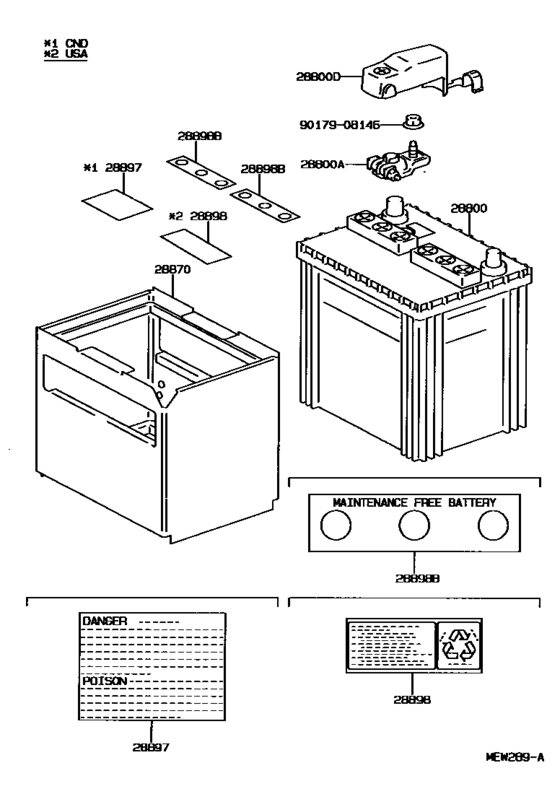

Battery & Battery Cable ([05.1993 - ] (9305- )) Diagram Toyota SUPRA
- Year
- 1993 - 1997
- Sales region
- Europe
- Frame
- JZA80
- body
- AET
- ENGINE
- 2JZGTE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- Model
- SUPRA 80
- From
- 08.1993
- To
- 09.1997
- Gear Shift Type
- 6F
- Vehicle Model
- SUPRA
- Fuel Induction
- TWT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28800
|
28800
28800-74151
Battery
[05.1993 - 07.1996] 2JZ#..JZA80..MTM 75D26L |
28800-74151 |
— | ||
|
28800
|
28800
28800-74152
Battery
[10.1996 - 08.1998] 2JZ#..JZA80..MTM 75D26L |
28800-74152 |
— | ||
|
28800A
|
28800A
90982-05037 Terminal, Battery Positive[05.1993 - 08.1998] 2JZ#..JZA80 |
90982-05037 |
from US $12.60 |
||
|
28800D
|
28800D
82821-50050 Cover, Connector(For Battery Terminal)[05.1993 - 08.1998] 2JZ#..JZA80 |
82821-50050 |
from US $10.81 |
||
|
28870
|
28870
28870-46050 Insulator Assy, BatteryBATTERY [05.1993 - 07.1996] 2JZ#..JZA80 |
28870-46050 |
US $48.57 |
||
|
28870
|
28870
28870-46080
Insulator Assy, Battery
[07.1996 - 08.1998] 2JZ#..JZA80 |
28870-46080 |
— | ||
|
28897
|
28897
28897-38010 Plate, Battery CautionBATTERY CAUTION [08.1993 - 10.1996] 2JZGTE..JZA80..CND |
28897-38010 |
US $3.06 |
||
|
28897
|
28897
28897-46020 Plate, Battery CautionBATTERY CAUTION [10.1996 - 09.1997] 2JZGTE..JZA80..CND |
28897-46020 |
US $1.69 |
||
|
28898B
|
28898B
28898-50130
Plate, Battery
[10.1994 - 07.1996] 2JZ#..JZA80 |
28898-50130 |
— | ||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
