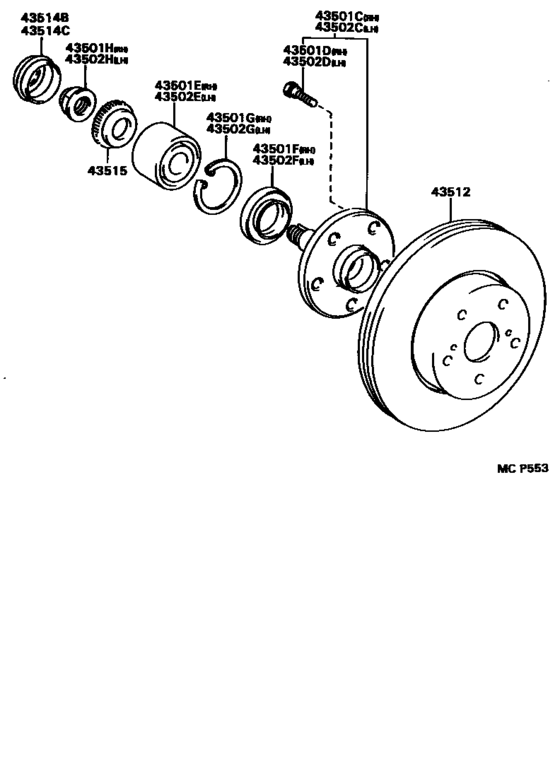

Front Axle Hub ([05.1993 - ] (9305- )) Diagram Toyota SUPRA
- Year
- 1993 - 1997
- Sales region
- Europe
- Frame
- JZA80
- body
- AET
- ENGINE
- 2JZGTE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- Model
- SUPRA 80
- From
- 08.1993
- To
- 09.1997
- Gear Shift Type
- 6F
- Vehicle Model
- SUPRA
- Fuel Induction
- TWT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43501C
|
43501C
43502-30140 Hub Sub-Assy, Front Axle[05.1993 - 08.1998] JZA80 |
43502-30140 |
US $161.84 |
||
|
43501D
|
43501D
90942-02070
Bolt, Hub
[05.1993 - 08.1998] JZA80 |
90942-02070 |
— | ||
| replacements | |||||
|
43501D
|
43501D
90942-02049
Bolt, Hub
[05.1993 - 08.1998] JZA80 |
90942-02049 |
— | ||
|
43501D
|
43501D
90942-02082 Bolt, Hub[05.1993 - 08.1998] JZA80 |
90942-02082 |
from US $2.19 |
||
|
43501E
|
43501E
90369-35034
Bearing (For Front Axle Hub Rh)
[05.1993 - 10.1993] JZA80 |
90369-35034 |
— | ||
| replacement | |||||
|
43501E
|
43501E
90903-63006 Bearing (For Front Axle Hub)[05.1993 - 10.1993] JZA80 |
90903-63006 |
from US $69.96 |
||
|
43501E
|
43501E
90903-63006 Bearing (For Front Axle Hub)[10.1993 - 07.1996] JZA80 |
90903-63006 |
from US $69.96 |
||
|
43501F
|
43501F
90311-50008 Seal, Oil (For Front Axle Hub)[05.1993 - 08.1998] JZA80 |
90311-50008 |
from US $7.16 |
||
|
43501G
|
43501G
90521-82001 Ring, Hole Snap (For Front Axle Hub)[05.1993 - 08.1998] JZA80 |
90521-82001 |
from US $1.69 |
||
|
43501H
|
43501H
90179-24005 Nut (For Front Axle Shaft)[05.1993 - 08.1998] JZA80 |
90179-24005 |
from US $1.71 |
||
|
43502C
|
43502C
43502-30140 Hub Sub-Assy, Front Axle[05.1993 - 08.1998] JZA80 |
43502-30140 |
US $161.84 |
||
|
43502D
|
43502D
90942-02070
Bolt, Hub
[05.1993 - 08.1998] JZA80 |
90942-02070 |
— | ||
| replacements | |||||
|
43502D
|
43502D
90942-02049
Bolt, Hub
[05.1993 - 08.1998] JZA80 |
90942-02049 |
— | ||
|
43502D
|
43502D
90942-02082 Bolt, Hub[05.1993 - 08.1998] JZA80 |
90942-02082 |
from US $2.19 |
||
|
43502E
|
43502E
90369-35034
Bearing (For Front Axle Hub Rh)
[05.1993 - 10.1993] JZA80 |
90369-35034 |
— | ||
| replacement | |||||
|
43502E
|
43502E
90903-63006 Bearing (For Front Axle Hub)[05.1993 - 10.1993] JZA80 |
90903-63006 |
from US $69.96 |
||
|
43502E
|
43502E
90903-63006 Bearing (For Front Axle Hub)[10.1993 - 07.1996] JZA80 |
90903-63006 |
from US $69.96 |
||
|
43502F
|
43502F
90311-50008 Seal, Oil (For Front Axle Hub)[05.1993 - 08.1998] JZA80 |
90311-50008 |
from US $7.16 |
||
|
43502G
|
43502G
90521-82001 Ring, Hole Snap (For Front Axle Hub)[05.1993 - 08.1998] JZA80 |
90521-82001 |
from US $1.69 |
||
|
43502H
|
43502H
90179-24005 Nut (For Front Axle Shaft)[05.1993 - 08.1998] JZA80 |
90179-24005 |
from US $1.71 |
||
|
43512
|
43512
43512-14200 Disc, Front[05.1993 - 08.1998] JZA80..TWT RH |
43512-14200 |
US $206.72 |
||
|
43512
|
43512
43516-14030 Disc, Front[05.1993 - 08.1998] JZA80..TWT LH |
43516-14030 |
from US $206.72 |
||
|
43514B
|
43514B
43514-24010
Cap, Front Axle Hub Grease, Rh
[05.1993 - 08.1998] JZA80 |
43514-24010 |
— | ||
|
43514C
|
43514C
43514-24010
Cap, Front Axle Hub Grease, Rh
[05.1993 - 08.1998] JZA80 |
43514-24010 |
— | ||
|
43515
|
43515
43515-24010 Rotor, Skid Control, Front[05.1993 - 08.1998] JZA80 |
43515-24010 |
US $14.13 |
||
