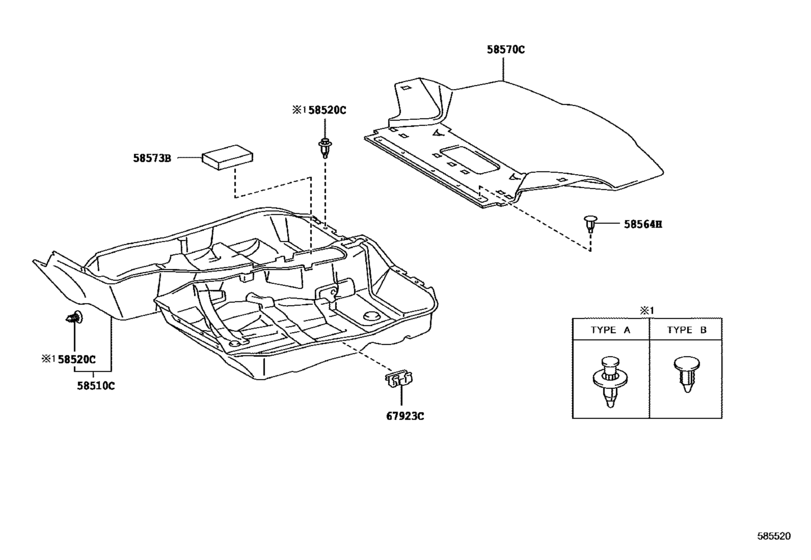

Mat & Carpet ([05.1993 - ] (9305- )) Diagram Toyota SUPRA
- Year
- 1993 - 1997
- Sales region
- Europe
- Frame
- JZA80
- body
- AET
- ENGINE
- 2JZGTE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- Model
- SUPRA 80
- From
- 08.1993
- To
- 09.1997
- Gear Shift Type
- 6F
- Vehicle Model
- SUPRA
- Fuel Induction
- TWT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58510C
|
58510C
58510-1B171-A0
Carpet Assy, Front Floor, Front
[05.1993 - 08.1998] JZA80..MTM IVORY,TRIM0# |
58510-1B171-A0 |
— | ||
|
58510C
|
58510C
58510-1B171-C0 Carpet Assy, Front Floor, Front (Black)[05.1993 - 08.1998] JZA80..MTM BLACK,TRIM2# |
58510-1B171-C0 |
US $1,163.34 |
||
|
58520C
|
58520C
90467-06016-A0
Clip(For Front Floor Carpet)
[08.1996 - 09.1997] JZA80 TYPE B:REFER TO ILLUSTRATION,IVORY,TRIM0# |
90467-06016-A0 |
— | ||
|
58520C
|
58520C
90467-06016-C0 Clip, Deck Board[08.1996 - 09.1997] JZA80 TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM2# |
90467-06016-C0 |
US $3.05 |
||
|
58520C
|
58520C
90467-06166-A0
Clip(For Front Floor Carpet)
[08.1996 - 08.1998] JZA80 TYPE A:REFER TO ILLUSTRATION,IVORY,TRIM0# |
90467-06166-A0 |
— | ||
|
58520C
|
58520C
90467-06166-C0 Clip(For Front Floor Carpet)[05.1993 - 07.1996] JZA80..6F;JZA80..TWC;JZA80..AET..4FC..TWT BLACK,TRIM2#,TYPE A; JZA80..LB..4FC..TWT BLACK,TRIM2# |
90467-06166-C0 |
US $2.51 |
||
|
58520C
|
58520C
90904-67023-C0
Clip(For Front Floor Carpet)
[05.1993 - 08.1994] JZA80 BLACK,TRIM0#,2# |
90904-67023-C0 |
— | ||
|
58564H
|
58564H
90467-07043-C0 Clip(For Rear Bumper Retainer)[05.1993 - 08.1998] JZA80 BLACK,TRIM0#,2# |
90467-07043-C0 |
from US $0.64 |
||
|
58570C
|
58570C
58570-14370-C0
Carpet Assy, Rear Floor
[05.1993 - 08.1994] JZA80..AET BLACK,TRIM0#,2# |
58570-14370-C0 |
— | ||
| replacement | |||||
|
58570C
|
58570C
58570-14371-C1
Carpet Assy, Rear Floor
[05.1993 - 08.1994] JZA80..AET BLACK,TRIM0#,2# |
58570-14371-C1 |
— | ||
|
58570C
|
58570C
58570-14371-C1
Carpet Assy, Rear Floor
[08.1994 - 07.1996] JZA80..AET BLACK,TRIM0#,2# |
58570-14371-C1 |
— | ||
|
58570C
|
58570C
58570-14380-C0
Carpet Assy, Rear Floor
[05.1993 - 08.1994] JZA80..AET W(7-SPEAKERS),BLACK,TRIM0#,2# |
58570-14380-C0 |
— | ||
| replacement | |||||
|
58570C
|
58570C
58570-14381-C1
Carpet Assy, Rear Floor
[05.1993 - 08.1994] JZA80..AET W(7-SPEAKERS),BLACK,TRIM0#,2# |
58570-14381-C1 |
— | ||
|
58570C
|
58570C
58570-14381-C1
Carpet Assy, Rear Floor
[08.1994 - 07.1996] JZA80..AET W(7-SPEAKERS),BLACK,TRIM0#,2# |
58570-14381-C1 |
— | ||
|
58570C
|
58570C
58570-14480-C0
Carpet Assy, Rear Floor
[07.1996 - 08.1998] JZA80..AET BLACK,TRIM0#,2# |
58570-14480-C0 |
— | ||
|
67923C
|
67923C
67923-14010 Clamp, Door Scuff Plate, No.1[05.1993 - 08.1998] JZA80..AET |
67923-14010 |
US $5.59 |
||
