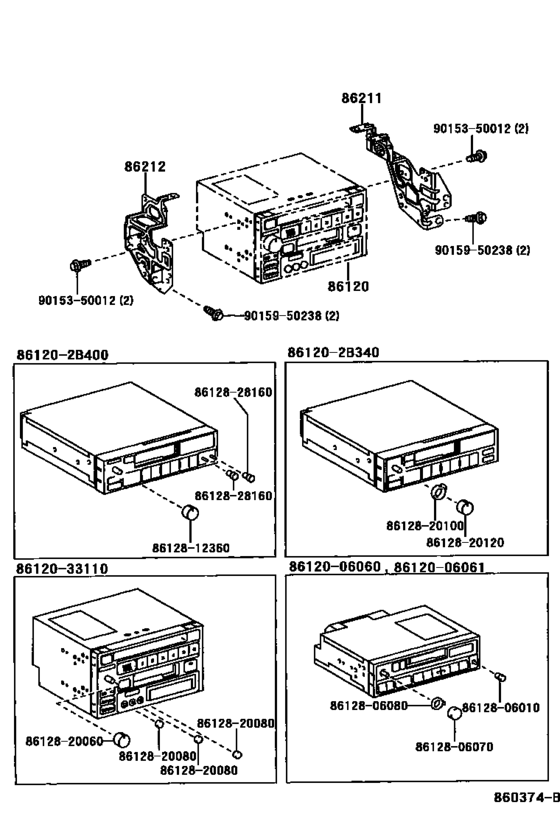

Radio Receiver & Amplifier & Condenser ([05.1993 - ] (9305- )) Diagram Toyota SUPRA
- Year
- 1993 - 1997
- Sales region
- Europe
- Frame
- JZA80
- body
- AET
- ENGINE
- 2JZGTE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- Model
- SUPRA 80
- From
- 08.1993
- To
- 09.1997
- Gear Shift Type
- 6F
- Vehicle Model
- SUPRA
- Fuel Induction
- TWT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86120
|
86120
86120-2B340
Receiver Assy, Radio
[05.1993 - 08.1994] JZA80 FUJITSU TEN,AM/FM ETR CASSETTE (AM=10KHZ STEP) |
86120-2B340 |
— | ||
|
86120
|
86120
86120-2B510
Receiver Assy, Radio
[08.1994 - 08.1995] JZA80 FUJITSU TEN,AM/FM ETR CASSETTE (AM=10KHZ STEP) |
86120-2B510 |
— | ||
| replacement | |||||
|
86120
|
86120
86120-2B511
Receiver Assy, Radio
[08.1994 - 08.1995] JZA80 FUJITSU TEN,AM/FM ETR CASSETTE (AM=10KHZ STEP) |
86120-2B511 |
— | ||
|
86120
|
86120
86120-2B511
Receiver Assy, Radio
[01.1997 - 09.1997] JZA80..CND FUJITSU TEN,AM/FM CASSETTE; JZA80..USA FUJITSU TEN,W(DIVERSITY ANTENNA) |
86120-2B511 |
— | ||
|
86120
|
86120
86120-33050 Receiver Assy, RadioRADIO [08.1994 - 08.1995] JZA80 FUJITSU TEN,AM/FM CASSETTE & CD |
86120-33050 |
US $2,970.24 |
||
| replacement | |||||
|
86120
|
86120
86120-33051 Receiver Assy, RadioRADIO [08.1994 - 08.1995] JZA80 FUJITSU TEN,AM/FM CASSETTE & CD |
86120-33051 |
US $2,970.24 |
||
|
86120
|
86120
86120-33051 Receiver Assy, RadioRADIO [01.1997 - 09.1997] JZA80..AET;JZA80..LB..TWT FUJITSU TEN,AM/FM CASSETTE & CD |
86120-33051 |
US $2,970.24 |
||
|
86120
|
86120
86120-33110
Receiver Assy, Radio
[05.1993 - 08.1994] JZA80 FUJITSU TEN,AM/FM CASSETTE & CD |
86120-33110 |
— | ||
|
86211
|
86211
86211-14240
Bracket, Radio, No.1
[05.1993 - 08.1998] JZA80 |
86211-14240 |
— | ||
|
86212
|
86212
86212-14200
Bracket, Radio, No.2
[05.1993 - 08.1998] JZA80 |
86212-14200 |
— | ||
|
8612806010
|
8612806010
86128-06010 Knob, Radio Receiver Tuning, No.2RADIO RECEIVER |
86128-06010 |
US $9.61 |
||
|
8612806070
|
8612806070
86128-06070
Knob, Radio Receiver
|
86128-06070 |
— | ||
|
8612806080
|
8612806080
86128-06080
Knob, Radio Receiver
|
86128-06080 |
— | ||
|
8612812360
|
8612812360
86128-12360 Knob, Radio Receiver SwitchRADIO RECEIVER |
86128-12360 |
US $5.24 |
||
|
8612820060
|
8612820060
86128-20060
Knob, Radio Receiver
|
86128-20060 |
— | ||
|
8612820080
|
8612820080
86128-20080
Knob, Radio Receiver
|
86128-20080 |
— | ||
|
8612820100
|
8612820100
86128-20100 Knob, Radio Receiver SwitchRADIO RECEIVER |
86128-20100 |
US $1.89 |
||
|
8612820120
|
8612820120
86128-20120 Knob, Radio Receiver BalanceRADIO RECEIVER |
86128-20120 |
US $1.89 |
||
|
8612828160
|
8612828160
86128-28160
Knob, Radio Receiver Tuning, No.2
|
86128-28160 |
— | ||
|
9015350012
|
9015350012
90153-50012 SCREW CROSSRECESS |
90153-50012 |
US $0.51 |
||
|
9015950238
|
9015950238
90159-50238 SCREW WWASHER |
90159-50238 |
US $2.15 |
||
