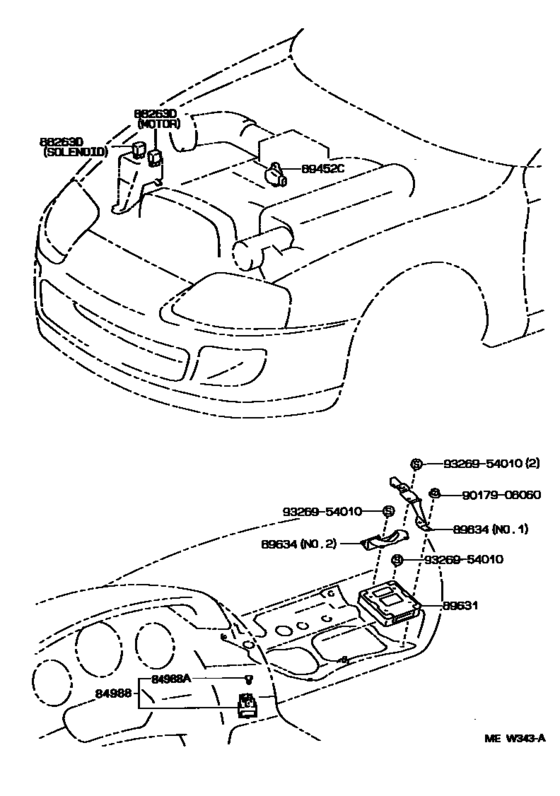

Traction Control ([05.1993 - 01.1996] (9305-9601)TWT) Diagram Toyota SUPRA
- Year
- 1993 - 1997
- Sales region
- Europe
- Frame
- JZA80
- body
- AET
- ENGINE
- 2JZGTE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- Model
- SUPRA 80
- From
- 08.1993
- To
- 09.1997
- Gear Shift Type
- 6F
- Vehicle Model
- SUPRA
- Fuel Induction
- TWT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84988
|
84988
84988-14020
Switch, Traction Control
[05.1993 - 01.1996] JZA80..TWT |
84988-14020 |
— | ||
|
84988
|
84988
84988-14030
Switch, Traction Control
[01.1996 - 08.1998] JZA80..TWT |
84988-14030 |
— | ||
|
84988A
|
84988A
84999-10490 Blub, Center Cluster Module Switch[01.1996 - 08.1998] JZA80..TWT 14V 0.84W |
84999-10490 |
from US $6.59 |
||
|
84988A
|
84988A
84999-10700 Bulb, Hdeadlamp Swivel Main Switch[01.1996 - 08.1998] JZA80..TWT 14V 0.63W |
84999-10700 |
US $7.17 |
||
|
84988A
|
84988A
84999-10750 Bulb, Throttle Position Switch[05.1993 - 01.1996] JZA80..TWT 14V 0.84W |
84999-10750 |
US $4.89 |
||
|
88263D
|
88263D
88263-24020 Relay, Skid Control[05.1993 - 01.1996] JZA80..TWT MOTOR |
88263-24020 |
from US $39.58 |
||
|
88263D
|
88263D
88263-24030 Relay, Skid Control[05.1993 - 01.1996] JZA80..TWT SOLENOID |
88263-24030 |
from US $38.21 |
||
|
89452C
|
89452C
89452-22090 Sensor, Throttle Position[05.1993 - 01.1996] JZA80..TWT |
89452-22090 |
from US $128.78 |
||
|
89631
|
89631
89631-14010
Computer, Traction Control
[05.1993 - 01.1996] JZA80..TWT |
89631-14010 |
— | ||
|
89634
|
89634
88267-14140 Bracket, Skid Control Computer, No.1SKID CONTROL COMPUTER, NO.1 [05.1993 - 01.1996] JZA80..TWT NO.1 |
88267-14140 |
US $12.67 |
||
|
89634
|
89634
88268-14140 Bracket, Skid Control Computer, No.2SKID CONTROL COMPUTER, NO.2 [05.1993 - 01.1996] JZA80..TWT NO.2 |
88268-14140 |
US $13.40 |
||
|
9017906060
|
9017906060
90179-06060 Nut, Wing(For Air Cleaner) |
90179-06060 |
US $2.33 |
||
|
9326954010
|
9326954010
93269-54010 SCREW |
93269-54010 |
US $1.08 |
