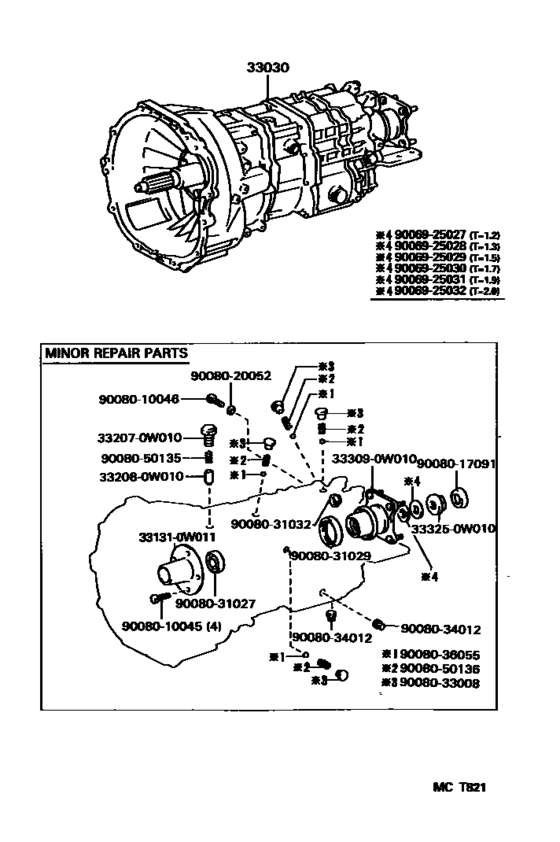

Transaxle Or Transmission Assy & Gasket Kit (Mtm) ([05.1993 - ] V160 (9305- )6F) Diagram Toyota SUPRA
- Year
- 1993 - 1997
- Sales region
- Europe
- Frame
- JZA80
- body
- AET
- ENGINE
- 2JZGTE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- Model
- SUPRA 80
- From
- 08.1993
- To
- 09.1997
- Gear Shift Type
- 6F
- Vehicle Model
- SUPRA
- Fuel Induction
- TWT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33030
|
33030
33030-0W140
Transmission Unit Assy, Manual
[05.1993 - 11.1993] JZA80..6F |
33030-0W140 |
— | ||
| replacement | |||||
|
33030
|
33030
33030-0W212
Transmission Unit Assy, Manual
[05.1993 - 11.1993] JZA80..6F |
33030-0W212 |
— | ||
|
33030
|
33030
33030-0W211
Transmission Unit Assy, Manual
[10.1994 - 01.1996] JZA80..6F |
33030-0W211 |
— | ||
| replacement | |||||
|
33030
|
33030
33030-0W212
Transmission Unit Assy, Manual
[10.1994 - 01.1996] JZA80..6F |
33030-0W212 |
— | ||
|
33030
|
33030
33030-0W212
Transmission Unit Assy, Manual
[07.1996 - 08.1998] JZA80..6F |
33030-0W212 |
— | ||
|
33030
|
33030
33030-0W220
Transmission Unit Assy, Manual
[11.1993 - 12.1993] JZA80..6F |
33030-0W220 |
— | ||
| replacement | |||||
|
33030
|
33030
33030-0W212
Transmission Unit Assy, Manual
[11.1993 - 12.1993] JZA80..6F |
33030-0W212 |
— | ||
|
33030
|
33030
33030-0W221
Transmission Unit Assy, Manual
[12.1993 - 10.1994] JZA80..6F |
33030-0W221 |
— | ||
| replacement | |||||
|
33030
|
33030
33030-0W212
Transmission Unit Assy, Manual
[12.1993 - 10.1994] JZA80..6F |
33030-0W212 |
— | ||
|
331310W011
|
331310W011
33131-0W011
Retainer, Bearing, Front(Mtm)
|
33131-0W011 |
— | ||
|
332070W010
|
332070W010
33207-0W010
Seat, Shift Detent Ball Spring, No.2
|
33207-0W010 |
— | ||
|
332080W010
|
332080W010
33208-0W010
Pin Sub-Assy, Reverse Restrict
|
33208-0W010 |
— | ||
|
333090W010
|
333090W010
33309-0W010
Flange, Manual Transmission Output Shaft Companion
|
33309-0W010 |
— | ||
|
333250W010
|
333250W010
33325-0W010
Retainer, Manual Transmission Lock Nut
|
33325-0W010 |
— | ||
|
9006925027
|
9006925027
90069-25027 Shim (For Output Shaft Rear Bearing) |
90069-25027 |
US $10.92 |
||
|
9006925028
|
9006925028
90069-25028 Shim (For Output Shaft Rear Bearing) |
90069-25028 |
US $10.92 |
||
|
9006925029
|
9006925029
90069-25029
Shim (For Output Shaft Rear Bearing)
|
90069-25029 |
— | ||
|
9006925030
|
9006925030
90069-25030
Shim (For Output Shaft Rear Bearing)
|
90069-25030 |
— | ||
|
9006925031
|
9006925031
90069-25031
Shim (For Output Shaft Rear Bearing)
|
90069-25031 |
— | ||
|
9006925032
|
9006925032
90069-25032
Shim (For Output Shaft Rear Bearing)
|
90069-25032 |
— | ||
|
9008010045
|
9008010045
90080-10045 New Genuine Part |
90080-10045 |
US $1.34 |
||
|
9008010046
|
9008010046
90080-10046 New Genuine Part |
90080-10046 |
US $1.34 |
||
|
9008017091
|
9008017091
90080-17091
Nut (For Manual Transmission Output Shaft Rear Set)
|
90080-17091 |
— | ||
|
9008020052
|
9008020052
90080-20052
New Genuine Part
|
90080-20052 |
— | ||
|
9008031027
|
9008031027
90080-31027
Seal, Oil(For Transmission Front Bearing Retainer)
|
90080-31027 |
— | ||
| replacement | |||||
|
9008031027
|
9008031027
90080-31031
Seal, Oil(For Transmission Front Bearing Retainer)
|
90080-31031 |
— | ||
|
9008031029
|
9008031029
90080-31029 Seal, Oil(For Manual Transmission Extension Housing) |
90080-31029 |
from US $17.92 |
||
|
9008031032
|
9008031032
90080-31032
Seal
|
90080-31032 |
— | ||
|
9008033008
|
9008033008
90080-33008 Seat, Shift Detent Ball Spring, No.1 |
90080-33008 |
US $5.94 |
||
|
9008034012
|
9008034012
90080-34012 Plug(For Manual Transmission Filler) |
90080-34012 |
US $5.09 |
||
|
9008036055
|
9008036055
90080-36055 Ball, Shaft Detent |
90080-36055 |
US $1.92 |
||
|
9008050135
|
9008050135
90080-50135
Spring, Compression, No.2 (For Shift Detent Ball)
|
90080-50135 |
— | ||
|
9008050136
|
9008050136
90080-50136 Spring, Compression (For Shift Detent Ball Low Side) |
90080-50136 |
US $0.70 |
||
