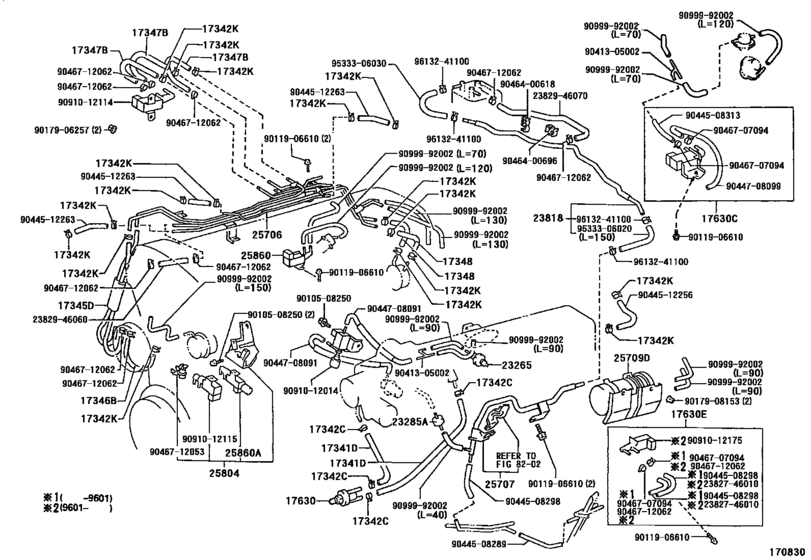

Vacuum Piping ([05.1993 - ] (9305- )2JZGTE) Diagram Toyota SUPRA
- Year
- 1993 - 1997
- Sales region
- Europe
- Frame
- JZA80
- body
- AET
- ENGINE
- 2JZGTE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- Model
- SUPRA 80
- From
- 08.1993
- To
- 09.1997
- Gear Shift Type
- 6F
- Vehicle Model
- SUPRA
- Fuel Induction
- TWT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17341D
|
17341D
90445-10021
Hose, No.1(For Air Pipe)
[05.1993 - 08.1998] 2JZGTE..JZA80 THROTTLE SIDE |
90445-10021 |
— | ||
|
17341D
|
17341D
90445-10073 Hose, No.1(For Idle-Up)[05.1993 - 08.1998] 2JZGTE..JZA80 SURGE TANK SIDE |
90445-10073 |
US $7.86 |
||
|
17342C
|
17342C
90467-10106
Clip, No.1(For Idle-Up Hose)
[05.1993 - 08.1998] 2JZ#..JZA80 |
90467-10106 |
— | ||
| replacement | |||||
|
17342C
|
17342C
96132-51000 Clip Or Clamp(For Ventilation Hose)[05.1993 - 08.1998] 2JZ#..JZA80 |
96132-51000 |
from US $1.44 |
||
|
17342K
|
17342K
96135-41100
Clamp Or Clip, Hose(For Water By-Pass Pipe)
[05.1993 - 07.1996] 2JZGTE..JZA80 |
96135-41100 |
— | ||
| replacement | |||||
|
17342K
|
17342K
96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)[05.1993 - 07.1996] 2JZGTE..JZA80 |
96135-51100 |
from US $1.79 |
||
|
17345D
|
17345D
17345-46020
Hose, Air, No.5
[05.1993 - 07.1996] 2JZGTE..JZA80 |
17345-46020 |
— | ||
|
17345D
|
17345D
17345-46080 Hose, Air, No.5[08.1997 - 08.1998] 2JZGTE..JZA80 |
17345-46080 |
US $18.53 |
||
|
17346B
|
17346B
17346-46010 Hose, Air, No.6[05.1993 - 08.1998] 2JZGTE..JZA80 |
17346-46010 |
US $9.49 |
||
|
17347B
|
17347B
17347-46010
Hose, Air, No.7
[05.1993 - 07.1996] 2JZGTE..JZA80 |
17347-46010 |
— | ||
| replacement | |||||
|
17347B
|
17347B
17347-46011 Hose, Air, No.7[05.1993 - 07.1996] 2JZGTE..JZA80 |
17347-46011 |
US $13.44 |
||
|
17347B
|
17347B
17347-46011 Hose, Air, No.7[08.1997 - 08.1998] 2JZGTE..JZA80 |
17347-46011 |
US $13.44 |
||
|
17348
|
17348
17348-46010 Hose, Air, No.8[05.1993 - 07.1996] 2JZGTE..JZA80 |
17348-46010 |
US $17.56 |
||
|
17630
|
17630
17630-70020
Valve Assy, Air Control
[05.1993 - 08.1998] 2JZ#..JZA80 |
17630-70020 |
— | ||
| replacement | |||||
|
17630
|
17630
17630-16040 Valve Assy, Air Control[05.1993 - 08.1998] 2JZ#..JZA80 |
17630-16040 |
from US $76.25 |
||
|
17630C
|
17630C
17630-46060
Valve Assy, Air Control
[05.1993 - 08.1998] 2JZGTE..JZA80 |
17630-46060 |
— | ||
|
17630E
|
17630E
17630-46030 Valve Assy, Air ControlAIR CONTROL [01.1996 - 08.1998] 2JZGTE..JZA80 |
17630-46030 |
US $182 |
||
|
17630E
|
17630E
17630-46050
Valve Assy, Air Control
[05.1993 - 01.1996] 2JZGTE..JZA80 |
17630-46050 |
— | ||
|
23265
|
23265
90917-11031 Filter, Gas, No.1[05.1993 - 08.1998] 2JZGTE..JZA80 |
90917-11031 |
from US $20.33 |
||
|
23285A
|
23285A
90917-10080
Filter, Gas, No.1
[05.1993 - 09.1997] 2JZ#..JZA80 |
90917-10080 |
— | ||
|
23818
|
23818
23818-46040
Pipe, Fuel Vapor Feed
[05.1993 - 08.1998] 2JZGTE..JZA80 |
23818-46040 |
— | ||
|
25706
|
25706
25706-46050
Pipe Sub-Assy, Vacuum Transmitting, No.1
[05.1993 - 07.1996] 2JZGTE..JZA80 |
25706-46050 |
— | ||
|
25706
|
25706
25706-46110
Pipe Sub-Assy, Vacuum Transmitting, No.1
[08.1997 - 08.1998] 2JZGTE..JZA80 |
25706-46110 |
— | ||
|
25707
|
25707
25707-46070
Pipe Sub-Assy, Vacuum Transmitting, No.2
[05.1993 - 08.1998] 2JZGTE..JZA80 |
25707-46070 |
— | ||
|
25709D
|
25709D
25709-46010 Tank Sub-Assy, Pressure Surge[05.1993 - 08.1998] 2JZGTE..JZA80 |
25709-46010 |
US $115.32 |
||
|
25804
|
25804
25804-46030 Valve Set, Vacuum Control[05.1993 - 08.1998] 2JZGTE..JZA80 |
25804-46030 |
US $264.99 |
||
|
25860
|
25860
25860-46060 Valve Assy, Vacuum Switching, No.1[05.1993 - 08.1998] 2JZGTE..JZA80 |
25860-46060 |
US $93.48 |
||
|
25860A
|
25860A
90910-12127 Valve, Vacuum Switching, No.1[05.1993 - 08.1998] 2JZGTE..JZA80 |
90910-12127 |
US $64.18 |
||
|
2382746010
|
2382746010
23827-46010 Hose, Fuel Vapor Feed, No.2 |
23827-46010 |
US $11.94 |
||
|
2382946060
|
2382946060
23829-46060
Hose, Fuel Vapor Feed, No.3
|
23829-46060 |
— | ||
|
2382946070
|
2382946070
23829-46070
Hose, Fuel Vapor Feed, No.3
|
23829-46070 |
— | ||
|
9010508250
|
9010508250
90105-08250
Bolt, Flange
|
90105-08250 |
— | ||
|
9011906610
|
9011906610
90119-06610
New Genuine Part
|
90119-06610 |
— | ||
| replacement | |||||
|
9011906610
|
9011906610
90119-06493 BOLT WITH WASHER |
90119-06493 |
US $2.15 |
||
|
9017906257
|
9017906257
90179-06257 NUT |
90179-06257 |
US $2.15 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.76 |
||
|
9041305002
|
9041305002
90413-05002 New Genuine Part |
90413-05002 |
US $5.42 |
||
|
9044508289
|
9044508289
90445-08289
New Genuine Part
|
90445-08289 |
— | ||
|
9044508298
|
9044508298
90445-08298 New Genuine Part |
90445-08298 |
US $5.02 |
||
|
9044508313
|
9044508313
90445-08313 New Genuine Part |
90445-08313 |
US $3.32 |
||
|
9044512256
|
9044512256
90445-12256 Hose |
90445-12256 |
US $6.27 |
||
|
9044512263
|
9044512263
90445-12263
Rubber Hose
|
90445-12263 |
— | ||
| replacement | |||||
|
9044512263
|
9044512263
90445-12256 Hose |
90445-12256 |
US $6.27 |
||
|
9044708091
|
9044708091
90447-08091 New Genuine Part |
90447-08091 |
US $6.29 |
||
|
9044708099
|
9044708099
90447-08099
New Genuine Part
|
90447-08099 |
— | ||
|
9046400618
|
9046400618
90464-00618 Clamp Or Clip(For Radiator Reserve Tank Hose No.3) |
90464-00618 |
US $0.96 |
||
|
9046400696
|
9046400696
90464-00696 Clamp, No.2(For Vacuum Hose) |
90464-00696 |
US $0.96 |
||
|
9046707094
|
9046707094
90467-07094 Clip, Hose Fuel(For Injection Pump) |
90467-07094 |
US $2.15 |
||
|
9046712053
|
9046712053
90467-12053 Clip Or Clamp(For Ventilation Hose) |
90467-12053 |
US $2.18 |
||
|
9046712062
|
9046712062
90467-12062 Clamp Or Clip, Hose(For Water By-Pass Hose, No.1) |
90467-12062 |
US $1.61 |
||
|
9091012014
|
9091012014
90910-12014 Valve Assy, Vacuum Switching |
90910-12014 |
from US $62.47 |
||
|
9091012114
|
9091012114
90910-12114
Valve, Duty Vacuum Switching
|
90910-12114 |
— | ||
|
9091012115
|
9091012115
90910-12115
New Genuine Part
|
90910-12115 |
— | ||
|
9091012175
|
9091012175
90910-12175
Valve, Vacuum Switching, No.1
|
90910-12175 |
— | ||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9533306020
|
9533306020
95333-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
|
95333-06020 |
— | ||
| replacement | |||||
|
9533306020
|
9533306020
95337-06020 Hose, Differential Pressure Control |
95337-06020 |
from US $10.21 |
||
|
9533306030
|
9533306030
95333-06030
Hose, Fuel
|
95333-06030 |
— | ||
| replacement | |||||
|
9533306030
|
9533306030
95338-06030 HOSE, FUEL |
95338-06030 |
from US $10.39 |
||
|
9613241100
|
9613241100
96132-41100
Clamp Or Clip(For Radiator Reserve Tank Hose)
|
96132-41100 |
— | ||
| replacement | |||||
|
9613241100
|
9613241100
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.39 |
||
