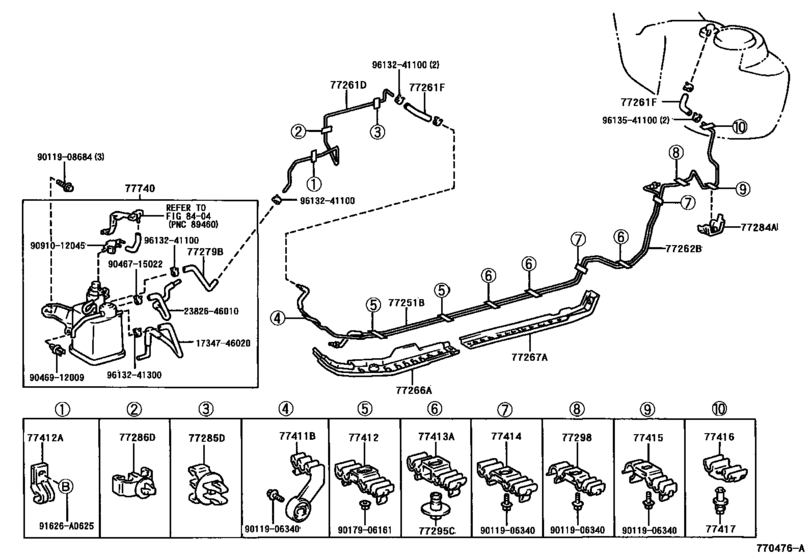

Fuel Tank & Tube ([09.1997 - ] (9709- )TWC) Diagram Toyota SUPRA
- Year
- 1993 - 1998
- Sales region
- Europe
- Frame
- JZA80
- body
- AET
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- SUPRA 80
- From
- 05.1993
- To
- 08.1998
- Gear Shift Type
- 4FC
- Vehicle Model
- SUPRA
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77251B
|
77251B
77251-14410 Tube, Fuel MainFUEL MAIN [05.1993 - 08.1998] JZA80 |
77251-14410 |
US $53.46 |
||
|
77261D
|
77261D
77261-14310 Tube, Fuel Tank To CanisterFUEL TANK TO CANISTER [09.1997 - 08.1998] JZA80..TWC |
77261-14310 |
US $26.64 |
||
|
77261F
|
77261F
95333-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
[05.1993 - 08.1998] JZA80 *H,L=130 |
95333-06020 |
— | ||
| replacement | |||||
|
77261F
|
77261F
95337-06020 Hose, Differential Pressure Control[05.1993 - 08.1998] JZA80 *H,L=130 |
95337-06020 |
from US $7.16 |
||
|
77262B
|
77262B
77262-14060 Tube, Fuel Tank To Canister, No.2FUEL TANK TO CANISTER, NO.2 [05.1993 - 08.1998] JZA80 |
77262-14060 |
US $109.20 |
||
|
77266A
|
77266A
77266-14050
Protector, Fuel Tube, No.1
[05.1993 - 08.1998] JZA80 |
77266-14050 |
— | ||
|
77267A
|
77267A
77267-14030
Protector, Fuel Tube, No.2
[05.1993 - 08.1998] JZA80 |
77267-14030 |
— | ||
|
77279B
|
77279B
77279-14020 Hose, Fuel, No.2 (For Return Tube, No.3)FUEL, NO.2 (FOR RETURN TUBE, NO.3) [09.1997 - 08.1998] JZA80..TWC |
77279-14020 |
US $10.77 |
||
|
77284A
|
77284A
77284-14020
Protector, Fuel Tube, No.3
[05.1993 - 08.1998] JZA80 |
77284-14020 |
— | ||
|
77285D
|
77285D
77285-24020 Clamp, Fuel Tube, No.1FUEL TUBE, NO.1 [09.1997 - 08.1998] JZA80..TWC |
77285-24020 |
US $5.24 |
||
|
77286D
|
77286D
77286-24030 Clamp, Fuel Tube, No.1FUEL TUBE, NO.2 [09.1997 - 08.1998] JZA80..TWC |
77286-24030 |
US $4.66 |
||
|
77295C
|
77295C
77295-22090 Grommet, Fuel Tube[05.1993 - 08.1998] JZA80 |
77295-22090 |
US $4.13 |
||
|
77298
|
77298
77298-14030 Clamp, Fuel Tube W/grommet, No.4[05.1993 - 08.1998] JZA80 |
77298-14030 |
US $7.16 |
||
|
77411B
|
77411B
77411-14010 Support, Fuel Tube Grommet, No.1[05.1993 - 08.1998] JZA80 |
77411-14010 |
US $9.78 |
||
|
77412
|
77412
77412-14010 Support, Fuel Tube Grommet, No.2[05.1993 - 08.1998] JZA80 |
77412-14010 |
US $10.87 |
||
|
77412A
|
77412A
77412-30030 Support, Fuel Tube Grommet, No.2[09.1997 - 08.1998] JZA80..TWC |
77412-30030 |
US $5.24 |
||
|
77413A
|
77413A
77413-14010 Support, Fuel Tube Grommet, No.3[05.1993 - 08.1998] JZA80 |
77413-14010 |
US $11.97 |
||
|
77414
|
77414
77414-14010 Support, Fuel Tube Grommet, No.4[05.1993 - 08.1998] JZA80 |
77414-14010 |
US $9.49 |
||
|
77415
|
77415
77415-14010 Support, Fuel Tube Grommet, No.5[05.1993 - 08.1998] JZA80 |
77415-14010 |
US $10.31 |
||
|
77416
|
77416
77416-14010 Support, Fuel Tube Grommet, No.6[05.1993 - 08.1998] JZA80 |
77416-14010 |
US $7.16 |
||
|
77417
|
77417
77417-14010 Support, Fuel Tube Grommet, No.7[05.1993 - 08.1998] JZA80 |
77417-14010 |
US $2.45 |
||
|
77740
|
77740
77740-14450
Canister Assy, Charcoal
[05.1993 - 09.1997] JZA80..TWC |
77740-14450 |
— | ||
|
77740
|
77740
77740-14480 Canister Assy, CharcoalCHARCOAL [09.1997 - 08.1998] JZA80..TWC |
77740-14480 |
US $388.75 |
||
| replacement | |||||
|
77740
|
77740
77740-14481 Canister Assy, Charcoal[09.1997 - 08.1998] JZA80..TWC |
77740-14481 |
US $385.84 |
||
|
91626A0625
|
91626A0625
91626-A0625 New Genuine Part |
91626-A0625 |
US $1.38 |
||
|
1734746020
|
1734746020
17347-46020
Hose, Air, No.7
|
17347-46020 |
— | ||
|
2382646010
|
2382646010
23826-46010 Hose, Fuel Vapor Feed, No.1 |
23826-46010 |
US $41.79 |
||
|
9011906340
|
9011906340
90119-06340 BOLT |
90119-06340 |
US $1.24 |
||
|
9011908684
|
9011908684
90119-08684 New Genuine Part |
90119-08684 |
US $1.51 |
||
|
9017906161
|
9017906161
90179-06161 Bolt, Union(For Clutch Accumulator) |
90179-06161 |
from US $0.76 |
||
|
9046715022
|
9046715022
90467-15022 Clip Or Clamp(For Ventilation Hose) |
90467-15022 |
from US $1.01 |
||
|
9046912009
|
9046912009
90469-12009 Clamp Or Clip(For Radiator Reserve Tank Hose) |
90469-12009 |
US $1.60 |
||
|
9091012045
|
9091012045
90910-12045
Valve Assy, Vacuum Switching
|
90910-12045 |
— | ||
| replacement | |||||
|
9091012045
|
9091012045
90910-12269
Valve Assy, Vacuum Switching
|
90910-12269 |
— | ||
|
9613241100
|
9613241100
96132-41100
Clamp Or Clip(For Radiator Reserve Tank Hose)
|
96132-41100 |
— | ||
| replacement | |||||
|
9613241100
|
9613241100
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.24 |
||
|
9613241300
|
9613241300
96132-41300
Clip, No.4(For Idle-Up Hose)
|
96132-41300 |
— | ||
| replacement | |||||
|
9613241300
|
9613241300
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.41 |
||
|
9613541100
|
9613541100
96135-41100
Clamp Or Clip, Hose(For Water By-Pass Pipe)
|
96135-41100 |
— | ||
| replacement | |||||
|
9613541100
|
9613541100
96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose) |
96135-51100 |
from US $1.65 |
||
