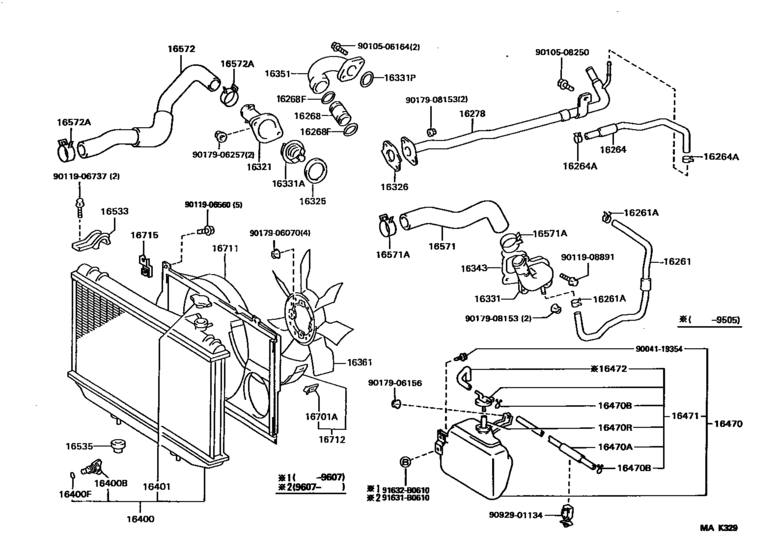

Radiator & Water Outlet ([05.1993 - ] (9305- )2JZGE) Diagram Toyota SUPRA
- Year
- 1993 - 1998
- Sales region
- Europe
- Frame
- JZA80
- body
- AET
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- SUPRA 80
- From
- 05.1993
- To
- 08.1998
- Gear Shift Type
- 4FC
- Vehicle Model
- SUPRA
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16261
|
16261
16261-46020 Hose, Water By-Pass[05.1993 - 09.1997] 2JZGE..JZA80 |
16261-46020 |
from US $15.14 |
||
|
16261A
|
16261A
90467-13050
Clamp Or Clip, Hose(For Water By-Pass Hose)
[05.1993 - 09.1997] 2JZ#..JZA80 |
90467-13050 |
— | ||
| replacement | |||||
|
16261A
|
16261A
96135-51300 Clamp, Hose[05.1993 - 09.1997] 2JZ#..JZA80 |
96135-51300 |
from US $1.86 |
||
|
16264
|
16264
16264-46010
Hose, Water By-Pass, No.2
[05.1993 - 08.1995] 2JZGE..JZA80 |
16264-46010 |
— | ||
| replacement | |||||
|
16264
|
16264
16264-46041 Hose, Water By-Pass, No.2[05.1993 - 08.1995] 2JZGE..JZA80 |
16264-46041 |
US $20.83 |
||
|
16264
|
16264
16264-46040 Hose, Water By-Pass, No.2[08.1995 - 07.1997] 2JZGE..JZA80 |
16264-46040 |
US $16.45 |
||
| replacement | |||||
|
16264
|
16264
16264-46041 Hose, Water By-Pass, No.2[08.1995 - 07.1997] 2JZGE..JZA80 |
16264-46041 |
US $20.83 |
||
|
16264
|
16264
16264-46041 Hose, Water By-Pass, No.2[07.1997 - 09.1997] 2JZGE..JZA80 |
16264-46041 |
US $20.83 |
||
|
16264A
|
16264A
90467-13050
Clamp Or Clip, Hose(For Water By-Pass Hose)
[05.1993 - 09.1997] 2JZ#..JZA80 |
90467-13050 |
— | ||
| replacement | |||||
|
16264A
|
16264A
96135-51300 Clamp, Hose[05.1993 - 09.1997] 2JZ#..JZA80 |
96135-51300 |
from US $1.86 |
||
|
16268
|
16268
16268-46011 Pipe, Water By-Pass, No.1[05.1993 - 08.1998] 2JZGE..JZA80 |
16268-46011 |
US $9.68 |
||
|
16268F
|
16268F
96761-24022 Ring, O(For Water By-Pass Pipe)[05.1993 - 08.1998] 2JZGE..JZA80 |
96761-24022 |
from US $2.79 |
||
|
16278
|
16278
16278-46010
Pipe, Water By-Pass, No.2
[05.1993 - 05.1997] 2JZGE..JZA80 |
16278-46010 |
— | ||
|
16278
|
16278
16278-46040 Pipe, Water By-Pass, No.2[05.1997 - 08.1998] 2JZGE..JZA80 |
16278-46040 |
US $64.06 |
||
|
16321
|
16321
16321-46040 Inlet, Water[05.1993 - 08.1998] 2JZGE..JZA80 |
16321-46040 |
US $56.45 |
||
|
16325
|
16325
16325-62010 Gasket, Water Inlet Housing, No.1[05.1993 - 08.1998] 2JZ#..JZA80 |
16325-62010 |
from US $3.95 |
||
|
16326
|
16326
16325-46010 Gasket, Water Inlet Housing, No.2[05.1993 - 08.1998] 2JZ#..JZA80 |
16325-46010 |
from US $3.33 |
||
|
16331
|
16331
16331-46040
Outlet, Water
[05.1993 - 09.1995] 2JZGE..JZA80 |
16331-46040 |
— | ||
| replacement | |||||
|
16331
|
16331
16331-46041 Outlet, Water[05.1993 - 09.1995] 2JZGE..JZA80 |
16331-46041 |
US $58.36 |
||
|
16331
|
16331
16331-46041 Outlet, Water[09.1995 - 08.1998] 2JZGE..JZA80 |
16331-46041 |
US $58.36 |
||
|
16331A
|
16331A
90916-03093 Thermostat[05.1993 - 08.1998] 2JZ#..JZA80 *WAX 82-95 |
90916-03093 |
from US $19.59 |
||
|
16331P
|
16331P
96761-24028 Ring,o(For Water Outlet)[05.1993 - 08.1998] 2JZGE..JZA80 |
96761-24028 |
from US $2.77 |
||
|
16343
|
16343
16343-46020 Gasket, Water Outlet Housing[05.1993 - 08.1998] 2JZGE..JZA80 |
16343-46020 |
from US $1.06 |
||
|
16351
|
16351
16351-46020 Outlet, Water By-Pass[05.1993 - 08.1995] 2JZGE..JZA80 |
16351-46020 |
US $46.88 |
||
| replacement | |||||
|
16351
|
16351
16351-46022 Outlet, Water By-Pass[05.1993 - 08.1995] 2JZGE..JZA80 |
16351-46022 |
US $58.80 |
||
|
16351
|
16351
16351-46021
Outlet, Water By-Pass
[08.1995 - 07.1997] 2JZGE..JZA80 |
16351-46021 |
— | ||
| replacement | |||||
|
16351
|
16351
16351-46022 Outlet, Water By-Pass[08.1995 - 07.1997] 2JZGE..JZA80 |
16351-46022 |
US $58.80 |
||
|
16351
|
16351
16351-46022 Outlet, Water By-Pass[07.1997 - 08.1998] 2JZGE..JZA80 |
16351-46022 |
US $58.80 |
||
|
16361
|
16361
16361-46040 Fan[05.1993 - 08.1998] 2JZGE..JZA80 |
16361-46040 |
US $136.12 |
||
|
16400
|
16400
16400-46300
Radiator Assy
[05.1993 - 08.1998] 2JZGE..JZA80..4FC |
16400-46300 |
— | ||
|
16400B
|
16400B
23322-54010 Plug,air(For Oil Cooler Drain Cock)[05.1993 - 08.1998] 2JZ#..JZA80 |
23322-54010 |
from US $4.73 |
||
|
16400F
|
16400F
96711-19007 Packing(For Radiator Drain Cock)[05.1993 - 08.1998] 2JZ#..JZA80 |
96711-19007 |
from US $2.09 |
||
|
16401
|
16401
16401-62100
Cap Sub-Assy, Radiator
[05.1993 - 08.1998] 2JZ#..JZA80 |
16401-62100 |
— | ||
| replacements | |||||
|
16401
|
16401
16401-31520
Radiator Cap Sub-Assy (108kPa)
[05.1993 - 08.1998] 2JZ#..JZA80 |
16401-31520 |
— | ||
|
16401
|
16401
16401-36020 Cap Sub-Assy, Radiator[05.1993 - 08.1998] 2JZ#..JZA80 |
16401-36020 |
from US $16.31 |
||
|
16470
|
16470
16470-46100 Tank Assy, Radiator Reserve[05.1993 - 05.1995] 2JZGE..JZA80 |
16470-46100 |
US $52.12 |
||
| replacement | |||||
|
16470
|
16470
16470-46120 Tank Assy, Radiator Reserve[05.1993 - 05.1995] 2JZGE..JZA80 |
16470-46120 |
US $65.18 |
||
|
16470
|
16470
16470-46120 Tank Assy, Radiator Reserve[05.1995 - 08.1998] 2JZGE..JZA80 |
16470-46120 |
US $65.18 |
||
|
16470A
|
16470A
90099-33534 Hose Or Pipe(For Radiator Reserve Tank)[05.1993 - 08.1998] 2JZ#..JZA80 *H,L=750 |
90099-33534 |
US $5.42 |
||
|
16470B
|
16470B
90467-11085 Clamp Or Clip(For Radiator Breather Hose)[05.1993 - 08.1998] 2JZ#..JZA80 |
90467-11085 |
from US $0.70 |
||
|
16470R
|
16470R
90445-12078 Hose(For Radiator Breather)[05.1993 - 05.1995] 2JZ#..JZA80 *H,L=140 |
90445-12078 |
from US $6.57 |
||
|
16471
|
16471
16405-46100
Cap Sub-Assy, Reserve Tank
[05.1993 - 05.1995] 2JZ#..JZA80 |
16405-46100 |
— | ||
| replacement | |||||
|
16471
|
16471
16405-46120
Cap Sub-Assy, Reserve Tank
[05.1993 - 05.1995] 2JZ#..JZA80 |
16405-46120 |
— | ||
|
16471
|
16471
16405-46120
Cap Sub-Assy, Reserve Tank
[05.1995 - 07.1996] 2JZ#..JZA80 |
16405-46120 |
— | ||
|
16472
|
16472
85338-73012
Hose, Breather
[05.1993 - 05.1995] 2JZ#..JZA80 |
85338-73012 |
— | ||
|
16533
|
16533
16505-46040 Support, Radiator, Upper[05.1993 - 08.1998] 2JZ#..JZA80 |
16505-46040 |
US $18.14 |
||
|
16535
|
16535
90480-40012 Support, Radiator, Lower[05.1993 - 08.1998] 2JZ#..JZA80 |
90480-40012 |
from US $9.94 |
||
|
16571
|
16571
16571-46140 Hose, Radiator, Inlet[05.1993 - 08.1998] 2JZGE..JZA80 |
16571-46140 |
US $27.22 |
||
|
16571A
|
16571A
90467-37006
Clamp Or Clip, Hose(For Radiator Inlet)
[05.1993 - 08.1998] 2JZ#..JZA80 |
90467-37006 |
— | ||
| replacement | |||||
|
16571A
|
16571A
90467-37005 Clip(For Water Inlet Hose)[05.1993 - 08.1998] 2JZ#..JZA80 |
90467-37005 |
from US $3.88 |
||
|
16572
|
16572
16572-46160 Hose, Radiator, Outlet[05.1993 - 08.1998] 2JZ#..JZA80 |
16572-46160 |
from US $18.35 |
||
|
16572A
|
16572A
90467-37006
Clamp Or Clip, Hose(For Radiator Inlet)
[05.1993 - 08.1998] 2JZ#..JZA80 RADIATOR SIDE |
90467-37006 |
— | ||
| replacement | |||||
|
16572A
|
16572A
90467-37005 Clip(For Water Inlet Hose)[05.1993 - 08.1998] 2JZ#..JZA80 RADIATOR SIDE |
90467-37005 |
from US $3.88 |
||
|
16572A
|
16572A
90467-41007
Clamp Or Clip, Hose(For Radiator Inlet)
[05.1993 - 07.1996] 2JZGE..JZA80 INLET SIDE; 2JZGTE..JZA80 ENGINE SIDE |
90467-41007 |
— | ||
| replacement | |||||
|
16572A
|
16572A
90466-41008 Clamp, Hose(For Radiator Hose)[05.1993 - 07.1996] 2JZGE..JZA80 INLET SIDE; 2JZGTE..JZA80 ENGINE SIDE |
90466-41008 |
from US $4.07 |
||
|
16701A
|
16701A
90468-05109 Clip(For Fan Shroud)[05.1993 - 08.1998] 2JZ#..JZA80 |
90468-05109 |
US $4.30 |
||
|
16711
|
16711
16711-46150 Shroud, Fan[05.1993 - 08.1998] 2JZGE..JZA80 |
16711-46150 |
US $115.84 |
||
|
16712
|
16712
16702-46010 Shroud, Fan, No.2[05.1993 - 08.1998] 2JZ#..JZA80 |
16702-46010 |
from US $37.16 |
||
|
16715
|
16715
16715-46010
Bracket, Fan Shroud
[05.1993 - 08.1998] 2JZ#..JZA80 |
16715-46010 |
— | ||
|
91631B0610
|
91631B0610
91631-B0610 BOLTWWASHER |
91631-B0610 |
from US $0.87 |
||
|
91632B0610
|
91632B0610
91632-B0610 New Genuine Part |
91632-B0610 |
US $1.60 |
||
| replacement | |||||
|
91632B0610
|
91632B0610
91631-B0610 BOLTWWASHER |
91631-B0610 |
from US $0.87 |
||
|
9004119354
|
9004119354
90041-19354
BOLT
|
90041-19354 |
— | ||
|
9010506164
|
9010506164
90105-06164 New Genuine Part |
90105-06164 |
US $2.15 |
||
|
9010508250
|
9010508250
90105-08250
Bolt, Flange
|
90105-08250 |
— | ||
|
9011906560
|
9011906560
90119-06560 BOLT |
90119-06560 |
US $2.15 |
||
|
9011906737
|
9011906737
90119-06737 BOLT WWASHER |
90119-06737 |
US $2.15 |
||
|
9011908891
|
9011908891
90119-08891 BOLT |
90119-08891 |
US $2.15 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.57 |
||
|
9017906156
|
9017906156
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.63 |
||
|
9017906257
|
9017906257
90179-06257 NUT |
90179-06257 |
US $2.15 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.76 |
||
|
9092901134
|
9092901134
90929-01134 Clamp, Radiator Reserve Tank Hose |
90929-01134 |
US $1.89 |
||
