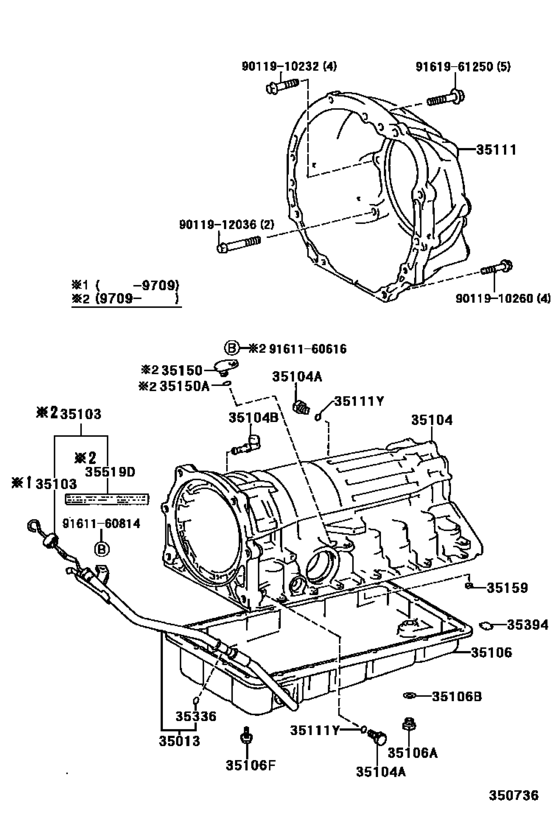

Transmission Case & Oil Pan (Atm) ([05.1993 - ] A340E (9305- )4FC..TWC) Diagram Toyota SUPRA
- Year
- 1993 - 1998
- Sales region
- Europe
- Frame
- JZA80
- body
- AET
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- SUPRA 80
- From
- 05.1993
- To
- 08.1998
- Gear Shift Type
- 4FC
- Vehicle Model
- SUPRA
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35013
|
35013
35013-24050 Tube Sub-Assy, Transmission Oil Filler[05.1993 - 05.1995] JZA80..4FC..TWC |
35013-24050 |
US $29.70 |
||
|
35013
|
35013
35013-24090 Tube Sub-Assy, Transmission Oil Filler[05.1995 - 08.1998] JZA80..4FC..TWC |
35013-24090 |
US $43.24 |
||
|
35103
|
35103
35103-24040 Gage Sub-Assy, Transmission Oil Level[05.1993 - 05.1995] JZA80..4FC..TWC |
35103-24040 |
US $18.93 |
||
|
35103
|
35103
35103-24080 Gage Sub-Assy, Transmission Oil Level[05.1995 - 09.1997] JZA80..4FC..TWC |
35103-24080 |
US $12.67 |
||
|
35103
|
35103
35103-24100 Gage Sub-Assy, Transmission Oil Level[09.1997 - 08.1998] JZA80..TWC |
35103-24100 |
US $12.67 |
||
| replacement | |||||
|
35103
|
35103
35103-24101 Gage Sub-Assy, Transmission Oil Level[09.1997 - 08.1998] JZA80..TWC |
35103-24101 |
US $12.67 |
||
|
35104
|
35104
35104-30133 Case Sub-Assy, Automatic Transmission[05.1993 - 09.1997] JZA80..4FC..TWC |
35104-30133 |
US $1,275.46 |
||
|
35104
|
35104
35104-30170 Case Sub-Assy, Automatic Transmission[09.1997 - 08.1998] JZA80..4FC |
35104-30170 |
US $963.87 |
||
|
35104A
|
35104A
90341-08001 Plug, Transaxle Case, No.1[05.1993 - 08.1998] JZA80..4FC |
90341-08001 |
from US $1.48 |
||
|
35104B
|
35104B
90930-03108 Plug, Breather, No.1 (Atm)[05.1993 - 08.1998] JZA80..4FC |
90930-03108 |
US $19.70 |
||
|
35106
|
35106
35106-24020 Pan Sub-Assy, Automatic Transmission Oil[05.1993 - 09.1997] JZA80..4FC..TWC |
35106-24020 |
US $81.54 |
||
|
35106
|
35106
35106-30130 Pan Sub-Assy, Automatic Transmission Oil[09.1997 - 08.1998] JZA80..4FC |
35106-30130 |
US $89.11 |
||
|
35106A
|
35106A
90341-10006
Plug (For Transfer Oil Pan)
[05.1993 - 09.1997] JZA80..4FC..TWC |
90341-10006 |
— | ||
| replacement | |||||
|
35106A
|
35106A
90341-10011 Drain Plug (No Type)[05.1993 - 09.1997] JZA80..4FC..TWC |
90341-10011 |
from US $1.79 |
||
|
35106A
|
35106A
90341-10018
Plug Sub-Assy, Drain (Atm)
[09.1997 - 08.1998] JZA80..TWC |
90341-10018 |
— | ||
| replacement | |||||
|
35106A
|
35106A
90341-10011 Drain Plug (No Type)[09.1997 - 08.1998] JZA80..TWC |
90341-10011 |
from US $1.79 |
||
|
35106B
|
35106B
35178-30010 Drain Plug Gasket[05.1993 - 09.1997] JZA80..4FC..TWC |
35178-30010 |
from US $1.63 |
||
|
35106B
|
35106B
35178-50010
Gasket, Drain Plug (Atm)
[09.1997 - 08.1998] JZA80..4FC |
35178-50010 |
— | ||
| replacement | |||||
|
35106B
|
35106B
35178-30010 Drain Plug Gasket[09.1997 - 08.1998] JZA80..4FC |
35178-30010 |
from US $1.63 |
||
|
35106F
|
35106F
90119-06513 Bolt (For Automatic Transmission Oil Pan)[05.1993 - 08.1998] JZA80..4FC |
90119-06513 |
US $1.61 |
||
|
35111
|
35111
35111-22081 Housing, Automatic Transmission[05.1993 - 09.1997] JZA80..4FC..TWC |
35111-22081 |
US $503.78 |
||
|
35111
|
35111
35111-30150 Housing, Automatic Transmission[09.1997 - 08.1998] JZA80..TWC |
35111-30150 |
US $428.06 |
||
|
35111Y
|
35111Y
90301-06196 O Ring, Transaxle Case, No.1[05.1993 - 08.1998] JZA80..4FC |
90301-06196 |
from US $2.36 |
||
|
35150
|
35150
35150-30010 Plug Assy, Transmission Case[09.1997 - 08.1998] JZA80..4FC |
35150-30010 |
US $17.38 |
||
|
35150A
|
35150A
90301-09012 Ring, O (For Automatic Transmission Case Plug)[09.1997 - 08.1998] JZA80..4FC |
90301-09012 |
US $3.94 |
||
|
35159
|
35159
35159-30010 Gasket, Brake Drum[05.1993 - 08.1998] JZA80..4FC |
35159-30010 |
US $13.26 |
||
|
35336
|
35336
90301-09173 Ring, O(For Transmission Oil Filler Tube)[05.1993 - 08.1998] JZA80..4FC |
90301-09173 |
from US $1.96 |
||
|
35394
|
35394
35394-30011 Magnet, Oil Cleaner (For Transmission)[05.1993 - 08.1998] JZA80..4FC |
35394-30011 |
from US $5.43 |
||
|
35519D
|
35519D
35519-30010 Label, Automatic Transmission Information[09.1997 - 08.1998] JZA80..4FC |
35519-30010 |
US $5.42 |
||
|
9011910232
|
9011910232
90119-10232 Bolt (For Transmission Housing & Case Setting) |
90119-10232 |
US $1.97 |
||
|
9011910260
|
9011910260
90119-10260 Bolt (For Transmission Housing & Engine Setting) |
90119-10260 |
from US $2.05 |
||
|
9011912036
|
9011912036
90119-12036 Bolt (For Transmission Housing & Case Setting) |
90119-12036 |
US $1.89 |
||
|
9161160616
|
9161160616
91611-60616
Bolt(For Transaxle Case Receiver)
|
91611-60616 |
— | ||
| replacement | |||||
|
9161160616
|
9161160616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.84 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.74 |
||
|
9161961250
|
9161961250
91619-61250 Bolt(For Transmission Case & Engine Setting) |
91619-61250 |
from US $1.90 |
||
