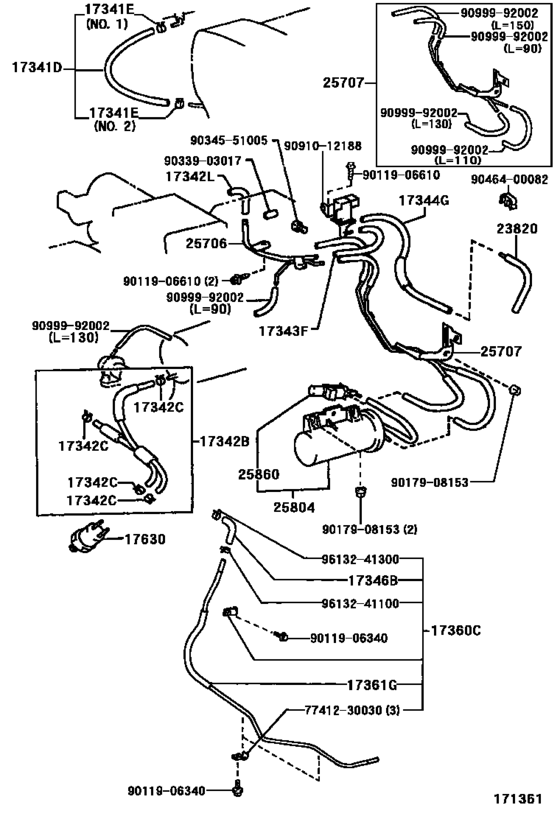

Vacuum Piping ([09.1997 - ] (9709- )2JZGE) Diagram Toyota SUPRA
- Year
- 1993 - 1998
- Sales region
- Europe
- Frame
- JZA80
- body
- AET
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- SUPRA 80
- From
- 05.1993
- To
- 08.1998
- Gear Shift Type
- 4FC
- Vehicle Model
- SUPRA
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17341D
|
17341D
90445-10065
Hose, No.1(For Idle-Up)
[05.1993 - 08.1998] 2JZGE..JZA80 |
90445-10065 |
— | ||
| replacement | |||||
|
17341D
|
17341D
90445-10016 Hose, No.2(For Idle-Up)[05.1993 - 08.1998] 2JZGE..JZA80 |
90445-10016 |
US $15.41 |
||
|
17341E
|
17341E
90467-10106
Clip, No.1(For Idle-Up Hose)
[05.1993 - 08.1998] 2JZGE..JZA80 |
90467-10106 |
— | ||
| replacement | |||||
|
17341E
|
17341E
96132-51000 Clip Or Clamp(For Ventilation Hose)[05.1993 - 08.1998] 2JZGE..JZA80 |
96132-51000 |
from US $1.44 |
||
|
17342B
|
17342B
17302-46010 Hose, No.2(For Idle-Up)[05.1993 - 08.1998] 2JZGE..JZA80 |
17302-46010 |
US $19.95 |
||
|
17342C
|
17342C
90467-10106
Clip, No.1(For Idle-Up Hose)
[05.1993 - 08.1998] 2JZ#..JZA80 |
90467-10106 |
— | ||
| replacement | |||||
|
17342C
|
17342C
96132-51000 Clip Or Clamp(For Ventilation Hose)[05.1993 - 08.1998] 2JZ#..JZA80 |
96132-51000 |
from US $1.44 |
||
|
17342L
|
17342L
17342-46170 Hose, Air, No.2[09.1997 - 08.1998] 2JZGE..JZA80 |
17342-46170 |
US $16.84 |
||
|
17343F
|
17343F
17343-46100 Hose, Air, No.3[09.1997 - 08.1998] 2JZGE..JZA80 |
17343-46100 |
US $16.84 |
||
|
17344G
|
17344G
17344-46070 Hose, Air, No.4[09.1997 - 08.1998] 2JZGE..JZA80 |
17344-46070 |
US $20.83 |
||
|
17346B
|
17346B
17346-46020 Hose, Air, No.6AIR, NO.6 [09.1997 - 08.1998] 2JZGE..JZA80 |
17346-46020 |
US $6.41 |
||
|
17360C
|
17360C
17360-46010 Pipe Assy, AirAIR [09.1997 - 08.1998] 2JZGE..JZA80 |
17360-46010 |
US $67.85 |
||
|
17361G
|
17361G
17361-46120 Tube, Air(For Idle-Up)AIR(FOR IDLE-UP) [09.1997 - 08.1998] 2JZGE..JZA80 |
17361-46120 |
US $64.65 |
||
|
17630
|
17630
17630-70020
Valve Assy, Air Control
[05.1993 - 08.1998] 2JZ#..JZA80 |
17630-70020 |
— | ||
| replacement | |||||
|
17630
|
17630
17630-16040 Valve Assy, Air Control[05.1993 - 08.1998] 2JZ#..JZA80 |
17630-16040 |
from US $76.25 |
||
|
23820
|
23820
23820-46030 Hose Assy, Fuel Vapor FeedFUEL VAPOR FEED [09.1997 - 08.1998] 2JZGE..JZA80 |
23820-46030 |
US $13.69 |
||
|
25706
|
25706
25706-46041 Pipe Sub-Assy, Vacuum Transmitting, No.1VACUUM TRANSMITTING, NO.1 [05.1993 - 11.1996] 2JZGE..JZA80 |
25706-46041 |
US $96.10 |
||
| replacement | |||||
|
25706
|
25706
25706-46042 Pipe Sub-Assy, Vacuum Transmitting, No.1VACUUM TRANSMITTING, NO.1 [05.1993 - 11.1996] 2JZGE..JZA80 |
25706-46042 |
US $96.10 |
||
|
25706
|
25706
25706-46042 Pipe Sub-Assy, Vacuum Transmitting, No.1VACUUM TRANSMITTING, NO.1 [11.1996 - 09.1997] 2JZGE..JZA80 |
25706-46042 |
US $96.10 |
||
|
25706
|
25706
25706-46090 Pipe Sub-Assy, Vacuum Transmitting, No.1[09.1997 - 08.1998] 2JZGE..JZA80 |
25706-46090 |
US $42.66 |
||
|
25707
|
25707
25707-46080 Pipe Sub-Assy, Vacuum Transmitting, No.2VACUUM TRANSMITTING, NO.2 [05.1993 - 11.1996] 2JZGE..JZA80 |
25707-46080 |
US $54.60 |
||
| replacement | |||||
|
25707
|
25707
25707-46081 Pipe Sub-Assy, Vacuum Transmitting, No.2VACUUM TRANSMITTING, NO.2 [05.1993 - 11.1996] 2JZGE..JZA80 |
25707-46081 |
US $54.60 |
||
|
25707
|
25707
25707-46081 Pipe Sub-Assy, Vacuum Transmitting, No.2VACUUM TRANSMITTING, NO.2 [11.1996 - 09.1997] 2JZGE..JZA80 |
25707-46081 |
US $54.60 |
||
|
25707
|
25707
25707-46090 Pipe Sub-Assy, Vacuum Transmitting, No.2[09.1997 - 08.1998] 2JZGE..JZA80 |
25707-46090 |
US $244.61 |
||
|
25804
|
25804
25804-46020 Valve Set, Vacuum Control[05.1993 - 08.1996] 2JZGE..JZA80 |
25804-46020 |
US $161.62 |
||
|
25804
|
25804
25804-46060 Valve Set, Vacuum Control[08.1996 - 08.1998] 2JZGE..JZA80 |
25804-46060 |
US $244.61 |
||
|
25860
|
25860
25860-46010 Valve Assy, Vacuum Switching, No.1[08.1996 - 08.1998] 2JZGE..JZA80 AISIN |
25860-46010 |
from US $51.91 |
||
|
25860
|
25860
90910-12124 Valve Assy, Vacuum Switching, No.1[05.1993 - 08.1996] 2JZGE..JZA80 |
90910-12124 |
US $49.97 |
||
|
7741230030
|
7741230030
77412-30030 Support, Fuel Tube Grommet, No.2 |
77412-30030 |
US $5.24 |
||
|
9011906340
|
9011906340
90119-06340 BOLT |
90119-06340 |
US $1.79 |
||
|
9011906610
|
9011906610
90119-06610
New Genuine Part
|
90119-06610 |
— | ||
| replacement | |||||
|
9011906610
|
9011906610
90119-06493 BOLT WITH WASHER |
90119-06493 |
US $2.15 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.76 |
||
|
9033903017
|
9033903017
90339-03017 Plug |
90339-03017 |
US $1.79 |
||
|
9034551005
|
9034551005
90345-51005
Plug, W/head Taper Screw, No.1
|
90345-51005 |
— | ||
| replacement | |||||
|
9034551005
|
9034551005
90345-51025 Plug, W/head Taper Screw, No.2 |
90345-51025 |
US $3.76 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
US $1.79 |
||
|
9091012188
|
9091012188
90910-12188 Valve, Vacuum Switching, No.1 |
90910-12188 |
US $74.26 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9613241100
|
9613241100
96132-41100
Clamp Or Clip(For Radiator Reserve Tank Hose)
|
96132-41100 |
— | ||
| replacement | |||||
|
9613241100
|
9613241100
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.39 |
||
|
9613241300
|
9613241300
96132-41300
Clip, No.4(For Idle-Up Hose)
|
96132-41300 |
— | ||
| replacement | |||||
|
9613241300
|
9613241300
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.44 |
||
