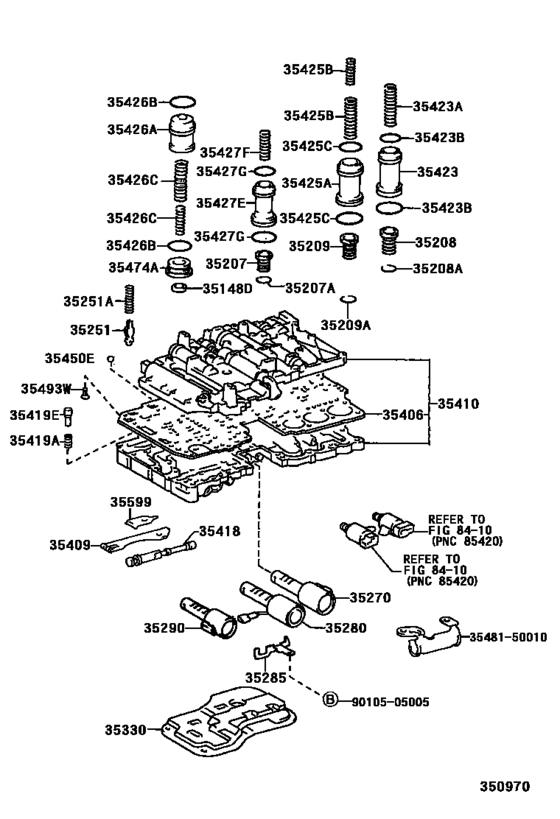

Valve Body & Oil Strainer (Atm) ([09.1997 - ] A340E (9709- )TWC) Diagram Toyota SUPRA
- Year
- 1993 - 1998
- Sales region
- Europe
- Frame
- JZA80
- body
- AET
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- SUPRA 80
- From
- 05.1993
- To
- 08.1998
- Gear Shift Type
- 4FC
- Vehicle Model
- SUPRA
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35148D
|
35148D
35148-16010 Gasket (For Automatic Transfer Case)[09.1997 - 08.1998] JZA80..4FC |
35148-16010 |
US $8.56 |
||
|
35207
|
35207
35207-22010 Spring Sub-Assy, B-0 Accumulator[05.1993 - 09.1997] JZA80..4FC |
35207-22010 |
US $2.45 |
||
|
35207
|
35207
35207-50010 Spring Sub-Assy, B-0 Accumulator[09.1997 - 08.1998] JZA80..TWC |
35207-50010 |
US $2.04 |
||
|
35207A
|
35207A
90521-22004 Ring, Hole Snap (For B-3 Accumulator Spring)[05.1993 - 08.1998] JZA80..4FC |
90521-22004 |
from US $1.24 |
||
|
35208
|
35208
35208-22010 Spring Sub-Assy, B-2 Accumulator[05.1993 - 09.1997] JZA80..4FC..TWC |
35208-22010 |
US $2.45 |
||
|
35208
|
35208
35208-30010 Spring Sub-Assy, B-2 Accumulator[09.1997 - 08.1998] JZA80..4FC |
35208-30010 |
US $2.62 |
||
|
35208A
|
35208A
90521-22004 Ring, Hole Snap (For B-3 Accumulator Spring)[05.1993 - 08.1998] JZA80..4FC |
90521-22004 |
from US $1.24 |
||
|
35209
|
35209
35209-30010 Spring Sub-Assy, C-2 Accumulator[05.1993 - 09.1997] JZA80..4FC..TWC |
35209-30010 |
US $3.32 |
||
|
35209
|
35209
35209-50010 Spring Sub-Assy, C-2 Accumulator[09.1997 - 08.1998] JZA80..4FC |
35209-50010 |
US $3.67 |
||
|
35209A
|
35209A
90521-22004 Ring, Hole Snap (For B-3 Accumulator Spring)[05.1993 - 08.1998] JZA80..4FC |
90521-22004 |
from US $1.24 |
||
|
35251
|
35251
35251-30020 Body, Check Ball[05.1993 - 08.1998] JZA80..4FC |
35251-30020 |
US $14.50 |
||
|
35251A
|
35251A
90501-03005 Spring, Compression (For Check Ball Body)[05.1993 - 08.1998] JZA80..4FC |
90501-03005 |
from US $0.79 |
||
|
35270
|
35270
35270-14010 Solenoid Assy, Shift Control[09.1997 - 08.1998] JZA80..4FC |
35270-14010 |
US $126.28 |
||
|
35280
|
35280
35280-30020 Solenoid Assy, Lock Up Control[09.1997 - 08.1998] JZA80..4FC |
35280-30020 |
US $125.80 |
||
|
35285
|
35285
35285-30040 Plate, Solenoid Lock[09.1997 - 08.1998] JZA80..4FC |
35285-30040 |
US $2.04 |
||
|
35290
|
35290
35290-14010 Solenoid Assy, Line Pressure Control[09.1997 - 08.1998] JZA80..4FC |
35290-14010 |
US $144.14 |
||
|
35330
|
35330
35330-30011 Strainer Assy, Valve Body Oil[05.1993 - 09.1997] JZA80..4FC..TWC |
35330-30011 |
from US $69.73 |
||
|
35330
|
35330
35330-50010 Strainer Assy, Valve Body Oil[09.1997 - 08.1998] JZA80..4FC |
35330-50010 |
from US $56.16 |
||
|
35406
|
35406
35406-30190 Plate Sub-Assy, Valve Body[09.1997 - 08.1998] JZA80..TWC |
35406-30190 |
US $80.08 |
||
|
35409
|
35409
35409-22020 Spring Sub-Assy, Manual Detent[05.1993 - 08.1998] JZA80..4FC |
35409-22020 |
US $8.01 |
||
|
35410
|
35410
35410-14280 Body Assy, Transmission Valve[05.1993 - 09.1997] JZA80..4FC..TWC |
35410-14280 |
US $1,557.92 |
||
|
35410
|
35410
35410-30820 Body Assy, Transmission Valve[09.1997 - 08.1998] JZA80..TWC |
35410-30820 |
US $1,557.92 |
||
|
35418
|
35418
35418-30070 Valve, Manual[05.1993 - 09.1997] JZA80..4FC..TWC |
35418-30070 |
US $49.36 |
||
|
35418
|
35418
35418-50010 Valve, Manual[09.1997 - 08.1998] JZA80..4FC |
35418-50010 |
US $32.32 |
||
|
35419A
|
35419A
90501-09093 Spring, Compression (For Check Valve)[09.1997 - 08.1998] JZA80..TWC |
90501-09093 |
US $1.31 |
||
|
35419A
|
35419A
90501-11039
Spring, Compression (For Check Valve)
[05.1993 - 09.1997] JZA80..4FC..TWC |
90501-11039 |
— | ||
|
35419E
|
35419E
35419-50010 Valve, Check, No.1[09.1997 - 08.1998] JZA80..4FC |
35419-50010 |
US $7.13 |
||
|
35423
|
35423
35423-30030 Piston, B-2 Accumulator[05.1993 - 08.1998] JZA80..4FC |
35423-30030 |
US $17.65 |
||
|
35423A
|
35423A
90501-24014 Spring, Compression (For B-2 Accumulator Piston)[09.1997 - 08.1998] JZA80..TWC |
90501-24014 |
US $3.93 |
||
|
35423A
|
35423A
90501-25028 Spring, Compression (For B-2 Accumulator Piston)[05.1993 - 09.1997] JZA80..4FC..TWC |
90501-25028 |
US $2.62 |
||
|
35423B
|
35423B
90301-23010 Ring (For Accumulator Piston No.1)[07.1997 - 09.1997] JZA80..4FC UPPER |
90301-23010 |
from US $1.79 |
||
|
35423B
|
35423B
90301-23194 Ring, O (For Low Speed Brake Accumulator Piston)[05.1993 - 07.1997] JZA80..4FC UPPER |
90301-23194 |
US $5.09 |
||
|
35423B
|
35423B
90301-31002 Ring, O (For Low Speed Brake Accumulator Cover)[05.1993 - 07.1997] JZA80..4FC LOWER |
90301-31002 |
US $3.64 |
||
| replacement | |||||
|
35423B
|
35423B
90301-31010 Ring, O (For B-2 Accumulator Piston)[05.1993 - 07.1997] JZA80..4FC LOWER |
90301-31010 |
US $2.87 |
||
|
35423B
|
35423B
90301-31010 Ring, O (For B-2 Accumulator Piston)[07.1997 - 09.1997] JZA80..4FC LOWER |
90301-31010 |
US $2.87 |
||
|
35425A
|
35425A
35425-30020 Piston, C-2 Accumulator[05.1993 - 08.1998] JZA80..4FC |
35425-30020 |
US $13.28 |
||
|
35425B
|
35425B
90501-22016 Spring, Compression (For C-2 Accumulator Piston)[09.1997 - 08.1998] JZA80..TWC OUTER |
90501-22016 |
US $2.62 |
||
|
35425B
|
35425B
90501-23093 Spring, Compression (For C-2 Accumulator Piston)[05.1993 - 09.1997] JZA80..4FC..TWC OUTER |
90501-23093 |
US $3.14 |
||
|
35425B
|
35425B
90501-25027 Spring, Compression (For C-2 Accumulator Piston)[05.1993 - 09.1997] JZA80..4FC..TWC INNER |
90501-25027 |
from US $1.40 |
||
|
35425B
|
35425B
90501-28013 Spring, Compression (For C-2 Accumulator Piston)[09.1997 - 08.1998] JZA80..4FC INNER |
90501-28013 |
US $3.49 |
||
|
35425C
|
35425C
90301-25003
Ring, O (For C-2 Accumulator Piston)
[05.1993 - 07.1997] JZA80..4FC UPPER |
90301-25003 |
— | ||
| replacement | |||||
|
35425C
|
35425C
90301-25010 Ring, O(For Oil Pump Suction Pipe)[05.1993 - 07.1997] JZA80..4FC UPPER |
90301-25010 |
US $1.22 |
||
|
35425C
|
35425C
90301-25010 Ring, O(For Oil Pump Suction Pipe)[07.1997 - 09.1997] JZA80..4FC UPPER |
90301-25010 |
US $1.22 |
||
|
35425C
|
35425C
90301-31002 Ring, O (For Low Speed Brake Accumulator Cover)[05.1993 - 07.1997] JZA80..4FC LOWER |
90301-31002 |
US $3.64 |
||
| replacement | |||||
|
35425C
|
35425C
90301-31010 Ring, O (For B-2 Accumulator Piston)[05.1993 - 07.1997] JZA80..4FC LOWER |
90301-31010 |
US $2.87 |
||
|
35425C
|
35425C
90301-31010 Ring, O (For B-2 Accumulator Piston)[07.1997 - 09.1997] JZA80..4FC LOWER |
90301-31010 |
US $2.87 |
||
|
35426A
|
35426A
35426-40010 Piston, C-0 Accumulator[05.1993 - 09.1997] JZA80..4FC..TWC |
35426-40010 |
US $13.28 |
||
|
35426A
|
35426A
35426-50010
Piston, C-0 Accumulator
[09.1997 - 08.1998] JZA80..4FC |
35426-50010 |
— | ||
|
35426B
|
35426B
90301-24001
Ring, O (For C-0 Accumulator Piston)
[05.1993 - 07.1997] JZA80..4FC..TWC |
90301-24001 |
— | ||
| replacement | |||||
|
35426B
|
35426B
90301-24010 Ring, O (For C-0 Accumulator Piston)[05.1993 - 07.1997] JZA80..4FC..TWC |
90301-24010 |
US $2.06 |
||
|
35426B
|
35426B
90301-24010 Ring, O (For C-0 Accumulator Piston)[07.1997 - 09.1997] JZA80..4FC..TWC |
90301-24010 |
US $2.06 |
||
|
35426C
|
35426C
90501-21021
Spring, Compression (For C-0 Accumulator Piston)
[09.1997 - 08.1998] JZA80..4FC |
90501-21021 |
— | ||
|
35426C
|
35426C
90501-22008 Spring, Compression (For C-2 Accumulator Piston)[05.1993 - 09.1997] JZA80..4FC..TWC INNER |
90501-22008 |
US $1.22 |
||
|
35426C
|
35426C
90501-23073 Spring, Compression (For C-0 Accumulator Piston)[05.1993 - 09.1997] JZA80..4FC..TWC OUTER |
90501-23073 |
US $2.80 |
||
|
35427E
|
35427E
35427-30040 Piston, B-0 Accumulator[05.1993 - 08.1998] JZA80..4FC |
35427-30040 |
US $15.55 |
||
|
35427F
|
35427F
90501-22019 Spring, Compression (For C-2 Accumulator Piston)[05.1993 - 09.1997] JZA80..4FC |
90501-22019 |
US $3.14 |
||
|
35427F
|
35427F
90905-01025 Spring, Compression (For B-0 Accumulator Piston)[09.1997 - 08.1998] JZA80..TWC |
90905-01025 |
US $3.93 |
||
|
35427G
|
35427G
90301-20002 Ring, O (For C-3 Accumulator Piston)[05.1993 - 07.1997] JZA80..4FC UPPER |
90301-20002 |
US $4.02 |
||
|
35427G
|
35427G
90301-20008 Ring, O (For C-2 Accumulator Piston)[07.1997 - 09.1997] JZA80..4FC UPPER |
90301-20008 |
from US $1.79 |
||
|
35427G
|
35427G
90301-26002 Ring, O (For B-0 Accumulator Piston)[05.1993 - 07.1997] JZA80..4FC LOWER |
90301-26002 |
US $3.64 |
||
| replacement | |||||
|
35427G
|
35427G
90301-26011 Ring, O (For C-3 Accumulator Piston)[05.1993 - 07.1997] JZA80..4FC LOWER |
90301-26011 |
US $1.79 |
||
|
35427G
|
35427G
90301-26011 Ring, O (For C-3 Accumulator Piston)[07.1997 - 09.1997] JZA80..4FC LOWER |
90301-26011 |
US $1.79 |
||
|
35450E
|
35450E
35495-22020 Ball (For Transfer Upper Valve Body)[05.1993 - 09.1997] JZA80..4FC..TWC OD=5.535,RUBBER |
35495-22020 |
US $4.66 |
||
|
35450E
|
35450E
35496-22030 Ball (For Lower Valve Body)[05.1993 - 09.1997] JZA80..4FC..TWC OD=6.35,RUBBER |
35496-22030 |
US $4.54 |
||
|
35474A
|
35474A
35474-30010
Cover, Accumulator
[09.1997 - 08.1998] JZA80..4FC |
35474-30010 |
— | ||
|
35493W
|
35493W
35493-50040 Seat, Valve Body[09.1997 - 08.1998] JZA80..4FC |
35493-50040 |
US $2.18 |
||
|
35599
|
35599
35599-22020 Cover, Manual Detent Spring[05.1993 - 08.1998] JZA80..4FC |
35599-22020 |
US $3.64 |
||
|
3548150010
|
3548150010
35481-50010 Body, Governor |
35481-50010 |
US $3.20 |
||
|
9010505005
|
9010505005
90105-05005 Bolt (For Transfer Relief Valve Plate) |
90105-05005 |
US $1.25 |
||
