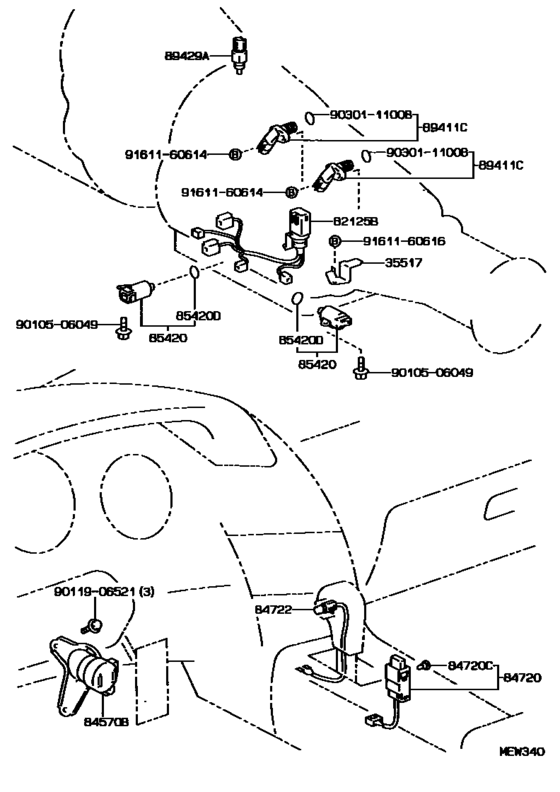

Overdrive & Electronic Controlled Transmission ([05.1993 - ] (9305- )4FC..TWT) Diagram Toyota SUPRA
- Year
- 1993 - 1997
- Sales region
- Europe
- Frame
- JZA80
- body
- AET
- ENGINE
- 2JZGTE
- TRANSMISSION
- ATM
- DESTINATION
- CND
- Model
- SUPRA 80
- From
- 08.1993
- To
- 09.1997
- Gear Shift Type
- 4FC
- Vehicle Model
- SUPRA
- Fuel Induction
- TWT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35517
|
35517
35517-50010 Plate, Transmission Wire Lock[05.1993 - 08.1998] JZA80..4FC |
35517-50010 |
US $3.49 |
||
|
82125B
|
82125B
82125-14180
Wire, Transmission
[11.1996 - 08.1998] JZA80..4FC..TWT |
82125-14180 |
— | ||
|
82125B
|
82125B
82125-30170
Wire, Transmission
[05.1993 - 11.1995] JZA80..4FC..TWT |
82125-30170 |
— | ||
|
84570B
|
84570B
84570-24020
Switch Assy, Kick Down
[05.1993 - 01.1996] JZA80..4FC |
84570-24020 |
— | ||
|
84720
|
84720
84720-14080 Switch Assy, Pattern Select[05.1993 - 08.1998] JZA80..4FC |
84720-14080 |
US $57.51 |
||
|
84720C
|
84720C
84999-10760 Bulb(For Pattern Select Switch)[05.1993 - 08.1998] JZA80..4FC |
84999-10760 |
US $5.10 |
||
|
84722
|
84722
84722-14090 Switch, Transmission Control[05.1993 - 08.1998] JZA80..4FC |
84722-14090 |
US $42.22 |
||
|
85420
|
85420
85420-50020 Solenoid Assy, Transmission[05.1993 - 11.1995] JZA80..4FC..TWT |
85420-50020 |
US $227.14 |
||
|
85420D
|
85420D
90301-06004 Ring, O No.3(For Transmission Solenoid)[05.1993 - 09.1997] JZA80..4FC..TWT |
90301-06004 |
from US $2.15 |
||
|
89411C
|
89411C
89411-50010 Sensor, Speed[05.1993 - 01.1996] JZA80..4FC..TWT |
89411-50010 |
from US $74.26 |
||
|
89429A
|
89429A
89429-30010 Sensor, Temperature[05.1993 - 01.1996] JZA80..4FC |
89429-30010 |
US $81.54 |
||
|
9010506049
|
9010506049
90105-06049 Bolt(For Transmission Case No.2 Plate) |
90105-06049 |
US $1.25 |
||
|
9011906521
|
9011906521
90119-06521 New Genuine Part |
90119-06521 |
from US $1.75 |
||
|
9030111008
|
9030111008
90301-11008 Ring,o (For Speedometer Driven Hole Cover) |
90301-11008 |
from US $0.87 |
||
|
9161160614
|
9161160614
91611-60614
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60614 |
— | ||
| replacement | |||||
|
9161160614
|
9161160614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.78 |
||
|
9161160616
|
9161160616
91611-60616
Bolt(For Transaxle Case Receiver)
|
91611-60616 |
— | ||
| replacement | |||||
|
9161160616
|
9161160616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.84 |
||
