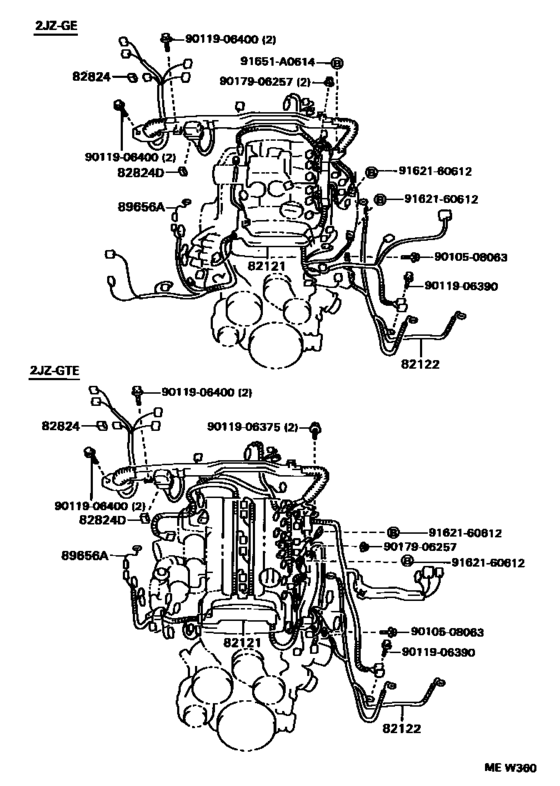

Wiring & Clamp ([05.1993 - ] ENGINE (9305- )LHD) Diagram Toyota SUPRA
- Year
- 1993 - 1996
- Sales region
- General
- Frame
- JZA80
- body
- LB
- ENGINE
- 2JZGTE
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- SUPRA 80
- From
- 05.1993
- To
- 01.1996
- Gear Shift Type
- 6F
- Vehicle Model
- SUPRA
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82121
|
82121
82121-14880
Wire, Engine
[05.1993 - 08.1994] JZA80..LHD..6F |
82121-14880 |
— | ||
|
82121
|
82121
82121-14881
Wire, Engine
[08.1994 - 08.1995] JZA80..LHD..6F |
82121-14881 |
— | ||
|
82121
|
82121
82121-1B110
Wire, Engine
[08.1995 - 01.1996] JZA80..LHD..6F |
82121-1B110 |
— | ||
|
82122
|
82122
82122-14520
Wire, Engine, No.2
[05.1993 - 04.1994] JZA80..EUR |
82122-14520 |
— | ||
|
82122
|
82122
82122-14521
Wire, Engine, No.2
[04.1994 - 05.1995] JZA80..EUR |
82122-14521 |
— | ||
|
82122
|
82122
82122-14522 Wire, Engine, No.2[05.1995 - 01.1996] JZA80..EUR |
82122-14522 |
US $190.44 |
||
|
82824
|
82824
82824-22060 Connector, Wiring Harness[05.1993 - 05.1996] JZA80 |
82824-22060 |
US $15.87 |
||
|
82824D
|
82824D
82824-24010 Connector, Wiring Harness[05.1993 - 05.1996] JZA80 |
82824-24010 |
US $4.54 |
||
|
89656A
|
89656A
89656-14010
Wire, Power Steering Earth
[05.1993 - 08.1994] JZA80 |
89656-14010 |
— | ||
|
91651A0614
|
91651A0614
91651-A0614
BOLT WWASHER
|
91651-A0614 |
— | ||
| replacement | |||||
|
91651A0614
|
91651A0614
91653-A0614 BOLT WWASHER |
91653-A0614 |
US $1.08 |
||
|
9010508063
|
9010508063
90105-08063
New Genuine Part
|
90105-08063 |
— | ||
|
9011906375
|
9011906375
90119-06375 Bolt (For Transmission Housing & Case Setting) |
90119-06375 |
US $1.25 |
||
|
9011906390
|
9011906390
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.25 |
||
|
9011906400
|
9011906400
90119-06400
New Genuine Part
|
90119-06400 |
— | ||
| replacement | |||||
|
9011906400
|
9011906400
90119-06484
New Genuine Part
|
90119-06484 |
— | ||
|
9017906257
|
9017906257
90179-06257 NUT |
90179-06257 |
US $2.15 |
||
|
9162160612
|
9162160612
91621-60612
BOLTWWASHER
|
91621-60612 |
— | ||
| replacement | |||||
|
9162160612
|
9162160612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.65 |
||
