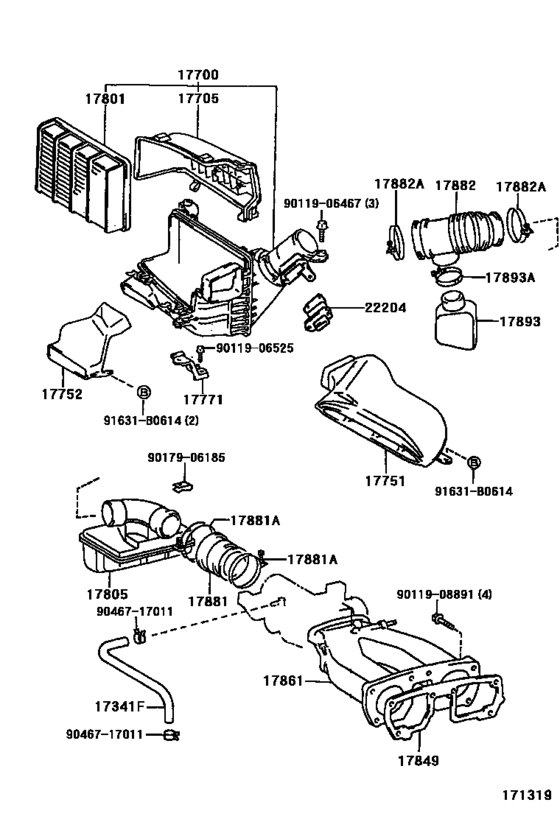

Air Cleaner ([09.1997 - ] (9709- )2JZGE) Diagram Toyota SUPRA
- Year
- 1993 - 1998
- Sales region
- Europe
- Frame
- JZA80
- body
- LB
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- SUPRA 80
- From
- 05.1993
- To
- 08.1998
- Gear Shift Type
- 4FC
- Vehicle Model
- SUPRA
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17341F
|
17341F
17341-46120
Hose, Air, No.1
[05.1993 - 08.1995] 2JZGE..JZA80 CALIFORNIA SPEC |
17341-46120 |
— | ||
|
17341F
|
17341F
17341-46210 Hose, Air, No.1[09.1997 - 08.1998] 2JZGE..JZA80 |
17341-46210 |
US $16.84 |
||
|
17700
|
17700
17700-46190
Cleaner Assy, Air
[05.1993 - 08.1995] 2JZGE..JZA80 |
17700-46190 |
— | ||
|
17700
|
17700
17700-46240
Cleaner Assy, Air
[08.1995 - 09.1997] 2JZGE..JZA80 |
17700-46240 |
— | ||
|
17700
|
17700
17700-46360 Cleaner Assy, AirAIR [09.1997 - 08.1998] 2JZGE..JZA80 |
17700-46360 |
US $336.34 |
||
|
17705
|
17705
17705-46100
Cap Sub-Assy, Air Cleaner
[05.1993 - 08.1998] 2JZ#..JZA80 |
17705-46100 |
— | ||
|
17751
|
17751
17751-46050 Inlet, Air Cleaner, No.1[05.1993 - 08.1998] 2JZ#..JZA80 |
17751-46050 |
US $31.62 |
||
|
17752
|
17752
17752-46060 Inlet, Air Cleaner, No.2[05.1993 - 08.1998] 2JZ#..JZA80 |
17752-46060 |
US $20.62 |
||
|
17771
|
17771
17771-46010 Bracket, Air Cleaner Inlet Duct[05.1993 - 08.1998] 2JZ#..JZA80 |
17771-46010 |
US $10.83 |
||
|
17801
|
17801
17801-46060 Element Sub-Assy, Air Cleaner Filter[05.1993 - 08.1998] 2JZ#..JZA80 |
17801-46060 |
from US $50.58 |
||
|
17805
|
17805
17805-46030 Connector Sub-Assy, Intake Air[09.1997 - 08.1998] 2JZGE..JZA80 |
17805-46030 |
US $243.15 |
||
|
17805
|
17805
17805-46040 Connector Sub-Assy, Intake Air[05.1993 - 09.1997] 2JZGE..JZA80 |
17805-46040 |
US $243.15 |
||
| replacements | |||||
|
17805
|
17805
12262-46060 Hose, Ventilation, No.2[05.1993 - 09.1997] 2JZGE..JZA80 |
12262-46060 |
US $14.41 |
||
|
17805
|
17805
17805-46030 Connector Sub-Assy, Intake Air[05.1993 - 09.1997] 2JZGE..JZA80 |
17805-46030 |
US $243.15 |
||
|
17849
|
17849
17849-46010
Gasket, Intake Air Connector
[05.1993 - 08.1996] 2JZGE..JZA80 |
17849-46010 |
— | ||
| replacement | |||||
|
17849
|
17849
17849-46020 Gasket, Intake Air Connector[05.1993 - 08.1996] 2JZGE..JZA80 |
17849-46020 |
from US $6.37 |
||
|
17849
|
17849
17849-46020 Gasket, Intake Air Connector[08.1996 - 08.1998] 2JZGE..JZA80 |
17849-46020 |
from US $6.37 |
||
|
17861
|
17861
17860-46040 Connector, Intake AirINTAKE AIR [05.1993 - 09.1997] 2JZGE..JZA80 |
17860-46040 |
US $187.82 |
||
| replacement | |||||
|
17861
|
17861
17860-46070 Connector, Intake Air[05.1993 - 09.1997] 2JZGE..JZA80 |
17860-46070 |
US $187.82 |
||
|
17861
|
17861
17860-46120 Connector, Intake Air[09.1997 - 07.1998] 2JZGE..JZA80 |
17860-46120 |
US $189.28 |
||
| replacement | |||||
|
17861
|
17861
17860-46123 Connector, Intake Air[09.1997 - 07.1998] 2JZGE..JZA80 |
17860-46123 |
US $186.37 |
||
|
17861
|
17861
17860-46121 Connector, Intake Air[07.1998 - 08.1998] 2JZGE..JZA80 |
17860-46121 |
US $189.28 |
||
| replacement | |||||
|
17861
|
17861
17860-46123 Connector, Intake Air[07.1998 - 08.1998] 2JZGE..JZA80 |
17860-46123 |
US $186.37 |
||
|
17881
|
17881
17881-46100
Hose, Air Cleaner, No.1
[05.1993 - 09.1997] 2JZGE..JZA80 |
17881-46100 |
— | ||
|
17881
|
17881
17881-46260 Hose, Air Cleaner, No.1[09.1997 - 08.1998] 2JZGE..JZA80 |
17881-46260 |
US $60.72 |
||
|
17881A
|
17881A
96111-10830 Clamp, Hose(For Air Connector)[09.1997 - 08.1998] 2JZGE..JZA80 AIR CONNECTOR SIDE |
96111-10830 |
from US $3.23 |
||
|
17881A
|
17881A
96111-10880 Clamp(For Air Intake Rubber Seal)[05.1993 - 07.1996] 2JZGE..JZA80 RESONATOR SIDE |
96111-10880 |
from US $8.57 |
||
|
17881A
|
17881A
96111-10930 Clamp, Hose(For Precleaner Hose)[05.1993 - 07.1996] 2JZGE..JZA80 AIR FLOW METER SIDE |
96111-10930 |
from US $2.15 |
||
|
17882
|
17882
17881-46170
Hose, Air Cleaner, No.2
[05.1993 - 08.1995] 2JZGE..JZA80 |
17881-46170 |
— | ||
|
17882
|
17882
17881-46210 Hose, Air Cleaner, No.2AIR CLEANER, NO.2 [08.1995 - 09.1997] 2JZGE..JZA80 |
17881-46210 |
US $60.72 |
||
|
17882
|
17882
17881-46270 Hose, Air Cleaner, No.2[09.1997 - 08.1998] 2JZGE..JZA80 |
17881-46270 |
US $60.72 |
||
|
17882A
|
17882A
96111-10880 Clamp(For Air Intake Rubber Seal)[05.1993 - 08.1998] 2JZGE..JZA80 |
96111-10880 |
from US $8.57 |
||
|
17893
|
17893
17893-46060 Resonator, Intake Air[05.1993 - 09.1997] 2JZGE..JZA80 |
17893-46060 |
US $74.26 |
||
|
17893
|
17893
17893-46120
Resonator, Intake Air
[09.1997 - 08.1998] 2JZGE..JZA80 |
17893-46120 |
— | ||
|
17893A
|
17893A
96111-10750 Clamp, Hose(For Air Cleaner Duct)[09.1997 - 08.1998] 2JZGE..JZA80 |
96111-10750 |
from US $3.34 |
||
|
22204
|
22204
22204-20010 Meter Sub-Assy, Intake Air Flow[09.1997 - 08.1998] 2JZGE..JZA80 |
22204-20010 |
from US $219.89 |
||
|
91631B0614
|
91631B0614
91631-B0614 BOLT WWASHER |
91631-B0614 |
from US $0.84 |
||
|
9011906467
|
9011906467
90119-06467 BOLT WWASHER |
90119-06467 |
US $2.87 |
||
|
9011906525
|
9011906525
90119-06525
New Genuine Part
|
90119-06525 |
— | ||
| replacement | |||||
|
9011906525
|
9011906525
90119-06311 BOLT |
90119-06311 |
US $1.79 |
||
|
9011908891
|
9011908891
90119-08891 BOLT |
90119-08891 |
US $2.15 |
||
|
9017906185
|
9017906185
90179-06185 CLIP BUMPER |
90179-06185 |
US $3.94 |
||
|
9046717011
|
9046717011
90467-17011
Clip Or Clamp(For Ventilation Hose)
|
90467-17011 |
— | ||
| replacement | |||||
|
9046717011
|
9046717011
96134-51700 Clip Or Clamp(For Ventilation Hose) |
96134-51700 |
US $2.51 |
||
