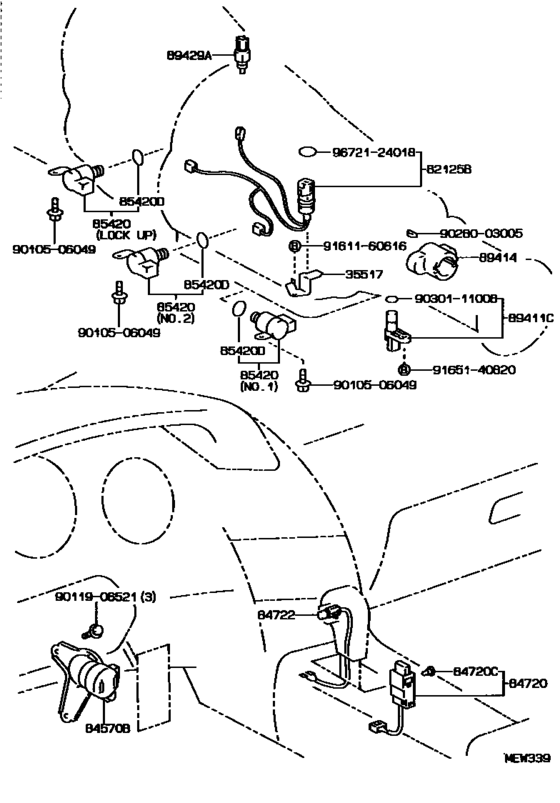

Overdrive & Electronic Controlled Transmission ([08.1994 - ] (9408- )4FC..GCC) Diagram Toyota SUPRA
- Year
- 1994 - 1996
- Sales region
- Europe
- Frame
- JZA80
- body
- LB
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- SUPRA 80
- From
- 08.1994
- To
- 05.1996
- Gear Shift Type
- 4FC
- Vehicle Model
- SUPRA
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35517
|
35517
35517-50010 Plate, Transmission Wire Lock[05.1993 - 05.1996] JZA80..4FC |
35517-50010 |
US $3.49 |
||
|
82125B
|
82125B
82125-30400 Wire, Transmission[02.1995 - 05.1996] JZA80..4FC..GCC |
82125-30400 |
US $16.07 |
||
|
82125B
|
82125B
82125-35120
Wire, Transmission
[08.1994 - 02.1995] JZA80..4FC..GCC |
82125-35120 |
— | ||
|
84570B
|
84570B
84570-24020
Switch Assy, Kick Down
[05.1993 - 05.1996] JZA80..LHD..4FC |
84570-24020 |
— | ||
|
84720
|
84720
84720-14080 Switch Assy, Pattern Select[05.1993 - 05.1996] JZA80..4FC |
84720-14080 |
US $57.51 |
||
|
84720C
|
84720C
84999-10760 Bulb(For Pattern Select Switch)[05.1993 - 05.1996] JZA80..4FC 14V 0.63W |
84999-10760 |
US $5.10 |
||
|
84722
|
84722
84722-14090 Switch, Transmission Control[05.1993 - 05.1996] JZA80..4FC |
84722-14090 |
US $42.22 |
||
|
85420
|
85420
85420-22080 Solenoid Assy, Transmission[08.1994 - 02.1995] JZA80..4FC..GCC NO.1 OR NO.2 |
85420-22080 |
US $217.60 |
||
|
85420
|
85420
85420-30110
Solenoid Assy, Transmission
[08.1994 - 02.1995] JZA80..4FC..GCC LOCK UP,AISIN |
85420-30110 |
— | ||
|
85420
|
85420
85420-30120
Solenoid Assy, Transmission
[08.1994 - 02.1995] JZA80..4FC..GCC LOCK UP,NIPPONDENSO |
85420-30120 |
— | ||
|
85420
|
85420
85420-30200 Solenoid Assy, Transmission[02.1995 - 05.1996] JZA80..4FC..GCC NO.1 OR NO.2 |
85420-30200 |
US $216.94 |
||
| replacement | |||||
|
85420
|
85420
85420-21090 Solenoid Assy, Transmission[02.1995 - 05.1996] JZA80..4FC..GCC NO.1 OR NO.2 |
85420-21090 |
from US $149.87 |
||
|
85420
|
85420
85420-30220 Solenoid Assy, Transmission[02.1995 - 05.1996] JZA80..4FC..GCC LOCK UP |
85420-30220 |
US $218.40 |
||
| replacement | |||||
|
85420
|
85420
35250-50030 Valve, Solenoid(S4)[02.1995 - 05.1996] JZA80..4FC..GCC LOCK UP |
35250-50030 |
from US $208.91 |
||
|
85420D
|
85420D
90301-06004 Ring, O No.3(For Transmission Solenoid)[08.1994 - 05.1996] JZA80..4FC..GCC |
90301-06004 |
from US $2.15 |
||
|
89411C
|
89411C
89413-24010 Sensor, Speed[08.1994 - 05.1996] JZA80..4FC..GCC |
89413-24010 |
from US $86.89 |
||
|
89414
|
89414
89414-22010 Rotor, Sensor[08.1994 - 05.1996] JZA80..4FC..GCC |
89414-22010 |
US $21.84 |
||
|
89429A
|
89429A
89429-30010 Sensor, Temperature[05.1993 - 05.1996] JZA80..4FC |
89429-30010 |
US $81.54 |
||
|
9010506049
|
9010506049
90105-06049 Bolt(For Transmission Case No.2 Plate) |
90105-06049 |
US $1.25 |
||
|
9011906521
|
9011906521
90119-06521 New Genuine Part |
90119-06521 |
from US $1.75 |
||
|
9028003005
|
9028003005
90280-03005 Key, Oil Pump Drive Shaft |
90280-03005 |
US $1.05 |
||
|
9030111008
|
9030111008
90301-11008 Ring,o (For Speedometer Driven Hole Cover) |
90301-11008 |
from US $0.87 |
||
|
9161160616
|
9161160616
91611-60616
Bolt(For Transaxle Case Receiver)
|
91611-60616 |
— | ||
| replacement | |||||
|
9161160616
|
9161160616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.84 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $0.96 |
||
|
9672124018
|
9672124018
96721-24018 Ring, O |
96721-24018 |
from US $3.69 |
||
