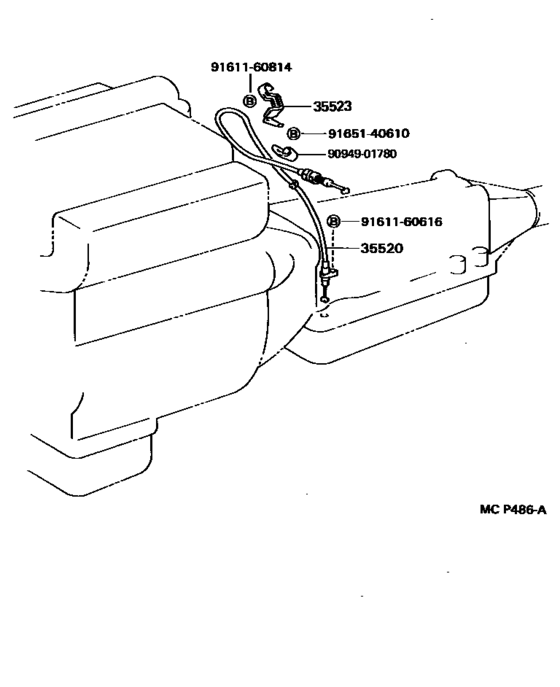

Throttle Link & Valve Lever (Atm) ([08.1994 - ] A340E (9408- )4FC..GCC) Diagram Toyota SUPRA
- Year
- 1994 - 1996
- Sales region
- General
- Frame
- JZA80
- body
- LB
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- SUPRA 80
- From
- 08.1994
- To
- 05.1996
- Gear Shift Type
- 4FC
- Vehicle Model
- SUPRA
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35520
|
35520
35520-24060 Cable Assy, Throttle[08.1994 - 05.1996] JZA80..4FC..GCC |
35520-24060 |
US $51.54 |
||
|
35523
|
35523
35523-30120 Clamp, Throttle Cable[08.1994 - 05.1996] JZA80..4FC..GCC |
35523-30120 |
US $6.99 |
||
|
9094901780
|
9094901780
90949-01780 New Genuine Part |
90949-01780 |
US $3.20 |
||
|
9161160616
|
9161160616
91611-60616
Bolt(For Transaxle Case Receiver)
|
91611-60616 |
— | ||
| replacement | |||||
|
9161160616
|
9161160616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.84 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.74 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.87 |
||
