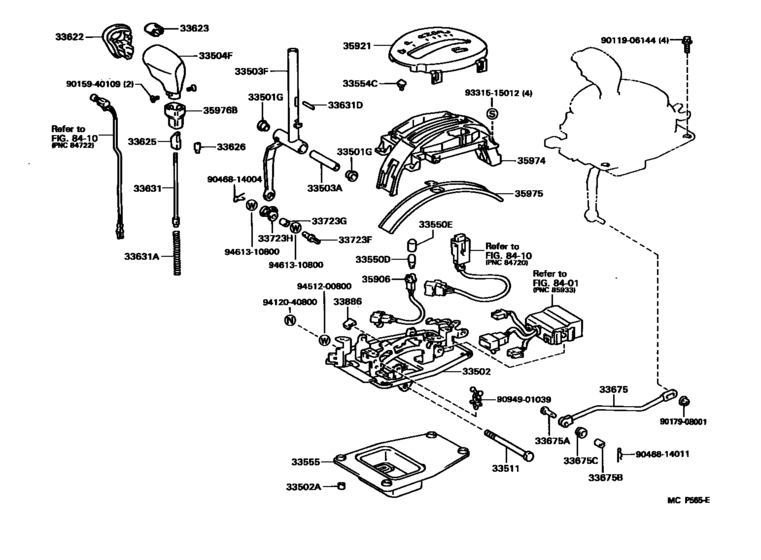

Shift Lever & Retainer ([05.1993 - ] (9305- )4FC) Diagram Toyota SUPRA
- Year
- 1993 - 1996
- Sales region
- General
- Frame
- JZA80
- body
- AET
- ENGINE
- 2JZGTE
- TRANSMISSION
- ATM
- DESTINATION
- EUR
- Model
- SUPRA 80
- From
- 05.1993
- To
- 01.1996
- Gear Shift Type
- 4FC
- Vehicle Model
- SUPRA
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33501G
|
33501G
90385-11003 Bush(For Control Shaft)[05.1993 - 05.1996] JZA80..4FC |
90385-11003 |
from US $1.08 |
||
|
33502
|
33502
33502-14190 Plate Sub-Assy, Shift Lever[05.1993 - 01.1996] JZA80..RHD..4FC |
33502-14190 |
US $58.53 |
||
|
33502A
|
33502A
90387-06065 Collar (For Floor Shift Setting)[05.1993 - 05.1996] JZA80..4FC OD=8.8 |
90387-06065 |
US $3.23 |
||
|
33503A
|
33503A
90387-08126 Collar(For Shift Lever)[05.1993 - 05.1996] JZA80..4FC |
90387-08126 |
US $4.37 |
||
|
33503F
|
33503F
33055-14030 Lever Sub-Assy, Shift(For Floor Shift)[05.1993 - 01.1996] JZA80..RHD..4FC |
33055-14030 |
US $68 |
||
|
33504F
|
33504F
33542-14040
Knob Sub-Assy, Shift Lever
[05.1993 - 01.1996] JZA80..RHD..4FC |
33542-14040 |
— | ||
| replacement | |||||
|
33504F
|
33504F
33542-14040-C0
Knob Sub-Assy, Shift Lever
[05.1993 - 01.1996] JZA80..RHD..4FC |
33542-14040-C0 |
— | ||
|
33511
|
33511
33511-30390 Shaft, Control (For Floor Shift)[05.1993 - 05.1996] JZA80..4FC |
33511-30390 |
US $5.82 |
||
|
33550D
|
33550D
90981-11036 Bulb, Position Indicator Lamp[05.1993 - 05.1996] JZA80..4FC 12V 1.7W |
90981-11036 |
from US $1.82 |
||
|
33550E
|
33550E
90339-09001 Cap, Position Indicator Lamp[05.1993 - 05.1996] JZA80..4FC |
90339-09001 |
US $2.15 |
||
|
33554C
|
33554C
33554-14050
Cover, Shift Lock Release Button
[05.1993 - 01.1996] JZA80..RHD..4FC |
33554-14050 |
— | ||
|
33555
|
33555
33555-24060
Boot, Shift Lever
[05.1993 - 05.1996] JZA80..4FC |
33555-24060 |
— | ||
|
33622
|
33622
33622-14020
Cover, Shift Lever Knob, No.1
[05.1993 - 01.1996] JZA80..RHD..4FC |
33622-14020 |
— | ||
| replacement | |||||
|
33622
|
33622
33622-14020-C1
Cover, Shift Lever Knob, No.1
[05.1993 - 01.1996] JZA80..RHD..4FC |
33622-14020-C1 |
— | ||
|
33623
|
33623
33623-14050
Button, Shift Lever Knob
[05.1993 - 01.1996] JZA80..RHD..4FC |
33623-14050 |
— | ||
| replacement | |||||
|
33623
|
33623
33623-14050-C1
Button, Shift Lever Knob
[05.1993 - 01.1996] JZA80..RHD..4FC |
33623-14050-C1 |
— | ||
|
33625
|
33625
33625-14020 Sleeve, Shift Lever Knob[05.1993 - 05.1996] JZA80..4FC |
33625-14020 |
US $9.90 |
||
|
33626
|
33626
33626-20010 Stopper, Shift Lever Button[05.1993 - 05.1996] JZA80..4FC |
33626-20010 |
US $2.45 |
||
|
33631
|
33631
33631-14090 Rod, Detent[05.1993 - 05.1996] JZA80..4FC |
33631-14090 |
US $13.69 |
||
|
33631A
|
33631A
90905-01016 Spring, Compression (For Detent Rod)[05.1993 - 05.1996] JZA80..4FC |
90905-01016 |
US $1.46 |
||
|
33631D
|
33631D
90256-04003 Pin, Slotted Spring (For Detent Rod)[05.1993 - 05.1996] JZA80..4FC |
90256-04003 |
US $2.97 |
||
|
33675
|
33675
33675-14180 Rod, Transmission Control (For Floor Shift)[05.1993 - 05.1996] JZA80..4FC |
33675-14180 |
US $21.32 |
||
|
33675A
|
33675A
33726-35010 Pin, W/hole (For Transmission Control Rod)[05.1993 - 05.1996] JZA80..4FC |
33726-35010 |
US $3.40 |
||
|
33675B
|
33675B
90389-08005 Bushing(For Gear Selecting Rod)[05.1993 - 05.1996] JZA80..4FC |
90389-08005 |
from US $1.73 |
||
|
33675C
|
33675C
90480-17177 Grommet (For Transmission Control Rod)[05.1993 - 05.1996] JZA80..4FC |
90480-17177 |
from US $2.01 |
||
|
33723F
|
33723F
33723-22010 Swivel, Connecting Rod (For Column Shift)[05.1993 - 05.1996] JZA80..4FC |
33723-22010 |
from US $11.47 |
||
|
33723G
|
33723G
90389-08005 Bushing(For Gear Selecting Rod)[05.1993 - 05.1996] JZA80..4FC |
90389-08005 |
from US $1.73 |
||
|
33723H
|
33723H
33572-24010 Grommet (For Floor Shift Control Shaft)[05.1993 - 05.1996] JZA80..4FC |
33572-24010 |
US $12.06 |
||
|
33886
|
33886
33886-22010 Stopper, Shift Lever[05.1993 - 05.1996] JZA80..4FC |
33886-22010 |
US $2.27 |
||
|
35906
|
35906
35906-14030 Wire Sub-Assy, Indicator Lamp[05.1993 - 05.1996] JZA80..4FC |
35906-14030 |
US $16.60 |
||
| replacement | |||||
|
35906
|
35906
35906-12140 Wire Sub-Assy, Indicator Lamp[05.1993 - 05.1996] JZA80..4FC |
35906-12140 |
US $15.74 |
||
|
35921
|
35921
35921-14220 Plate, Control Position IndicatorCONTROL POSITION INDICATOR [05.1993 - 01.1996] JZA80..RHD..4FC |
35921-14220 |
US $31.16 |
||
|
35974
|
35974
35974-14160 Housing, Position Indicator, Lower[05.1993 - 01.1996] JZA80..RHD..4FC |
35974-14160 |
US $32.76 |
||
|
35975
|
35975
35975-14100 Cover, Slide (For Position Indicator)[05.1993 - 05.1996] JZA80..4FC |
35975-14100 |
US $27.96 |
||
|
35976B
|
35976B
35976-14010 Cover, Shift Lever Knob (For Floor Shift)SHIFT LEVER KNOB (FOR FLOOR SHIFT) [05.1993 - 01.1996] JZA80..RHD..4FC |
35976-14010 |
US $6.41 |
||
| replacement | |||||
|
35976B
|
35976B
35976-14010-C1
Cover, Shift Lever Knob (For Floor Shift)
[05.1993 - 01.1996] JZA80..RHD..4FC |
35976-14010-C1 |
— | ||
|
9011906144
|
9011906144
90119-06144 Bolt, Hexagon (For Shift Lever Plate) |
90119-06144 |
US $0.61 |
||
|
9015940109
|
9015940109
90159-40109 Bolt Or Pin (For Shift Lever Knob Setting) |
90159-40109 |
US $1.43 |
||
|
9017908001
|
9017908001
90179-08001
New Genuine Part
|
90179-08001 |
— | ||
| replacement | |||||
|
9017908001
|
9017908001
90179-08233 NUT |
90179-08233 |
from US $1.27 |
||
|
9046814004
|
9046814004
90468-14004 Union, Auxiliary Fuel Band |
90468-14004 |
from US $0.65 |
||
|
9046814011
|
9046814011
90468-14011 Clip, No.2(For Parking Brake) |
90468-14011 |
US $1.08 |
||
|
9094901039
|
9094901039
90949-01039 CLAMP |
90949-01039 |
US $1.60 |
||
|
9331515012
|
9331515012
93315-15012 SCREWWWASHER |
93315-15012 |
from US $0.74 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.61 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.67 |
||
