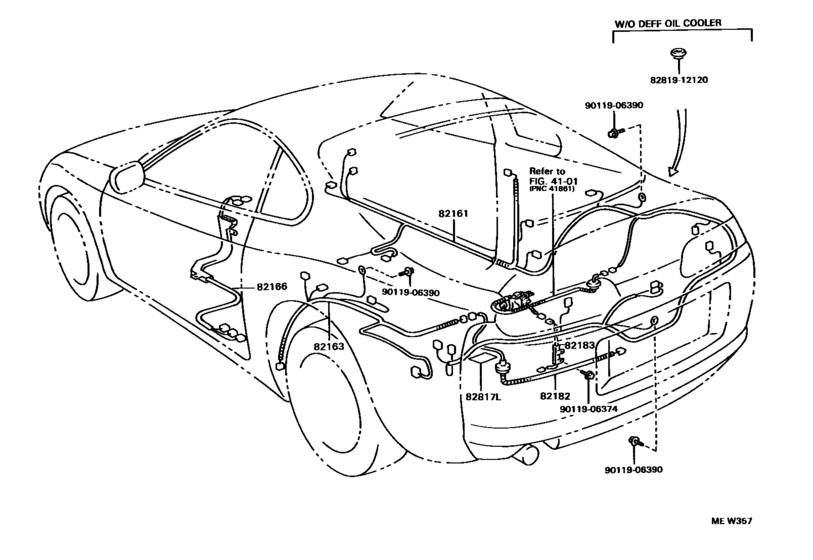

Wiring & Clamp ([05.1993 - ] FLOOR (9305- )RHD) Diagram Toyota SUPRA
- Year
- 1993 - 1996
- Sales region
- Europe
- Frame
- JZA80
- body
- LB
- ENGINE
- 2JZGTE
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- SUPRA 80
- From
- 05.1993
- To
- 01.1996
- Gear Shift Type
- 6F
- Vehicle Model
- SUPRA
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82161
|
82161
82161-1B060 Wire, FloorFLOOR [05.1993 - 08.1994] JZA80..RHD..EUR |
82161-1B060 |
US $281.01 |
||
|
82161
|
82161
82161-1B061 Wire, FloorFLOOR [08.1994 - 01.1996] JZA80..RHD |
82161-1B061 |
US $455.73 |
||
|
82163
|
82163
82163-14040 Wire, Floor, No.3FLOOR, NO.3 [05.1993 - 12.1993] JZA80..RHD..EUR |
82163-14040 |
US $88.82 |
||
|
82163
|
82163
82163-14041 Wire, Floor, No.3FLOOR, NO.3 [12.1993 - 08.1994] JZA80..RHD..EUR |
82163-14041 |
US $88.82 |
||
|
82163
|
82163
82163-14042 Wire, Floor, No.3FLOOR, NO.3 [08.1994 - 08.1995] JZA80..RHD |
82163-14042 |
US $88.82 |
||
|
82163
|
82163
82163-14043 Wire, Floor, No.3FLOOR, NO.3 [08.1995 - 01.1996] JZA80..RHD |
82163-14043 |
US $88.82 |
||
|
82166
|
82166
82166-14090
Wire, Console Box
[05.1993 - 08.1995] JZA80..RHD..EUR |
82166-14090 |
— | ||
|
82166
|
82166
82166-14091 Wire, Console BoxCONSOLE BOX [08.1995 - 01.1996] JZA80..RHD |
82166-14091 |
US $141.23 |
||
|
82182
|
82182
82182-14020 Wire, Luggage Room, No.2[05.1993 - 12.1993] JZA80 |
82182-14020 |
US $41.06 |
||
|
82182
|
82182
82182-14021 Wire, Luggage Room, No.2[12.1993 - 05.1996] JZA80 |
82182-14021 |
US $40.01 |
||
|
82183
|
82183
82183-14010 Wire, Luggage Room, No.3LUGGAGE ROOM, NO.3 [05.1993 - 05.1996] JZA80..EUR,GCC |
82183-14010 |
US $23.73 |
||
|
82817L
|
82817L
61825-20100
Plate, Noise Control, No.1
[05.1993 - 12.1993] JZA80 |
61825-20100 |
— | ||
|
8281912120
|
8281912120
82819-12120 Grommet, Wiring Harness |
82819-12120 |
US $9.17 |
||
|
9011906374
|
9011906374
90119-06374
BOLT
|
90119-06374 |
— | ||
| replacement | |||||
|
9011906374
|
9011906374
91653-A0614 BOLT WWASHER |
91653-A0614 |
US $1.08 |
||
|
9011906390
|
9011906390
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.25 |
||
