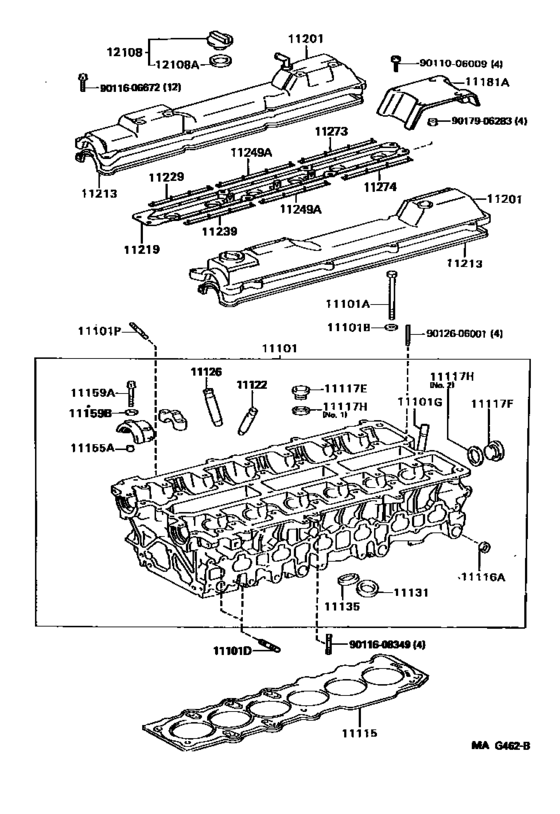

Cylinder Head ([05.1993 - ] (9305- )2JZGE) Diagram Toyota SUPRA
- Year
- 1993 - 1994
- Sales region
- Europe
- Frame
- JZA80
- body
- LB
- ENGINE
- 2JZGE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- SUPRA 80
- From
- 05.1993
- To
- 08.1994
- Gear Shift Type
- 5F
- Vehicle Model
- SUPRA
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-49357 Head Sub-Assy, Cylinder[05.1993 - 05.1996] 2JZGE..JZA80 |
11101-49357 |
US $2,912 |
||
|
11101A
|
11101A
90910-02102 Bolt(For Cylinder Head Set)[05.1993 - 05.1996] 2JZ#..JZA80 |
90910-02102 |
from US $16.17 |
||
|
11101B
|
11101B
90201-11018
Washer, Plate(For Cylinder Head Set)
[05.1993 - 05.1996] 2JZ#..JZA80 |
90201-11018 |
— | ||
| replacement | |||||
|
11101B
|
11101B
90201-11034 Washer, Plate(For Cylinder Head Set)[05.1993 - 05.1996] 2JZ#..JZA80 |
90201-11034 |
from US $0.87 |
||
|
11101D
|
11101D
90116-08348 Bolt, Stud(For Water Outlet)[05.1993 - 05.1996] 2JZGE..JZA80 |
90116-08348 |
from US $1.65 |
||
|
11101G
|
11101G
90406-17017 Union(For Cylinder Head)[05.1993 - 05.1996] 2JZGE..JZA80; 2JZGTE..JZA80 NO.2 |
90406-17017 |
US $5.07 |
||
|
11101P
|
11101P
90116-08348 Bolt, Stud(For Water Outlet)[05.1993 - 05.1996] 2JZGE..JZA80 |
90116-08348 |
from US $1.65 |
||
|
11115
|
11115
11115-46040 Gasket, Cylinder Head[05.1993 - 06.1993] 2JZGE..JZA80 |
11115-46040 |
US $132.50 |
||
| replacement | |||||
|
11115
|
11115
11115-46045 Gasket, Cylinder Head[05.1993 - 06.1993] 2JZGE..JZA80 |
11115-46045 |
from US $81.66 |
||
|
11115
|
11115
11115-46041
Gasket, Cylinder Head
[06.1993 - 04.1994] 2JZGE..JZA80 |
11115-46041 |
— | ||
| replacement | |||||
|
11115
|
11115
11115-46045 Gasket, Cylinder Head[06.1993 - 04.1994] 2JZGE..JZA80 |
11115-46045 |
from US $81.66 |
||
|
11115
|
11115
11115-46042
Gasket, Cylinder Head
[04.1994 - 08.1995] 2JZGE..JZA80 |
11115-46042 |
— | ||
| replacement | |||||
|
11115
|
11115
11115-46045 Gasket, Cylinder Head[04.1994 - 08.1995] 2JZGE..JZA80 |
11115-46045 |
from US $81.66 |
||
|
11116A
|
11116A
96411-42000 Plug, Tight, No.1[05.1993 - 05.1996] 2JZGE..JZA80 |
96411-42000 |
from US $2.66 |
||
|
11117E
|
11117E
90341-24010 Plug, W/head Taper Screw, No.1[05.1993 - 05.1996] 2JZ#..JZA80 |
90341-24010 |
US $4.72 |
||
|
11117F
|
11117F
90341-36001 Plug, W/head Taper Screw, No.1[05.1993 - 05.1996] 2JZ#..JZA80 |
90341-36001 |
US $6.27 |
||
|
11117H
|
11117H
90430-24010 Gasket(For Cylinder Head Screw Plug)[05.1993 - 05.1996] 2JZ#..JZA80 NO.1 |
90430-24010 |
US $3.58 |
||
|
11117H
|
11117H
90430-36003 Gasket(For Water Hole)[05.1993 - 05.1996] 2JZ#..JZA80 NO.2 |
90430-36003 |
US $2.33 |
||
|
11122
|
11122
11122-74030 Bush, Intake Valve Guide[05.1993 - 05.1996] 2JZ#..JZA80 STD |
11122-74030 |
US $9.86 |
||
|
11122
|
11122
11123-74030 Bush, Intake Valve Guide[05.1993 - 05.1996] 2JZ#..JZA80 O/S 0.05 |
11123-74030 |
US $7.86 |
||
|
11126
|
11126
11122-16010 Bush, Intake Valve Guide[05.1993 - 05.1996] 2JZ#..JZA80 STD |
11122-16010 |
US $10.73 |
||
|
11126
|
11126
11123-16010 Bush, Intake Valve Guide[05.1993 - 05.1996] 2JZ#..JZA80 O/S 0.05 |
11123-16010 |
US $11.36 |
||
|
11131
|
11131
11131-46050 Seat, Intake Valve[05.1993 - 05.1996] 2JZGE..JZA80 STD |
11131-46050 |
US $34.80 |
||
|
11131
|
11131
11132-46050 Seat, Intake Valve[05.1993 - 05.1996] 2JZGE..JZA80 O/S 0.03 |
11132-46050 |
US $34.80 |
||
|
11135
|
11135
11135-46020 Seat, Exhaust Valve[05.1993 - 05.1996] 2JZGE..JZA80 STD |
11135-46020 |
US $28.54 |
||
|
11135
|
11135
11136-46020 Seat, Exhaust Valve[05.1993 - 05.1996] 2JZGE..JZA80 O/S 0.03 |
11136-46020 |
US $28.54 |
||
|
11155A
|
11155A
90253-11021 Pin, Ring[05.1993 - 05.1996] 2JZ#..JZA80 |
90253-11021 |
from US $1.41 |
||
|
11159A
|
11159A
90119-08890 Bolt(For Head To Camshaft Bearing Cap)[05.1993 - 05.1996] 2JZ#..JZA80 |
90119-08890 |
US $2.87 |
||
|
11159B
|
11159B
90210-08033 Washer, Seal(For Head To Camshaft Bearing Cap)[05.1993 - 05.1996] 2JZ#..JZA80 |
90210-08033 |
US $5.02 |
||
|
11181A
|
11181A
11181-46022 Cover, Cylinder Head, Rear[05.1993 - 05.1996] 2JZGE..JZA80 |
11181-46022 |
US $20.79 |
||
|
11201
|
11201
11201-0W010 Cover Sub-Assy, Cylinder Head[05.1993 - 07.1993] 2JZGE..JZA80 INTAKE SIDE |
11201-0W010 |
US $588.22 |
||
| replacements | |||||
|
11201
|
11201
12204-46031 Valve Sub-Assy, Ventilation[05.1993 - 07.1993] 2JZGE..JZA80 INTAKE SIDE |
12204-46031 |
from US $22.55 |
||
|
11201
|
11201
11201-46032 Cover Sub-Assy, Cylinder Head[05.1993 - 07.1993] 2JZGE..JZA80 INTAKE SIDE |
11201-46032 |
US $294.11 |
||
|
11201
|
11201
11202-46010 Cover Sub-Assy, Cylinder Head[05.1993 - 07.1993] 2JZGE..JZA80 INTAKE SIDE |
11202-46010 |
US $294.11 |
||
|
11201
|
11201
11219-46011 Cover, Cylinder Head, No.3[05.1993 - 07.1993] 2JZGE..JZA80 INTAKE SIDE |
11219-46011 |
US $126.67 |
||
|
11201
|
11201
11229-46010 Gasket, Cylinder Head Cover, No.3[05.1993 - 07.1993] 2JZGE..JZA80 INTAKE SIDE |
11229-46010 |
US $4.54 |
||
|
11201
|
11201
11239-46010 Gasket, Clinder Head Coner, No.4[05.1993 - 07.1993] 2JZGE..JZA80 INTAKE SIDE |
11239-46010 |
from US $1.56 |
||
|
11201
|
11201
11249-46010 Gasket, Clinder Head Coner, No.5[05.1993 - 07.1993] 2JZGE..JZA80 INTAKE SIDE |
11249-46010 |
from US $1.50 |
||
|
11201
|
11201
90105-06166 BOLT WASHER BASED[05.1993 - 07.1993] 2JZGE..JZA80 INTAKE SIDE |
90105-06166 |
from US $0.99 |
||
|
11201
|
11201
90179-06288 NUT[05.1993 - 07.1993] 2JZGE..JZA80 INTAKE SIDE |
90179-06288 |
from US $0.84 |
||
|
11201
|
11201
90210-07001 Washer, Seal(For Cylinder Head Cover)[05.1993 - 07.1993] 2JZGE..JZA80 INTAKE SIDE |
90210-07001 |
from US $1.98 |
||
|
11201
|
11201
11201-0W011
Cover Sub-Assy, Cylinder Head
[07.1993 - 05.1996] 2JZGE..JZA80 INTAKE SIDE |
11201-0W011 |
— | ||
| replacements | |||||
|
11201
|
11201
11201-46032 Cover Sub-Assy, Cylinder Head[07.1993 - 05.1996] 2JZGE..JZA80 INTAKE SIDE |
11201-46032 |
US $294.11 |
||
|
11201
|
11201
11202-46010 Cover Sub-Assy, Cylinder Head[07.1993 - 05.1996] 2JZGE..JZA80 INTAKE SIDE |
11202-46010 |
US $294.11 |
||
|
11201
|
11201
11219-46011 Cover, Cylinder Head, No.3[07.1993 - 05.1996] 2JZGE..JZA80 INTAKE SIDE |
11219-46011 |
US $126.67 |
||
|
11201
|
11201
11229-46010 Gasket, Cylinder Head Cover, No.3[07.1993 - 05.1996] 2JZGE..JZA80 INTAKE SIDE |
11229-46010 |
US $4.54 |
||
|
11201
|
11201
11239-46010 Gasket, Clinder Head Coner, No.4[07.1993 - 05.1996] 2JZGE..JZA80 INTAKE SIDE |
11239-46010 |
from US $1.56 |
||
|
11201
|
11201
11249-46010 Gasket, Clinder Head Coner, No.5[07.1993 - 05.1996] 2JZGE..JZA80 INTAKE SIDE |
11249-46010 |
from US $1.50 |
||
|
11201
|
11201
90105-06166 BOLT WASHER BASED[07.1993 - 05.1996] 2JZGE..JZA80 INTAKE SIDE |
90105-06166 |
from US $0.99 |
||
|
11201
|
11201
90179-06288 NUT[07.1993 - 05.1996] 2JZGE..JZA80 INTAKE SIDE |
90179-06288 |
from US $0.84 |
||
|
11201
|
11201
90210-07001 Washer, Seal(For Cylinder Head Cover)[07.1993 - 05.1996] 2JZGE..JZA80 INTAKE SIDE |
90210-07001 |
from US $1.98 |
||
|
11201
|
11201
12204-46031 Valve Sub-Assy, Ventilation[07.1993 - 05.1996] 2JZGE..JZA80 INTAKE SIDE |
12204-46031 |
from US $22.55 |
||
|
11201
|
11201
11202-0W020 Cover Sub-Assy, Cylinder Head[05.1993 - 07.1993] 2JZGE..JZA80 EXHAUST SIDE |
11202-0W020 |
US $588.22 |
||
| replacements | |||||
|
11201
|
11201
11201-46032 Cover Sub-Assy, Cylinder Head[05.1993 - 07.1993] 2JZGE..JZA80 EXHAUST SIDE |
11201-46032 |
US $294.11 |
||
|
11201
|
11201
11202-46010 Cover Sub-Assy, Cylinder Head[05.1993 - 07.1993] 2JZGE..JZA80 EXHAUST SIDE |
11202-46010 |
US $294.11 |
||
|
11201
|
11201
11219-46011 Cover, Cylinder Head, No.3[05.1993 - 07.1993] 2JZGE..JZA80 EXHAUST SIDE |
11219-46011 |
US $126.67 |
||
|
11201
|
11201
11229-46010 Gasket, Cylinder Head Cover, No.3[05.1993 - 07.1993] 2JZGE..JZA80 EXHAUST SIDE |
11229-46010 |
US $4.54 |
||
|
11201
|
11201
11239-46010 Gasket, Clinder Head Coner, No.4[05.1993 - 07.1993] 2JZGE..JZA80 EXHAUST SIDE |
11239-46010 |
from US $1.56 |
||
|
11201
|
11201
11249-46010 Gasket, Clinder Head Coner, No.5[05.1993 - 07.1993] 2JZGE..JZA80 EXHAUST SIDE |
11249-46010 |
from US $1.50 |
||
|
11201
|
11201
90105-06166 BOLT WASHER BASED[05.1993 - 07.1993] 2JZGE..JZA80 EXHAUST SIDE |
90105-06166 |
from US $0.99 |
||
|
11201
|
11201
90179-06288 NUT[05.1993 - 07.1993] 2JZGE..JZA80 EXHAUST SIDE |
90179-06288 |
from US $0.84 |
||
|
11201
|
11201
90210-07001 Washer, Seal(For Cylinder Head Cover)[05.1993 - 07.1993] 2JZGE..JZA80 EXHAUST SIDE |
90210-07001 |
from US $1.98 |
||
|
11201
|
11201
12204-46031 Valve Sub-Assy, Ventilation[05.1993 - 07.1993] 2JZGE..JZA80 EXHAUST SIDE |
12204-46031 |
from US $22.55 |
||
|
11201
|
11201
11202-0W021
Cover Sub-Assy, Cylinder Head
[07.1993 - 05.1996] 2JZGE..JZA80 EXHAUST SIDE |
11202-0W021 |
— | ||
| replacements | |||||
|
11201
|
11201
11201-46032 Cover Sub-Assy, Cylinder Head[07.1993 - 05.1996] 2JZGE..JZA80 EXHAUST SIDE |
11201-46032 |
US $294.11 |
||
|
11201
|
11201
11202-46010 Cover Sub-Assy, Cylinder Head[07.1993 - 05.1996] 2JZGE..JZA80 EXHAUST SIDE |
11202-46010 |
US $294.11 |
||
|
11201
|
11201
11219-46011 Cover, Cylinder Head, No.3[07.1993 - 05.1996] 2JZGE..JZA80 EXHAUST SIDE |
11219-46011 |
US $126.67 |
||
|
11201
|
11201
11229-46010 Gasket, Cylinder Head Cover, No.3[07.1993 - 05.1996] 2JZGE..JZA80 EXHAUST SIDE |
11229-46010 |
US $4.54 |
||
|
11201
|
11201
11239-46010 Gasket, Clinder Head Coner, No.4[07.1993 - 05.1996] 2JZGE..JZA80 EXHAUST SIDE |
11239-46010 |
from US $1.56 |
||
|
11201
|
11201
11249-46010 Gasket, Clinder Head Coner, No.5[07.1993 - 05.1996] 2JZGE..JZA80 EXHAUST SIDE |
11249-46010 |
from US $1.50 |
||
|
11201
|
11201
90105-06166 BOLT WASHER BASED[07.1993 - 05.1996] 2JZGE..JZA80 EXHAUST SIDE |
90105-06166 |
from US $0.99 |
||
|
11201
|
11201
90179-06288 NUT[07.1993 - 05.1996] 2JZGE..JZA80 EXHAUST SIDE |
90179-06288 |
from US $0.84 |
||
|
11201
|
11201
90210-07001 Washer, Seal(For Cylinder Head Cover)[07.1993 - 05.1996] 2JZGE..JZA80 EXHAUST SIDE |
90210-07001 |
from US $1.98 |
||
|
11201
|
11201
12204-46031 Valve Sub-Assy, Ventilation[07.1993 - 05.1996] 2JZGE..JZA80 EXHAUST SIDE |
12204-46031 |
from US $22.55 |
||
|
11213
|
11213
11213-46020 Gasket, Cylinder Head Cover (Intake side)[05.1993 - 05.1996] 2JZ#..JZA80 INTAKE SIDE |
11213-46020 |
from US $16.76 |
||
|
11213
|
11213
11214-46010
Gasket, Cylinder Head Cover (Exhaust side)
[05.1993 - 07.1995] 2JZ#..JZA80 EXHAUST SIDE |
11214-46010 |
— | ||
| replacement | |||||
|
11213
|
11213
11214-46011 Gasket, Cylinder Head Cover (Exhaust side)[05.1993 - 07.1995] 2JZ#..JZA80 EXHAUST SIDE |
11214-46011 |
from US $17.01 |
||
|
11219
|
11219
11219-46021 Cover, Cylinder Head, No.3[05.1993 - 05.1996] 2JZGE..JZA80 |
11219-46021 |
US $126.67 |
||
|
11229
|
11229
11229-46020
Gasket, Cylinder Head Cover, No.3
[05.1993 - 05.1996] 2JZGE..JZA80 |
11229-46020 |
— | ||
|
11239
|
11239
11239-46020 Gasket, Clinder Head Coner, No.4[05.1993 - 05.1996] 2JZGE..JZA80 |
11239-46020 |
US $7.16 |
||
|
11249A
|
11249A
11249-46020 Gasket, Clinder Head Coner, No.5[05.1993 - 05.1996] 2JZGE..JZA80 |
11249-46020 |
US $7.16 |
||
|
11273
|
11273
11273-46010
Gasket, Cylinder Block Side Cover
[05.1993 - 05.1996] 2JZGE..JZA80 |
11273-46010 |
— | ||
|
11274
|
11274
11274-46010
Gasket, Cylinder Head Cover, No.7
[05.1993 - 05.1996] 2JZGE..JZA80 |
11274-46010 |
— | ||
|
12108
|
12108
12180-46010 Cap Sub-Assy, Oil Filler[05.1993 - 05.1996] 2JZ#..JZA80 |
12180-46010 |
from US $14.36 |
||
|
12108A
|
12108A
12195-46011 Gasket(For Oil Filler Cap)[05.1993 - 05.1996] 2JZ#..JZA80 |
12195-46011 |
from US $3.99 |
||
|
9011006009
|
9011006009
90110-06009 Bolt |
90110-06009 |
from US $0.65 |
||
|
9011606672
|
9011606672
90116-06672
New Genuine Part
|
90116-06672 |
— | ||
|
9011608349
|
9011608349
90116-08349 New Genuine Part |
90116-08349 |
US $0.61 |
||
|
9012606001
|
9012606001
90126-06001 STUD HEX LOBULAR |
90126-06001 |
US $2.87 |
||
|
9017906283
|
9017906283
90179-06283 New Genuine Part |
90179-06283 |
US $1.61 |
||
