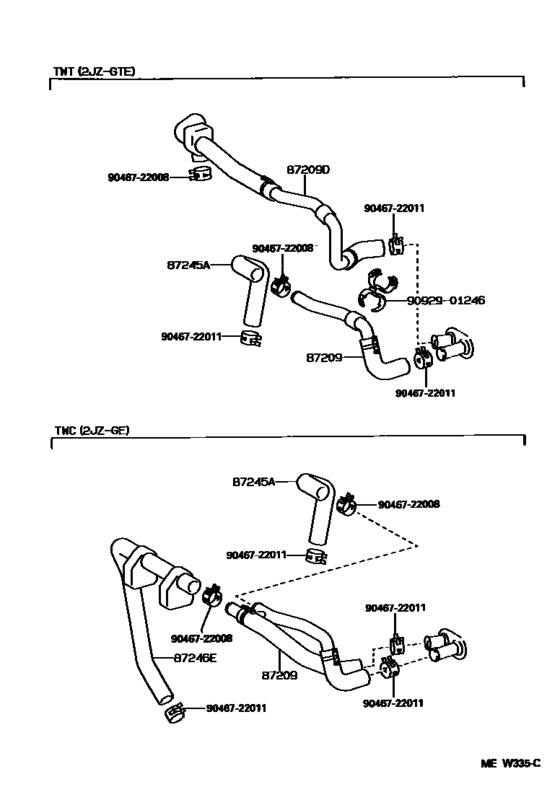

Heating & Air Conditioning - Water Piping ([05.1993 - ] (9305- )RHD) Diagram Toyota SUPRA
- Year
- 1993 - 1994
- Sales region
- Europe
- Frame
- JZA80
- body
- LB
- ENGINE
- 2JZGE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- SUPRA 80
- From
- 05.1993
- To
- 08.1994
- Gear Shift Type
- 5F
- Vehicle Model
- SUPRA
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87209
|
87209
87209-14820 Hose Sub-Assy, Water[05.1993 - 08.1994] JZA80..RHD..GEN |
87209-14820 |
US $59.81 |
||
|
87245A
|
87245A
87245-1B300 Hose, Heater Water, Inlet A[05.1993 - 01.1996] JZA80..RHD |
87245-1B300 |
US $17.56 |
||
|
87246E
|
87246E
87245-1B350 Hose, Heater Water, Outlet E[05.1993 - 08.1994] JZA80..RHD..GEN |
87245-1B350 |
US $36.46 |
||
|
9046722008
|
9046722008
90467-22008
Clip(For Water By-Pass Hose No.1)
|
90467-22008 |
— | ||
| replacement | |||||
|
9046722008
|
9046722008
90467-22011 Clip(For Water By-Pass Hose No.1) |
90467-22011 |
from US $3.23 |
||
|
9046722011
|
9046722011
90467-22011 Clip(For Water By-Pass Hose No.1) |
90467-22011 |
from US $3.23 |
||
|
9092901246
|
9092901246
90929-01246 New Genuine Part |
90929-01246 |
US $2.89 |
||
