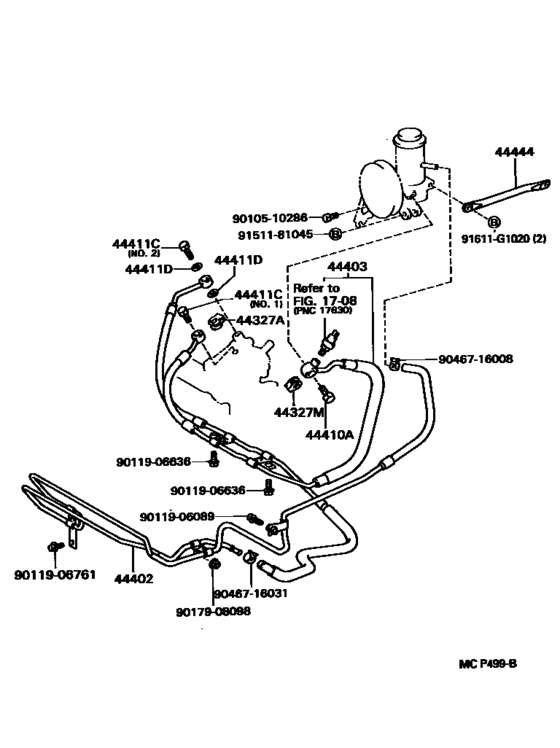

Power Steering Tube ([05.1993 - 08.1994] (9305-9408)RHD..GEN) Diagram Toyota SUPRA
- Year
- 1993 - 1994
- Sales region
- Europe
- Frame
- JZA80
- body
- LB
- ENGINE
- 2JZGE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- SUPRA 80
- From
- 05.1993
- To
- 08.1994
- Gear Shift Type
- 5F
- Vehicle Model
- SUPRA
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44327A
|
44327A
44327-12010 Gasket(For Pressure Hose)[05.1993 - 05.1996] JZA80 |
44327-12010 |
from US $4.43 |
||
|
44327M
|
44327M
44327-26020 Gasket, Pressure Port, No.1[05.1993 - 05.1996] JZA80 |
44327-26020 |
from US $2.39 |
||
|
44402
|
44402
44402-14240 Cooler Sub-Assy, Power Steering Oil, No.1[05.1993 - 05.1996] JZA80..GEN |
44402-14240 |
US $186.95 |
||
|
44403
|
44403
44403-14010 Tube Sub-Assy, Pressure Feed, No.1[05.1993 - 10.1993] JZA80..RHD |
44403-14010 |
US $331.97 |
||
| replacement | |||||
|
44403
|
44403
44403-14011 Tube Sub-Assy, Pressure Feed, No.1[05.1993 - 10.1993] JZA80..RHD |
44403-14011 |
US $388.44 |
||
|
44403
|
44403
44403-14011 Tube Sub-Assy, Pressure Feed, No.1[10.1993 - 01.1996] JZA80..RHD |
44403-14011 |
US $388.44 |
||
|
44410A
|
44410A
90401-16014 Bolt, Union(For Pressure Feed Tube)[05.1993 - 05.1996] JZA80 |
90401-16014 |
US $12.01 |
||
|
44411C
|
44411C
90401-16013 Bolt, Union(For Pressure Hose)[05.1993 - 05.1996] JZA80 NO.1 |
90401-16013 |
US $9.14 |
||
|
44411C
|
44411C
90401-17002
Bolt, Union(For Return Tube)
[05.1993 - 05.1996] JZA80 NO.2 |
90401-17002 |
— | ||
| replacement | |||||
|
44411C
|
44411C
90401-17005 Bolt, Union(For Return Tube)[05.1993 - 05.1996] JZA80 NO.2 |
90401-17005 |
US $10.57 |
||
|
44411D
|
44411D
90430-17006 Gasket(For Pulsation Damper Hose)[05.1993 - 05.1996] JZA80 |
90430-17006 |
from US $1.10 |
||
|
44444
|
44444
44444-30100 Stay, Pump, Rear[05.1993 - 05.1996] JZA80..GCC,GEN |
44444-30100 |
US $12.23 |
||
|
91611G1020
|
91611G1020
91611-G1020 Bolt(for Transaxle & Engine Setting) |
91611-G1020 |
US $1.89 |
||
| replacement | |||||
|
91611G1020
|
91611G1020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
from US $1.05 |
||
|
9010510286
|
9010510286
90105-10286
Bolt(For Torque Arm Setting)
|
90105-10286 |
— | ||
| replacement | |||||
|
9010510286
|
9010510286
91512-81025 Bolt(For Torque Arm Setting) |
91512-81025 |
from US $1.10 |
||
|
9011906089
|
9011906089
90119-06089 New Genuine Part |
90119-06089 |
US $2.87 |
||
|
9011906636
|
9011906636
90119-06636
New Genuine Part
|
90119-06636 |
— | ||
| replacement | |||||
|
9011906636
|
9011906636
90119-06467 BOLT WWASHER |
90119-06467 |
US $2.87 |
||
|
9011906761
|
9011906761
90119-06761
New Genuine Part
|
90119-06761 |
— | ||
| replacement | |||||
|
9011906761
|
9011906761
90119-06423 BOLT WWASHER |
90119-06423 |
US $1.25 |
||
|
9017908098
|
9017908098
90179-08098 New Genuine Part |
90179-08098 |
US $1.61 |
||
|
9046716008
|
9046716008
90467-16008
Clip(For Oil Return Hose)
|
90467-16008 |
— | ||
| replacement | |||||
|
9046716008
|
9046716008
90467-16019 Clip(For Return No.1) |
90467-16019 |
from US $2.34 |
||
|
9046716031
|
9046716031
90467-16031 CLIP |
90467-16031 |
from US $1.39 |
||
|
9151181045
|
9151181045
91511-81045
New Genuine Part
|
91511-81045 |
— | ||
