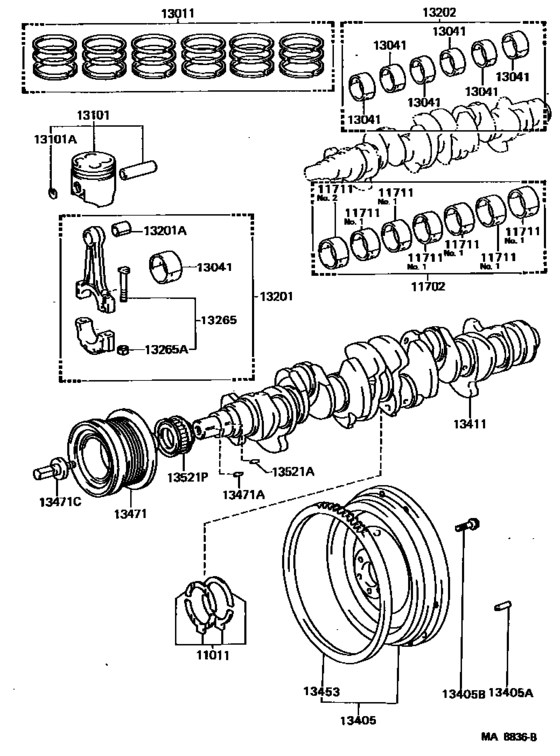

Crankshaft & Piston ([02.1986 - ] (8602- )7MGTEU) Diagram Toyota SUPRA
- Year
- 1987 - 1988
- Sales region
- Japan
- Frame
- MA70
- grade
- GTL
- body
- LB
- ENGINE
- 7MGTEU
- TRANSMISSION
- MTM
- Model
- SUPRA 70
- From
- 01.1987
- To
- 08.1988
- Gear Shift Type
- 5F
- Vehicle Model
- SUPRA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-43010 Washer Set, Crankshaft Thrust[02.1986 - 08.1988] 7MGTEU..MA70 ＳＴＤ,STD |
11011-43010 |
US $26.56 |
||
|
11011
|
11011
11012-43010
Washer Set, Crankshaft Thrust
[02.1986 - 08.1988] 7MGTEU..MA70 Ｏ／Ｓ ０．１２５,O/S 0.125 |
11012-43010 |
— | ||
|
11702
|
11702
11704-43010
Bearing Set, Crankshaft
[02.1986 - 08.1988] 7MGTEU..MA70 Ｕ／Ｓ ０．２５,U/S 0.25 |
11704-43010 |
— | ||
|
11711
|
11711
11071-43010-01
Bearing, Crankshaft
[02.1986 - 08.1988] 7MGTEU..MA70 NO.2,MARK"1",MARK 1 |
11071-43010-01 |
— | ||
|
11711
|
11711
11071-43010-02
Bearing, Crankshaft
[02.1986 - 08.1988] 7MGTEU..MA70 NO.2,MARK"2",MARK 2 |
11071-43010-02 |
— | ||
|
11711
|
11711
11071-43010-03
Bearing, Crankshaft
[02.1986 - 08.1988] 7MGTEU..MA70 NO.2,MARK"3",MARK 3 |
11071-43010-03 |
— | ||
|
11711
|
11711
11071-43010-04
Bearing, Crankshaft
[02.1986 - 08.1988] 7MGTEU..MA70 NO.2,MARK"4",MARK 4 |
11071-43010-04 |
— | ||
|
11711
|
11711
11071-43010-05
Bearing, Crankshaft
[02.1986 - 08.1988] 7MGTEU..MA70 NO.2,MARK"5",MARK 5 |
11071-43010-05 |
— | ||
|
11711
|
11711
11701-43010-01
Bearing, Crankshaft
[02.1986 - 08.1988] 7MGTEU..MA70 NO.1,MARK"1",MARK 1 |
11701-43010-01 |
— | ||
|
11711
|
11711
11701-43010-02
Bearing, Crankshaft
[02.1986 - 08.1988] 7MGTEU..MA70 NO.1,MARK"2",MARK 2 |
11701-43010-02 |
— | ||
|
11711
|
11711
11701-43010-03
Bearing, Crankshaft
[02.1986 - 08.1988] 7MGTEU..MA70 NO.1,MARK"3",MARK 3 |
11701-43010-03 |
— | ||
|
11711
|
11711
11701-43010-04
Bearing, Crankshaft
[02.1986 - 08.1988] 7MGTEU..MA70 NO.1,MARK"4",MARK 4 |
11701-43010-04 |
— | ||
|
11711
|
11711
11701-43010-05
Bearing, Crankshaft
[02.1986 - 08.1988] 7MGTEU..MA70 NO.1,MARK"5",MARK 5 |
11701-43010-05 |
— | ||
|
13011
|
13011
13011-42010
Ring Set, Piston
[02.1986 - 08.1988] 7MGTEU..MA70 ＳＴＤ,STD |
13011-42010 |
— | ||
| replacement | |||||
|
13011
|
13011
13011-42011
Ring Set, Piston
[02.1986 - 08.1988] 7MGTEU..MA70 ＳＴＤ,STD |
13011-42011 |
— | ||
|
13011
|
13011
13013-42011
Ring Set, Piston
[02.1986 - 08.1988] 7MGTEU..MA70 Ｏ／Ｓ ０．５０,O/S 0.50 |
13013-42011 |
— | ||
| replacement | |||||
|
13011
|
13011
13013-42012
Ring Set, Piston
[02.1986 - 08.1988] 7MGTEU..MA70 Ｏ／Ｓ ０．５０,O/S 0.50 |
13013-42012 |
— | ||
|
13041
|
13041
13041-42010-01
Bearing, Connecting Rod
[02.1986 - 08.1988] 7MGTEU..MA70 MARK"1",MARK 1 |
13041-42010-01 |
— | ||
|
13041
|
13041
13041-42010-02 Bearing, Connecting Rod[02.1986 - 08.1988] 7MGTEU..MA70 MARK"2",MARK 2 |
13041-42010-02 |
US $12.68 |
||
|
13041
|
13041
13041-42010-03
Bearing, Connecting Rod
[02.1986 - 08.1988] 7MGTEU..MA70 MARK"3",MARK 3 |
13041-42010-03 |
— | ||
|
13041
|
13041
13041-42010-04
Bearing, Connecting Rod
[02.1986 - 08.1988] 7MGTEU..MA70 MARK"4",MARK 4 |
13041-42010-04 |
— | ||
|
13041
|
13041
13041-42010-05
Bearing, Connecting Rod
[02.1986 - 08.1988] 7MGTEU..MA70 MARK"5",MARK 5 |
13041-42010-05 |
— | ||
|
13101
|
13101
13101-42050 Piston Sub-Assy, W/pin[02.1986 - 08.1988] 7MGTEU..MA70 ＳＴＤ,STD |
13101-42050 |
US $101.92 |
||
| replacement | |||||
|
13101
|
13101
13101-42080-02
Piston Sub-Assy, W/pin
[02.1986 - 08.1988] 7MGTEU..MA70 ＳＴＤ,STD |
13101-42080-02 |
— | ||
|
13101
|
13101
13103-42050 Piston Sub-Assy, W/pin[02.1986 - 08.1988] 7MGTEU..MA70 Ｏ／Ｓ ０．５０,O/S 0.50 |
13103-42050 |
US $99.01 |
||
| replacement | |||||
|
13101
|
13101
13103-42080
Piston Sub-Assy, W/pin
[02.1986 - 08.1988] 7MGTEU..MA70 Ｏ／Ｓ ０．５０,O/S 0.50 |
13103-42080 |
— | ||
|
13101A
|
13101A
90521-25001
Ring, Hole Snap(For Piston Pin)
[02.1986 - 08.1988] 7MGTEU..MA70 |
90521-25001 |
— | ||
|
13201
|
13201
13201-49045
Rod Sub-Assy, Connecting
[02.1986 - 08.1988] 7MGTEU..MA70 |
13201-49045 |
— | ||
|
13201A
|
13201A
90999-73066 Bush(For Connecting Rod Small End)[02.1986 - 08.1988] 7MGTEU..MA70 |
90999-73066 |
US $7.16 |
||
|
13202
|
13202
13204-42010
Bearing Set, Connecting Rod
[02.1986 - 08.1988] 7MGTEU..MA70 Ｕ／Ｓ ０．２５,U/S 0.25 |
13204-42010 |
— | ||
|
13265
|
13265
13265-42010
Bolt, Connecting Rod
[02.1986 - 08.1988] 7MGTEU..MA70 |
13265-42010 |
— | ||
|
13265A
|
13265A
90179-10090
Nut, Hexagon(For Connecting Rod Bolt)
[02.1986 - 08.1988] 7MGTEU..MA70 |
90179-10090 |
— | ||
|
13405
|
13405
13405-42010
Flywheel Sub-Assy
[01.1987 - 08.1988] 7MGTEU..MA70..5F |
13405-42010 |
— | ||
|
13405A
|
13405A
90250-08054 Pin, Straight[02.1986 - 08.1988] 1GEU,1GG#..GA70..5F 長さ＝２３，外径＝８; 7MGTEU..MA70..5F 長さ＝２３，外径＝８ |
90250-08054 |
from US $1.92 |
||
|
13405B
|
13405B
90105-10042 Bolt, Flywheel Setting[02.1986 - 08.1988] 1GEU,1GG#..GA70..5F *10-1.25PX26-18; 7MGTEU..MA70..5F *10-1.25PX26-18 |
90105-10042 |
US $1.76 |
||
|
13411
|
13411
13411-42030
Crankshaft
[02.1986 - 08.1988] 7MGTEU..MA70 |
13411-42030 |
— | ||
|
13453
|
13453
13453-20010 Gear, Flywheel Ring[02.1986 - 08.1988] 1GEU,1GG#..GA70..5F; 7MGTEU..MA70..5F |
13453-20010 |
from US $67.79 |
||
|
13471
|
13471
13407-42030
Pulley, Crankshaft
[02.1986 - 08.1988] 7MGTEU..MA70 |
13407-42030 |
— | ||
|
13471A
|
13471A
90280-05003 Key, Crankshaft(For Crankshaft Pulley Set)[02.1986 - 08.1988] 7MGTEU..MA70 |
90280-05003 |
US $2.62 |
||
|
13471C
|
13471C
90105-18003 Bolt(For Crankshaft Pulley Set)[02.1986 - 08.1988] 7MGTEU..MA70 |
90105-18003 |
US $11.18 |
||
|
13521A
|
13521A
90280-05003 Key, Crankshaft(For Crankshaft Pulley Set)[02.1986 - 08.1988] 7MGTEU..MA70 |
90280-05003 |
US $2.62 |
||
|
13521P
|
13521P
13521-42020 Pulley, Crankshaft Timing[02.1986 - 08.1988] 7MGTEU..MA70 |
13521-42020 |
US $96.10 |
||
