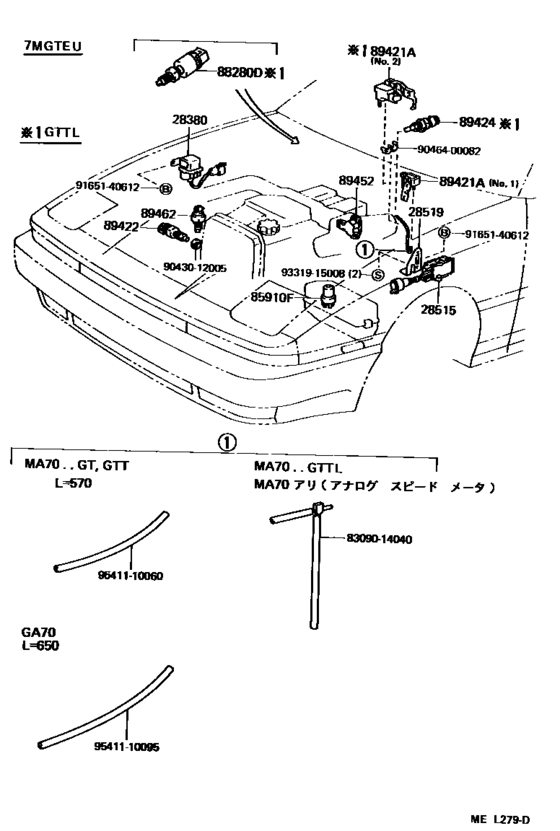

Electronic Fuel Injection System ([08.1988 - 08.1990] (8808-9008)MA70) Diagram Toyota SUPRA
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- MA70
- grade
- GTL
- body
- LB
- ENGINE
- 7MGTEU
- TRANSMISSION
- MTM
- Model
- SUPRA 70
- From
- 08.1988
- To
- 08.1990
- Gear Shift Type
- 5F
- Vehicle Model
- SUPRA
- Body Shape
- WIB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28380
|
28380
28380-43010
Relay Assy, Fuel Pump
[08.1988 - 05.1993] 1GGTEU,1JZGTE,7MGTEU..GA70,JZA70,MA70 |
28380-43010 |
— | ||
|
28515
|
28515
28515-43040
Resistor, Solenoid
[08.1988 - 08.1990] 7MGTEU..MA70 |
28515-43040 |
— | ||
|
28519
|
28519
28519-70020 Bracket, Solenoid Resistor[08.1988 - 08.1990] 7MGTEU..MA70 |
28519-70020 |
US $6.26 |
||
|
85910F
|
85910F
90987-02004 Relay Assy, Starter[08.1988 - 05.1993] GA70,JZA70,MA70 |
90987-02004 |
from US $28.70 |
||
| replacement | |||||
|
85910F
|
85910F
909870200483 [08.1988 - 05.1993] GA70,JZA70,MA70 |
909870200483 |
US $53.75 |
||
|
89421A
|
89421A
89420-14020
Sensor, Turbo Pressure
[08.1988 - 08.1990] MA70 ＮＯ．１ |
89420-14020 |
— | ||
|
89422
|
89422
89422-20010 Sensor, Water Temperature (For E.f.i.)[08.1988 - 05.1993] GA70,JZA70,MA70 |
89422-20010 |
from US $36.78 |
||
|
89452
|
89452
89452-14050 Sensor, Throttle Position (For E.f.i.)[03.1989 - 08.1990] MA70 |
89452-14050 |
US $192.96 |
||
|
89452
|
89452
89452-28030
Sensor, Throttle Position (For E.f.i.)
[08.1988 - 03.1989] MA70 |
89452-28030 |
— | ||
| replacement | |||||
|
89452
|
89452
89452-20050 Sensor, Throttle Position (For E.f.i.)[08.1988 - 03.1989] MA70 |
89452-20050 |
US $178.21 |
||
|
89462
|
89462
89462-20020 Switch, Start Injector Time[08.1988 - 06.1990] MA70;GA70..G,GT |
89462-20020 |
US $128.76 |
||
|
8309014040
|
8309014040
83090-14040 New Genuine Part |
83090-14040 |
US $15 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.76 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
from US $1.60 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
||
|
9541110060
|
9541110060
95411-10060 Hose, Vacuum |
95411-10060 |
US $12.23 |
||
| replacement | |||||
|
9541110060
|
9541110060
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9541110095
|
9541110095
95411-10095
Hose, Vacuum, No.6 (For Front Drive Shift)
|
95411-10095 |
— | ||
| replacement | |||||
|
9541110095
|
9541110095
90999-92004 Hose, Vacuum, No.1 (For Front Drive Shift) |
90999-92004 |
from US $9.46 |
||
