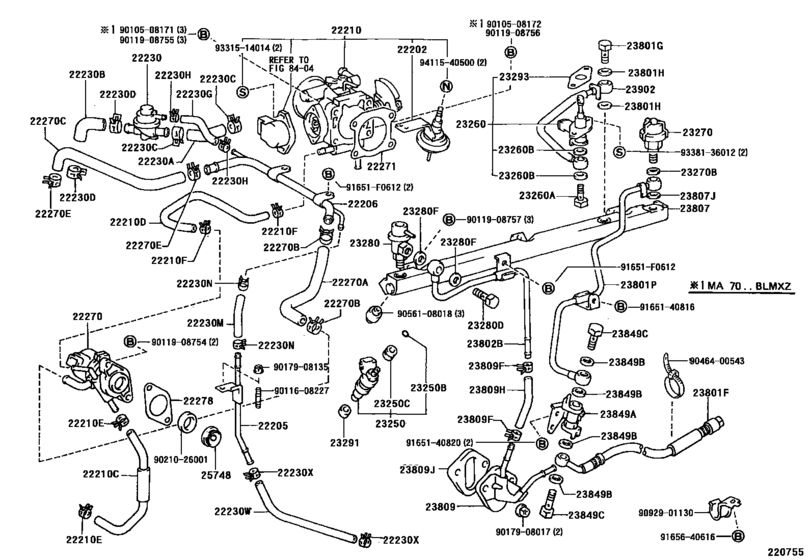

Fuel Injection System ([12.1988 - 08.1990] (8812-9008)7MGTEU) Diagram Toyota SUPRA
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- MA70
- grade
- GTL
- body
- LB
- ENGINE
- 7MGTEU
- TRANSMISSION
- MTM
- Model
- SUPRA 70
- From
- 08.1988
- To
- 08.1990
- Gear Shift Type
- 5F
- Vehicle Model
- SUPRA
- Body Shape
- WIB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22202
|
22202
22202-42260 Dash Pot Sub-Assy[08.1988 - 08.1990] 7MGTEU..MA70..5F |
22202-42260 |
US $75.71 |
||
|
22205
|
22205
22205-42010 Pipe Sub-Assy, Auxiliary Air[08.1988 - 08.1990] 7MGTEU..MA70 |
22205-42010 |
US $16.45 |
||
|
22206
|
22206
22206-42011
Pipe Sub-Assy, Idle Speed Control
[08.1988 - 08.1990] 7MGTEU..MA70 |
22206-42011 |
— | ||
|
22210
|
22210
22210-42230 Body Assy, Throttle[08.1988 - 08.1990] 7MGTEU..MA70..5F..(GTL,GTT) |
22210-42230 |
US $685.78 |
||
|
22210C
|
22210C
16261-42010
Hose, Water By-Pass, No.1
[08.1988 - 08.1990] 7MGTEU..MA70 |
16261-42010 |
— | ||
|
22210D
|
22210D
16264-42040
Hose, Water By-Pass, No.2
[08.1988 - 08.1990] 7MGTEU..MA70 |
16264-42040 |
— | ||
|
22210E
|
22210E
96135-41300
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1988 - 08.1990] 7MGTEU..MA70 |
96135-41300 |
— | ||
| replacement | |||||
|
22210E
|
22210E
96135-51300 Clamp, Hose[08.1988 - 08.1990] 7MGTEU..MA70 |
96135-51300 |
from US $1.92 |
||
|
22210F
|
22210F
96135-41300
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1988 - 08.1990] 7MGTEU..MA70 |
96135-41300 |
— | ||
| replacement | |||||
|
22210F
|
22210F
96135-51300 Clamp, Hose[08.1988 - 08.1990] 7MGTEU..MA70 |
96135-51300 |
from US $1.92 |
||
|
22230
|
22230
17670-42010
Valve Assy, Auxiliary Air
[08.1988 - 08.1990] 7MGTEU..MA70 |
17670-42010 |
— | ||
|
22230A
|
22230A
17341-42070
Hose, Auxiliary Air Valve, No.1
[08.1988 - 08.1990] 7MGTEU..MA70 |
17341-42070 |
— | ||
|
22230B
|
22230B
17342-42040
Hose, Auxiliary Air Valve, No.2
[08.1988 - 08.1990] 7MGTEU..MA70 |
17342-42040 |
— | ||
|
22230C
|
22230C
90467-26002
Clip(For Ventilation Hose)
[08.1988 - 08.1990] 7MGTEU..MA70 |
90467-26002 |
— | ||
| replacement | |||||
|
22230C
|
22230C
96134-52600 Clip Or Clamp(For Ventilation Hose)[08.1988 - 08.1990] 7MGTEU..MA70 |
96134-52600 |
from US $3.14 |
||
|
22230D
|
22230D
90467-26002
Clip(For Ventilation Hose)
[08.1988 - 08.1990] 7MGTEU..MA70 |
90467-26002 |
— | ||
| replacement | |||||
|
22230D
|
22230D
96134-52600 Clip Or Clamp(For Ventilation Hose)[08.1988 - 08.1990] 7MGTEU..MA70 |
96134-52600 |
from US $3.14 |
||
|
22230G
|
22230G
90445-10022
Hose, No.2(For Idle-Up)
[08.1988 - 08.1990] 7MGTEU..MA70 |
90445-10022 |
— | ||
|
22230H
|
22230H
96132-30400
Clip Or Clamp(For Ventilation Hose)
[08.1988 - 08.1990] 7MGTEU..MA70 |
96132-30400 |
— | ||
| replacement | |||||
|
22230H
|
22230H
96132-51000 Clip Or Clamp(For Ventilation Hose)[08.1988 - 08.1990] 7MGTEU..MA70 |
96132-51000 |
from US $1.62 |
||
|
22230M
|
22230M
90910-05191
Hose, Auxiliary Air Valve, No.4
[08.1988 - 08.1990] 7MGTEU..MA70 |
90910-05191 |
— | ||
|
22230N
|
22230N
96132-30400
Clip Or Clamp(For Ventilation Hose)
[08.1988 - 08.1990] 7MGTEU..MA70 |
96132-30400 |
— | ||
| replacement | |||||
|
22230N
|
22230N
96132-51000 Clip Or Clamp(For Ventilation Hose)[08.1988 - 08.1990] 7MGTEU..MA70 |
96132-51000 |
from US $1.62 |
||
|
22230W
|
22230W
90910-05192
Hose, Auxiliary Air Valve, No.5
[08.1988 - 08.1990] 7MGTEU..MA70 |
90910-05192 |
— | ||
|
22230X
|
22230X
96132-30400
Clip Or Clamp(For Ventilation Hose)
[08.1988 - 08.1990] 7MGTEU..MA70 |
96132-30400 |
— | ||
| replacement | |||||
|
22230X
|
22230X
96132-51000 Clip Or Clamp(For Ventilation Hose)[08.1988 - 08.1990] 7MGTEU..MA70 |
96132-51000 |
from US $1.62 |
||
|
22270
|
22270
22270-42010 Valve Assy, Idle Speed Control(For Thlottle Body)[08.1988 - 08.1990] 7MGTEU..MA70 |
22270-42010 |
US $1,122.58 |
||
|
22270A
|
22270A
17347-42010 Hose, Air, No.1(For Idle Speed Control Valve)[08.1988 - 08.1990] 7MGTEU..MA70 |
17347-42010 |
US $16.26 |
||
|
22270B
|
22270B
96134-42300 Clip Or Clamp(For Ventilation Hose)[08.1988 - 08.1990] 7MGTEU..MA70 |
96134-42300 |
US $1.44 |
||
|
22270C
|
22270C
17348-42010
Hose, Air, No.2(For Idle Speed Control Valve)
[08.1988 - 08.1990] 7MGTEU..MA70 |
17348-42010 |
— | ||
|
22270E
|
22270E
90467-23003
Clip(For Ventilation Hose)
[08.1988 - 08.1990] 7MGTEU..MA70 |
90467-23003 |
— | ||
| replacement | |||||
|
22270E
|
22270E
96134-42300 Clip Or Clamp(For Ventilation Hose)[08.1988 - 08.1990] 7MGTEU..MA70 |
96134-42300 |
US $1.44 |
||
|
22271
|
22271
22271-42010
Gasket, Throttle Body
[08.1988 - 12.1989] 7MGTEU..MA70..GTL,GTT |
22271-42010 |
— | ||
| replacement | |||||
|
22271
|
22271
22271-42040 Gasket, Throttle Body[08.1988 - 12.1989] 7MGTEU..MA70..GTL,GTT |
22271-42040 |
US $8.48 |
||
|
22271
|
22271
22271-42040 Gasket, Throttle Body[12.1989 - 08.1990] 7MGTEU..MA70 |
22271-42040 |
US $8.48 |
||
|
22278
|
22278
22278-42010 Gasket, Idle Speed Control Valve[12.1989 - 08.1990] 7MGTEU..MA70 |
22278-42010 |
US $5.60 |
||
|
22278
|
22278
22278-43011
Gasket, Idle Speed Control Valve
[08.1988 - 12.1989] 7MGTEU..MA70 |
22278-43011 |
— | ||
| replacement | |||||
|
22278
|
22278
22278-42010 Gasket, Idle Speed Control Valve[08.1988 - 12.1989] 7MGTEU..MA70 |
22278-42010 |
US $5.60 |
||
|
23250
|
23250
23209-42010
Injector Assy, Fuel
[08.1988 - 08.1990] 7MGTEU..MA70 |
23209-42010 |
— | ||
|
23250B
|
23250B
90301-07001 Ring, O(For Fuel Injector)[08.1988 - 05.1993] 7MGTEU..MA70; 1GFE,1GG#..GA70 |
90301-07001 |
from US $2.93 |
||
|
23250C
|
23250C
90480-13005 Grommet(For Fuel Injector)[08.1988 - 05.1993] 7MGTEU..MA70; 1GFE,1GG#..GA70 |
90480-13005 |
from US $2.50 |
||
|
23260
|
23260
23260-49105
Injector Assy, Cold Start Fuel
[08.1988 - 08.1990] 7MGTEU..MA70 |
23260-49105 |
— | ||
| replacement | |||||
|
23260
|
23260
23260-49126
Injector Assy, Cold Start Fuel
[08.1988 - 08.1990] 7MGTEU..MA70 |
23260-49126 |
— | ||
|
23260A
|
23260A
90401-08003 Bolt, Union[03.1989 - 08.1990] 7MGTEU..MA70 |
90401-08003 |
US $2.24 |
||
|
23260A
|
23260A
90401-08006 Bolt, Union[08.1988 - 03.1989] 7MGTEU..MA70 |
90401-08006 |
US $2.18 |
||
| replacement | |||||
|
23260A
|
23260A
90401-08003 Bolt, Union[08.1988 - 03.1989] 7MGTEU..MA70 |
90401-08003 |
US $2.24 |
||
|
23260B
|
23260B
90430-08005 Gasket[08.1988 - 07.1990] 7MGTEU..MA70 |
90430-08005 |
US $2.24 |
||
|
23260B
|
23260B
90430-08012 Gasket[07.1990 - 08.1990] 7MGTEU..MA70 |
90430-08012 |
US $1.92 |
||
|
23270
|
23270
23270-35010
Damper Assy, Fuel Pressure Pulsation
[08.1988 - 08.1990] 7MGTEU..MA70 |
23270-35010 |
— | ||
| replacement | |||||
|
23270
|
23270
23270-42010 Damper Assy, Fuel Pressure Pulsation[08.1988 - 08.1990] 7MGTEU..MA70 |
23270-42010 |
US $94.72 |
||
|
23270B
|
23270B
90430-17002 Gasket(For Pulsation Damper Hose)[08.1988 - 07.1990] 7MGTEU..MA70 |
90430-17002 |
US $3.36 |
||
|
23270B
|
23270B
90430-17006 Gasket(For Pulsation Damper Hose)[07.1990 - 08.1990] 7MGTEU..MA70 |
90430-17006 |
from US $1.21 |
||
|
23280
|
23280
23280-42010 Regulator Assy, Fuel Pressure[08.1988 - 08.1990] 7MGTEU..MA70 |
23280-42010 |
US $133.95 |
||
|
23280D
|
23280D
90401-10011 Bolt, Union(For Fuel Pipe Or Hose Set)[03.1989 - 08.1990] 7MGTEU..MA70 |
90401-10011 |
US $3.93 |
||
|
23280D
|
23280D
90401-10034 Bolt, Union(For Fuel Pipe Or Hose Set)[08.1988 - 03.1989] 7MGTEU..MA70 |
90401-10034 |
US $3.64 |
||
| replacement | |||||
|
23280D
|
23280D
90401-10011 Bolt, Union(For Fuel Pipe Or Hose Set)[08.1988 - 03.1989] 7MGTEU..MA70 |
90401-10011 |
US $3.93 |
||
|
23280F
|
23280F
90430-10012 Gasket(For Turbo Oil Inlet Pipe)[07.1990 - 08.1990] 7MGTEU..MA70 |
90430-10012 |
US $2.40 |
||
|
23280F
|
23280F
90430-10204 Gasket(For Water Hole)[08.1988 - 07.1990] 7MGTEU..MA70 |
90430-10204 |
from US $3.68 |
||
|
23291
|
23291
23291-41010 Insulator, Injector Vibration[08.1988 - 05.1993] 7MGTEU..MA70; 1GFE,1GG#..GA70 |
23291-41010 |
from US $2.77 |
||
|
23293
|
23293
23293-42010 Gasket, Cold Start Injector[12.1989 - 08.1990] 7MGTEU..MA70 |
23293-42010 |
US $5.60 |
||
|
23293
|
23293
23293-74010
Gasket, Cold Start Injector
[08.1988 - 12.1989] 1GGEU..GA70; 7MGTEU..MA70 |
23293-74010 |
— | ||
| replacement | |||||
|
23293
|
23293
23293-42010 Gasket, Cold Start Injector[08.1988 - 12.1989] 1GGEU..GA70; 7MGTEU..MA70 |
23293-42010 |
US $5.60 |
||
|
23801F
|
23801F
90923-01335 Hose, Fuel, No.1[08.1988 - 12.1988] 7MGTEU..MA70 |
90923-01335 |
US $132.50 |
||
|
23801F
|
23801F
90923-01359 Hose, Fuel, No.1[01.1989 - 08.1990] 7MGTEU..MA70 |
90923-01359 |
US $69.89 |
||
|
23801G
|
23801G
90401-12021 Bolt, Union(For Turbo Oil Inlet Pipe)[08.1988 - 03.1989] 7MGTEU..MA70 |
90401-12021 |
US $7.13 |
||
| replacement | |||||
|
23801G
|
23801G
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[08.1988 - 03.1989] 7MGTEU..MA70 |
90401-12097 |
from US $3.08 |
||
|
23801G
|
23801G
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[03.1989 - 05.1993] 7MGTEU..MA70; 1GFE,1GG#..GA70 |
90401-12097 |
from US $3.08 |
||
|
23801H
|
23801H
90430-12005 Gasket(For Water Hole)[08.1988 - 02.1990] 7MGTEU..MA70; 1GFE,1GG#..GA70 |
90430-12005 |
from US $0.76 |
||
|
23801H
|
23801H
90430-12026 Gasket[07.1990 - 08.1990] 7MGTEU..MA70 *53; 1GFE,1GGEU..GA70 *53 |
90430-12026 |
from US $0.94 |
||
|
23801P
|
23801P
23801-42010 Pipe Sub-Assy, Fuel, No.1[08.1988 - 01.1989] 7MGTEU..MA70 |
23801-42010 |
US $66.25 |
||
|
23801P
|
23801P
23801-42030
Pipe Sub-Assy, Fuel, No.1
[01.1989 - 08.1990] 7MGTEU..MA70 |
23801-42030 |
— | ||
|
23802B
|
23802B
23803-42010 Pipe Sub-Assy, Fuel, No.2[08.1988 - 04.1990] 7MGTEU..MA70 |
23803-42010 |
US $39.46 |
||
| replacement | |||||
|
23802B
|
23802B
23803-42011 Pipe Sub-Assy, Fuel, No.2[08.1988 - 04.1990] 7MGTEU..MA70 |
23803-42011 |
US $39.02 |
||
|
23802B
|
23802B
23803-42011 Pipe Sub-Assy, Fuel, No.2[04.1990 - 08.1990] 7MGTEU..MA70 |
23803-42011 |
US $39.02 |
||
|
23807
|
23807
23807-42020 Pipe Sub-Assy, Fuel Delivery[08.1988 - 08.1990] 7MGTEU..MA70 |
23807-42020 |
US $254.80 |
||
|
23807J
|
23807J
90430-14002 Gasket(For Pulsation Damper Hose)[08.1988 - 07.1990] 7MGTEU..MA70 |
90430-14002 |
US $2.88 |
||
|
23807J
|
23807J
90430-14007 Gasket, Pipe Fuel Delivary Inlet[07.1990 - 08.1990] 7MGTEU..MA70 |
90430-14007 |
US $1.22 |
||
|
23809
|
23809
23849-41050
Support Sub-Assy, Fuel Pipe
[08.1988 - 08.1990] 7MGTEU..MA70 |
23849-41050 |
— | ||
|
23809F
|
23809F
96135-41300
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1988 - 08.1990] 7MGTEU..MA70 |
96135-41300 |
— | ||
| replacement | |||||
|
23809F
|
23809F
96135-51300 Clamp, Hose[08.1988 - 08.1990] 7MGTEU..MA70 |
96135-51300 |
from US $1.92 |
||
|
23809H
|
23809H
95336-08020
Hose, Fuel Pipe Support To Regulator
[08.1988 - 08.1990] 7MGTEU..MA70 |
95336-08020 |
— | ||
|
23809J
|
23809J
90923-06007
Gasket, Cylinder Block Side Cover, No.2
[08.1988 - 12.1989] 7MGTEU..MA70 |
90923-06007 |
— | ||
| replacement | |||||
|
23809J
|
23809J
90923-06012 Gasket, Cylinder Block Side Cover, No.2[08.1988 - 12.1989] 7MGTEU..MA70 |
90923-06012 |
US $7.43 |
||
|
23809J
|
23809J
90923-06012 Gasket, Cylinder Block Side Cover, No.2[12.1989 - 08.1990] 7MGTEU..MA70 |
90923-06012 |
US $7.43 |
||
|
23849A
|
23849A
23849-42010
Support, Fuel Pipe
[08.1988 - 01.1989] 7MGTEU..MA70 |
23849-42010 |
— | ||
|
23849A
|
23849A
23849-42020 Support, Fuel Pipe[01.1989 - 08.1990] 7MGTEU..MA70 |
23849-42020 |
US $24.32 |
||
|
23849B
|
23849B
90430-12005 Gasket(For Water Hole)[08.1988 - 08.1990] 7MGTEU..MA70 |
90430-12005 |
from US $0.76 |
||
|
23849C
|
23849C
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[08.1988 - 05.1993] 1GGEU..GA70; 7MGTEU..MA70 |
90401-12097 |
from US $3.08 |
||
|
23902
|
23902
23902-42010
Tube Sub-Assy, Fuel
[08.1988 - 08.1990] 7MGTEU..MA70 |
23902-42010 |
— | ||
|
25748
|
25748
25748-88341
Valve, Check(For Idle Speed Control)
[08.1988 - 04.1991] 1GGTEU..GA70; 1JZGTE..JZA70; 7MGTEU..MA70 |
25748-88341 |
— | ||
|
91651F0612
|
91651F0612
91651-F0612
New Genuine Part
|
91651-F0612 |
— | ||
| replacement | |||||
|
91651F0612
|
91651F0612
91651-G0612 New Genuine Part |
91651-G0612 |
US $0.61 |
||
|
9010508171
|
9010508171
90105-08171 New Genuine Part |
90105-08171 |
US $2.18 |
||
|
9010508172
|
9010508172
90105-08172 New Genuine Part |
90105-08172 |
US $2.77 |
||
|
9011608227
|
9011608227
90116-08227
New Genuine Part
|
90116-08227 |
— | ||
|
9011908754
|
9011908754
90119-08754
New Genuine Part
|
90119-08754 |
— | ||
|
9011908755
|
9011908755
90119-08755 New Genuine Part |
90119-08755 |
US $2.18 |
||
|
9011908756
|
9011908756
90119-08756
New Genuine Part
|
90119-08756 |
— | ||
|
9011908757
|
9011908757
90119-08757 New Genuine Part |
90119-08757 |
US $1.14 |
||
|
9017908017
|
9017908017
90179-08017 NUT |
90179-08017 |
from US $0.80 |
||
|
9017908135
|
9017908135
90179-08135
New Genuine Part
|
90179-08135 |
— | ||
| replacement | |||||
|
9017908135
|
9017908135
90179-08153 NUT |
90179-08153 |
from US $0.92 |
||
|
9021026001
|
9021026001
90210-26001
New Genuine Part
|
90210-26001 |
— | ||
|
9046400543
|
9046400543
90464-00543 New Genuine Part |
90464-00543 |
US $3.35 |
||
|
9056108018
|
9056108018
90561-08018
New Genuine Part
|
90561-08018 |
— | ||
|
9092901130
|
9092901130
90929-01130
New Genuine Part
|
90929-01130 |
— | ||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $1.03 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $1.06 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
from US $1.12 |
||
|
9331514014
|
9331514014
93315-14014 SCREW |
93315-14014 |
US $1.12 |
||
|
9338136012
|
9338136012
93381-36012 New Genuine Part |
93381-36012 |
US $1.60 |
||
| replacement | |||||
|
9338136012
|
9338136012
90159-60211 New Genuine Part |
90159-60211 |
US $1.02 |
||
|
9411540500
|
9411540500
94115-40500 Nut(For Lpg Filter Stud Bolt Set) |
94115-40500 |
US $1.76 |
||
