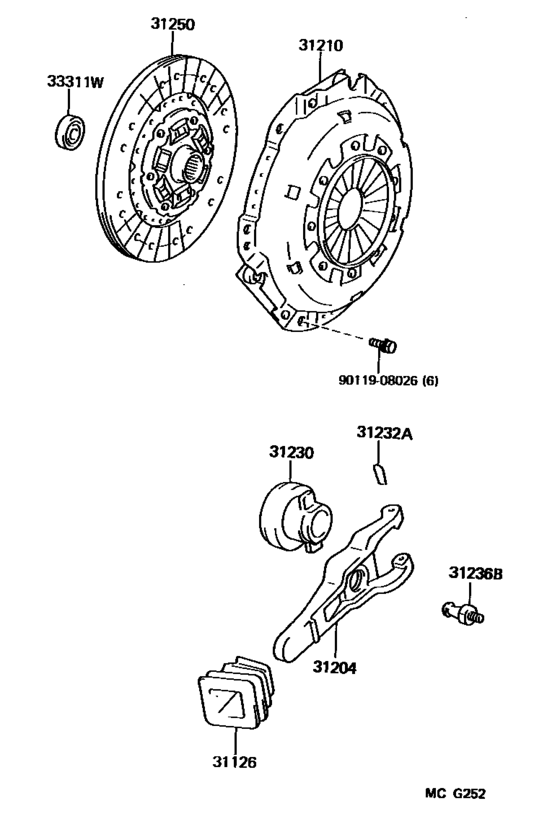

Clutch & Release Fork ([08.1988 - ] W5# (8808- )5F..TWC) Diagram Toyota SUPRA
- Year
- 1988 - 1990
- Sales region
- U.S.A.
- Frame
- MA70
- body
- SPR
- ENGINE
- 7MGE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- Model
- SUPRA 70
- From
- 08.1988
- To
- 08.1990
- Gear Shift Type
- 5F
- Vehicle Model
- SUPRA
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-14010
Boot, Clutch Release Fork
[08.1988 - 05.1993] MA70..5F..TWC |
31126-14010 |
— | ||
|
31204
|
31204
31204-14021
Fork Sub-Assy, Clutch Release
[08.1988 - 05.1993] MA70..5F..TWC |
31204-14021 |
— | ||
|
31210
|
31210
31210-14140 Cover Assy, ClutchCLUTCH [08.1988 - 08.1989] MA70..5F..TWC |
31210-14140 |
US $246.06 |
||
| replacement | |||||
|
31210
|
31210
31210-53020 Cover Assy, Clutch[08.1988 - 08.1989] MA70..5F..TWC |
31210-53020 |
US $246.06 |
||
|
31210
|
31210
31210-14160 Cover Assy, ClutchCLUTCH [08.1989 - 05.1993] MA70..5F..TWC |
31210-14160 |
US $246.06 |
||
| replacement | |||||
|
31210
|
31210
31210-53020 Cover Assy, Clutch[08.1989 - 05.1993] MA70..5F..TWC |
31210-53020 |
US $246.06 |
||
|
31230
|
31230
31230-14030
Bearing Assy, Clutch Release
[08.1988 - 05.1993] MA70..5F..TWC |
31230-14030 |
— | ||
|
31232A
|
31232A
31232-14010 Clip, Release Bearing Hub[08.1988 - 11.1989] MA70..5F..TWC |
31232-14010 |
US $4.02 |
||
|
31232A
|
31232A
31232-14020
Clip, Release Bearing Hub
[11.1989 - 05.1993] MA70..5F..TWC KOYO |
31232-14020 |
— | ||
|
31236B
|
31236B
31236-14010 Support, Release Fork[08.1988 - 05.1993] MA70..5F..TWC |
31236-14010 |
from US $12.72 |
||
|
31250
|
31250
31250-14160 Disc Assy, Clutch[08.1988 - 05.1993] MA70..5F..TWC |
31250-14160 |
US $228.59 |
||
| replacement | |||||
|
31250
|
31250
31250-14163 Disc Assy, Clutch[08.1988 - 05.1993] MA70..5F..TWC |
31250-14163 |
US $228.59 |
||
|
33311W
|
33311W
90363-12002
Bearing (For Input Shaft)
[08.1988 - 08.1989] MA70..5F |
90363-12002 |
— | ||
| replacement | |||||
|
33311W
|
33311W
90363-12024 Bearing, Radial Ball[08.1988 - 08.1989] MA70..5F |
90363-12024 |
from US $5.67 |
||
|
9011908026
|
9011908026
90119-08026
Bolt(For Transmission Input Damper Cover & Flywheel)
|
90119-08026 |
— | ||
| replacement | |||||
|
9011908026
|
9011908026
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.64 |
||
