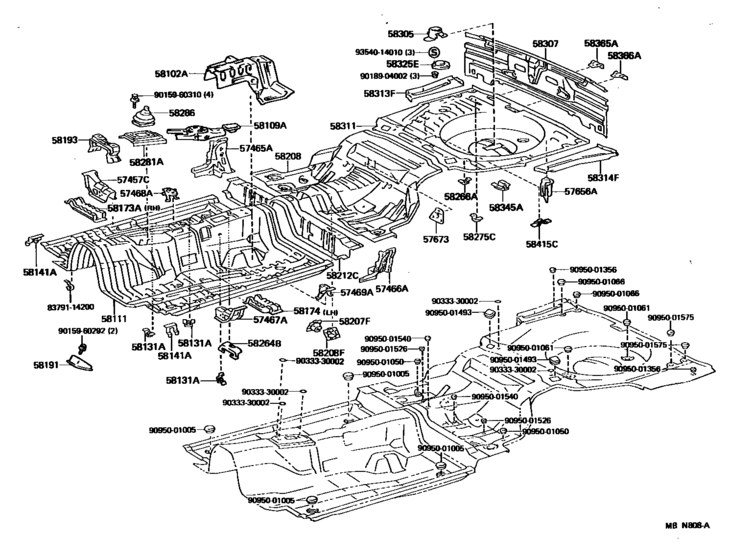

Floor Pan & Lower Back Panel ([08.1988 - ] (8808- )) Diagram Toyota SUPRA
- Year
- 1988 - 1990
- Sales region
- U.S.A.
- Frame
- MA70
- body
- SPR
- ENGINE
- 7MGE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- Model
- SUPRA 70
- From
- 08.1988
- To
- 08.1990
- Gear Shift Type
- 5F
- Vehicle Model
- SUPRA
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57457C
|
57457C
57457-14010
Bracket, Front Seat Outside Mounting, Front Rh
[08.1988 - 08.1989] MA70 |
57457-14010 |
— | ||
|
57465A
|
57465A
57465-14060 Gusset, Center Floor Crossmember, Rh[08.1988 - 08.1989] MA70 |
57465-14060 |
US $71.64 |
||
|
57466A
|
57466A
57466-14030 Gusset, Center Floor Crossmember, Lh[08.1988 - 08.1989] MA70 |
57466-14030 |
US $71.64 |
||
|
57467A
|
57467A
57467-14020
Bracket, Front Seat Outside Mounting, Front Lh
[08.1988 - 08.1989] MA70 |
57467-14020 |
— | ||
|
57468A
|
57468A
57468-14030
Bracket, Front Seat, Outside, Rear Rh
[08.1988 - 08.1989] MA70 |
57468-14030 |
— | ||
|
57469A
|
57469A
57469-14030
Bracket, Front Seat, Outside, Rear Lh
[08.1988 - 08.1989] MA70 |
57469-14030 |
— | ||
|
57656A
|
57656A
57656-14040 Bracket, Exhaust Pipe Mounting, No.1[08.1988 - 08.1989] MA70 |
57656-14040 |
US $19.66 |
||
|
57673
|
57673
57673-14020 Bracket, Rear Seat Back Hinge Mounting[08.1988 - 08.1989] MA70 |
57673-14020 |
US $11.07 |
||
|
58102A
|
58102A
58102-14020
Reinforcement Sub-Assy, Front Floor
[08.1988 - 08.1989] MA70 |
58102-14020 |
— | ||
|
58102A
|
58102A
58102-14021 Reinforcement Sub-Assy, Front Floor[08.1989 - 08.1990] MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA |
58102-14021 |
US $117.94 |
||
|
58109A
|
58109A
58109-14020 Retainer Sub-Assy, Parking BrakePARKING BRAKE [08.1988 - 08.1989] MA70 |
58109-14020 |
US $117.94 |
||
|
58111
|
58111
58111-14060
Pan Sub-Assy, Front Floor
[08.1988 - 08.1989] MA70 |
58111-14060 |
— | ||
| replacements | |||||
|
58111
|
58111
58111-14061
Pan, Front Floor
[08.1988 - 08.1989] MA70 |
58111-14061 |
— | ||
|
58111
|
58111
90189-05102 New Genuine Part[08.1988 - 08.1989] MA70 |
90189-05102 |
US $1.89 |
||
|
58111
|
58111
58111-14061
Pan, Front Floor
[08.1989 - 08.1990] MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA |
58111-14061 |
— | ||
|
58131A
|
58131A
58131-14030
Bracket, Mounting, Floor, No.1
[08.1988 - 08.1989] MA70 |
58131-14030 |
— | ||
|
58141A
|
58141A
58141-14020 Protector, Front Floor Service Hole, No.1[08.1988 - 08.1989] MA70 |
58141-14020 |
US $5.82 |
||
|
58173A
|
58173A
58173-14020
Deflector, Front Floor Stone
[08.1988 - 08.1989] MA70 |
58173-14020 |
— | ||
|
58174
|
58174
58174-14010
Deflector, Front Floor Stone
[08.1988 - 08.1989] MA70 |
58174-14010 |
— | ||
|
58191
|
58191
58192-14030 Footrest, Front FloorFRONT FLOOR [08.1988 - 08.1989] MA70 |
58192-14030 |
US $25.48 |
||
|
58193
|
58193
58193-14030 Bracket, Instrument Panel Brace Mounting[08.1988 - 08.1989] MA70 |
58193-14030 |
US $27.08 |
||
|
58207F
|
58207F
58207-14040 Clamp Sub-Assy, Parking Brake Cable, Rh[08.1988 - 08.1989] MA70 |
58207-14040 |
US $11.07 |
||
|
58208
|
58208
58211-14120
Pan, Center Floor
[08.1988 - 08.1989] MA70 |
58211-14120 |
— | ||
|
58208F
|
58208F
58208-14040 Clamp Sub-Assy, Parking Brake Cable, Lh[08.1988 - 08.1989] MA70 |
58208-14040 |
US $11.07 |
||
|
58212C
|
58212C
58212-14020 Pan, Center Floor, Front[08.1988 - 08.1989] MA70 |
58212-14020 |
US $109.20 |
||
|
58264B
|
58264B
58264-14020 Bracket, Parking Brake Cable Guide[08.1988 - 08.1989] MA70 |
58264-14020 |
US $12.67 |
||
|
58266A
|
58266A
58266-22040 Bracket, Fuel Tube Clamp[08.1988 - 08.1989] MA70 |
58266-22040 |
US $4.08 |
||
|
58275C
|
58275C
58275-14020 Bracket, Wire Harness Protector[08.1988 - 08.1989] MA70 |
58275-14020 |
US $4.08 |
||
|
58281A
|
58281A
58281-14100
Cover, Transmission Auxiliary
[08.1988 - 08.1989] MA70..5F |
58281-14100 |
— | ||
|
58286
|
58286
58280-14070
Boot, Shift & Select Lever, No.1
[08.1988 - 08.1989] MA70..5F |
58280-14070 |
— | ||
|
58305
|
58305
58305-10011 Bracket Sub-Assy, Spare Wheel Clamp[08.1988 - 08.1989] MA70 |
58305-10011 |
US $4.54 |
||
|
58307
|
58307
58307-14650
Panel Sub-Assy, Body Lower Back
[08.1988 - 08.1989] MA70 |
58307-14650 |
— | ||
|
58311
|
58311
58311-14170
Pan, Rear Floor
[08.1988 - 08.1989] MA70 |
58311-14170 |
— | ||
| replacement | |||||
|
58311
|
58311
58311-14171
Pan, Rear Floor
[08.1988 - 08.1989] MA70 |
58311-14171 |
— | ||
|
58313F
|
58313F
58313-14190 Extension, Rear Floor Pan To Quarter Panel, Rh[08.1988 - 08.1989] MA70 |
58313-14190 |
US $32.47 |
||
|
58314F
|
58314F
58314-14130 Extension, Rear Floor Pan To Quarter Panel, Lh[08.1988 - 08.1989] MA70 |
58314-14130 |
US $37.27 |
||
|
58325E
|
58325E
58325-14020
Cover, Rear Floor Service Hole
[08.1988 - 08.1989] MA70 |
58325-14020 |
— | ||
|
58345A
|
58345A
58345-14020
Bracket, Rear Floor Heat Insulator, No.1
[08.1988 - 08.1989] MA70 |
58345-14020 |
— | ||
|
58365A
|
58365A
58365-14010 Bracket, Fuel Tank Support[08.1988 - 08.1989] MA70 |
58365-14010 |
US $18.05 |
||
|
58366A
|
58366A
58366-14010 Bracket, Fuel Tank Support[08.1988 - 08.1989] MA70 |
58366-14010 |
US $23.44 |
||
|
58415C
|
58415C
58415-14050 Bracket, Deck Board SupportDECK BOARD SUPPORT [08.1988 - 08.1989] MA70 |
58415-14050 |
US $3.93 |
||
|
8379114200
|
8379114200
83791-14200 Clamp (For Speedometer Cable) |
83791-14200 |
US $5.24 |
||
|
9015960292
|
9015960292
90159-60292 New Genuine Part |
90159-60292 |
US $1.60 |
||
|
9015960310
|
9015960310
90159-60310 SCREW |
90159-60310 |
US $1.79 |
||
|
9018904002
|
9018904002
90189-04002 GROMMET |
90189-04002 |
from US $2.15 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
from US $1.07 |
||
|
9095001005
|
9095001005
90950-01005
PLUGHOLE
|
90950-01005 |
— | ||
| replacement | |||||
|
9095001005
|
9095001005
90950-01867 PLUG HOLE |
90950-01867 |
from US $2.42 |
||
|
9095001050
|
9095001050
90950-01050
New Genuine Part
|
90950-01050 |
— | ||
|
9095001061
|
9095001061
90950-01061
Plug, Hole, No.3(For Dash Panel)
|
90950-01061 |
— | ||
| replacement | |||||
|
9095001061
|
9095001061
90950-01872 Plug, Hole, No.3(For Dash Panel) |
90950-01872 |
from US $2.29 |
||
|
9095001066
|
9095001066
90950-01066 New Genuine Part |
90950-01066 |
US $4.66 |
||
|
9095001356
|
9095001356
90950-01356
New Genuine Part
|
90950-01356 |
— | ||
| replacement | |||||
|
9095001356
|
9095001356
90950-01976 New Genuine Part |
90950-01976 |
US $1.79 |
||
|
9095001493
|
9095001493
90950-01493
New Genuine Part
|
90950-01493 |
— | ||
|
9095001526
|
9095001526
90950-01526 Plug, Hole(For Heater Control Cable Hole) |
90950-01526 |
US $2.62 |
||
|
9095001540
|
9095001540
90950-01540 New Genuine Part |
90950-01540 |
US $2.48 |
||
|
9095001575
|
9095001575
90950-01575
New Genuine Part
|
90950-01575 |
— | ||
|
9354014010
|
9354014010
93540-14010 Clip, Headlining Retainer |
93540-14010 |
from US $0.92 |
||
