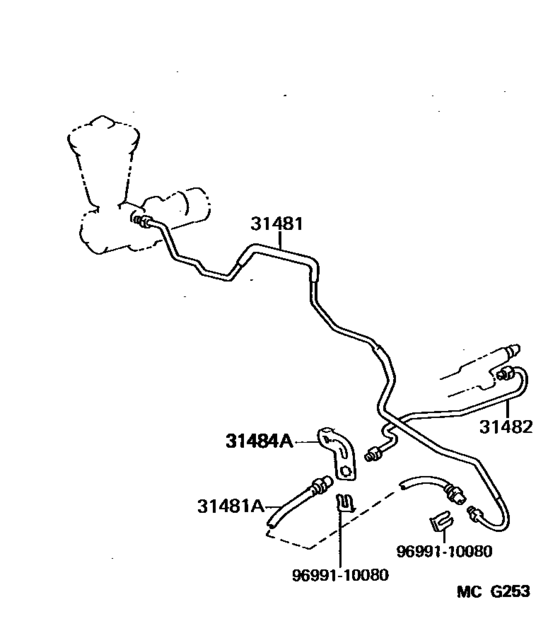

Clutch Pedal & Flexible Hose ([08.1988 - ] (8808- )5F..TWT) Diagram Toyota SUPRA
- Year
- 1988 - 1993
- Sales region
- General
- Frame
- MA70
- body
- SPR
- ENGINE
- 7MGTE
- TRANSMISSION
- MTM
- DESTINATION
- C
- Model
- SUPRA 70
- From
- 08.1988
- To
- 05.1993
- Gear Shift Type
- 5F
- Vehicle Model
- SUPRA
- Driver's Position
- LHD
- Fuel Induction
- TWT
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31481
|
31481
31481-14190
Tube, Clutch Master Cylinder To Flexible Hose
[08.1988 - 08.1990] MA70..LHD..5F |
31481-14190 |
— | ||
|
31481
|
31481
31481-14230
Tube, Clutch Master Cylinder To Flexible Hose
[08.1990 - 05.1993] MA70..LHD..5F |
31481-14230 |
— | ||
|
31481A
|
31481A
96816-50230 Hose, Clutch, No.1[08.1988 - 05.1993] MA70..5F..TWT |
96816-50230 |
US $23.76 |
||
|
31482
|
31482
31482-14030
Tube, Clutch Release Cylinder To Flexible Hose
[08.1988 - 05.1993] MA70..5F..TWT |
31482-14030 |
— | ||
|
31484A
|
31484A
31484-14070
Bracket, Flexible Hose(For Clutch)
[08.1988 - 05.1993] MA70..5F..TWT |
31484-14070 |
— | ||
|
9699110080
|
9699110080
96991-10080 CLIP |
96991-10080 |
from US $1.19 |
