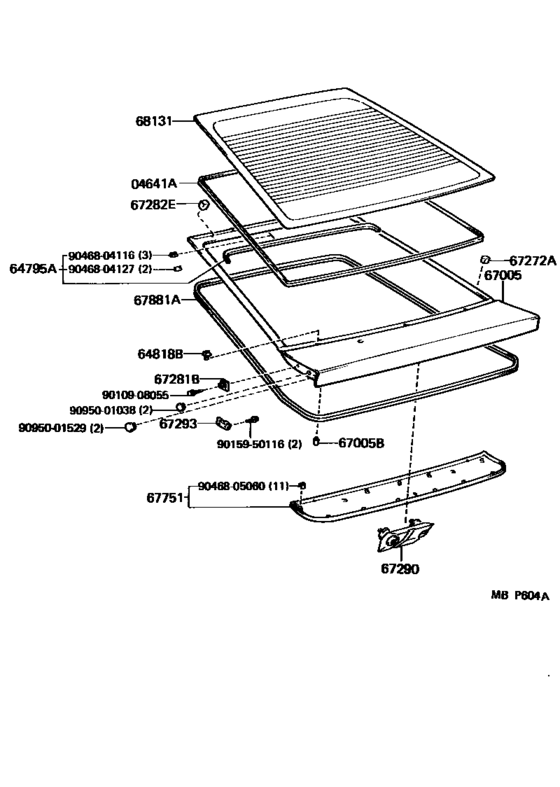

Back Door Panel & Glass ([08.1988 - ] (8808- )) Diagram Toyota SUPRA
- Year
- 1989 - 1990
- Sales region
- General
- Frame
- MA70
- body
- LB
- ENGINE
- 7MGE
- TRANSMISSION
- MTM
- DESTINATION
- C
- Model
- SUPRA 70
- From
- 08.1989
- To
- 08.1990
- Gear Shift Type
- 5F
- Vehicle Model
- SUPRA
- Driver's Position
- LHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04641A
|
04641A
04562-30040 Dam Kit, Windshield Glass[08.1988 - 05.1993] MA70 |
04562-30040 |
US $36.33 |
||
|
64795A
|
64795A
64795-14020
Trim, Back Window Opening
[08.1988 - 05.1993] MA70 |
64795-14020 |
— | ||
|
64818B
|
64818B
64818-14010
Spacer, Back Door Glass, No.1
[08.1988 - 04.1990] MA70 |
64818-14010 |
— | ||
| replacement | |||||
|
64818B
|
64818B
64818-14011 Spacer, Back Door Glass, No.1[08.1988 - 04.1990] MA70 |
64818-14011 |
US $3.84 |
||
|
64818B
|
64818B
64818-14011 Spacer, Back Door Glass, No.1[04.1990 - 05.1993] MA70 |
64818-14011 |
US $3.84 |
||
|
67005
|
67005
67005-14312 Panel Sub-Assy, Back Door[08.1988 - 08.1990] MA70..LHD..C;MA70..RHD..TWT..C;MA70..ARL,EUR,GEN,V |
67005-14312 |
US $943.49 |
||
|
67005
|
67005
67005-14621
Panel Sub-Assy, Back Door
[08.1988 - 08.1990] MA70..ARL W(REAR SPOILER); MA70..LHD..C;MA70..EUR,GEN,V;MA70..RHD..TWT..C W(REAR SPOILER) |
67005-14621 |
— | ||
|
67005B
|
67005B
90541-09047 Cushion(For Back Door Panel)[08.1988 - 05.1993] MA70 |
90541-09047 |
US $3.04 |
||
|
67272A
|
67272A
67272-14010
Cushion, Back Door Stopper, No.2
[08.1988 - 05.1993] MA70 |
67272-14010 |
— | ||
|
67281B
|
67281B
67281-14040
Stopper, Back Door, Lower
[08.1988 - 05.1993] MA70 |
67281-14040 |
— | ||
|
67282E
|
67282E
67282-14010
Cushion, Back Door Stopper, No.3
[08.1988 - 05.1993] MA70 |
67282-14010 |
— | ||
|
67290
|
67290
67290-14010 Damper Assy, Back DoorBACK DOOR [08.1988 - 05.1993] MA70..LHD..(C,EUR) |
67290-14010 |
US $75.71 |
||
|
67293
|
67293
67293-14030 Cushion, Back Door Lower Stopper[08.1988 - 05.1993] MA70 |
67293-14030 |
from US $11.84 |
||
|
67751
|
67751
64781-14061-03
Board, Back Door Trim
[08.1988 - 08.1990] MA70..C,EUR,GEN,V MEDIUM GRAY,TRIM1# |
64781-14061-03 |
— | ||
|
67751
|
67751
64781-14061-04 Board, Back Door Trim[08.1988 - 05.1993] MA70..C,EUR,GEN,V DEEP BLUE,TRIM8#; MA70..ARL W(REAR SPOILER),DEEP BLUE,TRIM8# |
64781-14061-04 |
US $126.67 |
||
|
67751
|
67751
64781-14061-06
Board, Back Door Trim
[08.1989 - 08.1990] MA70..C,GEN,V BROWN,TRIM4#; MA70..ARL W(REAR SPOILER),BROWN,TRIM4# |
64781-14061-06 |
— | ||
|
67881A
|
67881A
67881-14110 Weatherstrip, Back Door[08.1988 - 05.1993] MA70 |
67881-14110 |
US $115.44 |
||
|
68131
|
68131
68131-14181
Glass, Back Door
[08.1988 - 05.1993] MA70..ARL,GEN,V;MA70..LHD..(C,EUR) *EHTT,T=4.0 |
68131-14181 |
— | ||
|
68131
|
68131
68131-14191 Glass, Back DoorBACK DOOR [08.1988 - 05.1993] MA70..RHD..(C,EUR) *EHTT,T=4.0; MA70..LHD..(C,EUR) *EHTT,T=4.0,COLD SPEC |
68131-14191 |
US $1,410.86 |
||
|
9010908055
|
9010908055
90109-08055 BOLT |
90109-08055 |
US $5.92 |
||
|
9015950116
|
9015950116
90159-50116 SCREW |
90159-50116 |
US $2.08 |
||
|
9046804116
|
9046804116
90468-04116 New Genuine Part |
90468-04116 |
US $1.60 |
||
|
9046804127
|
9046804127
90468-04127 New Genuine Part |
90468-04127 |
US $1.60 |
||
|
9046805060
|
9046805060
90468-05060 Clip |
90468-05060 |
from US $0.92 |
||
|
9095001038
|
9095001038
90950-01038 Plug, Hole(For Instrument Lower Panel) |
90950-01038 |
US $4.32 |
||
|
9095001529
|
9095001529
90950-01529 New Genuine Part |
90950-01529 |
US $5.53 |
||
