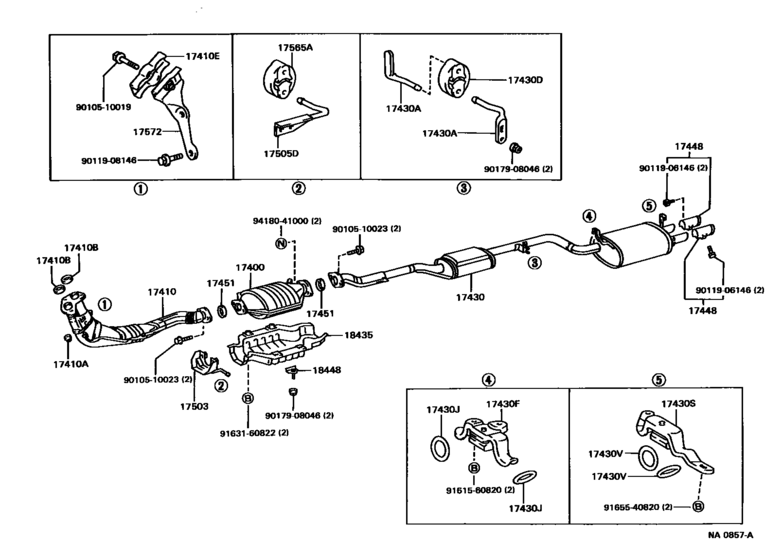

Exhaust Pipe ([08.1988 - ] (8808- )7MGE..ARL,C) Diagram Toyota SUPRA
- Year
- 1989 - 1990
- Sales region
- General
- Frame
- MA70
- body
- LB
- ENGINE
- 7MGE
- TRANSMISSION
- MTM
- DESTINATION
- C
- Model
- SUPRA 70
- From
- 08.1989
- To
- 08.1990
- Gear Shift Type
- 5F
- Vehicle Model
- SUPRA
- Driver's Position
- LHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17400
|
17400
18450-42130 Converter Assy, W/catalystW/CATALYST [08.1989 - 05.1993] 7MGE..MA70..C |
18450-42130 |
US $1,732.64 |
||
|
17410
|
17410
17410-42040
Pipe Assy, Exhaust, Front
[08.1988 - 01.1990] 7MGE..MA70..ARL,C |
17410-42040 |
— | ||
| replacement | |||||
|
17410
|
17410
17410-42041
Pipe Assy, Exhaust, Front
[08.1988 - 01.1990] 7MGE..MA70..ARL,C |
17410-42041 |
— | ||
|
17410
|
17410
17410-42041
Pipe Assy, Exhaust, Front
[01.1990 - 05.1993] 7MGE..MA70..C |
17410-42041 |
— | ||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[08.1988 - 05.1993] 7MG#..MA70 |
90179-10070 |
from US $1.54 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[08.1988 - 05.1993] 7MG#..MA70 |
90080-17187 |
US $33.80 |
||
|
17410B
|
17410B
90917-06039 Gasket, Exhaust Pipe[08.1988 - 05.1993] 7MGE..MA70 |
90917-06039 |
from US $2.36 |
||
|
17410E
|
17410E
90917-04060 Clamp No.1, Exhaust Pipe Front (For Front)[08.1989 - 10.1989] 7MGE..MA70..C |
90917-04060 |
US $9.90 |
||
|
17430
|
17430
17430-42210 Pipe Assy, Exhaust, TailEXHAUST, TAIL [08.1989 - 05.1993] 7MGE..MA70..C |
17430-42210 |
US $693.06 |
||
|
17430A
|
17430A
17561-70020
Bracket, Exhaust Tail Pipe(For Front)
[08.1988 - 05.1993] 7MG#..MA70 LWR |
17561-70020 |
— | ||
|
17430A
|
17430A
17572-70030
Bracket, Exhaust Tail Pipe(For Front)
[08.1988 - 05.1993] 7MG#..MA70 UPR |
17572-70030 |
— | ||
|
17430D
|
17430D
17565-16020 Bolt Or Ring, Exhaust Pipe Front (For Front)[08.1988 - 01.1991] 7MG#..MA70 |
17565-16020 |
US $16.95 |
||
|
17430F
|
17430F
17508-13010
Bracket, Exhaust Tail Pipe(For Center)
[08.1988 - 05.1993] 7MG#..MA70 |
17508-13010 |
— | ||
|
17430J
|
17430J
90301-36001 Bolt Or Ring, Exhaust Pipe Front (For Rear)[08.1988 - 05.1993] 7MG#..MA70 |
90301-36001 |
from US $5.13 |
||
|
17430S
|
17430S
17508-26100
Bracket, Exhaust Tail Pipe (For Rear)
[08.1988 - 05.1993] 7MG#..MA70 |
17508-26100 |
— | ||
|
17430V
|
17430V
90301-36001 Bolt Or Ring, Exhaust Pipe Front (For Rear)[08.1988 - 05.1993] 7MG#..MA70 |
90301-36001 |
from US $5.13 |
||
|
17448
|
17448
17448-79015 Baffle, Tail Pipe[08.1988 - 05.1993] 7MG#..MA70 |
17448-79015 |
US $53.99 |
||
|
17451
|
17451
90917-06043
Gasket, Exhaust Pipe
[08.1988 - 05.1993] 7MG#..MA70..ARL,C FRONT |
90917-06043 |
— | ||
| replacement | |||||
|
17451
|
17451
17451-52060 GASKET, EXHAUST PIPE[08.1988 - 05.1993] 7MG#..MA70..ARL,C FRONT |
17451-52060 |
from US $5.48 |
||
|
17451
|
17451
90917-06054 Gasket, Exhaust Pipe[08.1988 - 12.1990] 7MGE..MA70..EUR,GEN,V; 7MG#..MA70..ARL,C REAR |
90917-06054 |
from US $4.23 |
||
|
17503
|
17503
17503-70121
Bracket Sub-Assy, Catalytic Converter, Rear
[08.1989 - 05.1993] 7MGE..MA70..5F..C |
17503-70121 |
— | ||
|
17505D
|
17505D
17505-42010 Bracket Sub-Assy, Converter Support, Lh[08.1988 - 05.1993] 7MG#..MA70..ARL,C |
17505-42010 |
US $23 |
||
|
17565A
|
17565A
17565-16020 Bolt Or Ring, Exhaust Pipe Front (For Front)[08.1988 - 01.1991] 7MG#..MA70..ARL,C |
17565-16020 |
US $16.95 |
||
|
17572
|
17572
17571-42070
Bracket, Exhaust Pipe Front (For Front)
[08.1989 - 10.1989] 7MGE..MA70..C |
17571-42070 |
— | ||
|
9010510019
|
9010510019
90105-10019 Bolt Or Ring, Exhaust Pipe Front (For Front) |
90105-10019 |
from US $2.36 |
||
|
9010510023
|
9010510023
90105-10023 Bolt |
90105-10023 |
US $2.72 |
||
| replacement | |||||
|
9010510023
|
9010510023
91512-81035 BOLT |
91512-81035 |
from US $1.01 |
||
|
9011906146
|
9011906146
90119-06146 New Genuine Part |
90119-06146 |
US $1.02 |
||
|
9011908146
|
9011908146
90119-08146
Bolt(For Parking Brake Setting)
|
90119-08146 |
— | ||
|
9017908046
|
9017908046
90179-08046 New Genuine Part |
90179-08046 |
US $3.20 |
||
|
9161560820
|
9161560820
91615-60820
Bolt (For Transmission Control Cable Bracket)
|
91615-60820 |
— | ||
| replacement | |||||
|
9161560820
|
9161560820
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9163160822
|
9163160822
91631-60822 BOLT |
91631-60822 |
US $1.12 |
||
|
9165540820
|
9165540820
91655-40820
New Genuine Part
|
91655-40820 |
— | ||
| replacement | |||||
|
9165540820
|
9165540820
91653-40820 BOLT, W/WASHER |
91653-40820 |
US $1.76 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.42 |
||
