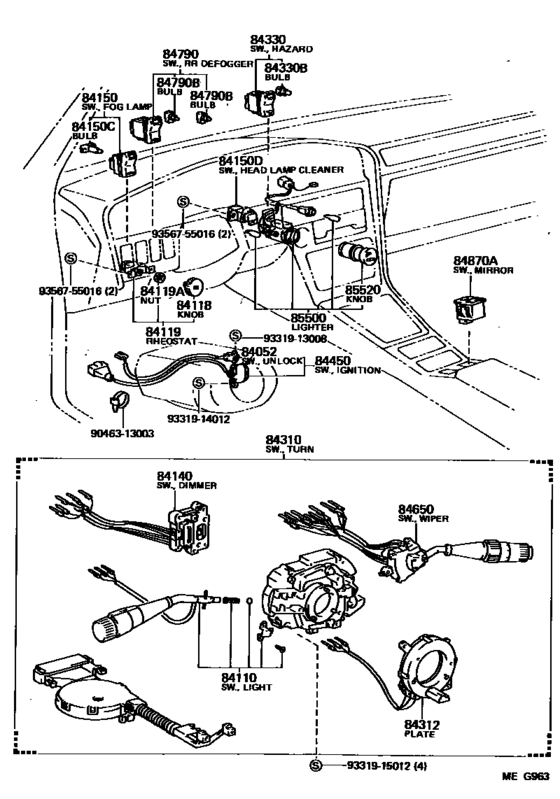

Switch & Relay & Computer ([01.1986 - ] (8601- )) Diagram Toyota SUPRA
- Year
- 1986 - 1988
- Sales region
- U.S.A.
- Frame
- MA70
- body
- LB
- ENGINE
- 7MGE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- SUPRA 70
- From
- 01.1986
- To
- 08.1988
- Gear Shift Type
- 4FC
- Vehicle Model
- SUPRA
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84052
|
84052
84052-10020 Switch Assy, Un-Lock Warning[01.1986 - 08.1988] MA70 |
84052-10020 |
US $29.99 |
||
| replacement | |||||
|
84052
|
84052
84052-22030
Switch Assy, Un-Lock Warning
[01.1986 - 08.1988] MA70 |
84052-22030 |
— | ||
|
84110
|
84110
84112-19775
Switch Assy, Light Control, No.1
[01.1986 - 08.1988] MA70 |
84112-19775 |
— | ||
|
84118
|
84118
84118-14030 Knob, Light Control Rheostat[01.1986 - 08.1988] MA70 |
84118-14030 |
US $12.67 |
||
|
84119
|
84119
84119-14100 Rheostat, Light ControlLIGHT CONTROL [01.1986 - 08.1988] MA70 |
84119-14100 |
US $125.22 |
||
| replacement | |||||
|
84119
|
84119
84119-14150 Rheostat, Light ControlLIGHT CONTROL [01.1986 - 08.1988] MA70 |
84119-14150 |
US $125.22 |
||
|
84119A
|
84119A
90170-09167
Nut, Tunnel Mode Select Switch
[01.1986 - 08.1988] MA70 |
90170-09167 |
— | ||
|
84140
|
84140
84140-20220
Switch Assy, Headlamp Dimmer
[01.1986 - 08.1988] MA70 |
84140-20220 |
— | ||
|
84150
|
84150
84160-14060 Switch Assy, Fog Lamp[01.1986 - 01.1987] MA70 |
84160-14060 |
US $60.57 |
||
| replacement | |||||
|
84150
|
84150
84160-14080 Switch Assy, Fog Lamp[01.1986 - 01.1987] MA70 |
84160-14080 |
US $71.78 |
||
|
84150
|
84150
84160-14080 Switch Assy, Fog Lamp[01.1987 - 08.1988] MA70 |
84160-14080 |
US $71.78 |
||
|
84150C
|
84150C
84999-10120 Bulb, Fog Lamp Switch[01.1986 - 08.1988] MA70 |
84999-10120 |
US $6.81 |
||
|
84150D
|
84150D
84150-14010 Switch Assy, Headlamp CleanerHEADLAMP CLEANER [01.1986 - 08.1988] MA70 |
84150-14010 |
US $56.93 |
||
|
84310
|
84310
84310-14820
Switch Assy, Turn Signal
[01.1986 - 08.1988] MA70 |
84310-14820 |
— | ||
|
84312
|
84312
84315-14040 Plate, Horn ContactHORN CONTACT [01.1986 - 08.1988] MA70 |
84315-14040 |
US $78.62 |
||
|
84330
|
84330
84332-14140 Switch Assy, Hazard Warning Signal[01.1986 - 08.1988] MA70 |
84332-14140 |
US $45.86 |
||
| replacement | |||||
|
84330
|
84330
84332-14141 Switch Assy, Hazard Warning Signal[01.1986 - 08.1988] MA70 |
84332-14141 |
US $57.08 |
||
|
84330B
|
84330B
84999-10110 Bulb, Indicator Lamp[01.1986 - 08.1988] MA70 12V 1.12W |
84999-10110 |
US $8.06 |
||
|
84450
|
84450
84450-14060
Switch Assy, Ignition Or Starter
[01.1986 - 08.1988] MA70 |
84450-14060 |
— | ||
| replacements | |||||
|
84450
|
84450
84052-22030
Switch Assy, Un-Lock Warning
[01.1986 - 08.1988] MA70 |
84052-22030 |
— | ||
|
84450
|
84450
84450-27100
Switch Assy, Ignition Or Starter
[01.1986 - 08.1988] MA70 |
84450-27100 |
— | ||
|
84650
|
84650
84652-14370
Switch Assy, Windshield Wiper
[01.1986 - 08.1988] MA70 |
84652-14370 |
— | ||
|
84790
|
84790
84790-14210 Switch Assy, Rear Window Defogger[01.1986 - 01.1987] MA70 |
84790-14210 |
US $145.60 |
||
| replacement | |||||
|
84790
|
84790
84790-87001 Switch Assy, Rear Window Defogger[01.1986 - 01.1987] MA70 |
84790-87001 |
US $142.69 |
||
|
84790
|
84790
84790-14230 Switch Assy, Rear Window Defogger[01.1987 - 08.1988] MA70 |
84790-14230 |
US $145.60 |
||
| replacement | |||||
|
84790
|
84790
84790-87001 Switch Assy, Rear Window Defogger[01.1987 - 08.1988] MA70 |
84790-87001 |
US $142.69 |
||
|
84790B
|
84790B
84999-10200 Bulb(For Cruise Control Switch)[01.1986 - 08.1988] MA70 14V 0.56W |
84999-10200 |
US $5.10 |
||
|
84870A
|
84870A
84870-20050 Switch Assy, Outer Mirror[01.1986 - 08.1988] MA70 |
84870-20050 |
US $103.32 |
||
| replacement | |||||
|
84870A
|
84870A
84870-20050-C0 Switch Assy, Outer Mirror[01.1986 - 08.1988] MA70 |
84870-20050-C0 |
from US $103.32 |
||
|
85500
|
85500
85500-14140 Lighter Assy, CigaretteCIGARETTE [01.1986 - 08.1988] MA70 |
85500-14140 |
US $81.54 |
||
| replacement | |||||
|
85500
|
85500
85500-14141
Lighter Assy, Cigarette
[01.1986 - 08.1988] MA70 |
85500-14141 |
— | ||
|
85520
|
85520
85520-14030 Knob And Element Assy, Cigarette Lighter[01.1986 - 08.1988] MA70 |
85520-14030 |
US $32.61 |
||
| replacement | |||||
|
85520
|
85520
85520-17020 Knob And Element Assy, Cigarette Lighter[01.1986 - 08.1988] MA70 |
85520-17020 |
from US $21.12 |
||
|
9046313003
|
9046313003
90463-13003 Clamp, Hood Lock Control Wire |
90463-13003 |
US $3.23 |
||
|
9331913008
|
9331913008
93319-13008 New Genuine Part |
93319-13008 |
US $0.73 |
||
|
9331914012
|
9331914012
93319-14012 New Genuine Part |
93319-14012 |
US $1.25 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.25 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.51 |
||
