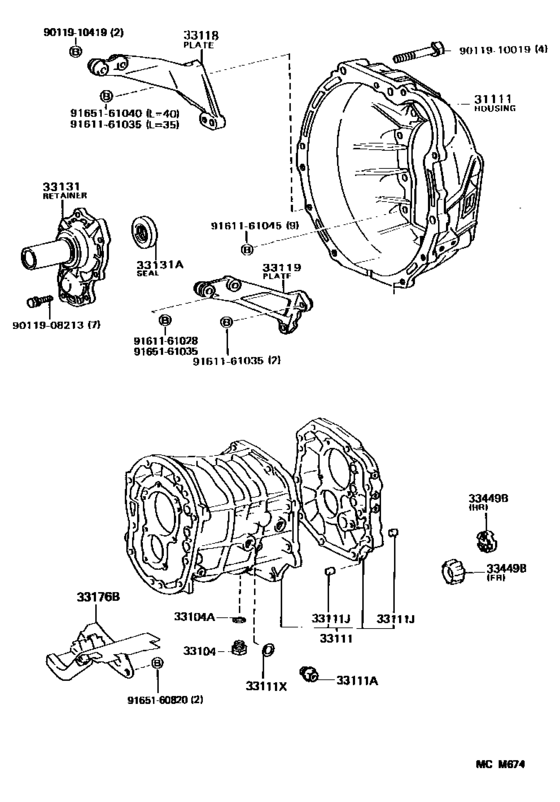

Clutch Housing & Transmission Case (Mtm) ([11.1991 - ] W5# (9111- )5F..TWC) Diagram Toyota SUPRA
- Year
- 1989 - 1993
- Sales region
- Europe
- Frame
- MA70
- body
- LB
- ENGINE
- 7MGE
- TRANSMISSION
- MTM
- DESTINATION
- C
- Model
- SUPRA 70
- From
- 08.1989
- To
- 05.1993
- Gear Shift Type
- 5F
- Vehicle Model
- SUPRA
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31111
|
31111
31111-22091
Housing, Clutch
[08.1988 - 05.1993] MA70..5F..TWC |
31111-22091 |
— | ||
|
33104
|
33104
90341-18057 Drain Plug (with Magnet)[08.1988 - 05.1993] MA70..5F..TWC |
90341-18057 |
from US $6.27 |
||
|
33104A
|
33104A
90430-18008 Gasket[08.1988 - 05.1993] MA70..5F |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
33104A
|
33104A
90430-T0021 Gasket(For Manual Transmission Filler Plug)[08.1988 - 05.1993] MA70..5F |
90430-T0021 |
US $1.01 |
||
|
33111
|
33111
33101-22032 Case, Manual Transmission[04.1989 - 08.1991] MA70..5F..TWC |
33101-22032 |
US $631.90 |
||
| replacements | |||||
|
33111
|
33111
33101-30070 Case, Manual Transmission[04.1989 - 08.1991] MA70..5F..TWC |
33101-30070 |
US $624.62 |
||
|
33111
|
33111
33242-30080 Shaft, Gear Shift Fork, No.1[04.1989 - 08.1991] MA70..5F..TWC |
33242-30080 |
US $56.78 |
||
|
33111
|
33111
33101-30070 Case, Manual Transmission[08.1991 - 05.1993] MA70..5F..TWC |
33101-30070 |
US $624.62 |
||
|
33111A
|
33111A
90341-18002 Plug, No.1[08.1988 - 05.1993] MA70..5F..TWC |
90341-18002 |
from US $3.59 |
||
|
33111J
|
33111J
90250-12002 Pin, Straight(For Manual Transmission Case)[08.1988 - 05.1993] MA70..5F..TWC L=16,OD=12 |
90250-12002 |
from US $1.27 |
||
|
33111X
|
33111X
90430-18008 Gasket[08.1988 - 05.1993] MA70..5F..TWC |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
33111X
|
33111X
90430-T0021 Gasket(For Manual Transmission Filler Plug)[08.1988 - 05.1993] MA70..5F..TWC |
90430-T0021 |
US $1.01 |
||
|
33118
|
33118
33118-14051 Plate, Stiffener, Rh(Mtm)[11.1988 - 05.1993] MA70..5F |
33118-14051 |
US $46.01 |
||
|
33119
|
33119
33119-22030 Plate, Stiffener, Lh(Mtm)[08.1988 - 05.1993] MA70..5F..TWC |
33119-22030 |
US $52.71 |
||
|
33131
|
33131
33131-22021 Retainer, Bearing, Front(Mtm)[08.1988 - 10.1991] MA70..5F..TWC |
33131-22021 |
US $64.79 |
||
|
33131
|
33131
33131-30080 Retainer, Bearing, Front(Mtm)[10.1991 - 05.1993] MA70..5F..TWC |
33131-30080 |
US $61.85 |
||
|
33131A
|
33131A
90311-30014 Seal, Oil(For Transmission Front Bearing Retainer)[10.1991 - 05.1993] MA70..5F..TWC |
90311-30014 |
from US $5.38 |
||
|
33131A
|
33131A
90311-30115 Seal, Oil(For Transmission Front Bearing Retainer)[08.1988 - 10.1991] MA70..5F..TWC |
90311-30115 |
from US $3.94 |
||
|
33176B
|
33176B
33176-30020
Separator, Transmission Oil(Mtm)
[10.1991 - 05.1993] MA70..5F..TWC |
33176-30020 |
— | ||
|
33449B
|
33449B
33449-30010 Magnet, Transmission[10.1991 - 05.1993] MA70..5F..TWC RR |
33449-30010 |
US $4.80 |
||
|
33449B
|
33449B
33449-30020 Magnet, Transmission[10.1991 - 05.1993] MA70..5F..TWC FR |
33449-30020 |
US $3.20 |
||
|
9011908213
|
9011908213
90119-08213 Bolt, W/washer(For Transmission Case Cover) |
90119-08213 |
US $3.23 |
||
|
9011910019
|
9011910019
90119-10019 Bolt(For Transmission Case & Engine Setting) |
90119-10019 |
US $5.02 |
||
|
9011910419
|
9011910419
90119-10419
New Genuine Part
|
90119-10419 |
— | ||
| replacement | |||||
|
9011910419
|
9011910419
91612-G1040
New Genuine Part
|
91612-G1040 |
— | ||
|
9161161028
|
9161161028
91611-61028
Bolt(For Transaxle Case & Engine Setting)
|
91611-61028 |
— | ||
| replacement | |||||
|
9161161028
|
9161161028
91612-61028 Bolt(For Transaxle Case & Engine Setting) |
91612-61028 |
US $3.05 |
||
|
9161161035
|
9161161035
91611-61035
BOLT
|
91611-61035 |
— | ||
| replacement | |||||
|
9161161035
|
9161161035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.13 |
||
|
9161161045
|
9161161045
91611-61045
Bolt, Hexagon(For Idle Gear Bolt Lock)
|
91611-61045 |
— | ||
| replacement | |||||
|
9161161045
|
9161161045
91612-61045 Bolt(For Transaxle & Engine Setting) |
91612-61045 |
from US $1.15 |
||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.99 |
||
|
9165161035
|
9165161035
91651-61035 BOLT |
91651-61035 |
US $3.58 |
||
|
9165161040
|
9165161040
91651-61040 Bolt (For Transfer Case) |
91651-61040 |
US $2.15 |
||
